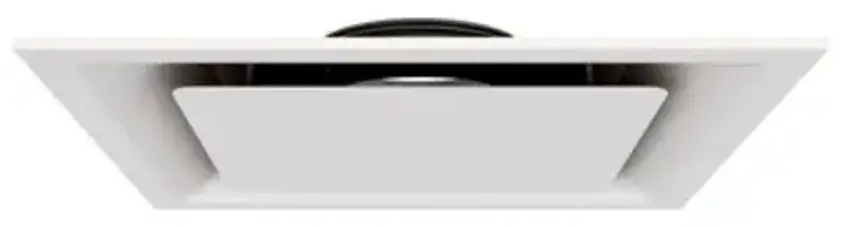

LKP (-P) Square Air Diffuser
Instruction Manual
LCP Ceiling diffusers suitable for Pascal
Symbols
 | 2 x sensor |
 | Presence sensor |
 | Temperature sensor |

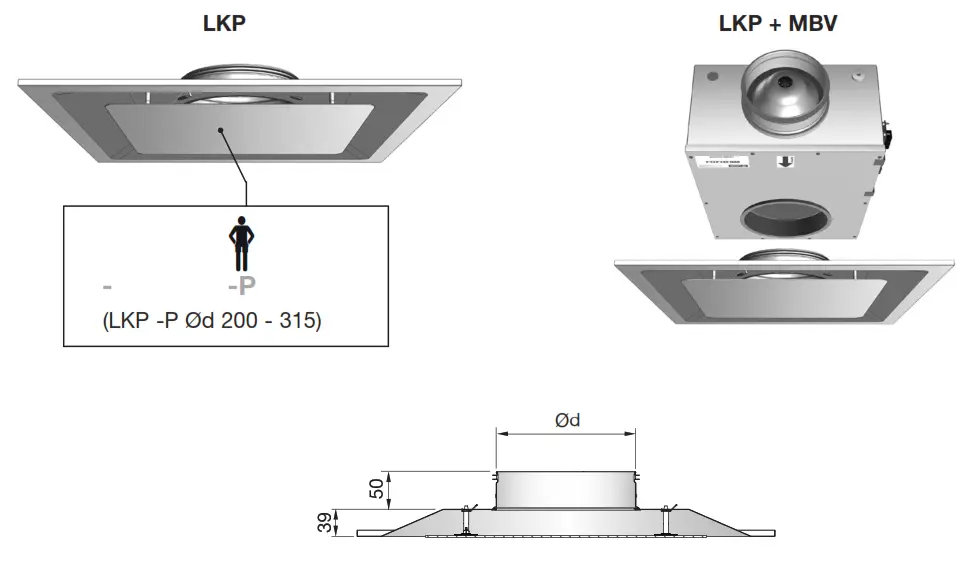

Measure/weight
| Ød mm | kg |
| 125 | 3.2 |
| 160 | 3.2 |
| 200 | 3.3 |
| 250 | 3.4 |
| 315 | 3.5 |
Upper part adapted to the ceiling system

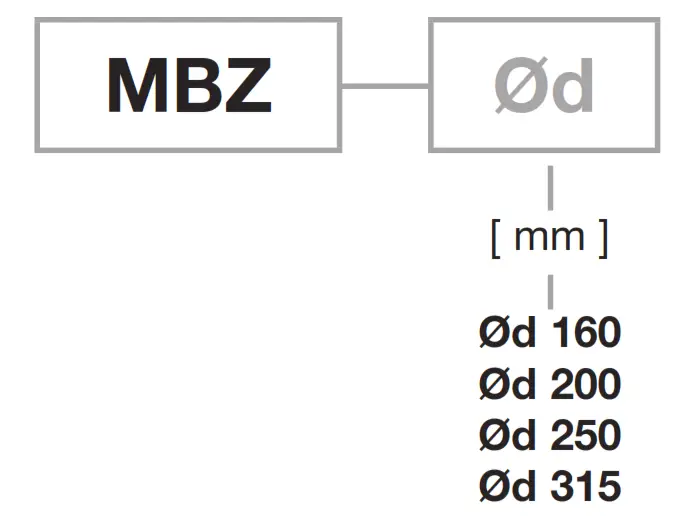

Order code

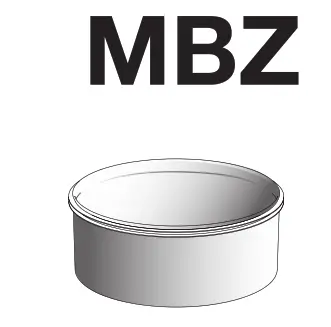

Optional accessories
Extension piece
Order code
MBV

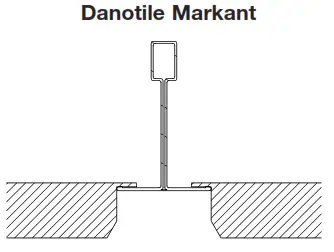

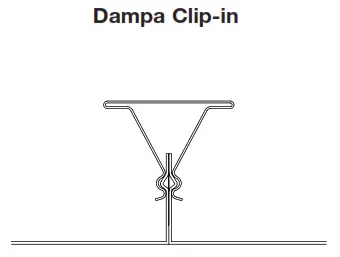

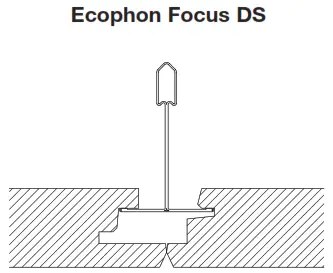

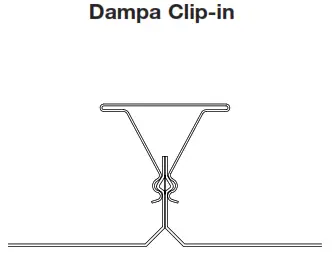

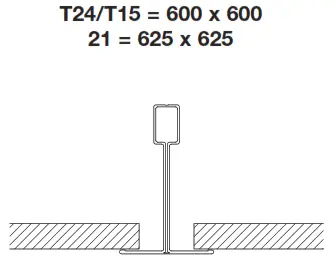

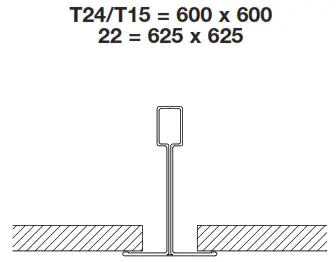

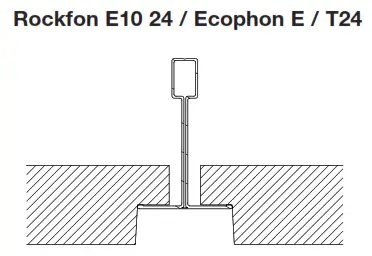

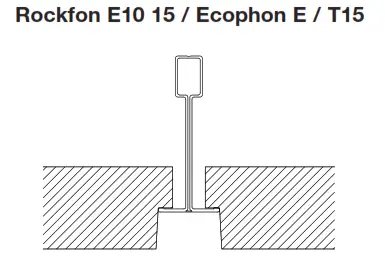

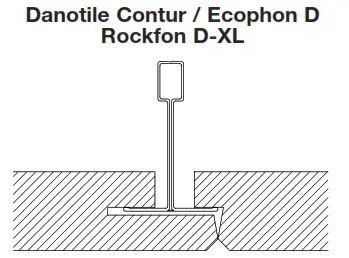

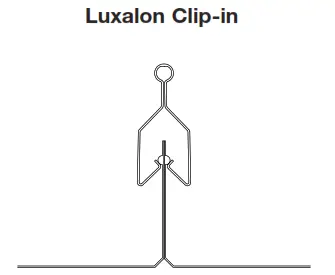

Ceiling systems
1 | 7 |
2 | 8 |
3 | 9 |
4 | 10 |
5 | 11 |
6 | 12 |

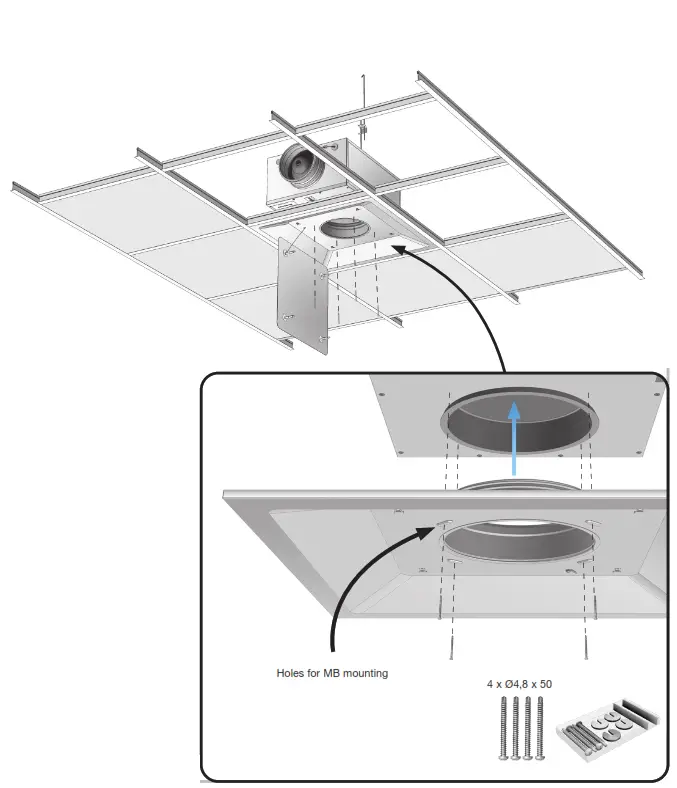

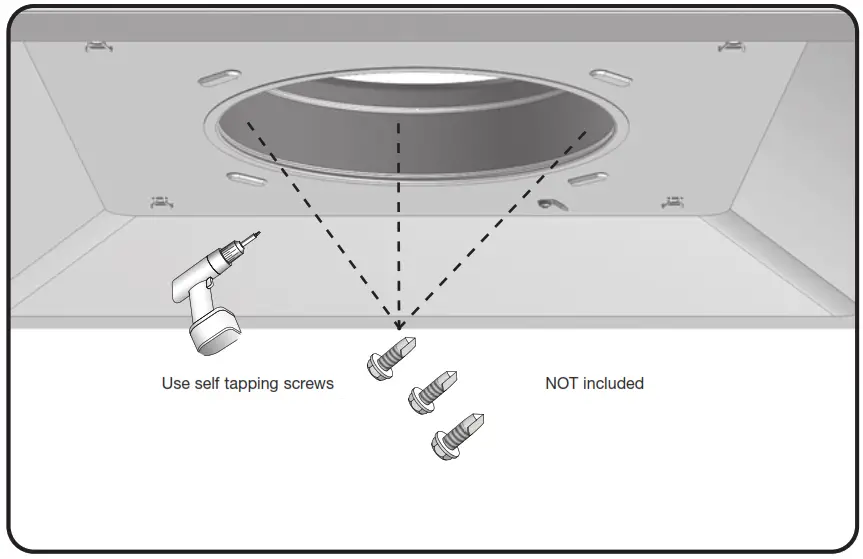

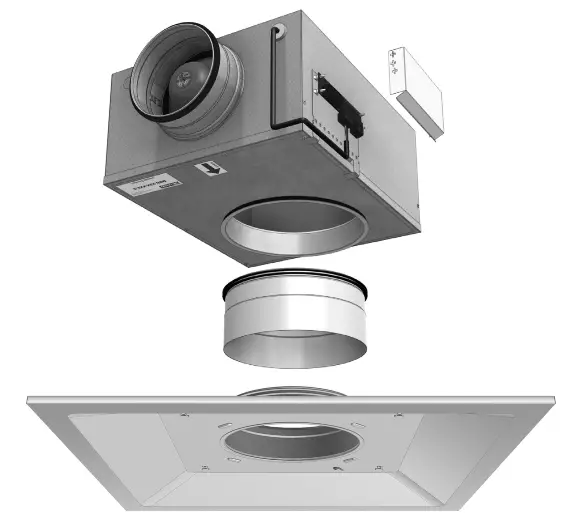

Installation of diffuser in MB

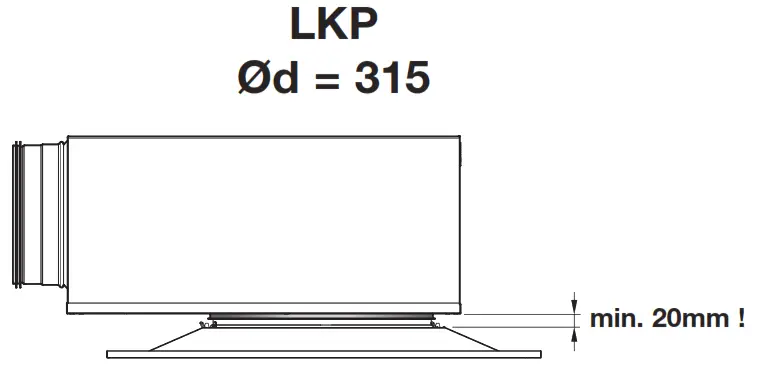

Ød 315!
NO holes for MB mounting on the diffuser!
Not used
