Airzone Cloud DFCUPx Square Diffuser with Plenum
Product Information

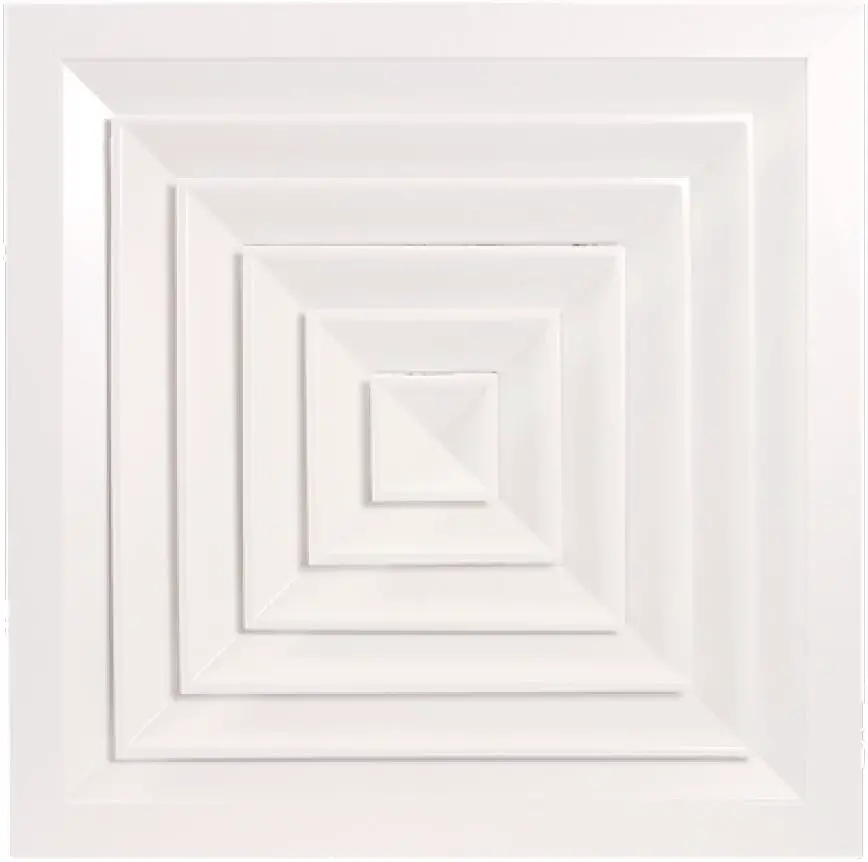

DFCUPx Airzone Square Diffuser with Plenum
The DFCUPx is a square diffuser that facilitates airflow supply in four directions. It comes with a plenum made from galvanized steel that has mechanical airflow regulation. The lateral connection is compatible with circular ducts.

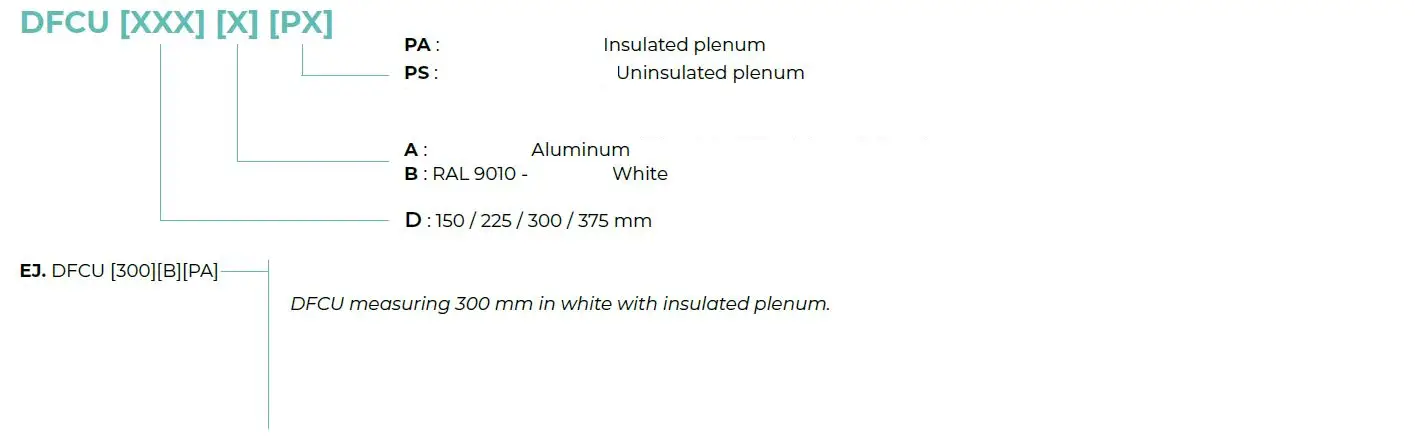

The diffuser is available in the following sizes:
- D: 150 mm
- D: 225 mm
- D: 300 mm
- D: 375 mm
The product is available in multiple languages, including Spanish, English, Portuguese, French, and Italian.
Product Usage Instructions
To install the DFCUPx airline square diffuser with plenum, follow these steps:

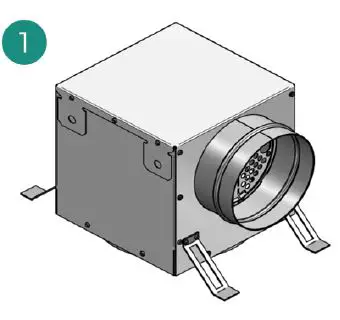

- Unfold the fixing tabs.
- Insert the threaded rod, fix it, and tighten it with a nut.
- Fix the diffuser to the plenum using the screw provided.
The product dimensions are as follows:
- L (mm): 175, 250, 325, 400
- H (mm): 191, 226, 266, 316
- X (mm): 125, 200, 275, 350
- Y (mm): 221, 296, 376, 446
- E (mm): 125, 160, 200, 250
- D (mm): 150, 225, 300, 350
When installing the DFCUPx in different languages, please refer to the user manual for instructions specific to your language of choice.
AIRZONE SQUARE DIFFUSER WITH PLENUM
DFCU square diffuser which facilitates airflow supply in 4 directions. Plenum made from galvanized steel with mechanical airflow regulation. Lateral connection for circular duct.
ACCESORIOS COMPATIBLES

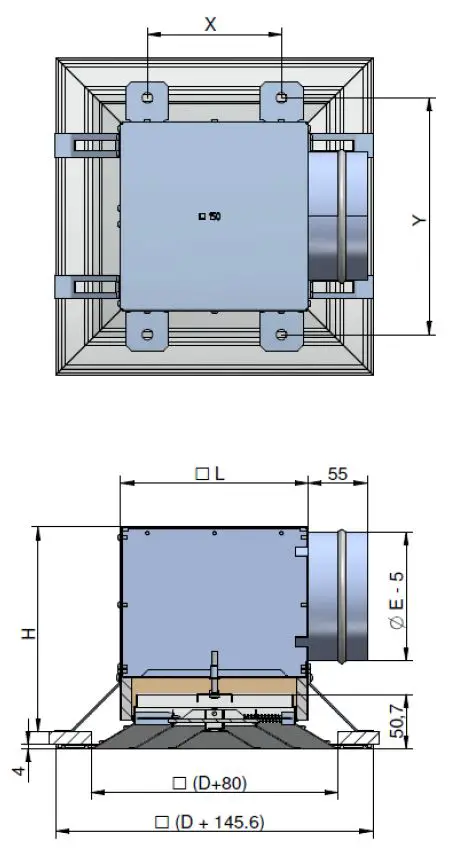

DIMENSIONS
| L (mm) | H (mm) | X (mm) | Y (mm) | E (mm) | D (mm) |
| 175 | 191 | 125 | 221 | 125 | 150 |
| 250 | 226 | 200 | 296 | 160 | 225 |
| 325 | 266 | 275 | 376 | 200 | 300 |
| 400 | 316 | 350 | 446 | 250 | 350 |
INSTALLATION
- Unfold the fixing tabs.

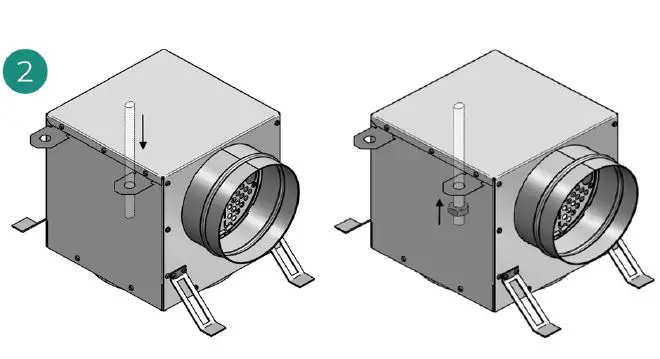

- Insert the threaded rod, fix it, and tighten it with a nut.

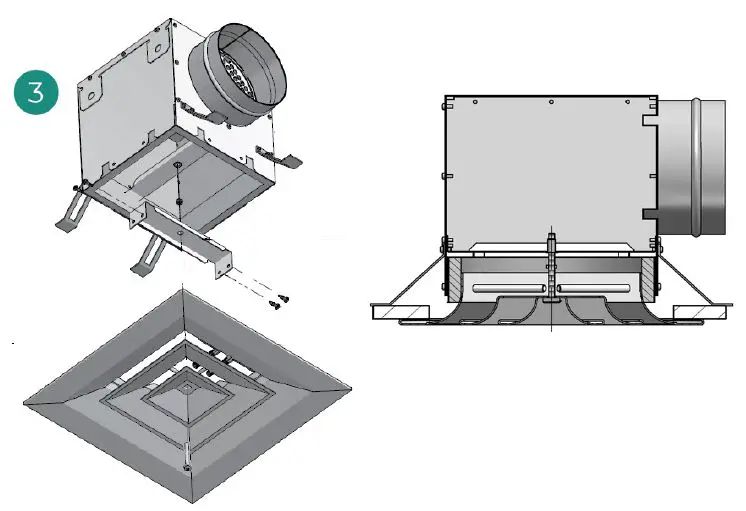

- Fix the diffuser to the plenum using the screw provided.
