sentiotec 1-053-080 Element Sauna User Manual
About this instruction manual
Read these installation and operating instructions carefully and keep them within reach of the infrared cabin. This ensures that you can refer to information on safety and operation at any time.
These installation and operating instructions can also be found in the downloads section of our website: www.sentiotec.com/downloads.
Important note:
- Before you begin work, check the parts list to ensure that all the individual parts have been delivered. If you discover any missing parts, notify your dealer within 14 days of receiving the sauna cabin.
- The room that the sauna is installed in must be dry and ensure an appropriate amount of air circulation.
- The floor must be level and even, preferably a stone or tiled floor.
- A minimum room height of 230 cm is required for the cabin installation work.
- A distance of at least 5 cm from the wall must be maintained.
- The inside of the wooden parts used must not be handled with any impregnating material.
- You need an assistant for the installation.
- Wood is a natural product that can swell, shrink or warp, despite good storage. For this reason, some force may be necessary during the installation.
All screw fittings must be pre-drilled.
Attention!
The electrical connection may only be performed by a qualified electrician or similarly qualified person.
Product description
Technical data
| Cabin material | Abachi |
| Cabin dimensions (L x W (depth) x H) | 1600 x 1600 x 2000 mm |
| Recommended heating output | 7,5 – 9 kW |

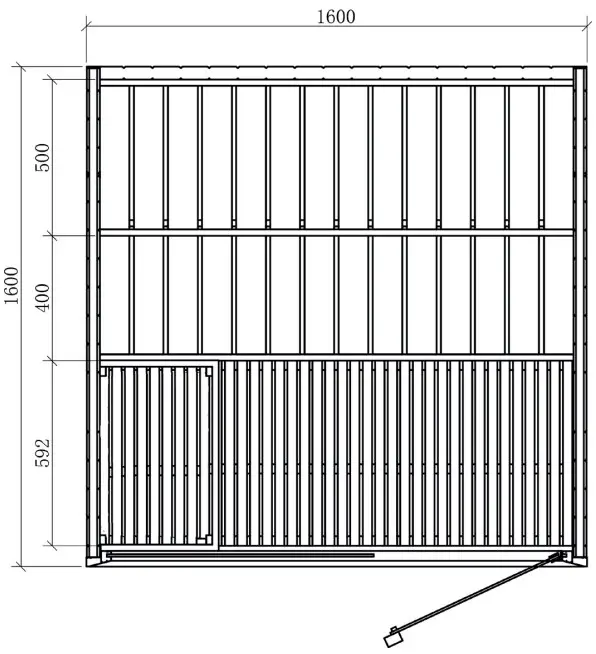

Floor plan

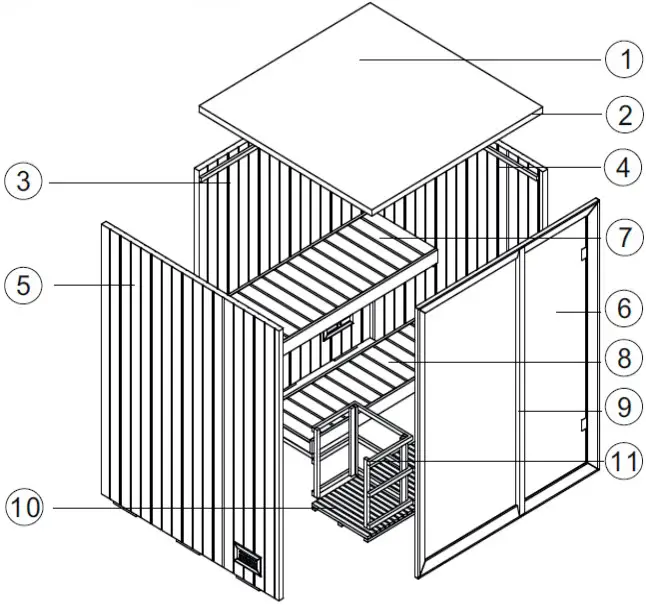

Scope of delivery
Parts list
| No. | NAME | DIMENSIONS | PIECES |
| 1 | Cover, roof element | 1504 x 1504 x 5 mm | 1 |
| 2 | Roof element | 1504 x 1504 x 63 mm | 1 |
| 3 | Rear wall | 1507 x 2000 x 56 mm | 1 |
| 4 | Right side wall | 1570 x 2000 x 46 mm | 1 |
| 5 | Left side wall | 1570 x 2000 x 46 mm | 1 |
| 6 | Glass front | 1600 x 2000 x 67 mm | 1 |
| 7 | Upper bench | 1505 x 500 x 95 mm | 2 |
| 8 | Lower bench | 1505 x 500 x 95 mm | 1 |
| 9 | Door handle | 1960 x 80 x 32 mm | 1 |
| 10 | Floor grid | 1505 x 650 x 60 mm | 1 |
| 11 | Heater protection grille | 580 x 420 x 500 mm | 1 |
| 12 | Sauna lamp | 1 | |
| 13 | Lamp protection grille | 1 |
Installation material
 |  |  |
| Φ 4 x 35 | Φ 4 x 45 | Φ 4 x 35 |
| 12 pcs. | 22 pcs. | 6 pcs. |
Preparation for assembly
Before you begin work, check the parts list to ensure that all the individual parts have been delivered. If you discover any missing parts, notify your dealer within 14 days of receiving the sauna cabin. Button
You need an assistant for assembly.
We also advise you to pre-drill the holes for the screws.

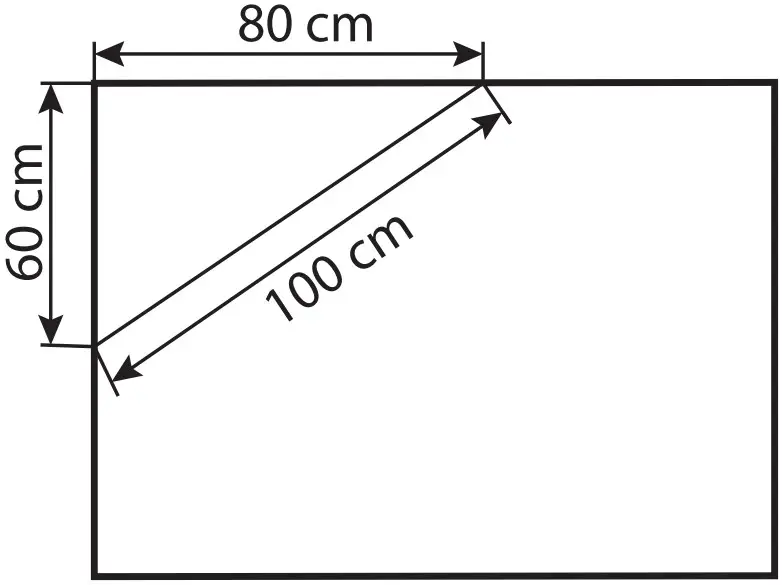

Check the right angle:

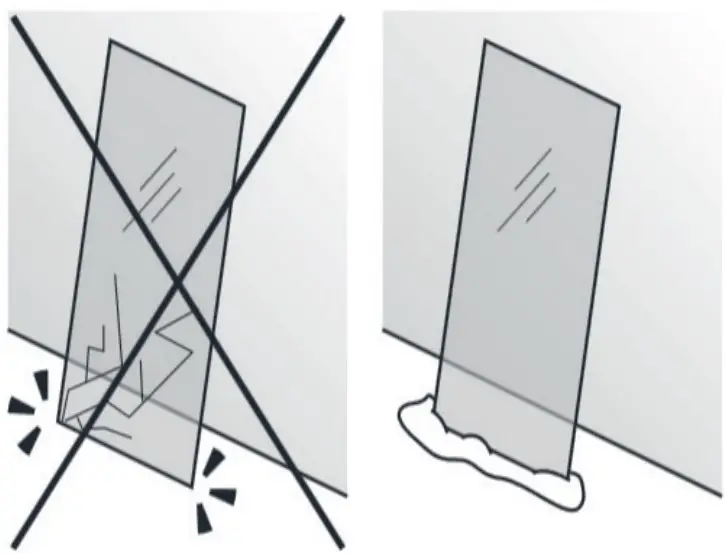

Handle glass with care: Special care must be taken with the edges of the glass – hardened glass can shatter into small pieces in the event of impact. Insert protective cushioning (e.g: cardboard box) under the edge of the glas s.
Tools required
- Screwdriver
- Twist drill
- Spirit level
- Tape measure
- Utility knife
- Pencil
- Drill
- Step ladder
Maintenance and cleaning
- The sauna should be cleaned with a damp cloth. Only use warm water – no cleaning products.
- We recommend heating the cabin once a month if the sauna is not used for a long time.
Disposal
Dispose of packaging materials in accordance with the applicable waste disposal regulations.

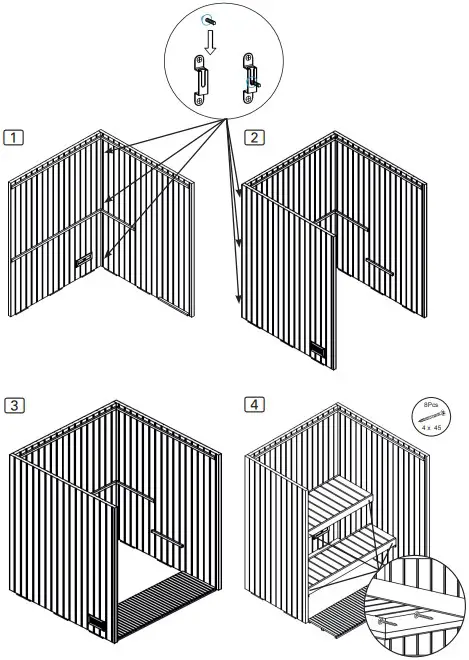

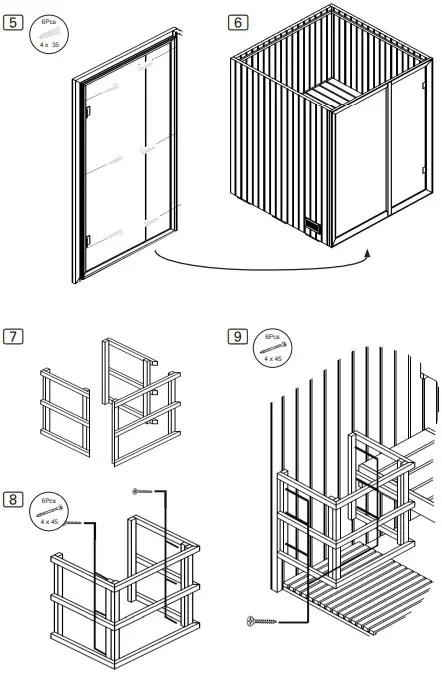

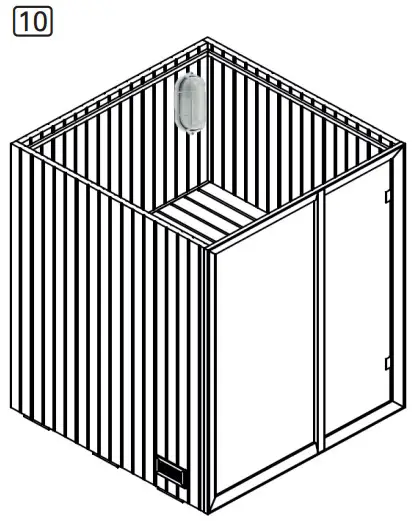

Illustrations for assembling the cabin
