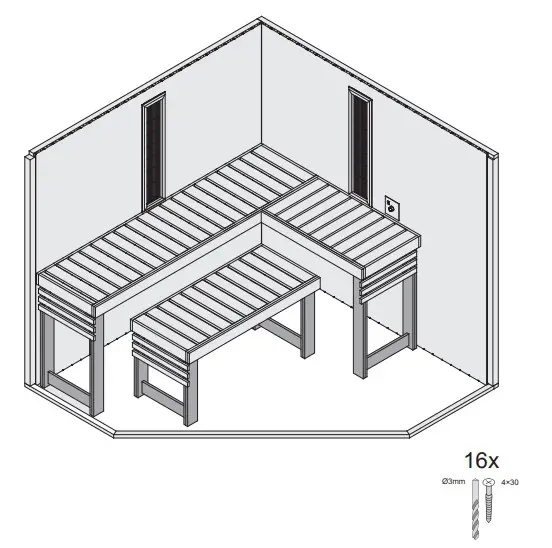

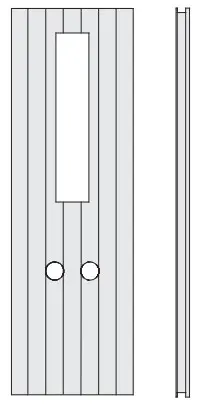

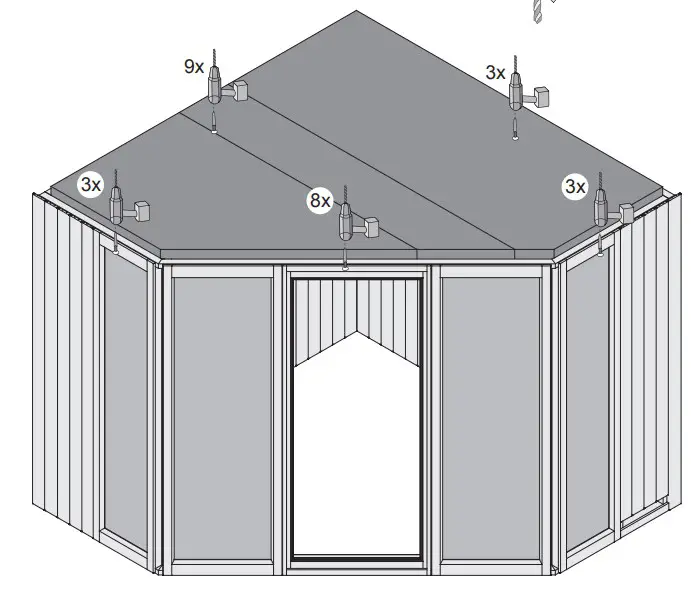

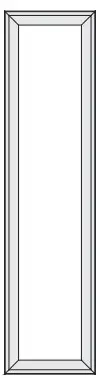

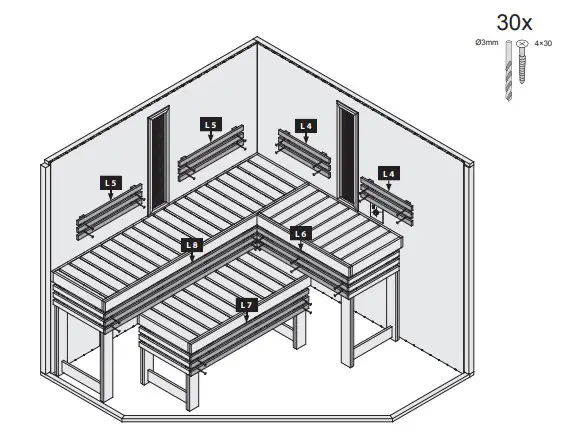

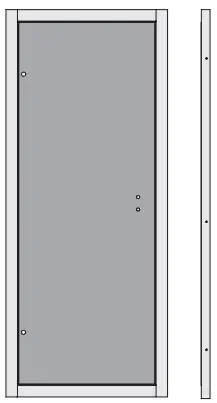

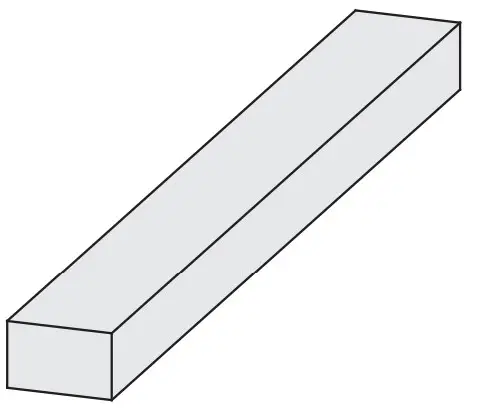

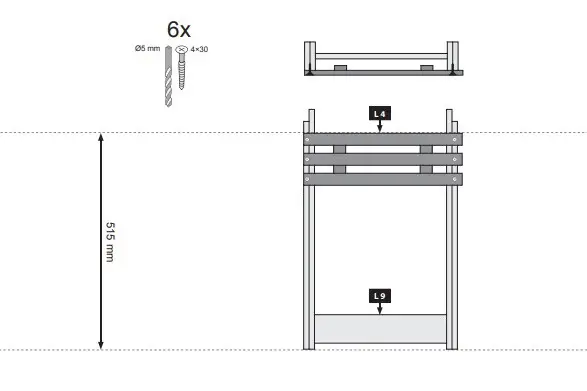

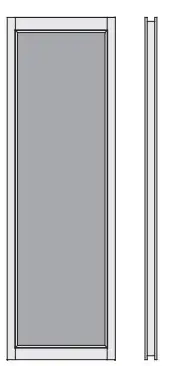

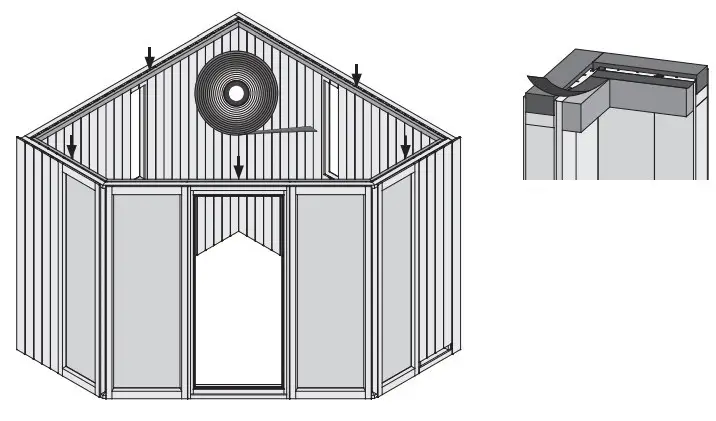

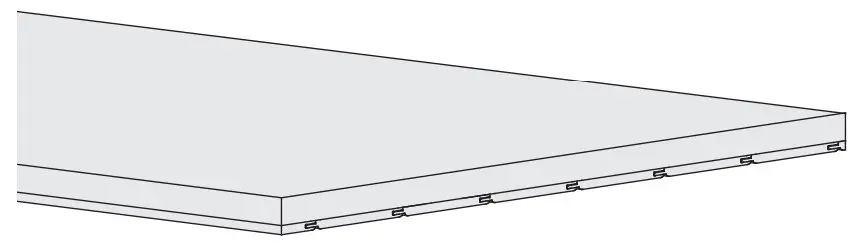

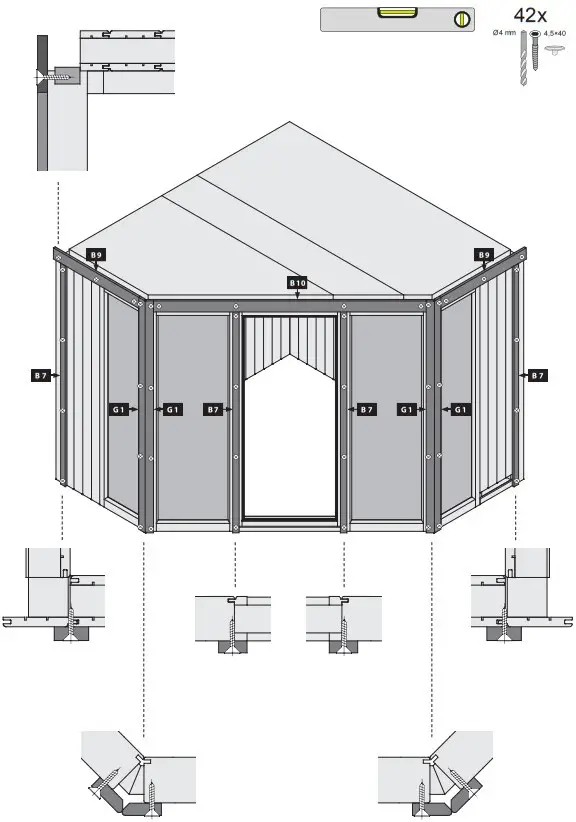

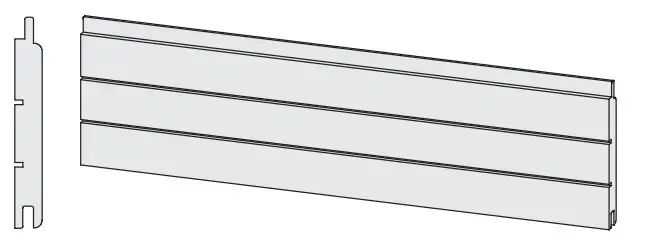

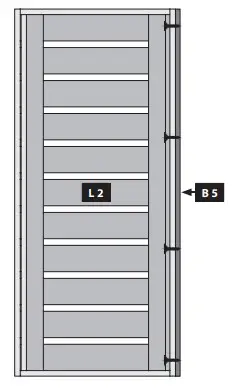

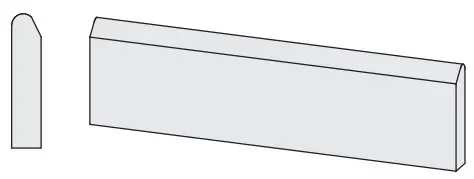

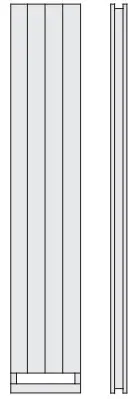

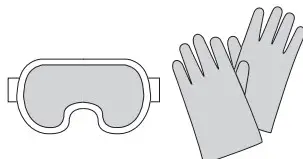

First compare the list of materials with your package contents! Please understand that complaints can be processed in the non-built status only

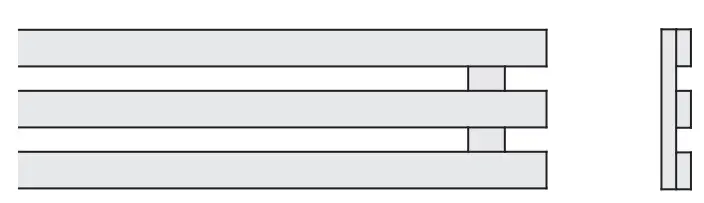

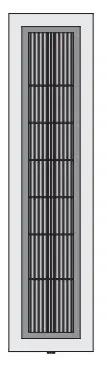

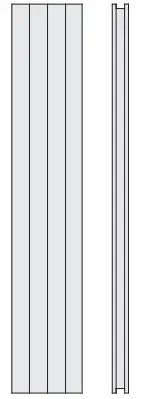

1 x W1	1920 x 344 x 68 mm	ID 2259

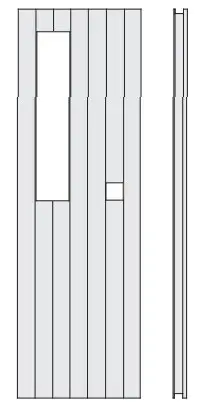

1 x W2	1920 x 606 x 57 mm	ID 27878

1 x W3	1920 x 344 x 68 mm	ID 52806

1 x W8		ID 27879

2 x Y1		ID 26574

2 x Y2		ID 30748

8 x B1	1920 x    19 x   3 mm	ID 20799

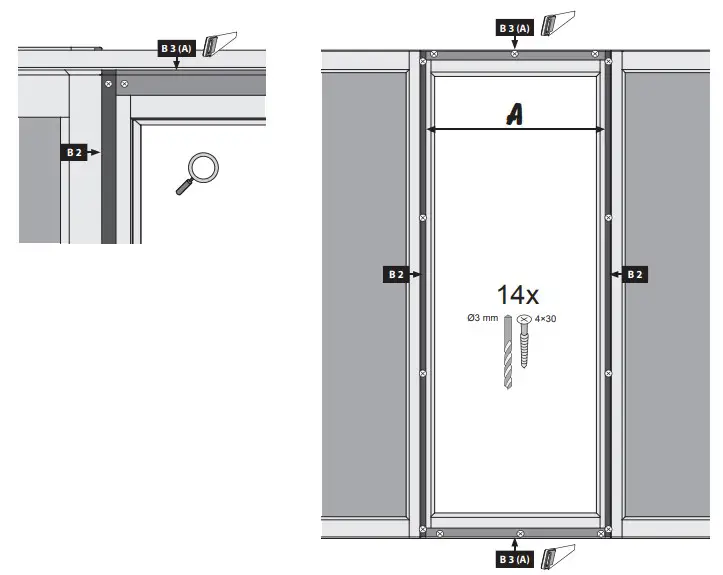

2 x B2	1920 x    20 x 12 mm	ID 52812
4 x B3	750 x    36 x 12 mm	ID 24239

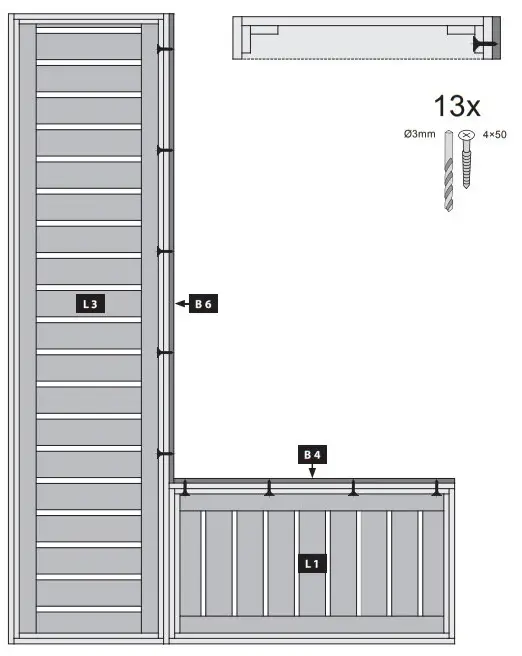

1 x B4	964 x    90 x 16 mm	ID 2479
1 x B5	1255 x    90 x 16 mm	ID 2480
1 x B6	1606 x    90 x 16 mm	ID 2254

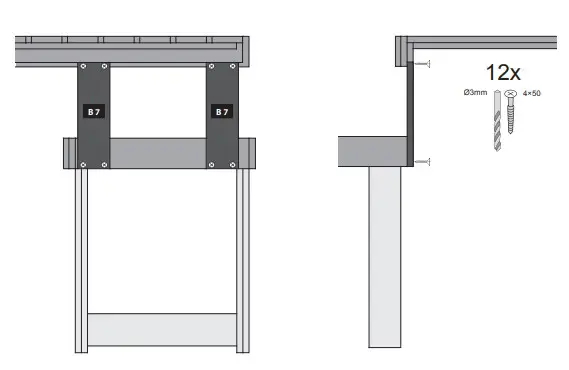

4 x B7	1884 x    45 x 18 mm	ID 48037
3 x B8	314 x    95 x 18 mm	ID 81102
2 x B9	845 x    95 x 18 mm	ID 52651
1 x B10	1912 x    95 x 18 mm	ID 52650
1 x B11	300 x 120 x 18 mm	ID 22467

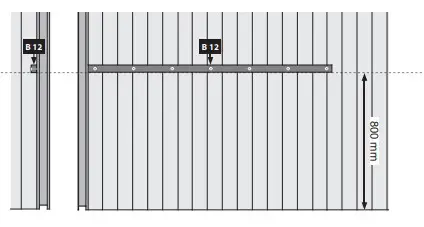

1 x B12	1410 x    42 x 28 mm	ID 24101
1 x B13	2110 x    42 x 28 mm	ID 43453
1 x B14	2160 x    42 x 28 mm	ID 24529
2 x B15	2187 x    42 x 28 mm	ID 24534
2 x B16	2271 x    42 x 28 mm	ID 36179
3 x B17	1874 x    52 x 52 mm	ID 26165

1 x C1	747 x    42 x 28 mm	ID 56491
1 x C2	774 x    42 x 28 mm	ID 56490
2 x C3	810 x    42 x 28 mm	ID 56632
2 x C4	852 x    42 x 28 mm	ID 56633

1 x C5	1960 x	42 x	28 mm	ID 56635
2 x C6	2007 x	42 x	28 mm	ID 56634

2 x E1	1920 x    30 x 12 mm	ID 24237

2 x E2	1884 x    45 x 17 mm	ID 48538

4 x G1	1980 x    58 x 17 mm	ID 52813

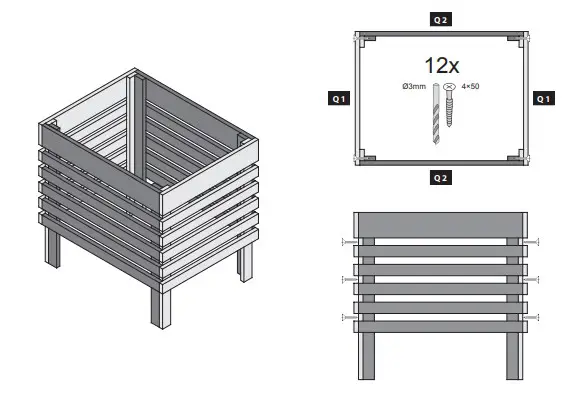

2 x Q1	474 x 590 x 32 mm	ID 2252
2 x Q2	580 x 590 x 32 mm	ID 2253

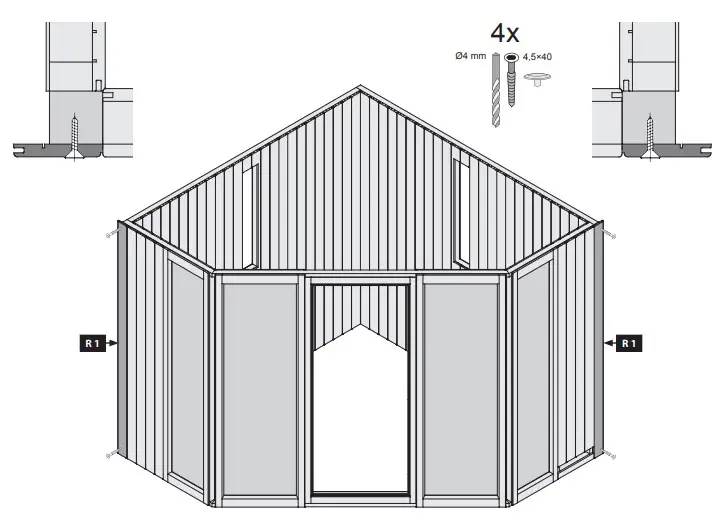

2 x R1	1920 x    97 x 12 mm	ID 22863

1 x C5	1960 x	42 x	28 mm	ID 56635
2 x C6	2007 x	42 x	28 mm	ID 56634

1 x L11	400 x 300 x 80 mm	ID 20708

1 x	10 mm	ID 14025

1 x M1	2049 x 349 x 57 mm	ID 25771
1 x M2	1699 x 918 x 57 mm	ID 25767

1 x M3	2187 x 918 x 57 mm	ID 24539

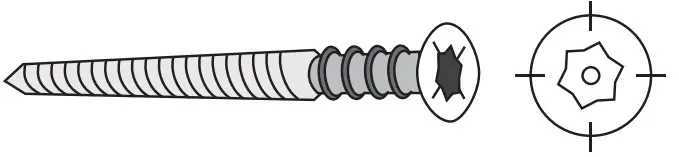

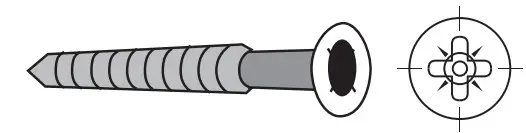

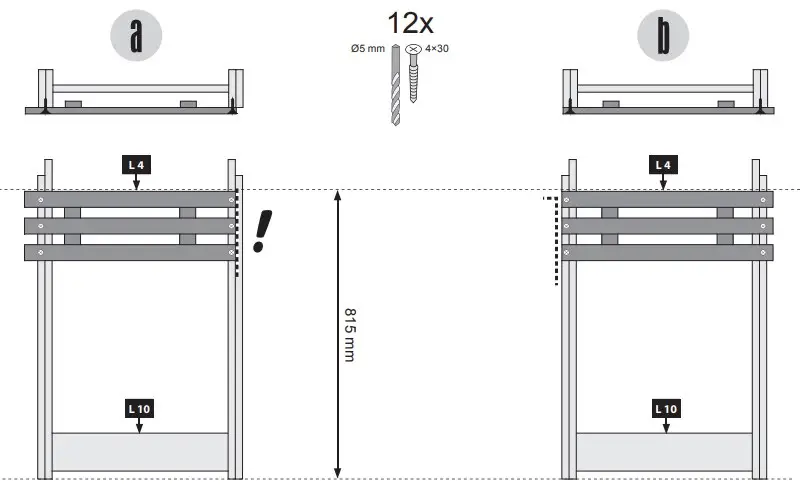

120 x	4 x 30 mm	ID 3686
50 x	4 x 50 mm	ID 3688
50 x	4 x 70 mm	ID 3689
40 x	4,5 x 80 mm	ID 9204
10 x	6 x 60 mm	ID 14014

6 x	6 x 80 mm	ID 14266

60 x	4,5 x 30 mm	ID 26116
6 x	12 x 18 mm	ID 46403

4 x		ID 26272

3 x	8 x 70 mm	ID 42172

2 x	5 x  5 x 3,5 mm	ID 21292

1x		ID 26496

1 x Z1		ID 6682

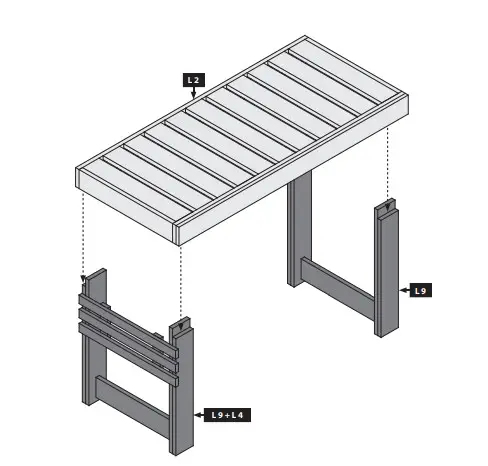

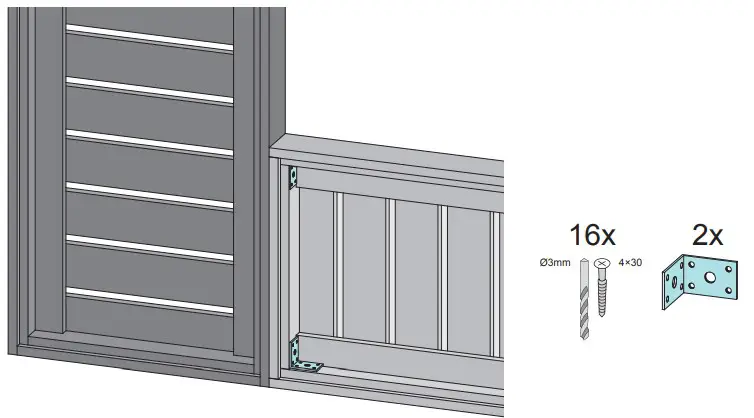

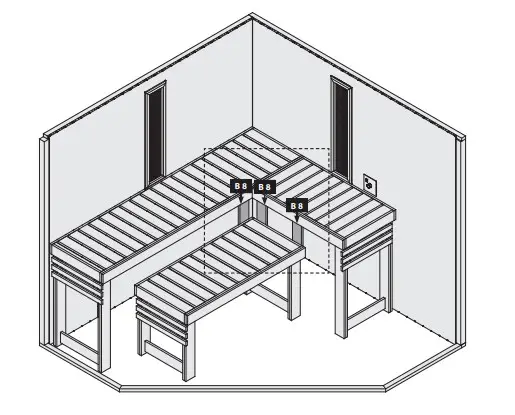

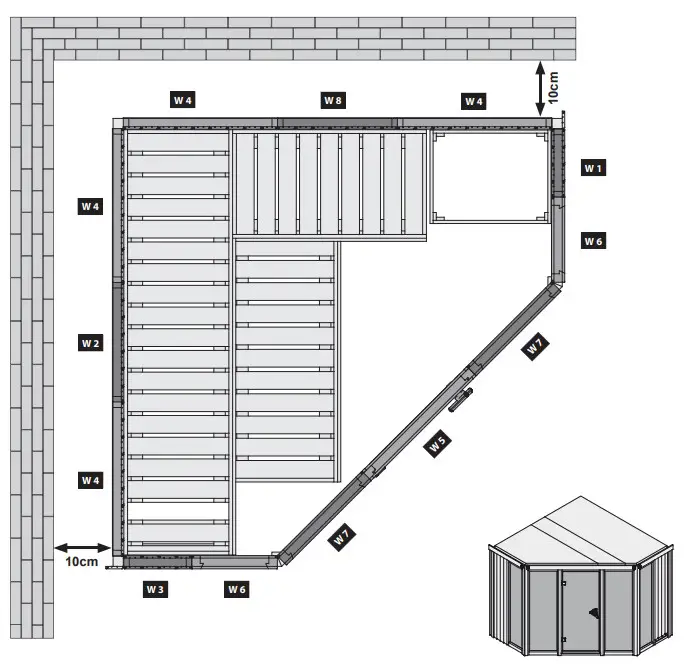

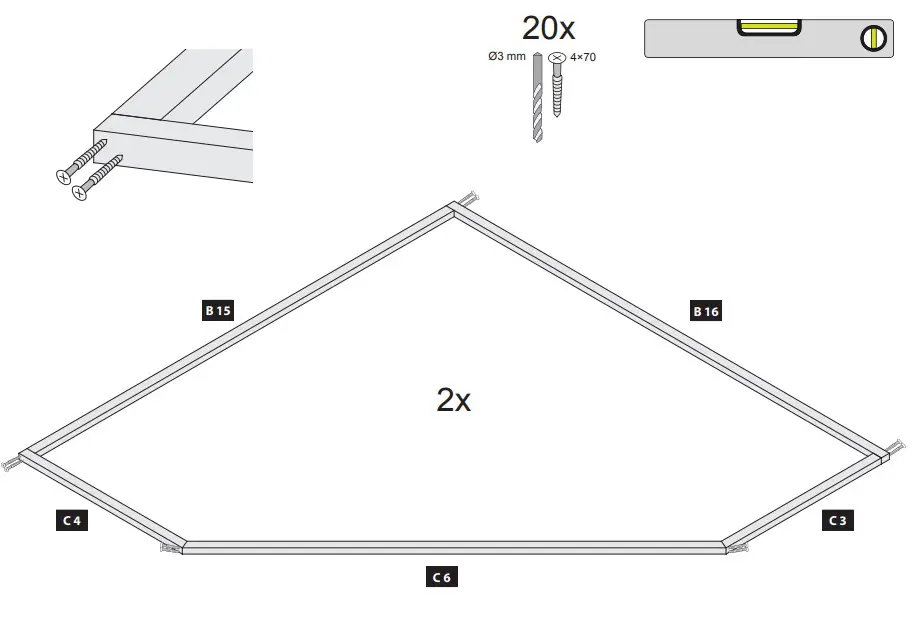

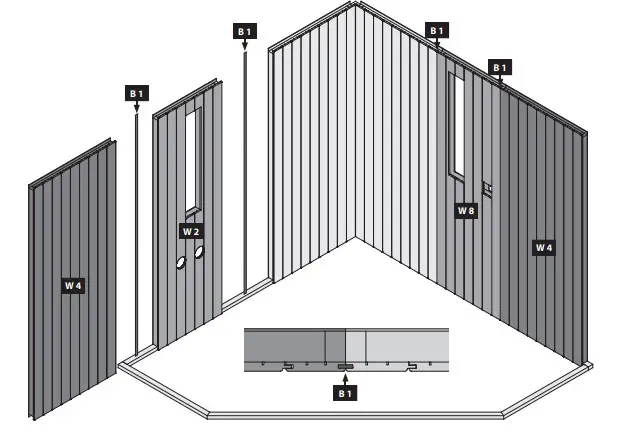

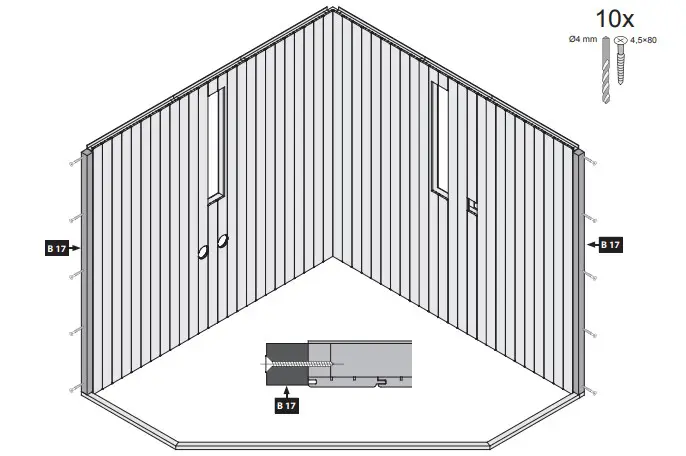

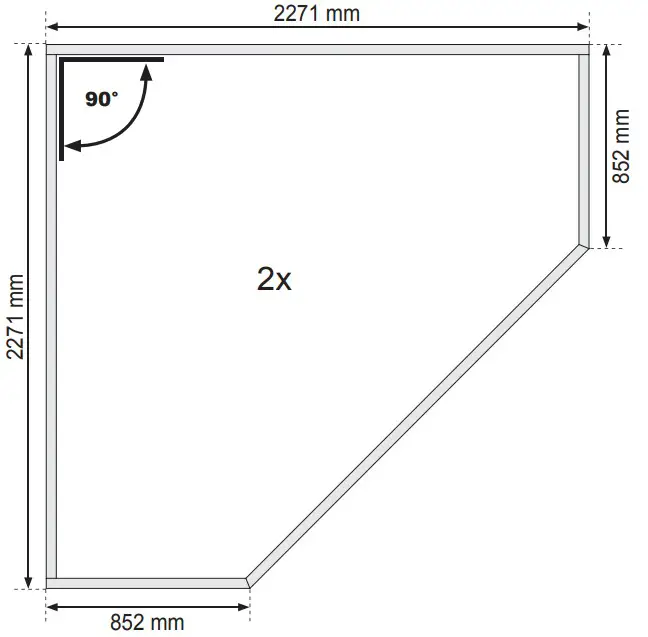

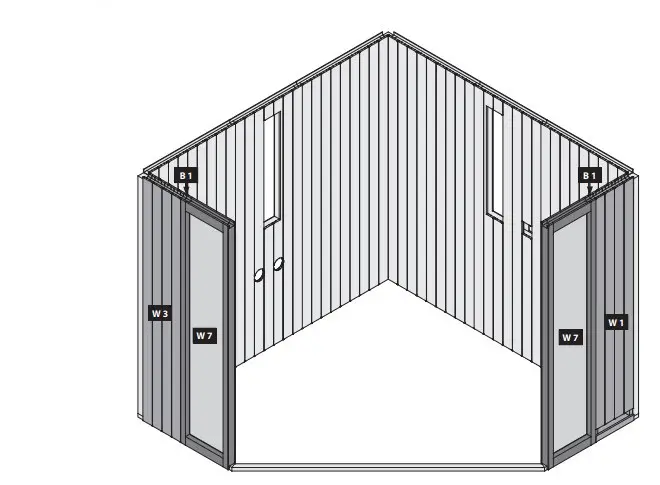

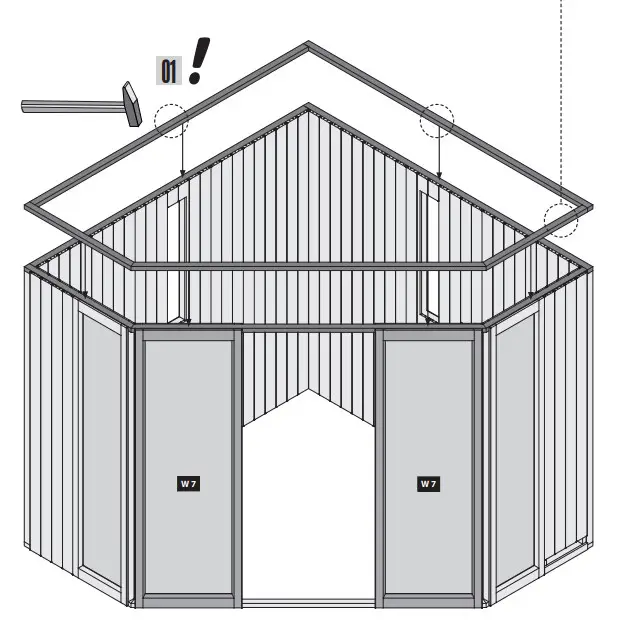

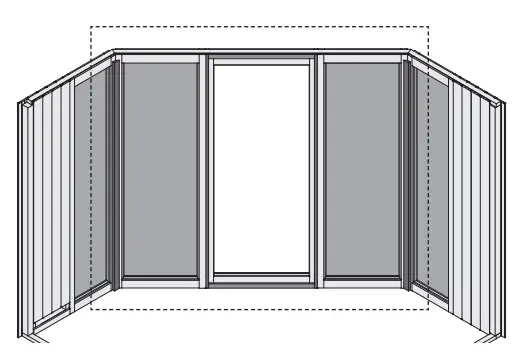

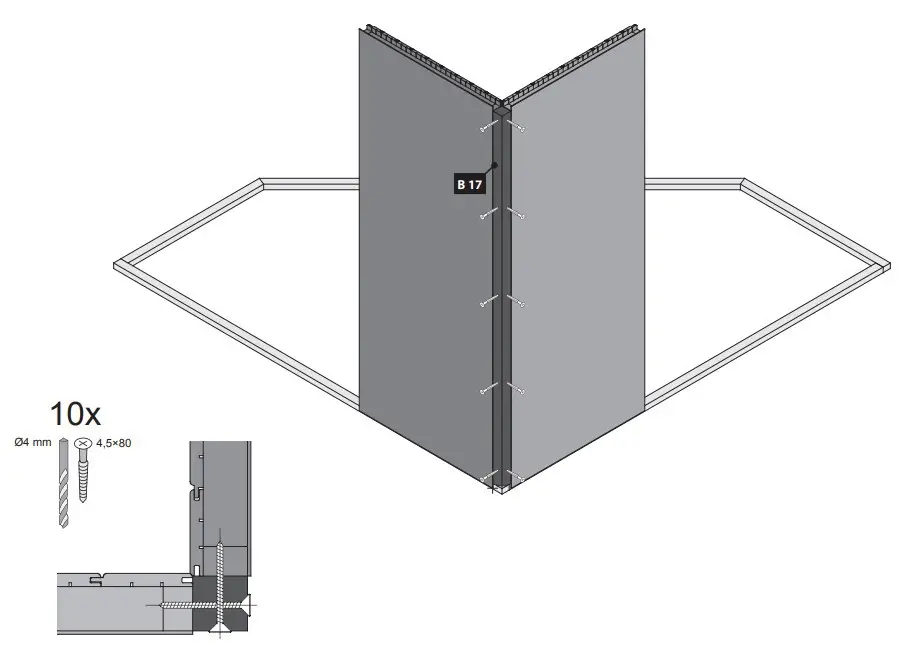

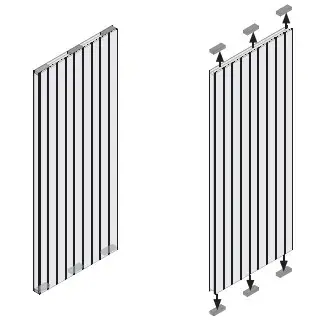

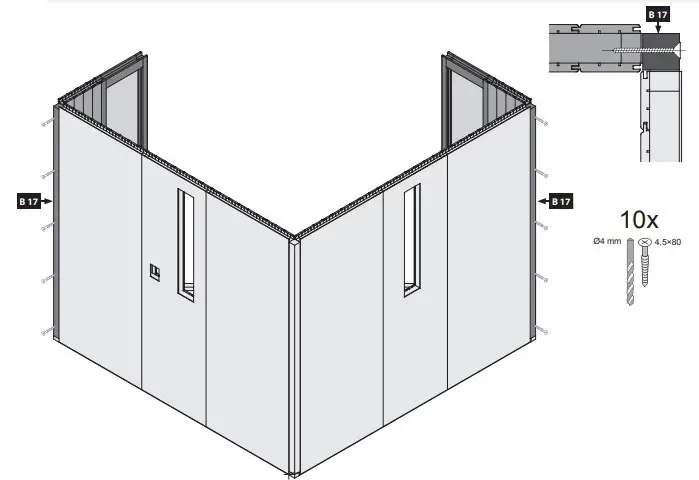

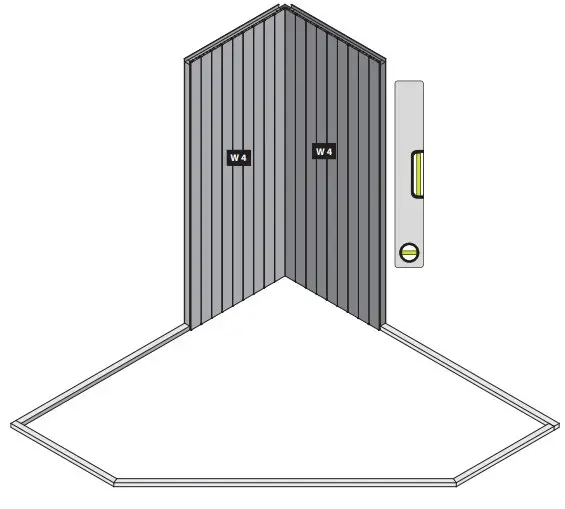

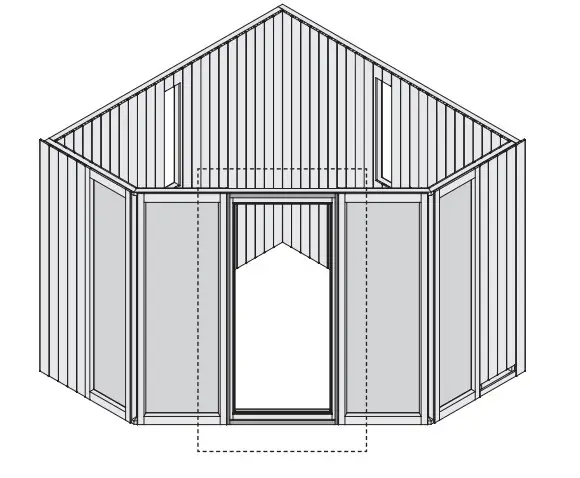

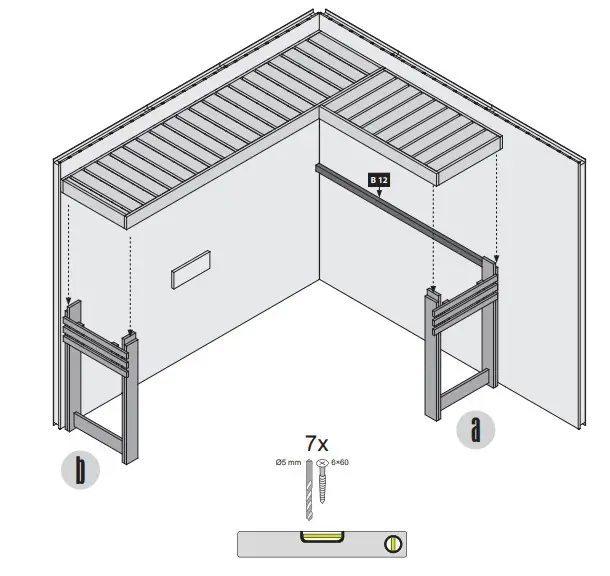

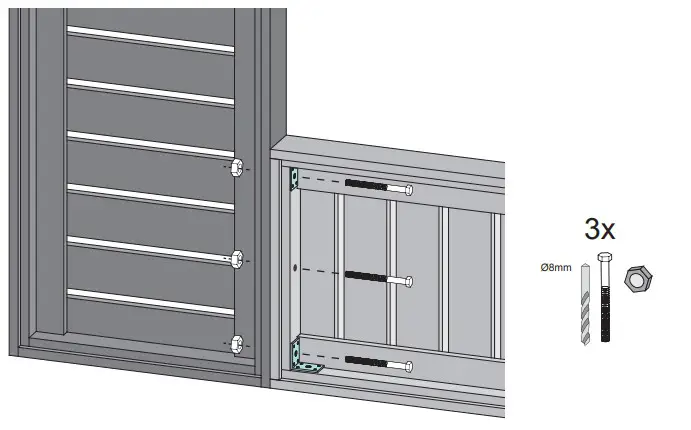

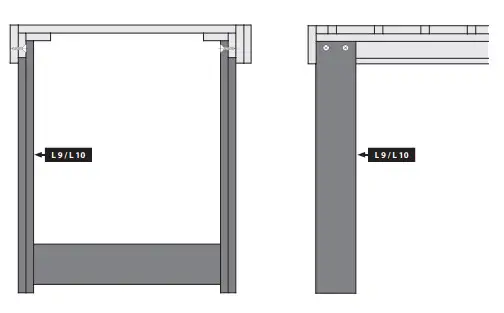

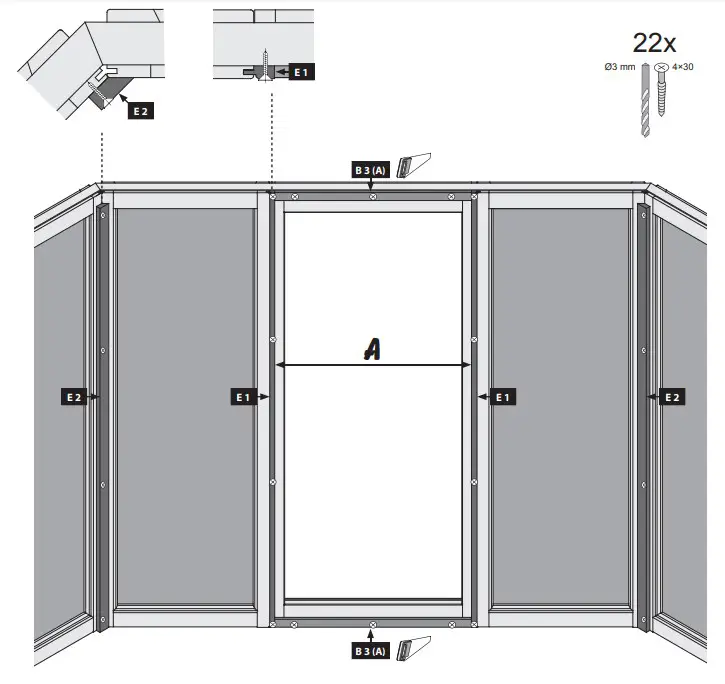

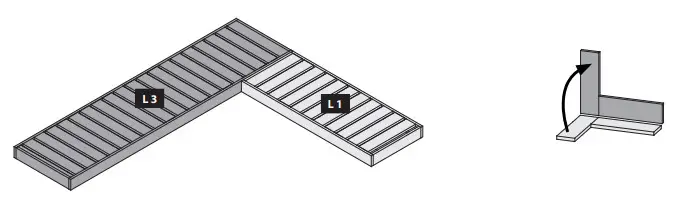

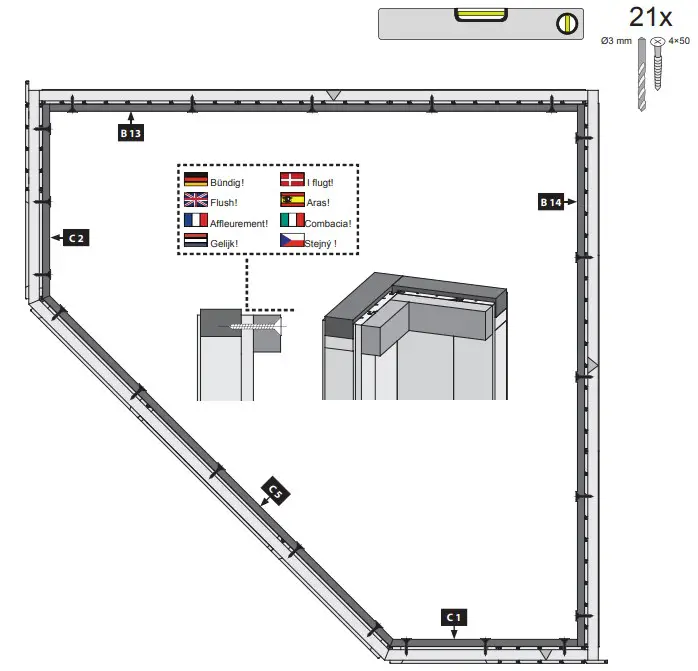

Overview

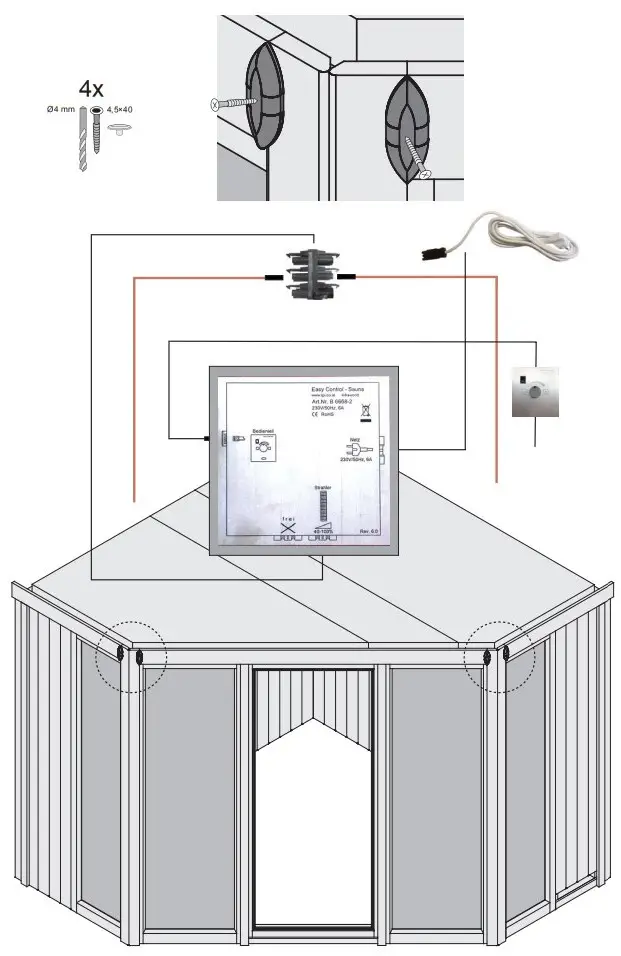

cable inlet

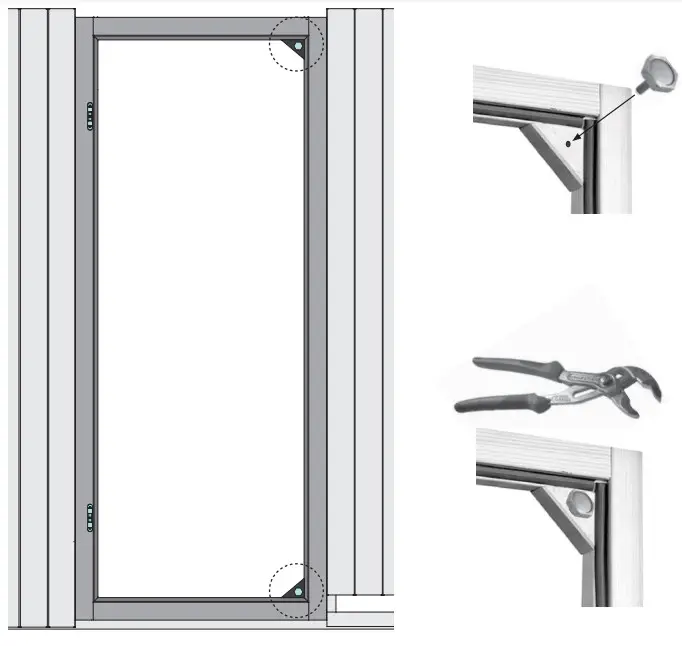

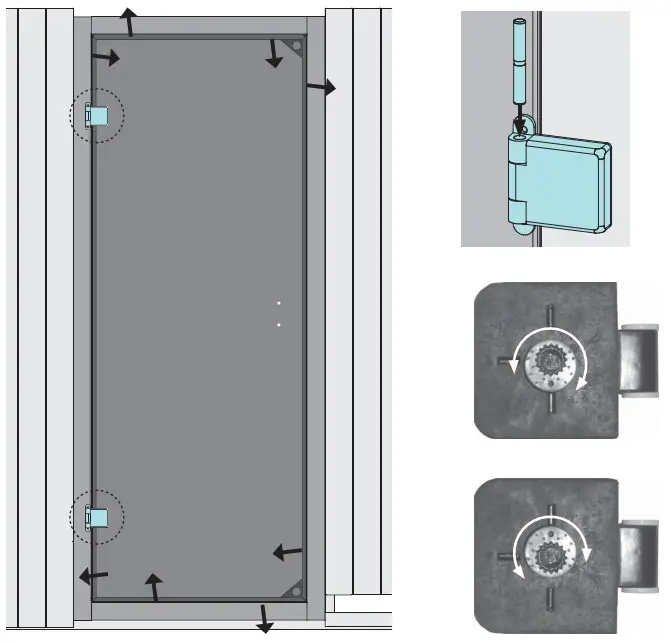

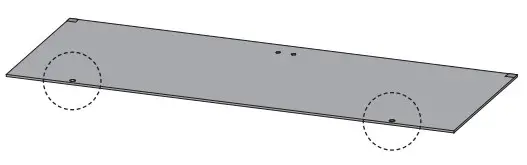

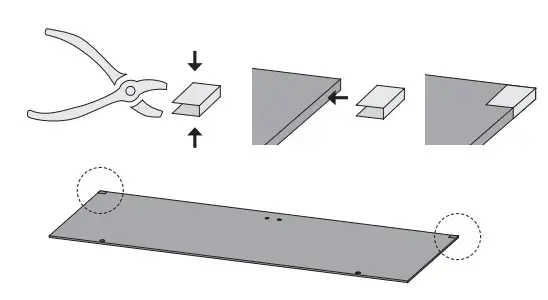

Installation of glass door nstallation of glass door

Put the door glass in the frame

Center the glass in the wooden frame

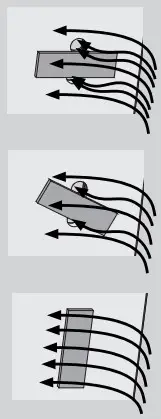

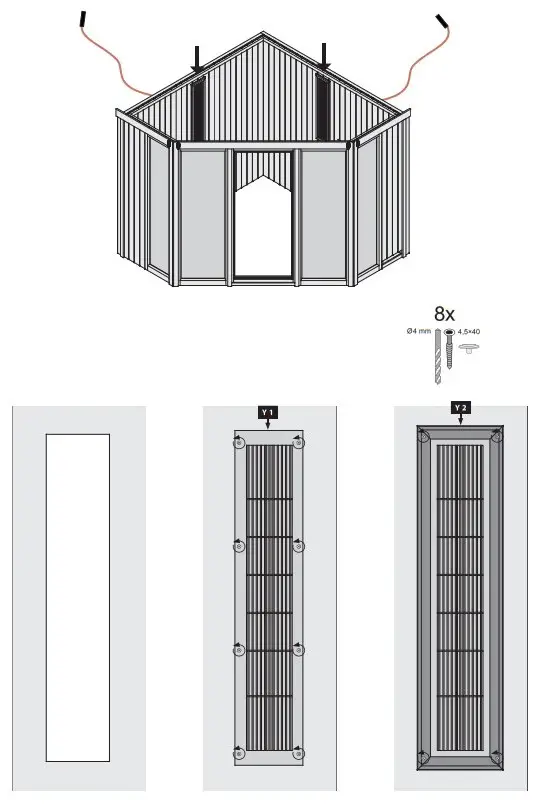

This fi gure shows the functional principle of the board. Regulate the exhaust air according to your own wishes

View below iew below

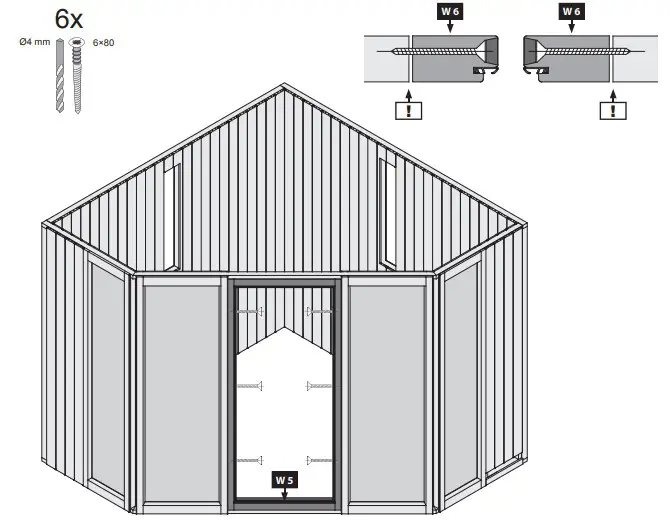

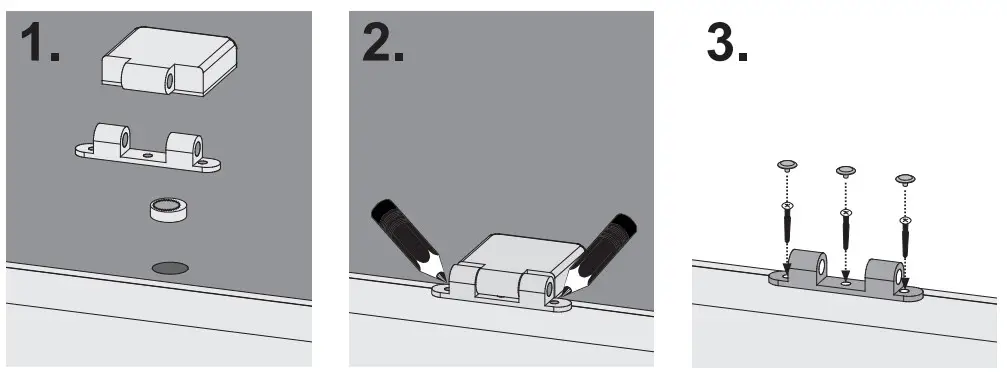

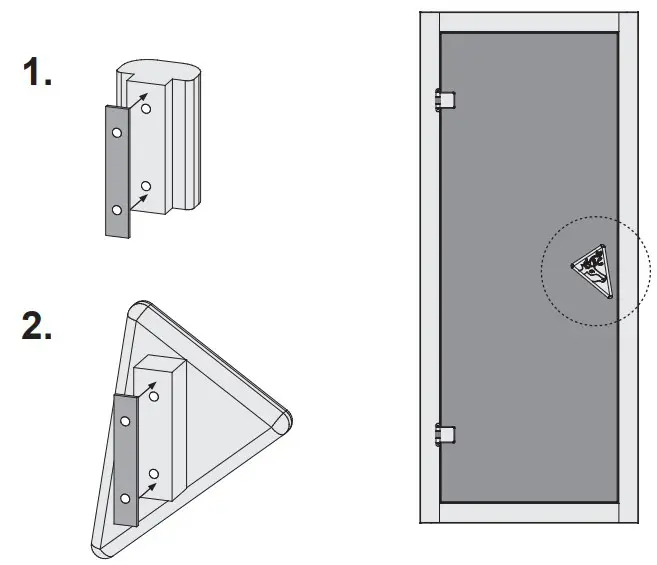

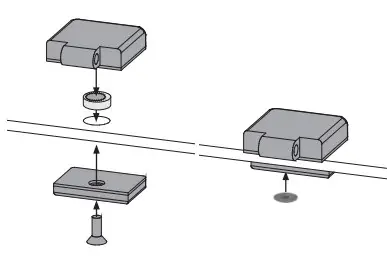

Installation of glass door

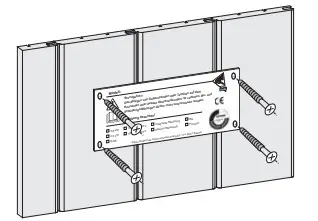

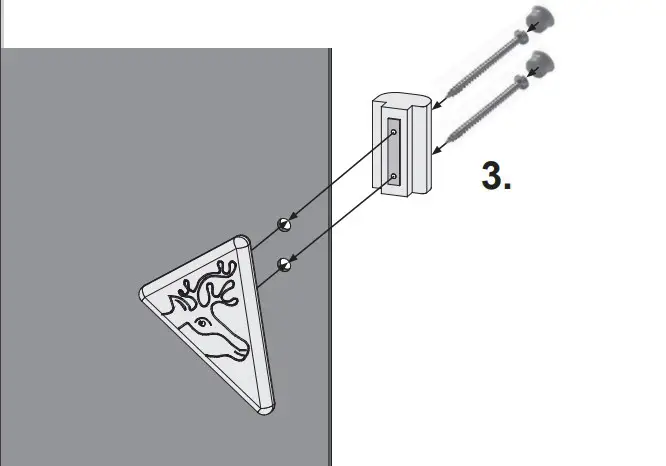

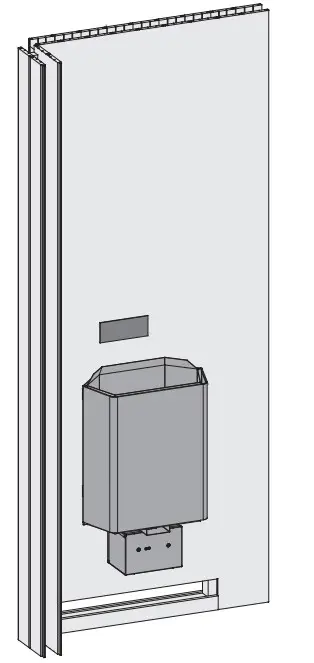

Installation TÜV Shield nstallation TÜV Shield

Remove the protective fi lm from the accompanying Participate Schild.Lassen connecting the heater by a licensed electrician. This marks the installed furnace on the TÜV sign. Attach the TÜV sign at a conspicuous place on the stove.
