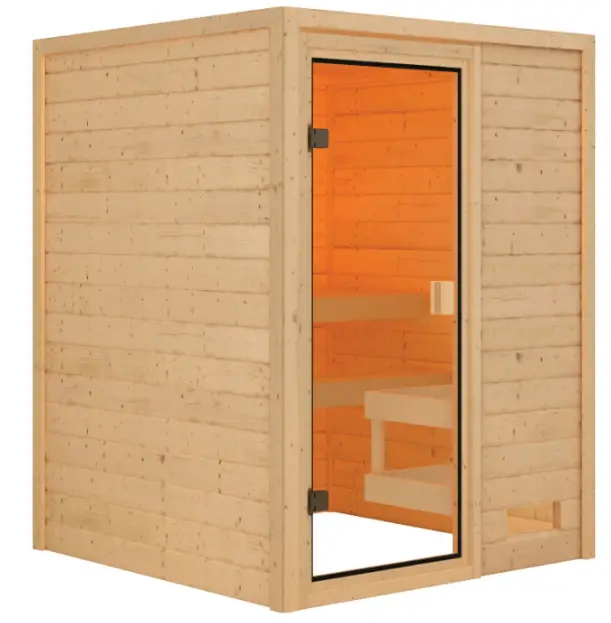

Karibu 6006 Finland Sauna Sandra
Instruction
 | ||

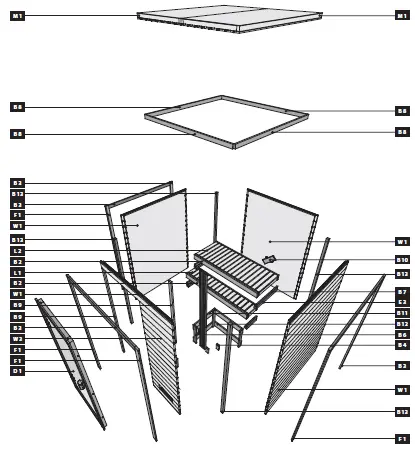

| 51 x W1 | 1380 x 121 x 38 mm | ID 26573 |
| ||||
| 1 x W2 | 135 x | 121 x | 38 mm | ID 80228 |
| 15 x W3 | 564 x | 121 x | 38 mm | ID 53531 |
| ||
| 1 x W4 | 154 x 121 x 38 mm | ID 80405 |
 | ||
| 1 x W5 | 1380 x 121 x 38 mm | ID 21867 |
 | ||
| 4 x F1 | 2000 x 58 x 17 mm | ID 48545 |
 | ||
| 1 x B1 | 1920 x 20 x 3 mm | ID 20799 |
| 2 x B2 | 1309 x 90 x 16 mm | ID 72925 |
| 5 x B3 | 2000 x 58 x 17 mm | ID 48541 |
| 3 x B4 | 100 x 45 x 18 mm | ID 19114 |
| 2 x B5 | 250 x 45 x 18 mm | ID 26716 |
| 3 x B6 | 390 x 45 x 18 mm | ID 51434 |
| 2 x B7 | 550 x 45 x 18 mm | ID 26717 |
| 4 x B8 | 1308 x 45 x 18 mm | ID 26580 |

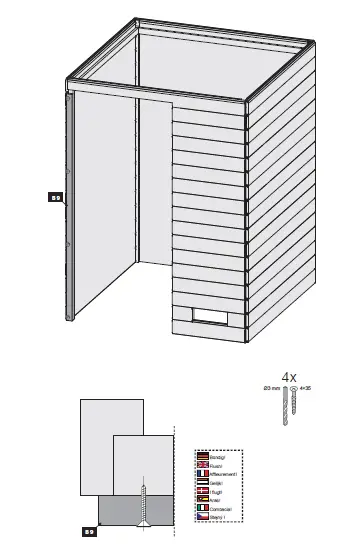

| 2 x B9 | 1745 x 45 x 18 mm | ID 20510 |
| 1 x B10 | 300 x 95 x 18 mm | ID 19130 |
| 2 x B11 | 480 x 95 x 18 mm | ID 20930 |
| 2 x B12 | 565 x 95 x 18 mm | ID 15498 |
| 4 x B13 | 1806 x 36 x 36 mm | ID 66692 |
 | ||
| 1 x E1 | 1820 x 140 x 26 mm | ID 26480 |
 | ||||
| 2 x E2 | 250 x | 45 x | 45 mm | ID 3863 |
| 2 x E3 | 555 x | 45 x | 45 mm | ID 40301 |
 | ||||
| 1 x L1 | 1309 x | 250 x | 90 mm | ID 52066 |
| 1 x L2 | 1309 x | 550 x | 90 mm | ID 52064 |
 | ||
| 2 x M 1 | 1338 x 666 x 55 mm | ID 26581 |
 | ||
| 1 x D1 | ID 66683 | |
 | ||
| 1 x | ID 26183 | |
 | ||
| 1 x | ID 26496 | |
 | ||
| 50 x | 4,5 x 40 mm | ID 26285 |
| |
| 60 x S2 | 4,5 x 30 mm ID 26116 |
| 6 x S3 | 12 x 18 mm ID 46403 |
 | ||
| 20 x | 4 x 30 mm | ID 3686 |
| 60 x | 4 x 35 mm | ID 3687 |
| 350 x | 4 x 40 mm | ID 21925 |
| 35 x | 4 x 50 mm | ID 3688 |
| 20 x | 4 x 70 mm | ID 3689 |
| 25 x | 4,5 x 80 mm | ID 9204 |
| 20 x | 6 x 80 mm | ID 47558 |
| 95 x | 6 x 90 mm | ID 26715 |
 | ||||||||
| 10m | ID 14025
| |||||||
 0RGHOO: %UDQGJHIDKU ‘DV $EOHJHQ YRQ *HJHQVWlQGHQ RGHU 7H[WLOLHQ DXI GHP 6DXQDRIHQ RGHU GHVVHQ $EVFKUDQNXQJHQ LVW YHUERWHQ. %H- XQG (QWOIWXQJV|IIQXQJHQ GUIHQ QLFKW YHUVFKORVVHQ ZHUGHQ. $QOHLWXQJ EHDFKWHQ N: 1 1 3( a 2 0 9 ,QWHJULHUWH 6WHXHUXQJ %LR | ||
| 1 x | ||
