Karibu 52584 Woodgarden 38 mm Massive Sauna Drawer
52584
Das komplette
Farbangebot
finden Sie auf: www.KARIBU-FARBENSHOP.de

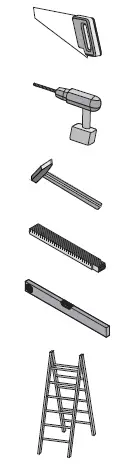

Building Instructions

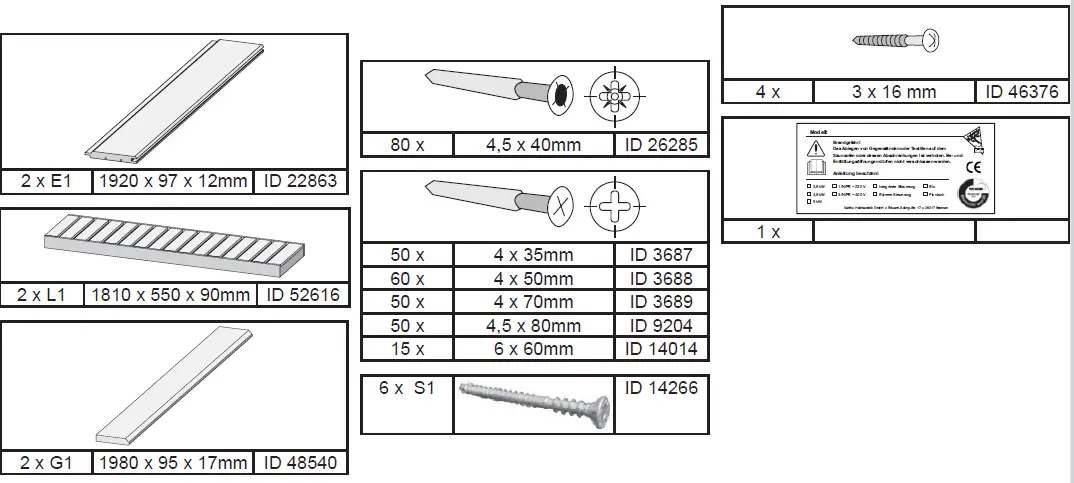

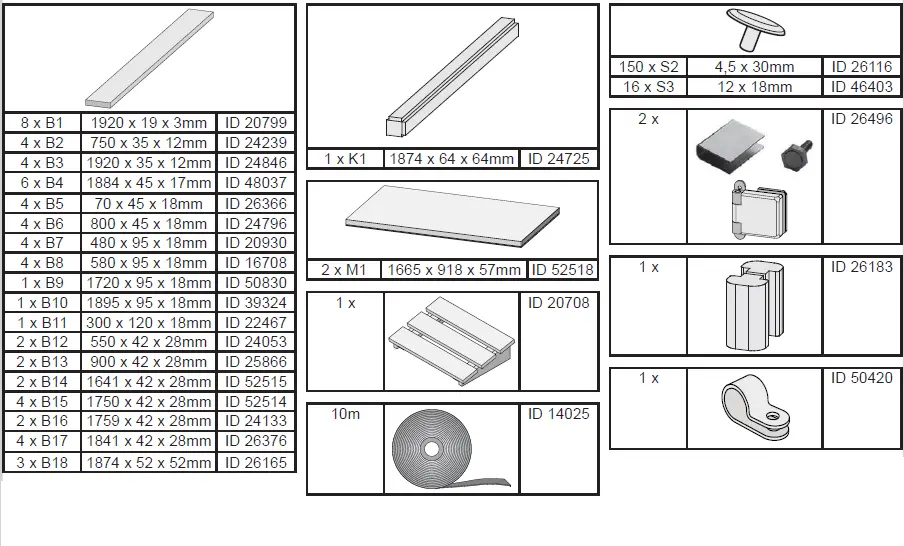

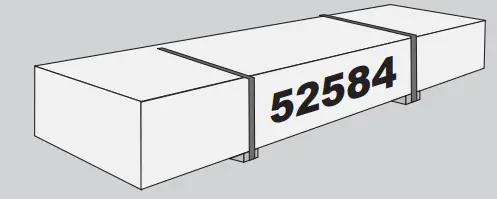

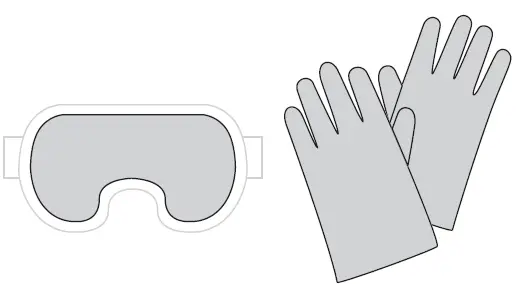

First compare the list of materials with your package contents!
Please understand that complaints can be processed in the non-built status only!
 | ||

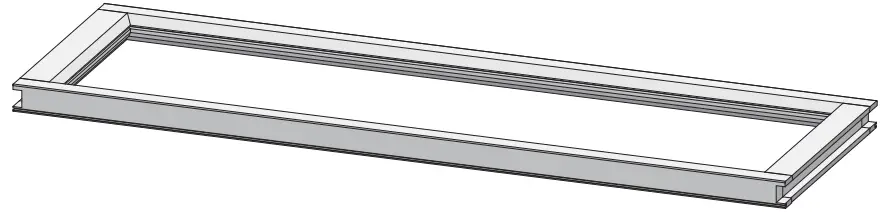

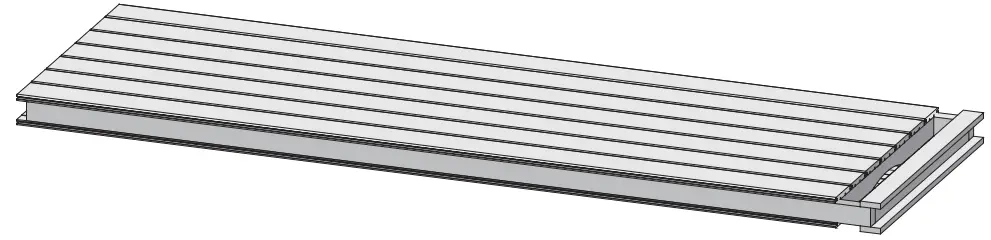

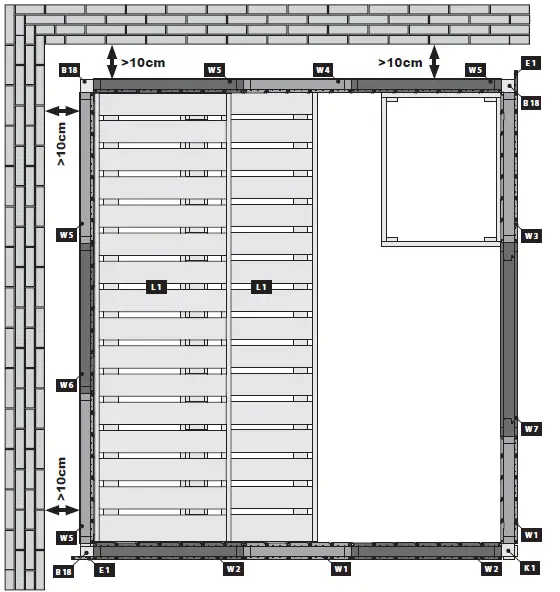

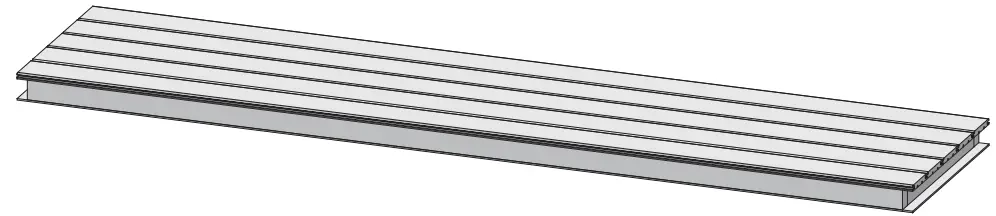

| 2 x W1 | 1920 x 433 x 68mm | ID 25547 |
| 2 x W2 | 1920 x 606 x 68mm | ID 25548 |
 | ||
| 1 x W3 | 1920 x 606 x 68mm | ID 25550 |
 | ||
| 1 x W4 | 1920 x 433 x 57mm | ID 23623 |
| 4 x W5 | 1920 x 606 x 57mm | ID 23624 |
 | ||
| 1 x W6 | 1920 x 606 x 57mm | ID 23629 |
 | ||
| 1 x W7 | 1872 x 780 x 42mm | ID 25551 |

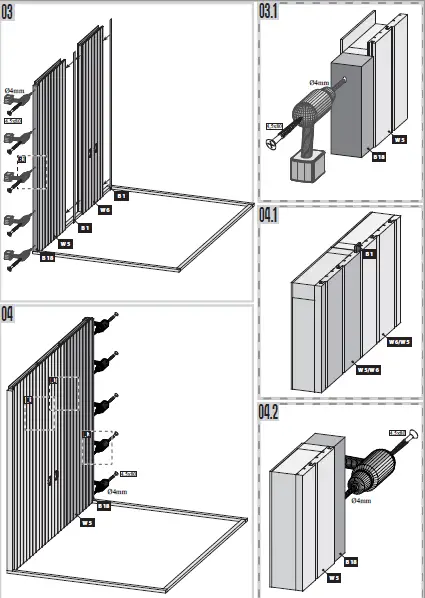

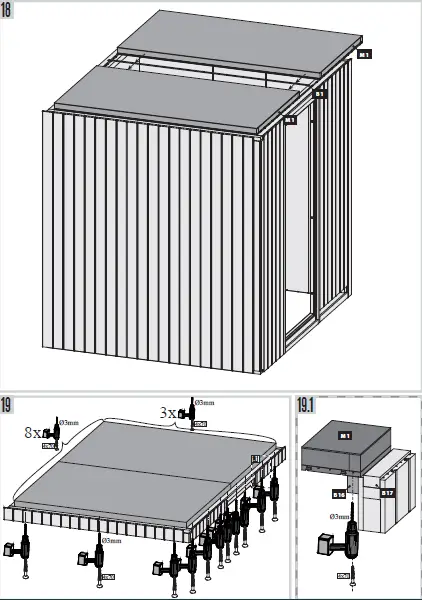

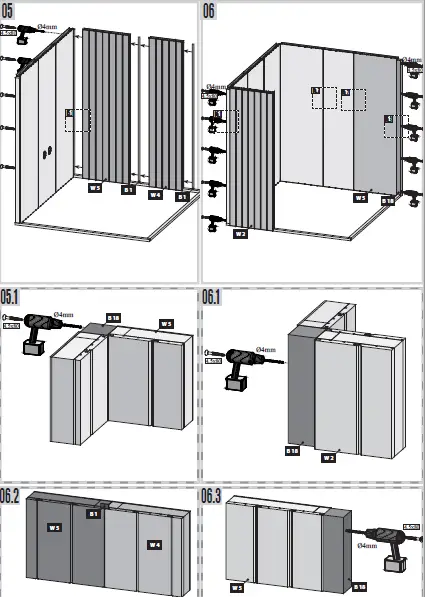

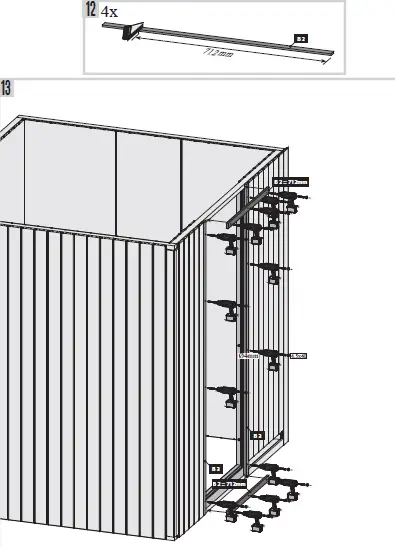

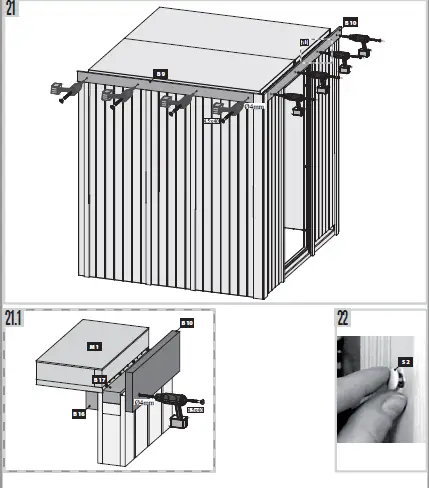

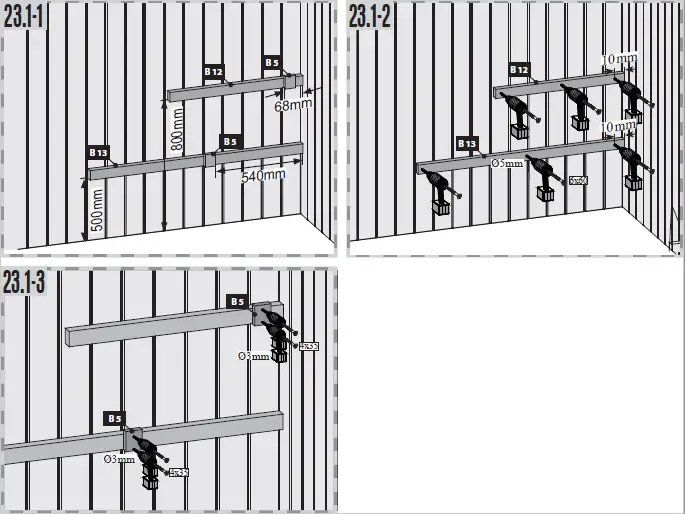

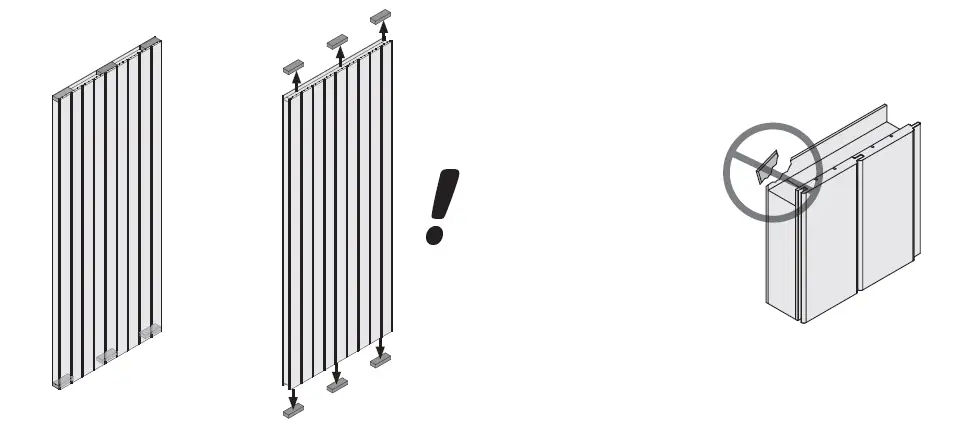

Attention!

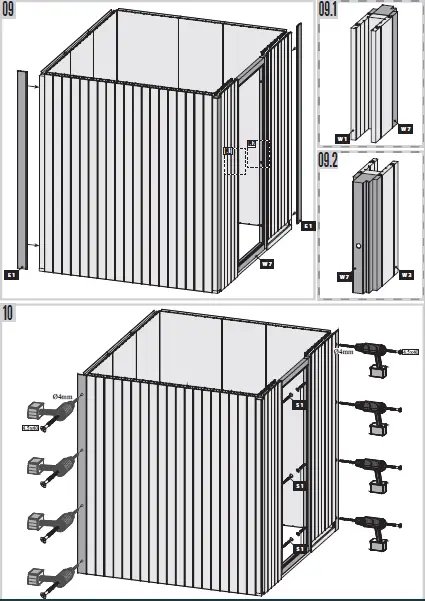

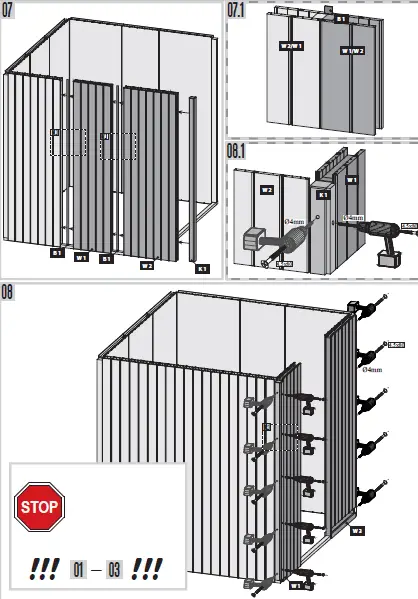

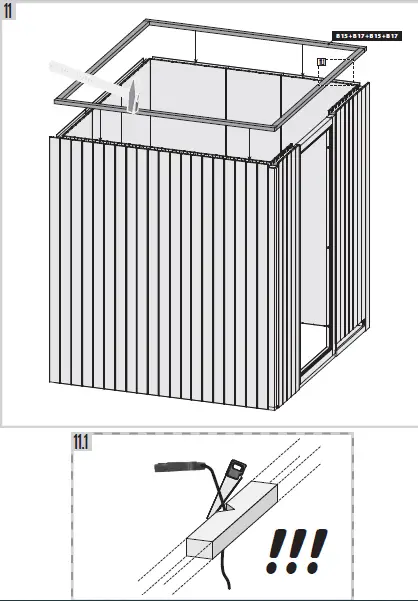

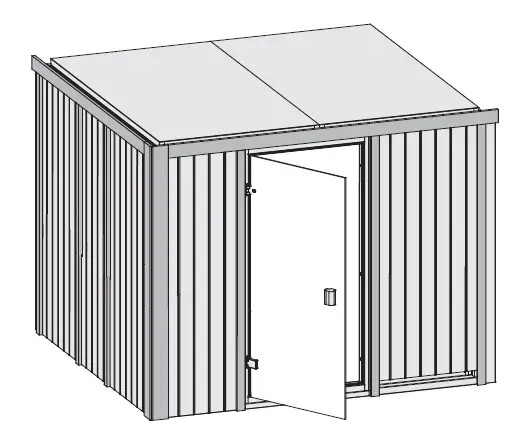

Montage porteenverre
This figure shows the functional principle of the board.
Regulate the exhaust air according to your own wishes.
25551
First compare the list of materials with your package contents!
Please understand that complaints can be processed in the non-built status only!

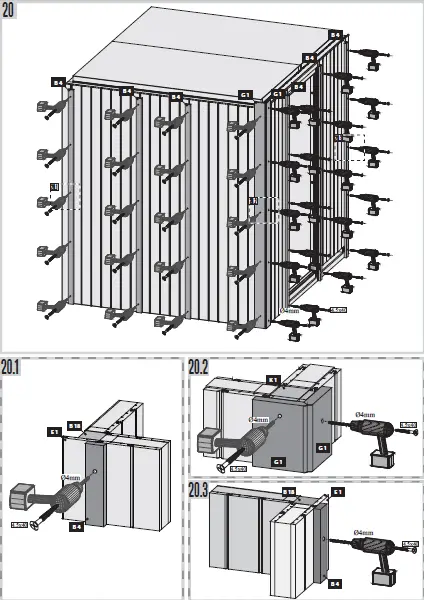

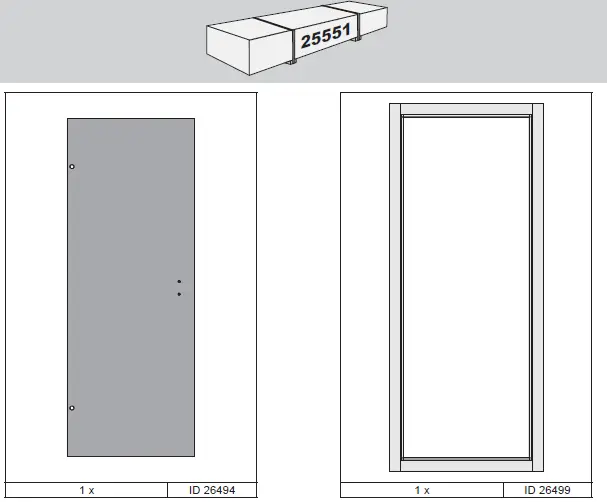

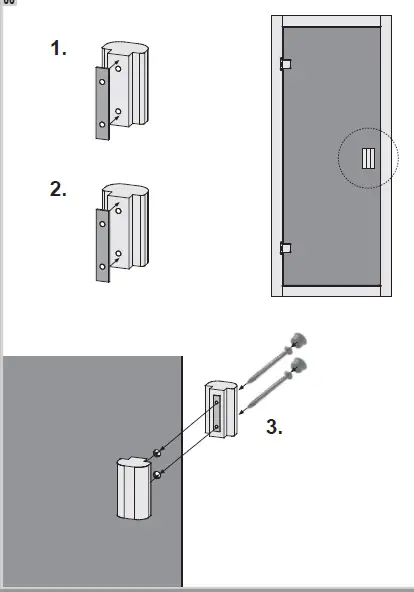

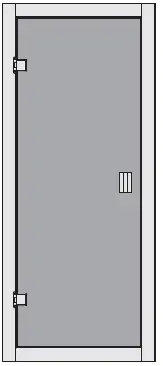

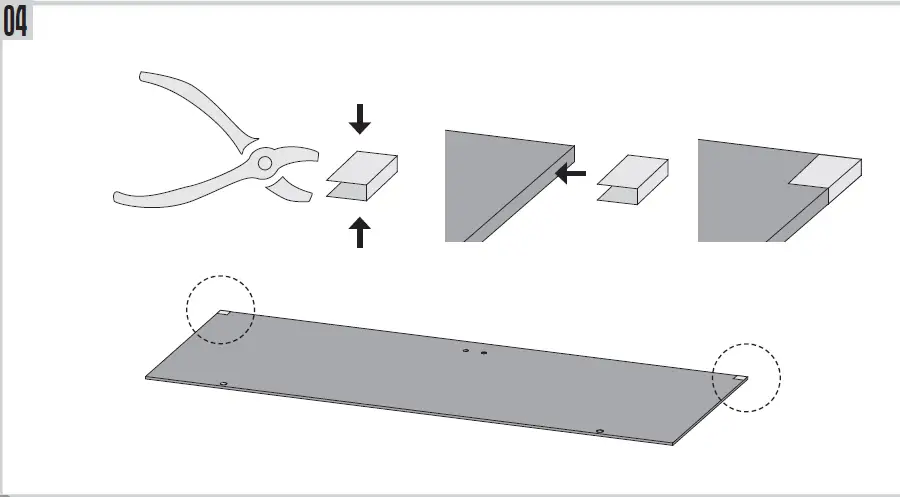

Installation of glass door

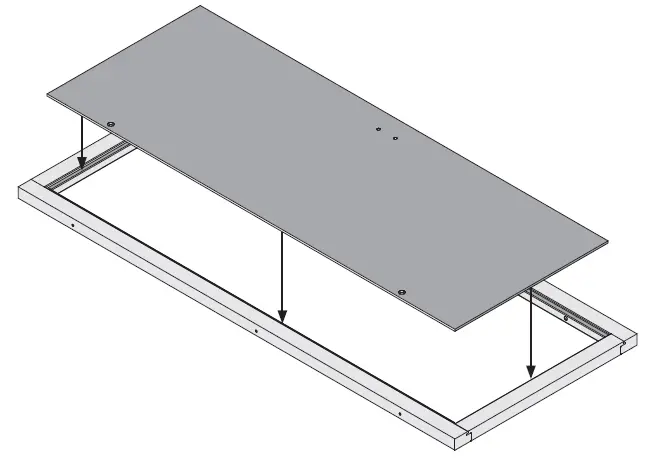

Put the door glass in the frame

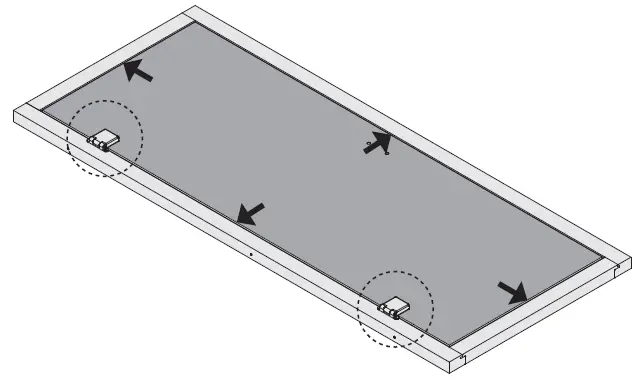

Center the glass in the wooden frame

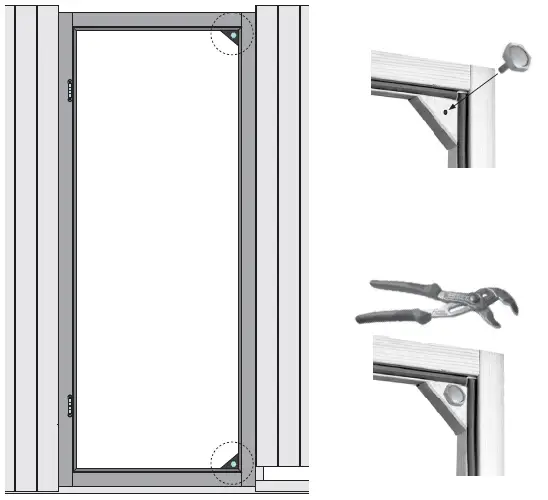

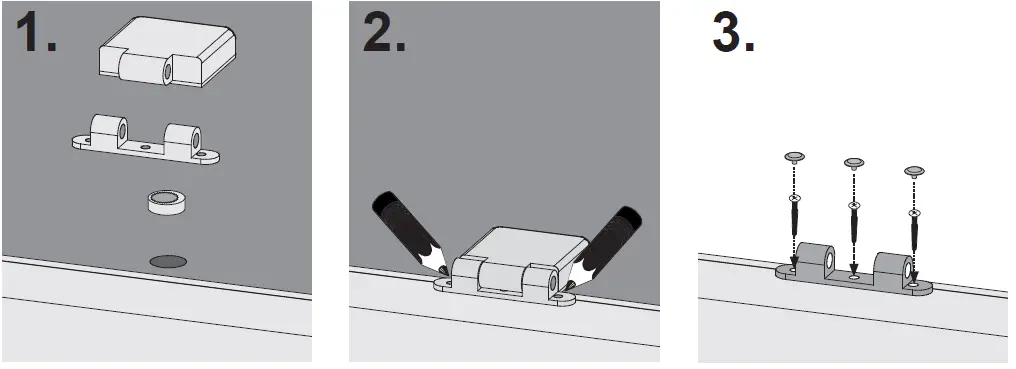

Installation of glass door

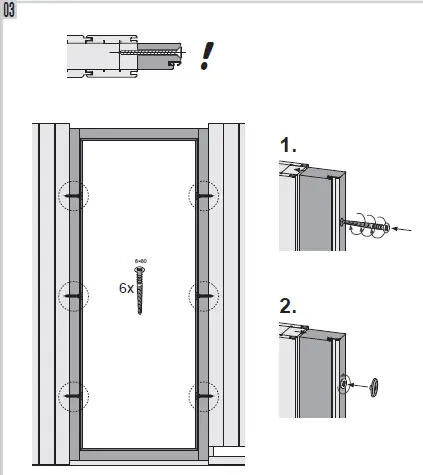

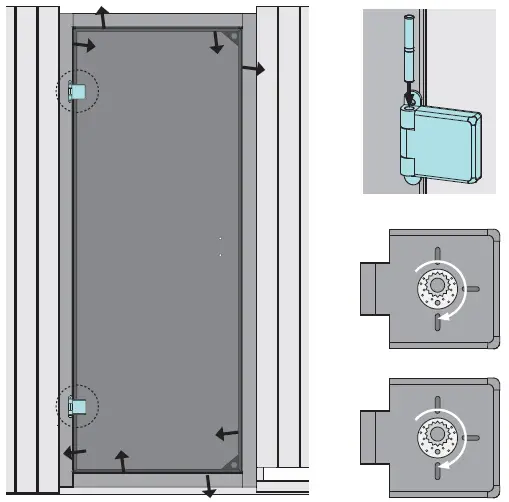

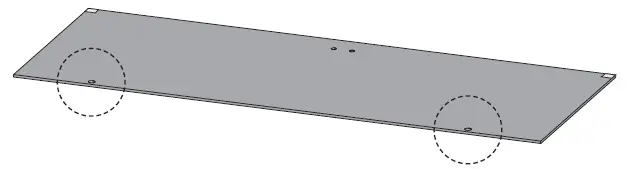

All adjustable eccentrics must have the same basic adjustment in the glass panel
All adjustable eccentrics must have the same basic adjustment in the glass panel

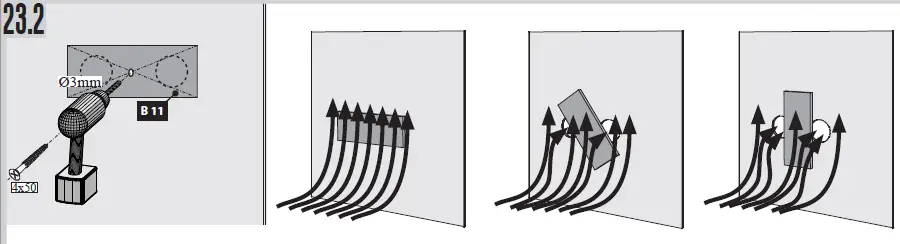

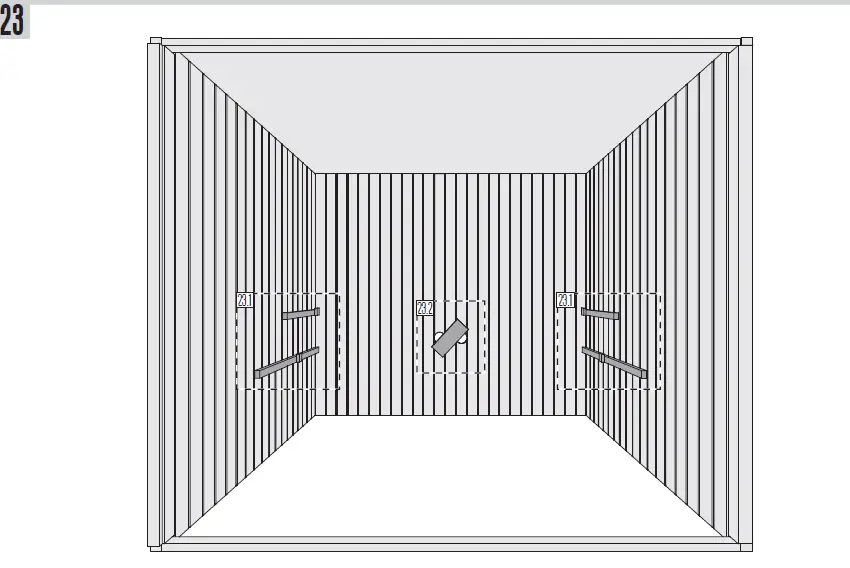

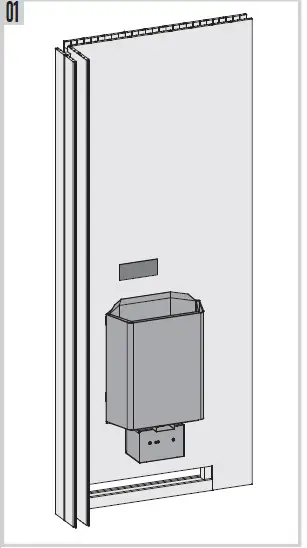

Installation TÜV Shield
Remove the protective film from the accompanying Participate Schilt.

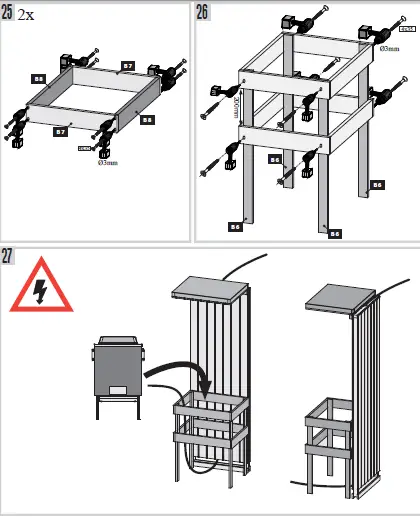

Lassen connecting the heater by a licensed electrician.
This marks the installed furnace on the TÜV sign. Attach the TÜV sign at a conspicuous place on the stove.
