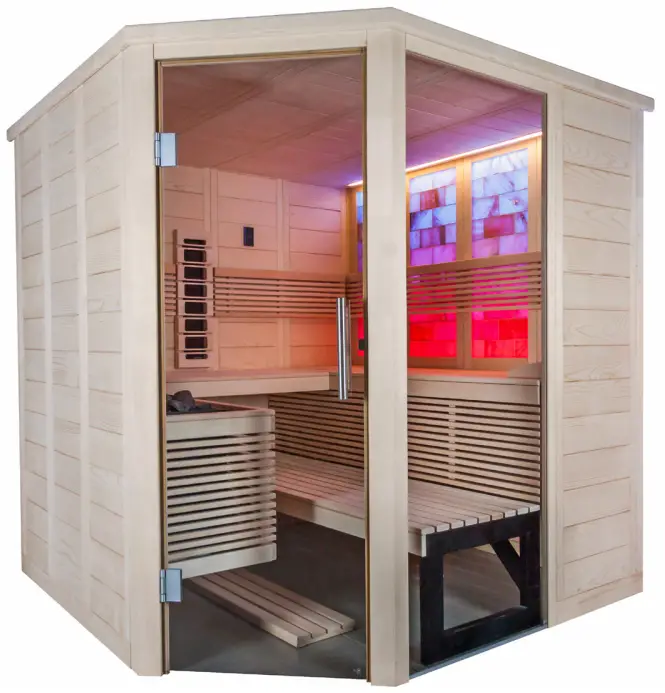

Himalaya Corner Infra Plus 206 x 206 x 204 cm Solid Wood Sauna
Instruction Manual

Preparing for installation

Read these assembly instructions carefully and keep them within reach when using the sauna so that you can look up product information at any time.
These installation instructions can also be found in the downloads section of our website: www.sentiotec.com/downloads.

1.1. Important note

• Before you begin work, check the parts list to ensure that all the individual parts have been delivered. If you discover any missing parts, notify your dealer within 14 days of receiving the sauna cabin.
• The room that the sauna is installed in must be dry and ensure an appropriate amount of air circulation.
• The floor must be level and even, preferably a stone or tiled floor.
• A minimum room height of 230 cm is required for the cabin installation work.
• A distance of at least 5 cm from the wall must be maintained.
• The inside of the wooden parts used must not be handled with any impregnating material.
• Wood is a natural product that can swell, shrink or warp, despite good storage. For this reason, some force may be necessary during the installation.
• Air circulation in the sauna cabin is crucial for correct function. Please observe the dimensions for the air intake and outlet vents specified by the manufacturer of the sauna heater. If necessary, cut a rectangular cutout into the base frame before installation; holes can also be made later using a drill.
• All screw fittings must be pre-drilled.
• You need an assistant for assembly.

Attention!
The electrical connection may only be performed by a qualified electrician or similarly qualified person.

1.2. Tools required

• Hammer with a wooden head or a mallet
• Cordless screwdriver with bits for cross-head screws and Torx
• Roller tape measure
• Drill bits with a diameter of 3 mm, 10 mm, 20 – 30 mm (for sauna heater power cable)
• Spirit level
• 1.5 mm hexagonal socket wrench
• Utility knife
• Ladder

This symbol indicates tips and useful information
Pre-drill

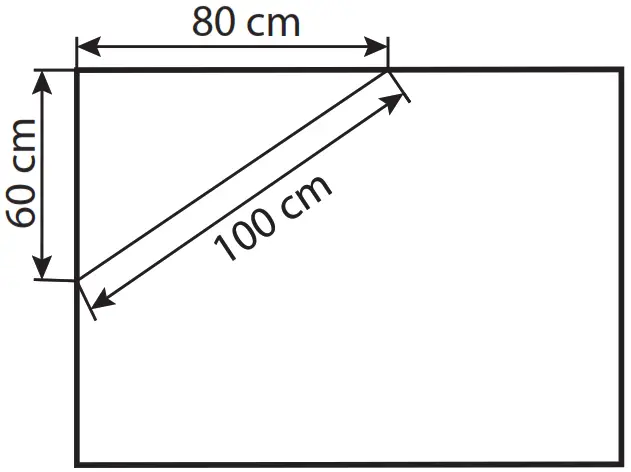

Check the right angle:

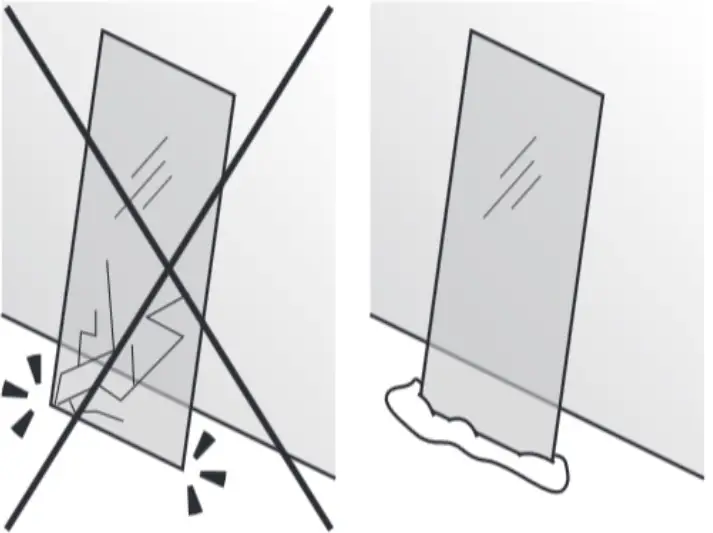

Handle glass with care: Special care must be taken with the edges of the glass – hardened glass can shatter into small pieces in the event of impact. Insert protective cushioning (e.g: cardboard box) under the edge of the glass.
1.3. Maintenance and cleaning

• The sauna should be cleaned with a damp cloth. Only use warm water – no cleaning products.
• We recommend heating the cabin once a month if the sauna is not used for a long time.
  Pitch pockets are not grounds for return, since they can always appear in spruce wood and the depth at which they lie cannot be detected during the sorting-out process.
  If these are just under the surface, heat can cause them to soften and “bleed”.
  The leaking pitch can be removed with a rag soaked in acetone. If only droplets of pitch occur, allow these to harden and then carefully scrape them off with a knife.
  The salt stones are hygroscopic, i.e. they attract moisture from the ambient air. The formation of salt crystals does not constitute grounds for a complaint. Clean the salt stones regularly with a moist cloth to keep the surface smooth – do not use cleaning agents.

1.4. Disposal

• Dispose of packaging materials in accordance with the applicable waste disposal regulations.
• Used devices contain reusable materials as well as hazardous substances. Therefore, do not dispose of your used device with household waste, but do so in accordance with the locally applicable regulations.

1.5. Parts list HIMALAYA CORNER INFRA+

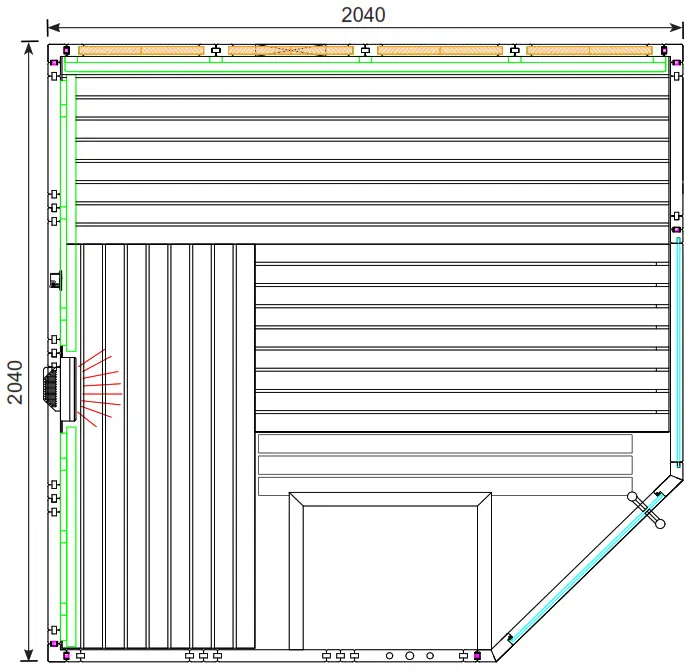

Floor plan

Assembling the cabin

ATTENTION!
Observe the floor plan on page 8 and the illustrations starting on page 13.
3.1. Assembling the base frame
With a hammer, carefully drive in the plastic dovetail keys on both corners of the base frame until they are flush with the groove of the element.
Also screw the corners in place as shown.
A always designates the visible side, and appears on the top side of the wall elements.

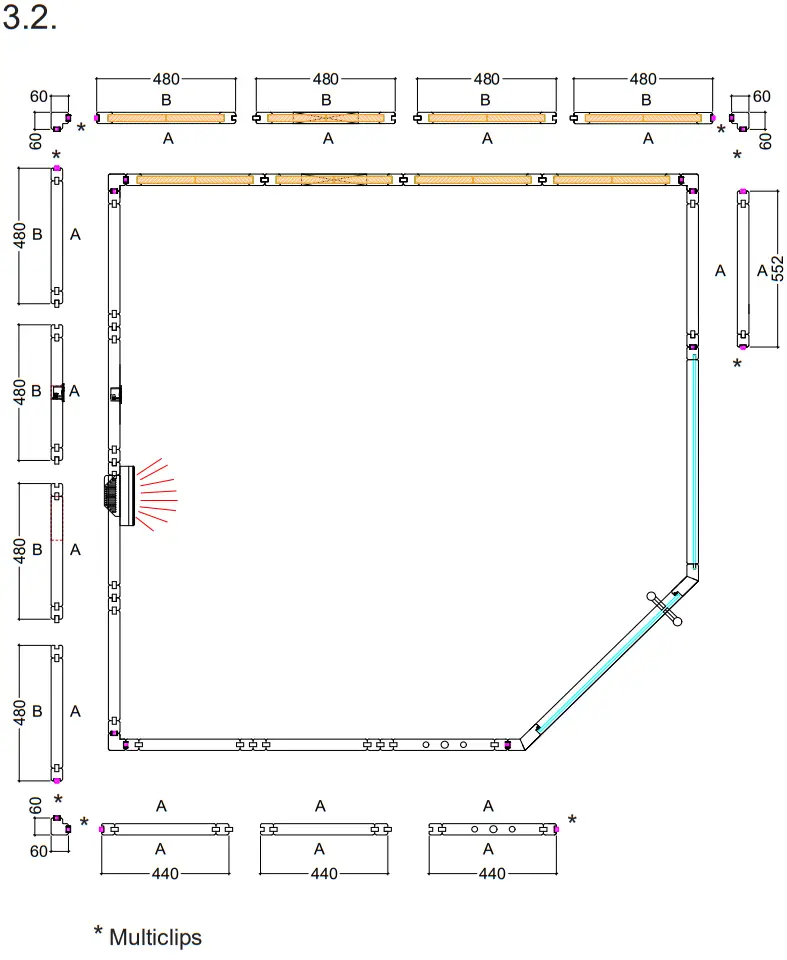

3.2. Installing wall elements

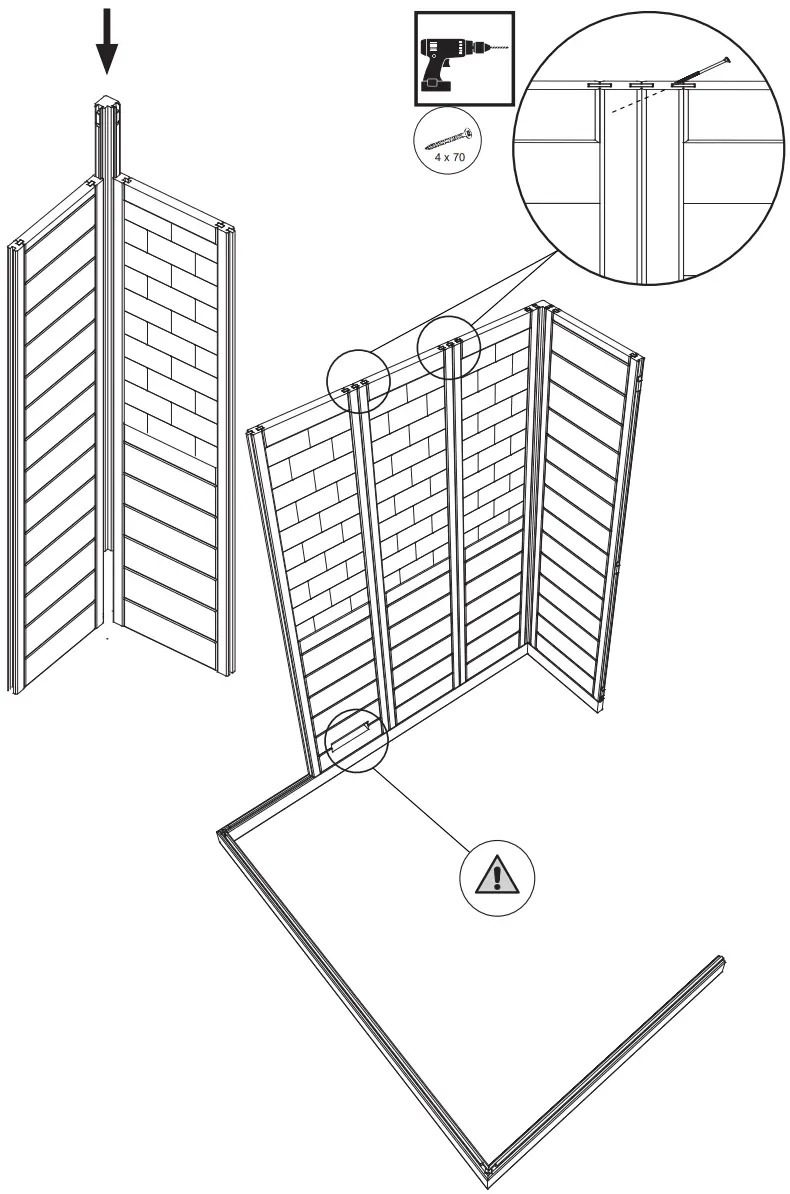

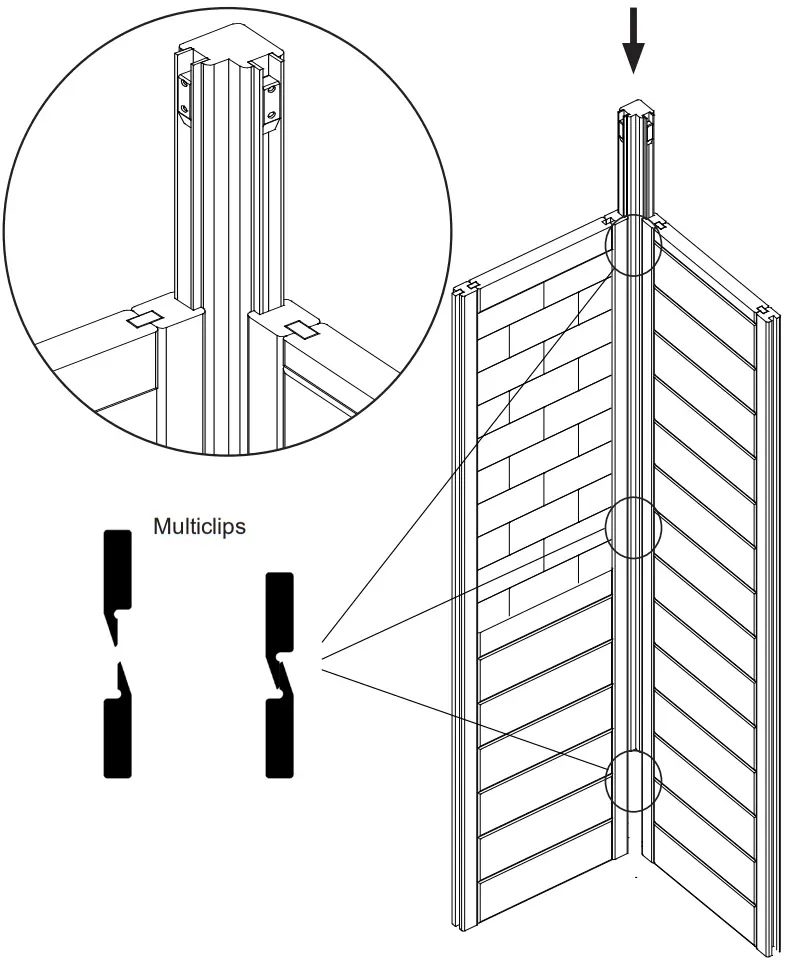

Start by installing the wall elements on the rear corners. The corner posts are connected to the wall elements using Multiclips. Insert the corner post from above down onto the wall elements. When doing so, make sure that the “Multiclips” are aligned correctly. The corner post must be flush with the wall elements.
Installing the salt stone wall elements involves connecting them with the tongue and groove and screwing them together. Make sure the ventilation element is correctly positioned.

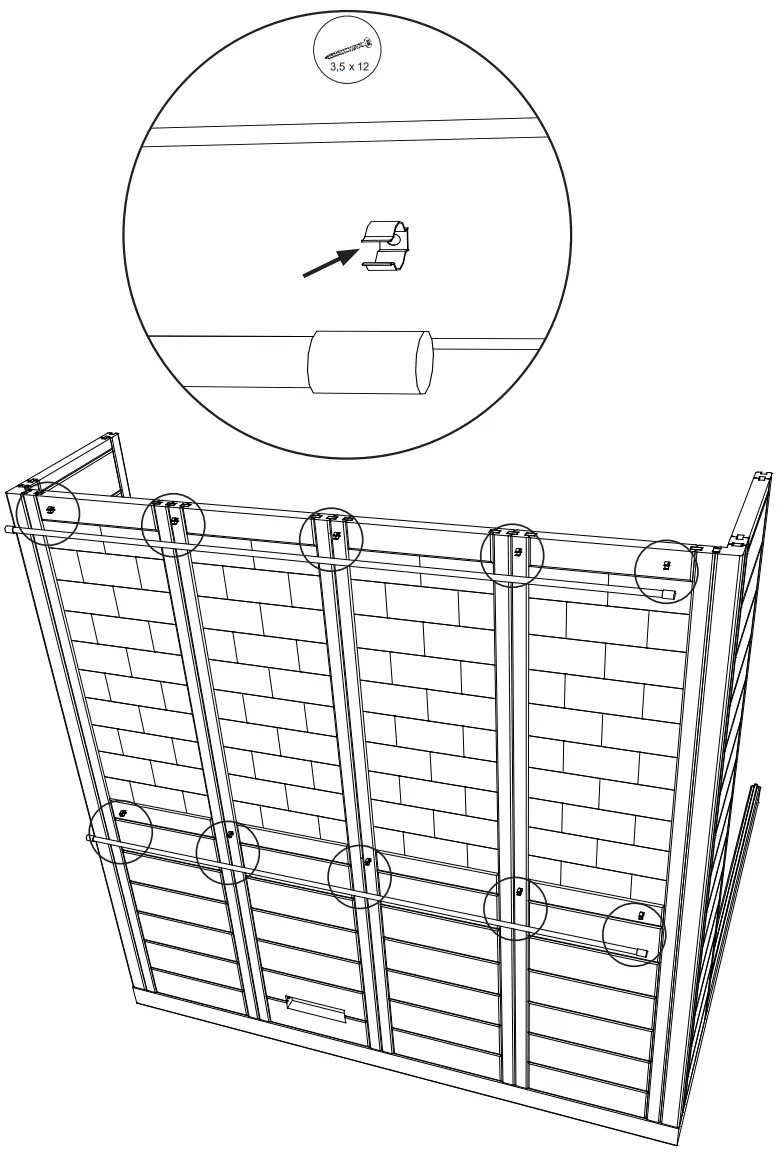

Install the salt wall lighting.
Now move the sauna to its final position and check the right angles (see tip on page 4).
Install the side wall elements. Make sure the electronic element is correctly positioned.
Install the posts for glass using the “Multiclips”.

3.3. Assembling the glass elements
Place the U-shaped aluminium profile flush onto the glass element, and insert the glass element into the groove provided on the wall element for this purpose.

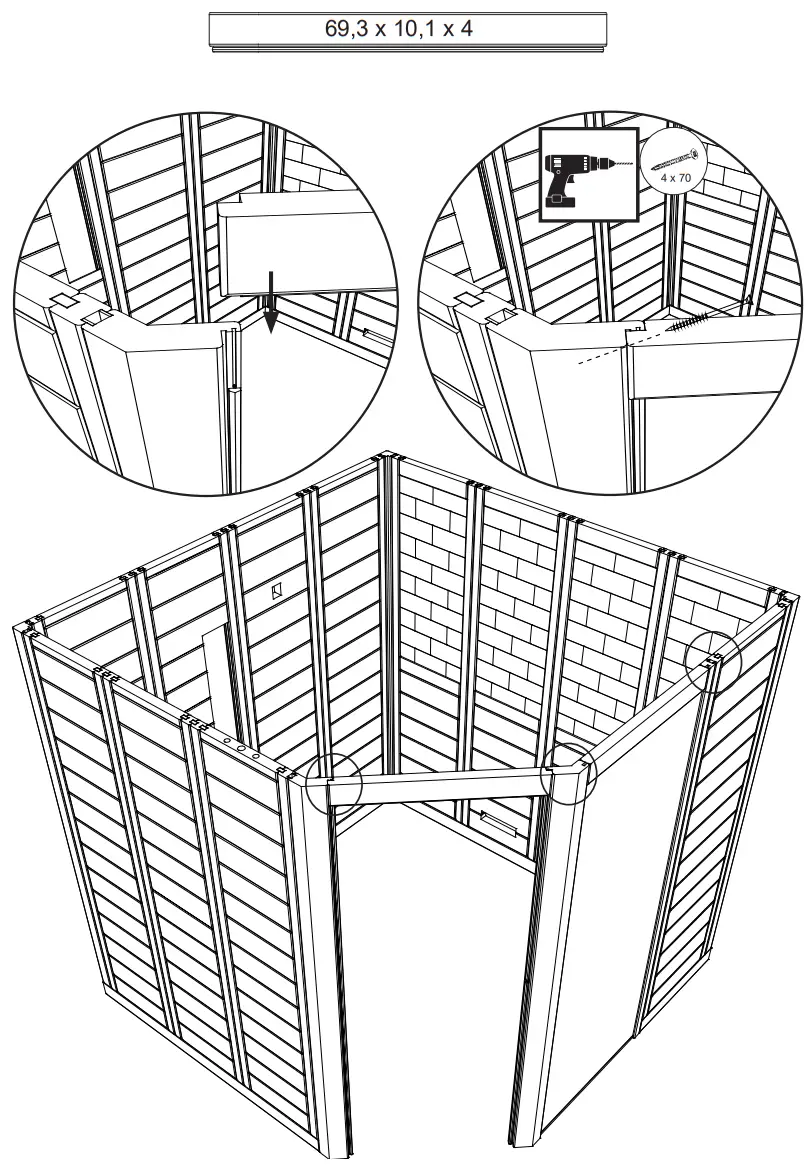

Mount the strips above the window and the door, and screw them diagonally to the corner post or the wall element.

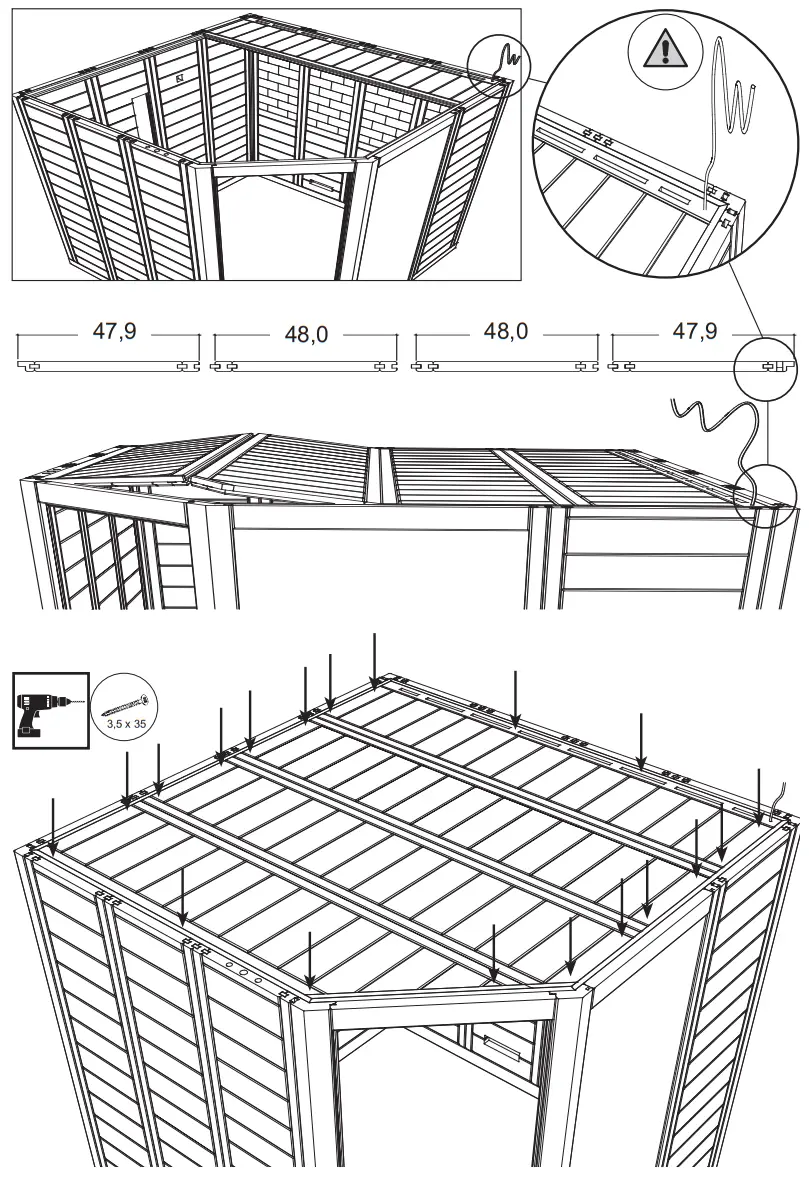

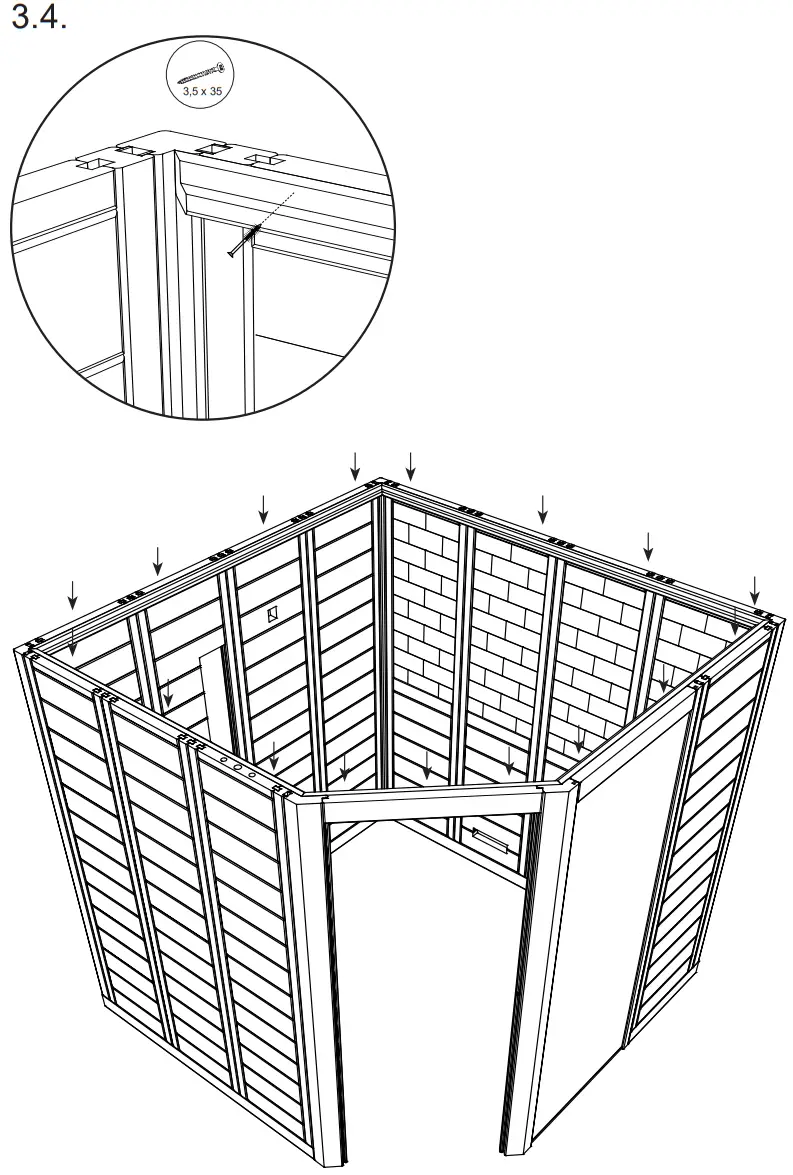

3.4. Roof installation
Install the roof support slats and screw them to the wall elements.
Insert the roof elements and screw them to the roof support slats.
Observe the cable outlets.

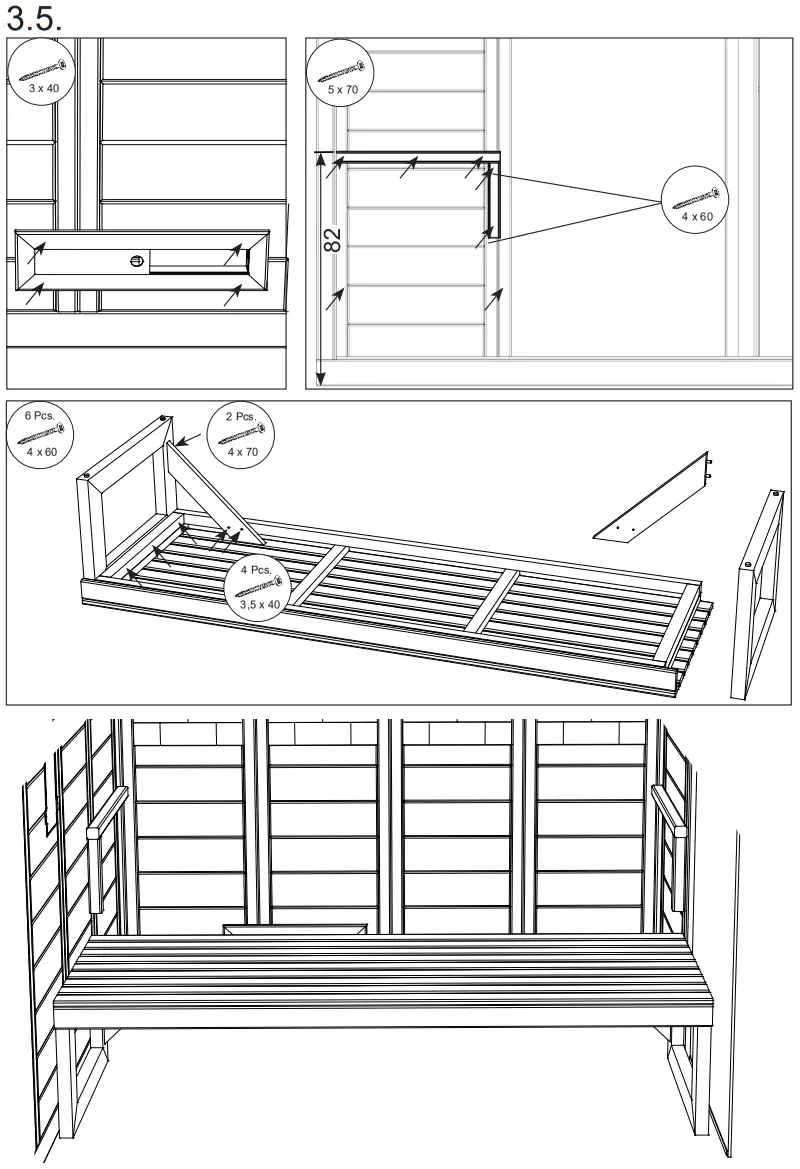

3.5. Installing interior fittings
Mount the ventilation slide.
Mount the foot step (lower bench) and position it in the cabin.

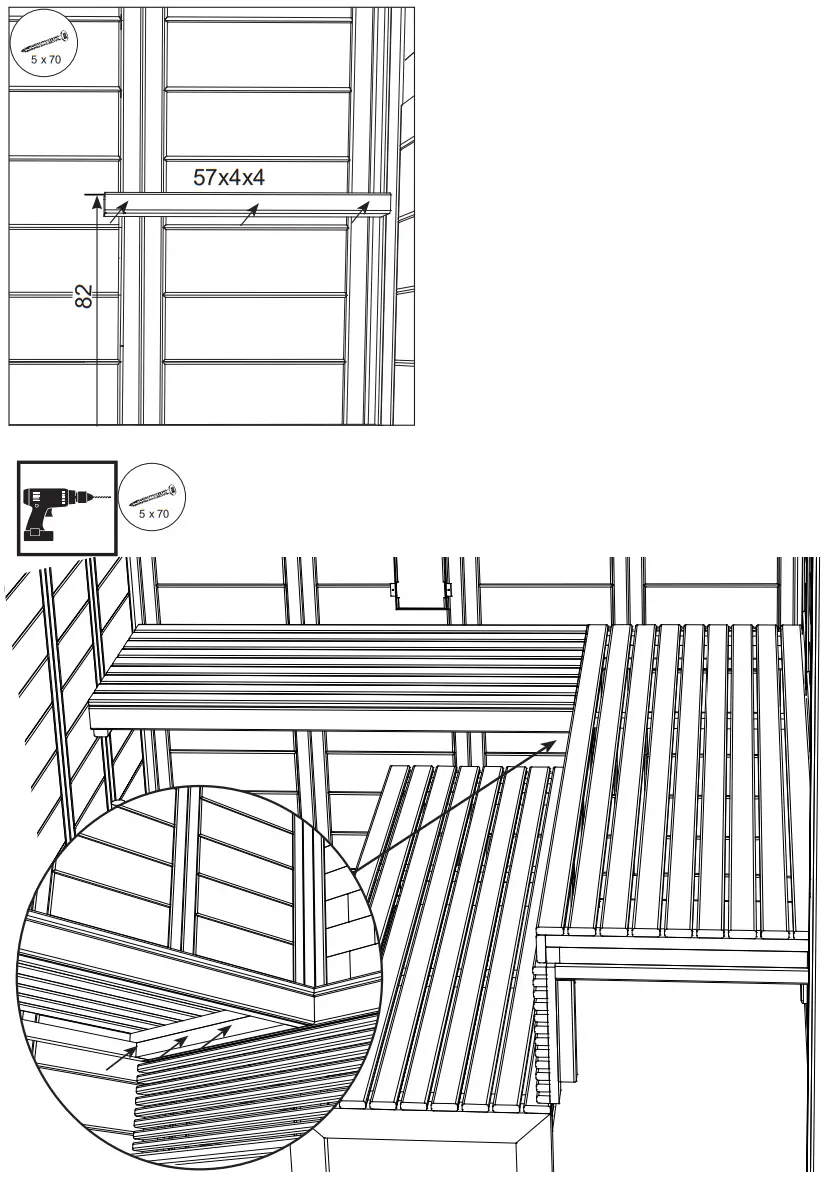

Install the bench support slats.
Secure the bench screen.

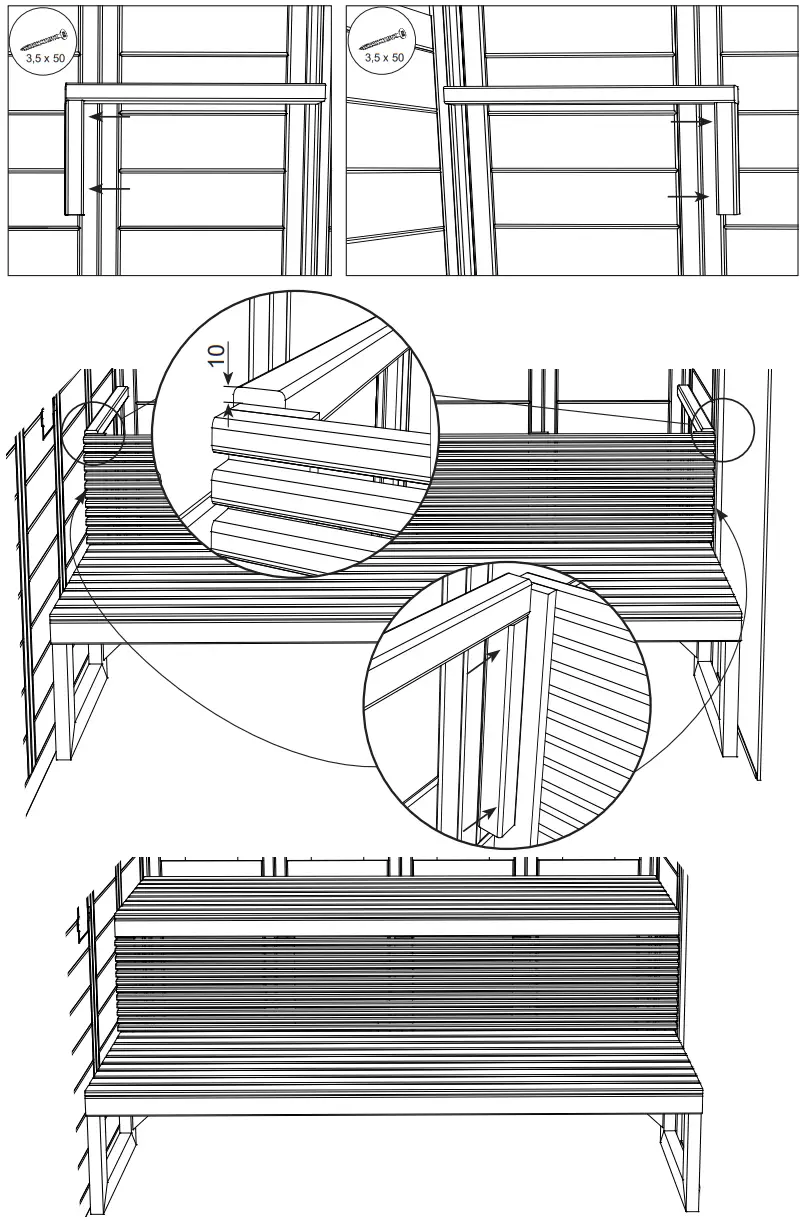

Put the upper benches in place, and screw them to each other.

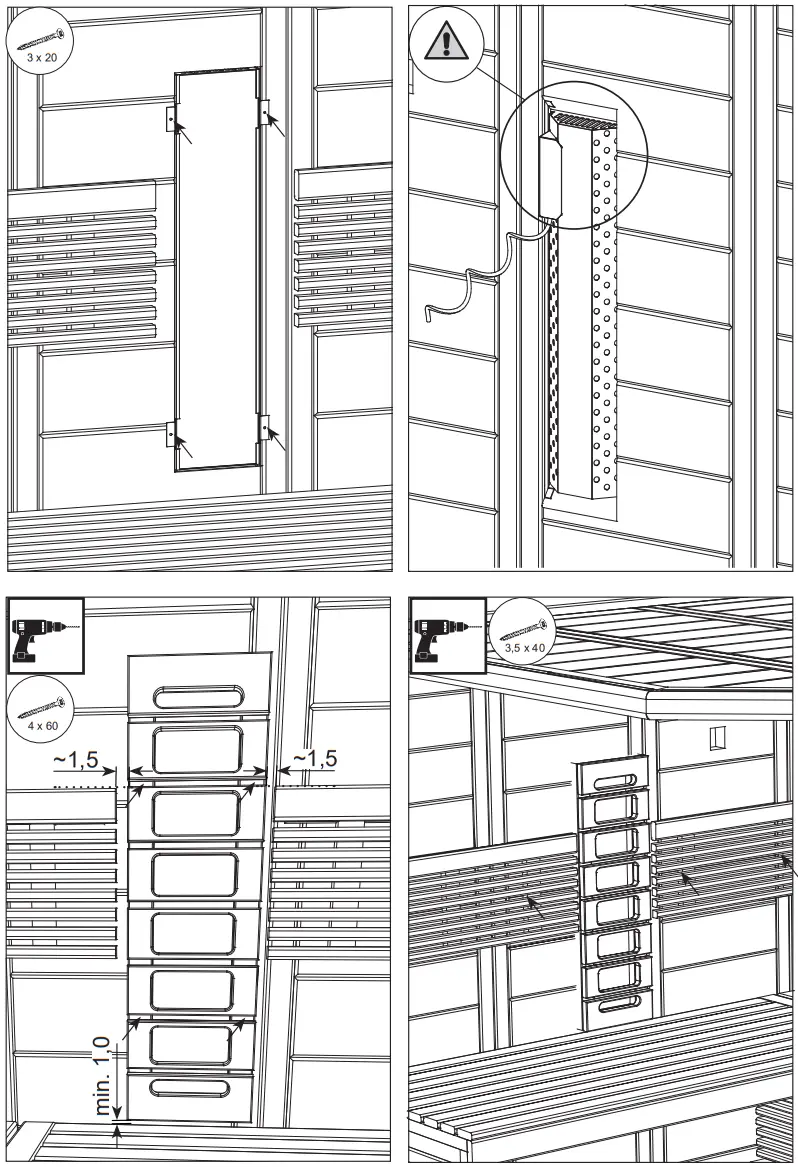

Install the infrared radiator and the radiator cover.

Please observe the installation instructions included with the infrared radiator! The connection box for the infrared radiator must be at the top. The writing on the glass of the infrared radiator must be legible.

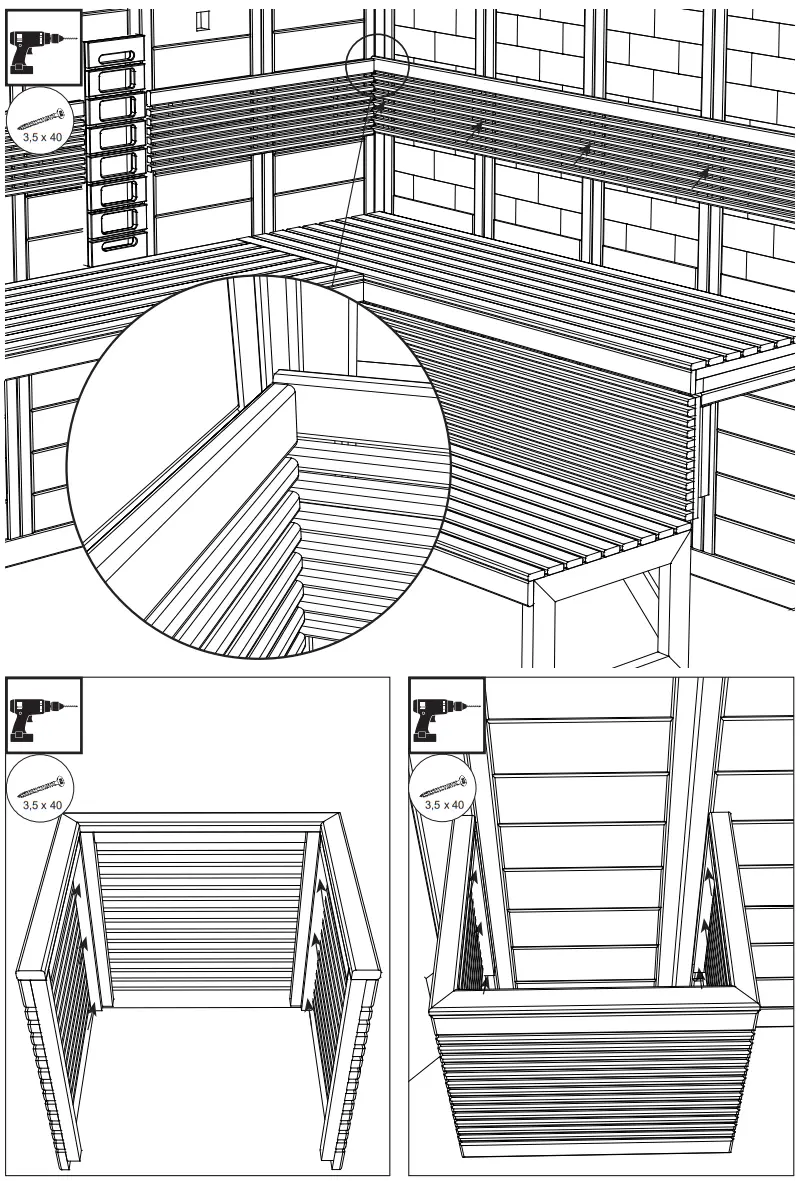

Install the backrests.
Assemble the protection grille.

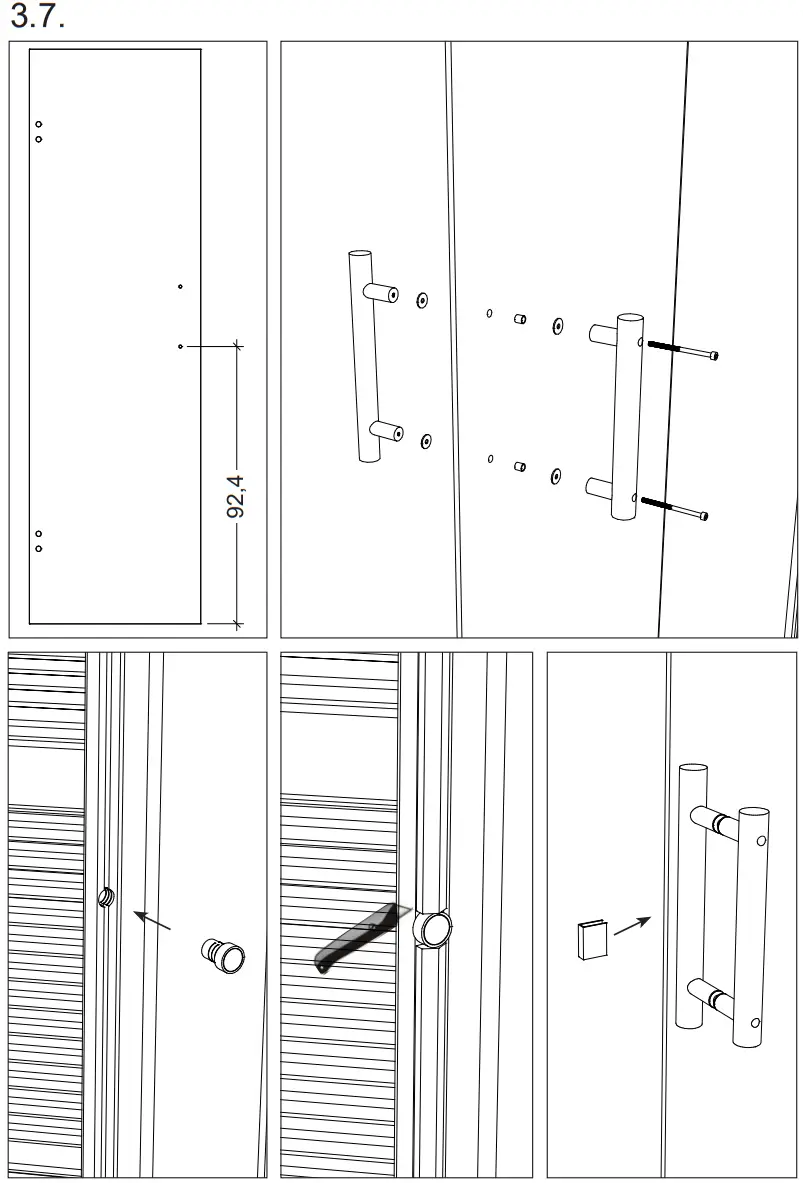

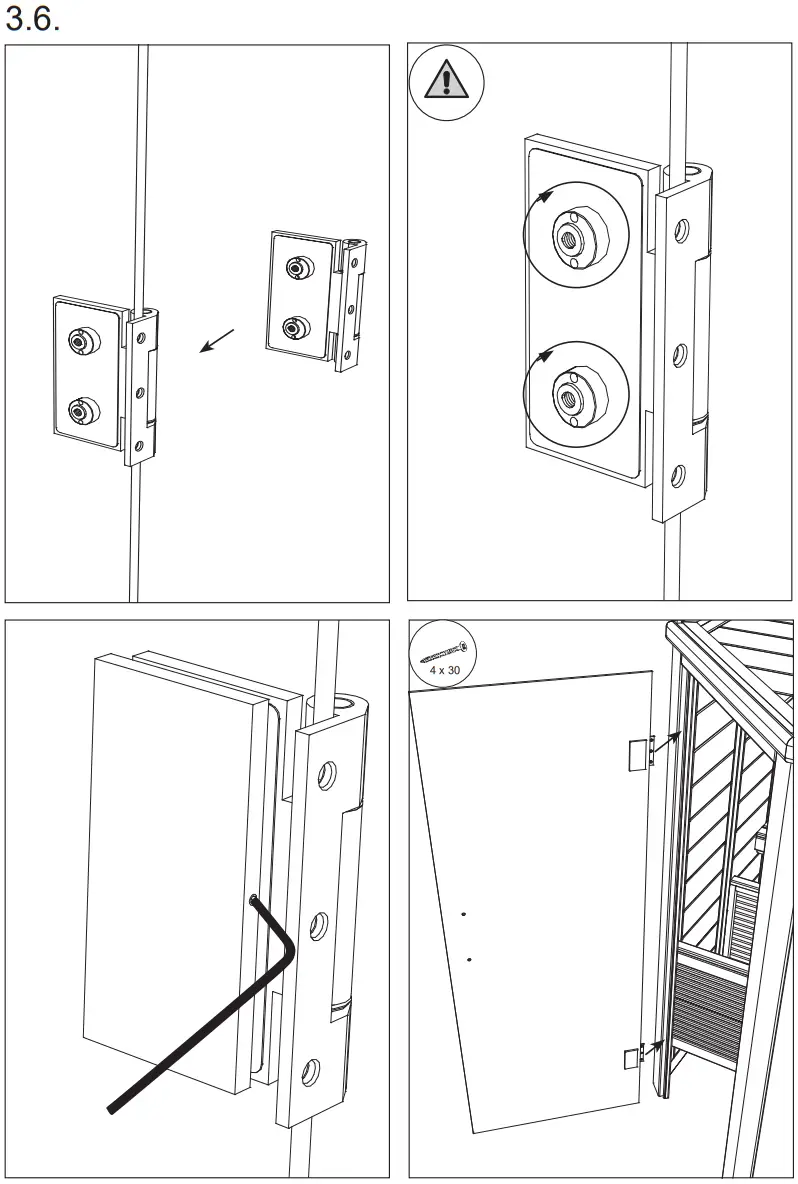

3.6. Installing the glass door
Mount the two door fittings on the glass door while checking that the alignment of the fittings are straight and that the doors open outward.
The bottom drill hole of the door handle is 92.4 cm high. The alignment of the fittings is achieved by adjusting/rotating both plastic inserts.

3.7. Installing accessories
The door handles are screwed together from the inside.
Install the door magnet and sleeve plate.
Install the roof cover slats and the roof trim slats on the outside.

sentiotec GmbH
Division of Harvia Group
Wartenburger Straße 31, A-4840 Vöcklabruck
T +43 (0) 7672/22 900-50
F -80
[email protected]
www.sentiotec.com
Version 05/22
HIMALAYA-C-IR+
item no. 1-052-963
