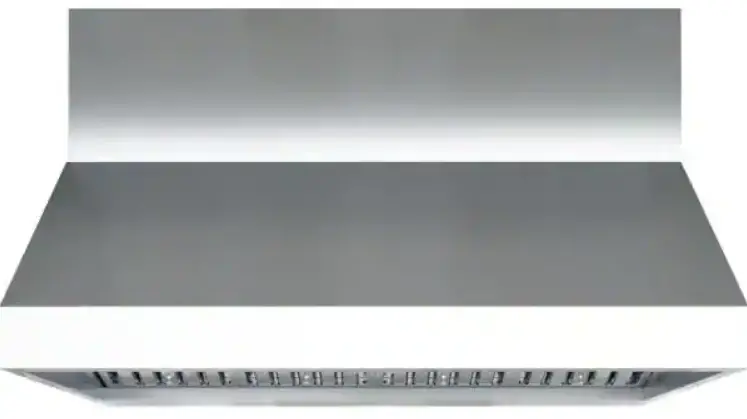

ZEPHYR AK7836CS Cypress Outdoor Wall Mount Range Hood

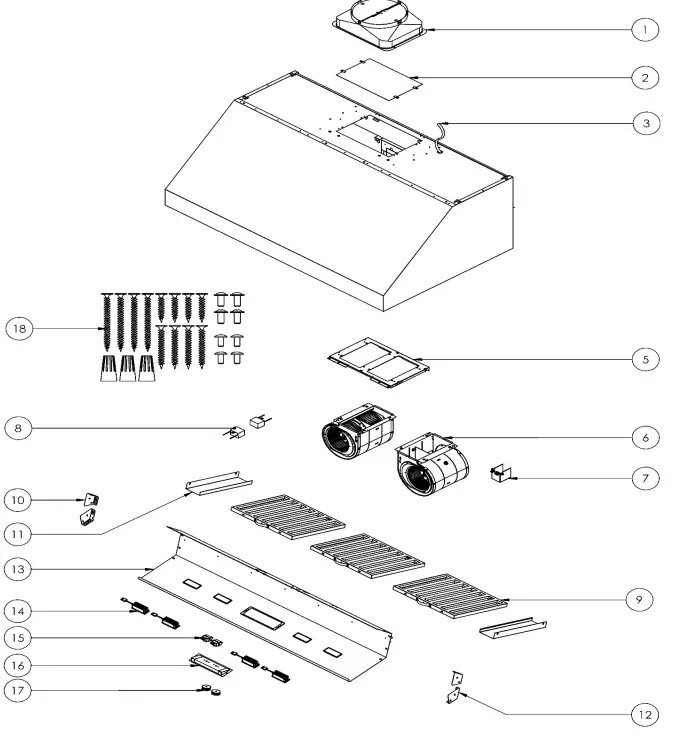

PRODUCT PARTS
| Ref # | Part # | Description | Qty. |
| 1 | 54050081 | 10 Inch Round Transition Collar | 1 |
| 2 | 52170069 | Top Ducting Cover Plate | 1 |
| 3 | 11030112 | Electrical Cord | 1 |
| 5 | 54190073 | Dual Blower Mounting Bracket | 1 |
| 6 | 12120070 | Blower | 2 |
| 7 | 54200011 | Electrical Junction Box | 1 |
| 8 | 12050032 | Capacitor | 2 |
| 9 | 50210047 | Pro Baffle Filter (36″ & 42″ x2) | 3 |
| 10 | 54140209 | Left Bracket | 2 |
| 11 | 50120210 | Side Spacer Panel (AK7836CS) | 2 |
| 11 | 50120211 | Side Spacer Panel (AK7842CS) | 2 |
| 11 | 50120212 | Side Spacer Panel (AK7848CS) | 2 |
| 11 | 50120213 | Side Spacer Panel (AK7854CS) | 2 |
| 12 | 54140208 | Right Bracket | 2 |
| 13 | 50110374 | Light Panel (AK7836CS) | 1 |
| 13 | 50110375 | Light Panel (AK7842CS) | 1 |
| 13 | 50110376 | Light Panel (AK7848CS) | 1 |
| 13 | 50110377 | Light Panel (AK7854CS) | 1 |
| 14 | Z0B0050 | LumiLight LED, 6W (36″ & 42″ x2) | 4 |
| 15 | 11040021 | Rotary Switch | 2 |
| 16 | 52170089 | Switch Housing | 1 |
| 17 | 52170070 | Switch Knob | 2 |
| 18 | 05000173 | Hardware Packet | 1 |
| MAY22.0101 | |||
