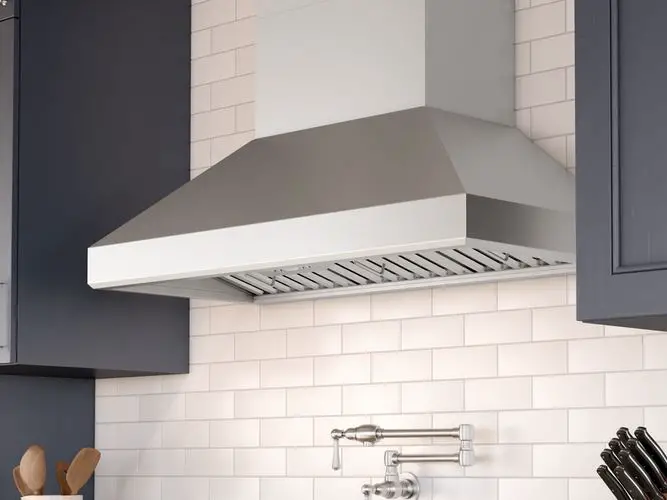

ZEPHYR AK7642BS 42 Inch Pro Collection Titan Wall Mount Hood
MODEL: AK7636BS AK7642BS

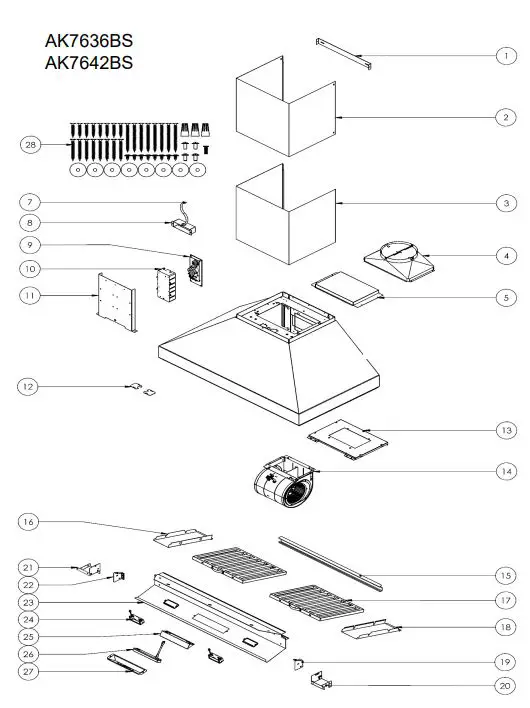

PARTS
AK7636BS, AK7642BS
| Ref # | Part # | Description | Qty. |
| 1 | 54140235 | Duct Cover Bracket | 1 |
| 2 | 50050188 | Upper Duct Cover | 1 |
| 3 | 50050189 | Lower Duct Cover | 1 |
| 4 | 54050084 | 8 Inch Round Duct Collar | 1 |
| 5 | 56210110 | Top Cover Venting Plate | 1 |
| 7 | 11030144 | Power Wire Cable | 1 |
| 8 | 56200085 | Electrical Box | 1 |
| 9 | 11010149 | Main Control Board | 1 |
| 10 | 56200051 | Control Board Box | 1 |
| 11 | 54140326 | Component Bracket | 1 |
| 12 | 56210111 | Wiring Hole Cover | 2 |
| 13 | 54140236 | Single Motor Bracket | 1 |
| 14 | 12120086 | PowerWave Blower | 1 |
| 15 | 56130049 | Residue Tray | 1 |
| 16 | 50120139 | Left Panel Spacer (AK7636BS) | 1 |
| 16 | 50120141 | Left Panel Spacer (AK7642BS) | 1 |
| 17 | 50210033 | Pro Baffle Filter | 2 |
| 18 | 50120140 | Right Panel Spacer (AK7636BS) | 1 |
| 18 | 50120142 | Right Panel Spacer (AK7642BS) | 1 |
| 19 | 54140208 | Right Bracket | 1 |
| 20 | 54140327 | Right Light Panel Bracket | 1 |
| 21 | 54140328 | Left Light Panel Bracket | 1 |
| 22 | 54140209 | Left Bracket | 1 |
| 23 | 50110367 | Light Panel (AK7636BS) | 1 |
| 23 | 50110368 | Light Panel (AK7642BS) | 1 |
| 24 | Z0B0052 | LumiLight Swivel LED, 6W | 2 |
| 25 | 54140238 | Switch Bracket | 1 |
| 26 | 11000166 | Switch Assembly | 1 |
| 27 | 52110026 | Switch Housing | 1 |
| 28 | 05000172 | Hardware Packet | 1 |
| MAY22.0101 | |||

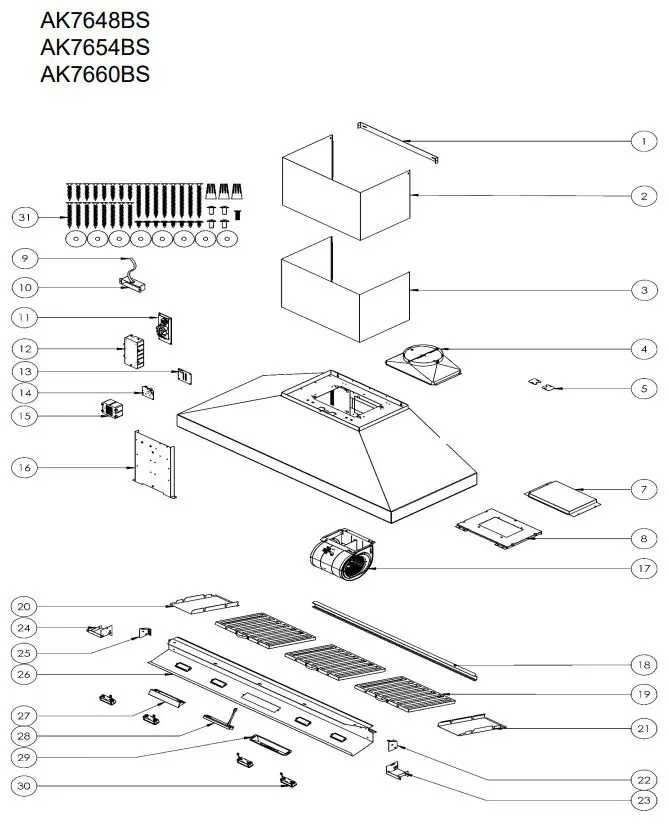

AK7648BS, AK7654BS, AK7660BS
| Ref # | Part # | Description | Qty. |
| 1 | 54140239 | Duct Cover Bracket | 1 |
| 2 | 50050190 | Upper Duct Cover | 1 |
| 3 | 50050191 | Lower Duct Cover | 1 |
| 4 | 54050084 | 8 Inch Round Duct Collar | 1 |
| 5 | 56210111 | Electrical Wiring Cover | 2 |
| 7 | 56210110 | Top Venting Cover Plate | 1 |
| 8 | 54140236 | Single Motor Bracket | 1 |
| 9 | 11030144 | Electrical Wiring | 1 |
| 10 | 56200085 | Electrical Box | 1 |
| 11 | 11010149 | Main Control Board | 1 |
| 12 | 56200051 | Control Board Box | 1 |
| 13 | 56210112 | LED Control Board Box Cover | 1 |
| 14 | 11010132 | LED Control Board | 1 |
| 15 | 56200079 | LED Control Board Box | 1 |
| 16 | 54140329 | Component Bracket | 1 |
| 17 | 12120086 | PowerWave Blower | 1 |
| 18 | 56130050 | Residue Tray (AK7648BS, AK7654BS) | 1 |
| 18 | 56130051 | Residue Tray (AK7660BS) | 1 |
| 19 | 50210033 | Pro Baffle Filter | 3 |
| 20 | 50120151 | Left Panel Spacer (AK7654BS) | 1 |
| 20 | 50120153 | Left Panel Spacer (AK7660BS) | 1 |
| 21 | 50120152 | Right Panel Spacer (AK7654BS) | 1 |
| 21 | 50120154 | Right Panel Spacer (AK7660BS) | 1 |
| 22 | 54140208 | Right Bracket | 1 |
| 23 | 54140327 | Right Light Panel Bracket | 1 |
| 24 | 54140328 | Left Light Panel Bracket | 1 |
| 25 | 54140209 | Left Bracket | 1 |
| 26 | 50110369 | Light Panel (AK7648BS) | 1 |
| 26 | 50110370 | Light Panel (AK7654BS) | 1 |
| 26 | 50110371 | Light Panel (AK7660BS) | 1 |
| 27 | 54140238 | Switch Bracket | 1 |
| 28 | 11000166 | Switch Assembly | 1 |
| 29 | 52110026 | Switch Housing | 1 |
| 30 | Z0B0052 | LumiLight Swivel LED, 6W | 4 |
| 31 | 05000172 | Hardware Packet | 1 |
| MAY22.0101 | |||
