ZSA-E30FB
Savona 36″ Stainless Steel
Wall Mounted Range Hood
Instruction Manual
ZSA-E30FB Savona 36″ Stainless Steel Wall Mounted Range Hood
ZSA-E30FB/ZSA-E30FBS/ZSA-E30FS/ZSA-E30FW/ZSA-M90FB/ZSA-M90FBS/ZSA-M90FS/ZSA-M90FW
Savona

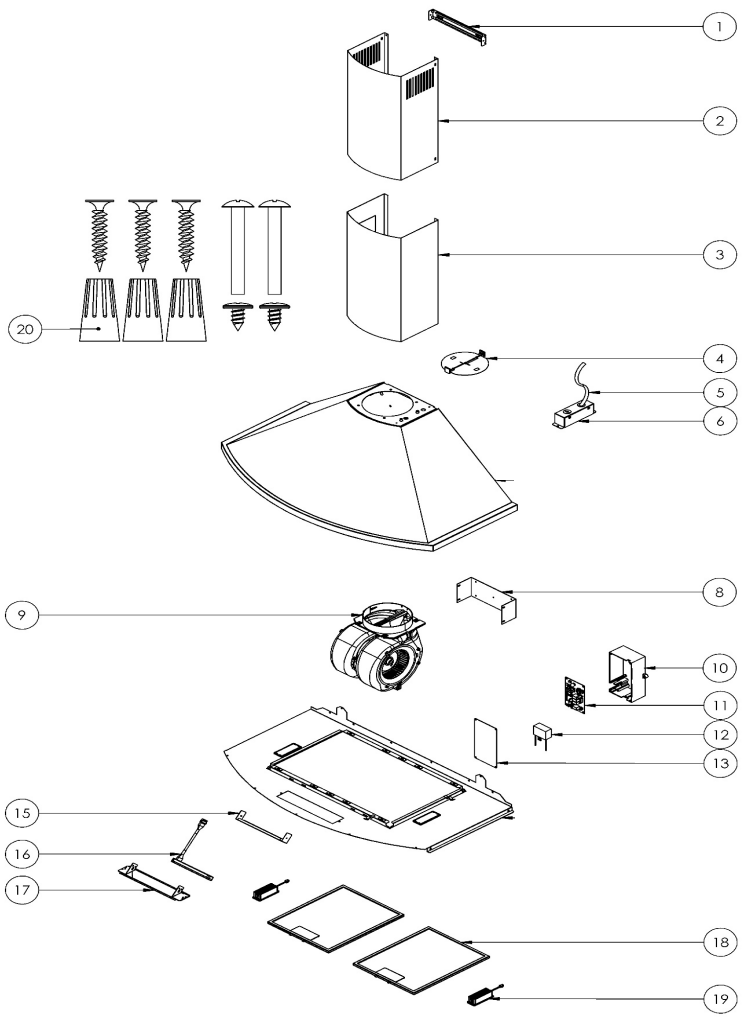

| Ref # | Part # | Description | Qty. |
| 1 | 54110051 | Duct Cover Wall Bracket | 1 |
| 2 | 50050060 | Upper Duct Cover, Black | 1 |
| 2 | 50050175 | Upper Duct Cover, Black Stainless | 1 |
| 2 | 50050059 | Upper Duct Cover, Stainless | 1 |
| 2 | 50050151 | Upper Duct Cover, White | 1 |
| 3 | 50050062 | Lower Duct Cover, Black | 1 |
| 3 | 50050176 | Lower Duct Cover, Black Stainless | 1 |
| 3 | 50050061 | Lower Duct Cover, Stainless | 1 |
| 3 | 50050152 | Lower Duct Cover, White | 1 |
| 4 | 54060007 | 6 Inch Round Damper | 1 |
| 5 | 11030167 | Electrical Cord | 1 |
| 6 | 56200081 | Electrical Box | 1 |
| 8 | 54140065 | Motor Bracket | 1 |
| 9 | 12120089 | Motor | 1 |
| 10 | 54200020 | Component Box | 1 |
| 11 | 11010150 | Control Board | 1 |
| 12 | 12050021 | Capacitor | 1 |
| 13 | 56210067 | Component Box Cover | 1 |
| 15 | 50100027 | Switch Bracket | 1 |
| 16 | 11000168 | Switch Assembly | 1 |
| 17 | 56200116 | Switch Housing, Black | 1 |
| 17 | 56200090 | Switch Housing, Black Stainless | 1 |
| 17 | 56200117 | Switch Housing, Stainless | 1 |
| 17 | 56200118 | Switch Housing, White | 1 |
| 18 | 50200011 | Aluminum Mesh Filter | 2 |
| 19 | Z0B0048 | LumiLight LED, 6W | 2 |
| 20 | 5000118 | Hardware Packet | 1 |
MAY22.0101
