Sealey Rs1200 Roadstart 1200a 12v Lithium-ion Jump Starter Power Pack Instruction Manual

ROADSTART® 1200A 12V LITHIUM-ION JUMP
STARTER POWER PACK
MODEL NO: RS1200
Instruction Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions, and properly maintained, give you years of trouble-free performance.

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.

Refer to the instruction manual	Wear eye protection	Wear protective gloves	Warning: Electricity

SAFETY

Modern vehicles contain extensive electronic systems.
You are required to check with the vehicle Manufacturer, for any specific instructions regarding the use of this type of equipment on each vehicle. No liability will be accepted for damage/injury, where this product is not used in accordance with all instructions.

Ensure that the vehicle is in a well-ventilated area.
Apply the handbrake and select neutral or ‘park’ before attempting to start.
Ensure that the ignition switch and all ancillary electrical equipment are switched off.
Keep clear of any pulleys, belts, etc. that will move once the engine starts.
Take care to ensure correct connection polarity; red clamp to positive, black clamp to negative.
Energize the unit only at ambient temperatures between -30°C and 40°C.
When not in use, switch off and store in a cool, dry place out of the reach of children.
DO NOT allow this power pack to become wet.
DO NOT dismantle this unit: there are no user-serviceable parts inside.
DO NOT use in explosive atmospheres (e.g. the presence of flammable liquids, gases, or dust).
DO NOT use the unit if it appears damaged in any way.
DO NOT use this product for any purpose other than that for which it is designed.
DO NOT leave in direct sunlight or be exposed to heat.
DO NOT use abrasive or solvent cleaners on this product.
DO NOT allow children to play with this product
DO NOT allow the positive and negative clamps to touch.

1.1. BATTERY SAFETY
‰ WARNING! To reduce the risk of burns or fire:
DO NOT attempt to open, disassemble, modify or service the battery pack.
DO NOT crush, puncture, short external contacts or dispose of in fire or water.
DO NOT expose to temperatures above 60°C (140°).
Replace only with the battery pack designated for this product.
Recycle or dispose of used batteries as stipulated by local regulation.
If the electrolyte in the cells gets on your skin, thoroughly wash with soap and water. If it gets in your eyes, rinse thoroughly with cool water and seek immediate medical attention.

INTRODUCTION

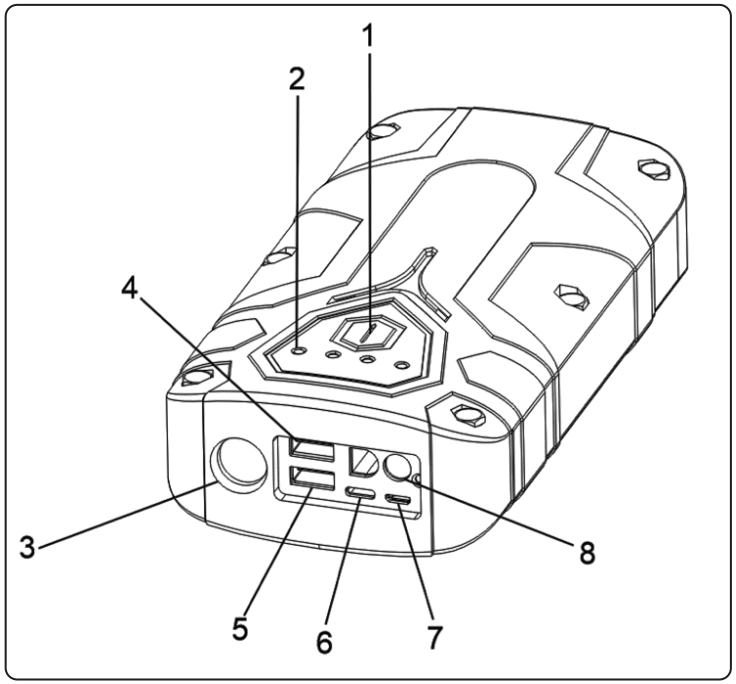

Easily fits in a glove box or backpack and benefits from being compact and lightweight. Powered by Lithium-ion technology and fully protected against short circuits, overload, and reverse polarity. Fitted with a 16,000mAh Lithium-ion battery and two USB Type-A outlets (5V/3A, 9V/2A,12V/1.5A), Type C input & output leads (5V/3A,9V/3A,12V/2.5A,20V/1.5A), this unit can also supply several full charges for smartphones and tablets/laptops. Capable of starting an average 8ltr petrol or 6ltr diesel engine. Integral LED flashlight. Waterproof to IP67 rating. Supplied in a sturdy hard-shell zip-up case.

SPECIFICATION

Model no: ………………………………………………………… RS1200
Auxiliary Output:……………………………………………………………
…………………………..USB (x2) both – 5V/3A, 9V/2A, 12V/1.5A
……………………….. Type C – 5V/3A,9V/3A,12V/2.5A,20V/1.5A
Cable & Clamp Length: ………………………………………. 385mm
Capacity: ……………………………16Ah @ 3.7V or 4Ah @ 14.8V
Maximum Current: ………………..1200A Peak, 600A Cranking.
Maximum Starting Capacity: ……………….. 8L Petrol/6L Diesel
Size (W x D x H): ………………………………..100 x 45 x 185mm
Voltage: ………………………………………………………………….12V

OPERATION

4.1. CHARGING THE UNIT
NOTE: Ensure the unit is fully charged before first use.
4.1.1. Connect the unit to a power source using the Micro USB cable or USB C cable.
4.1.2. Press the On/Off button to turn on the unit. Charge indicator lights will flash while charging and are fully lit once fully charged.
4.1.3. Unplug the cable when fully charged.

4.2. CHARGING EXTERNAL DEVICES
4.2.1. Connect the unit to the external device via the USB cable.
4.2.2. Press the On/Off button to turn on the unit.
4.2.3. Turn the unit off and disconnect the cable when the external device is fully charged.

4.3. LED TORCH/FLASHLIGHT
4.3.1. Press and hold the On/Off button for approximately 3 seconds to turn the torch on constantly.
4.3.2. To cycle through settings, press once more for S.O.S. flash, once more for constant flash, and once more for Off.

4.4. JUMP STARTING
NOTE: Before attempting to start your vehicle, ensure that at least 3 of the 4 Charge Indicator lights are lit.
NOTE: When the Jump Start Connector is connected to the unit, DO NOT allow the battery clamps to touch each other.

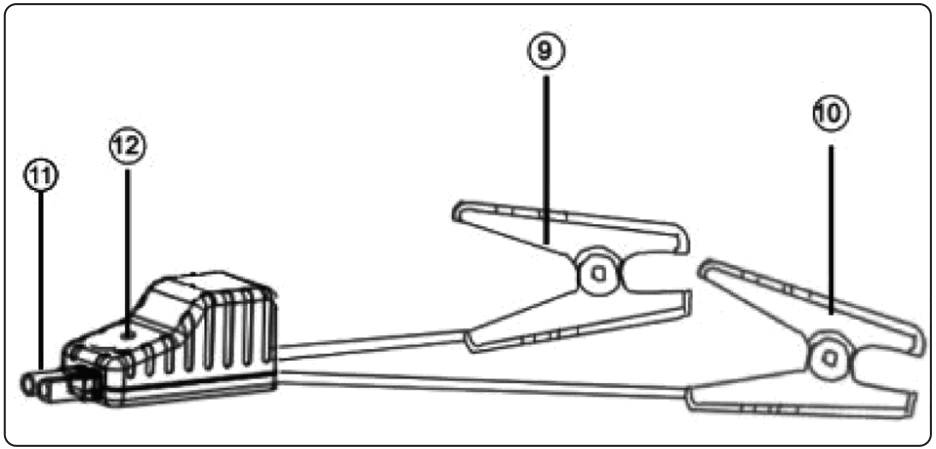

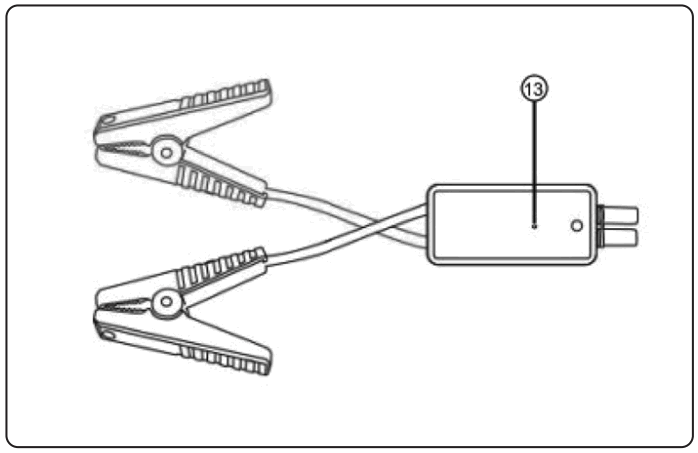

4.4.1. Insert Jump Start Connector into the unit and connect the battery clamps to the battery terminals.
4.4.2. The Clamp Indicator LED will flash red and green indicating it is safe to proceed.
NOTE: If only the red Clamp Indicator LED is lit, the Clamps may be connected in reverse. Reverse connections.
4.4.3. If the engine does not start, disconnect the Clamps, wait for 30 seconds and try again.
4.4.4. After 3 attempts, it is possible to use the Force Start function as described below.
4.4.5. Force Start method: Connect the clamps to the battery terminals and hold the Force Start Button down for 3 seconds. If the indicator light of the Clamp is solid green, you need to start the vehicle within 30 seconds.
4.4.6. Once started, remove the unit from the battery.

TROUBLESHOOTING

MAINTENANCE

6.1. After use and before performing cleaning, unplug and disconnect the unit.
6.2. Use a dry cloth to wipe all battery corrosion and other dirt or oil from the battery clamps, cords, and the outer case.

ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories, and packaging should be sorted, taken to a recycling center, and disposed of in a manner that is compatible with the environment. When the product becomes completely unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids according to local regulations.

WEEE REGULATIONS
Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic Equipment (WEEE). When the product is no longer required, it must be disposed of in an environmentally protective way. Contact your local solid waste authority for recycling information.

BATTERY REMOVAL
Under the Waste Batteries and Accumulators Regulations 2009, Jack Sealey Ltd are required to inform potential purchasers of products containing batteries (as defined within these regulations), that they are registered with Valpak’s registered compliance scheme. Jack Sealey Ltd’s Batteries Producer Registration Number (BPRN) is BPRN00705.

Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications, and component parts without prior notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.

https://qrco.de/bcy2E9
REGISTER YOUR PURCHASE HERE
Sealey Group, Kempson Way,
Suffolk Business Park, Bury St Edmunds,
Suffolk. IP32 7AR
01284 757500
01284 703534
[email protected]
www.sealey.co.uk
© Jack Sealey Limited
Original Language Version
RS1200 Issue:1 06/06/22
