JQG7505 30 Inch Wall-Mount Range Hood
Instruction Manual
JQG7505 30 Inch Wall-Mount Range Hood

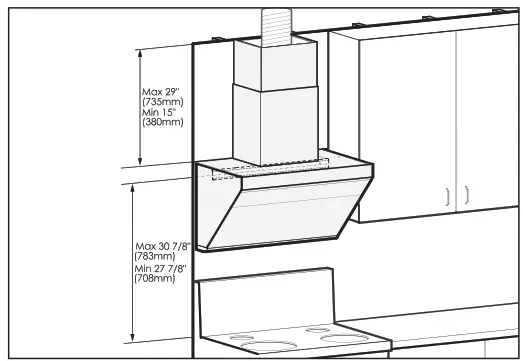

- In order to secure the safe use of the range hood and maximize its ability to ventilate cooking fumes, the installation height is suggested as follows: The distance from the countertop of the gas stove to the top board of the range hood shall not be less than 29 9/16″(750 mm) and shall not be more than 32 1/2″(825 mm). Where there are relevant laws stipulating the mounting height of range hood in the state or region, the laws shall prevail. However, the effect of cooking fumes ventilation might be affected.
- When drilling into the wall or ceiling, be careful not to damage electrical wiring, water pipes, gas lines, or other hidden utilities.
- The wall should be strong enough to support the range hood. As for hollow walls or hollow plates, the minimum thickness of the lumber should be 13/16″ (30 mm).
- Shorten the length of ducting run to the hole on the outside wall and decrease the turns to the minimum when designing the ducting run. The requirements of the ducting run are:
1) the diameter of the ducting run is at least 6 inches;
2) iron sheet tube is the first suggested option for the ducting run and then secondly the aluminum pipe;
3) the length of the ducting run is suggested no more than 8 feet and three turns to ensure the best effect of oil suction.
Only operate the gas burners with cookware on them after installing the range hood.

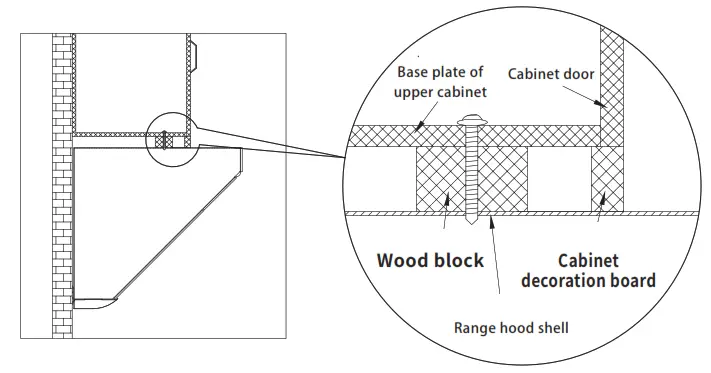

Note: If a decoration board is installed at the lower edge of the cabinet, a wood block at the same height as the decoration board near three #10×2 13/16″(M5×70mm) bolts before installation of a range hood, so as to avoid electric jogger’s failure to open or close properly caused by deformation of range hood shell during fastening of the bolts. (See the installation diagram).
Installation Instruction

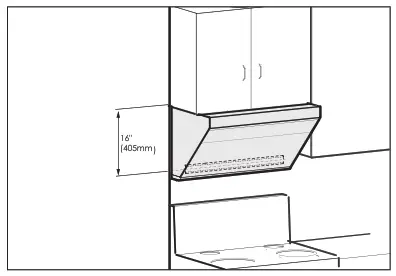

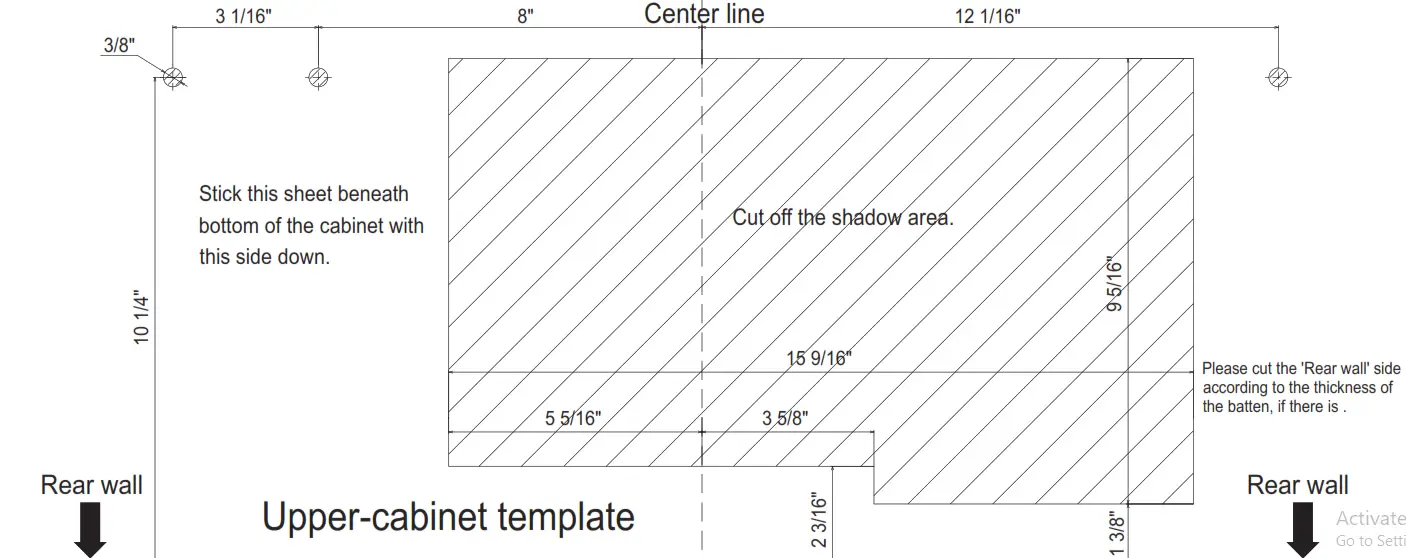

- Installation Instructions for FOTILE Range Hood with Upper Cabinet

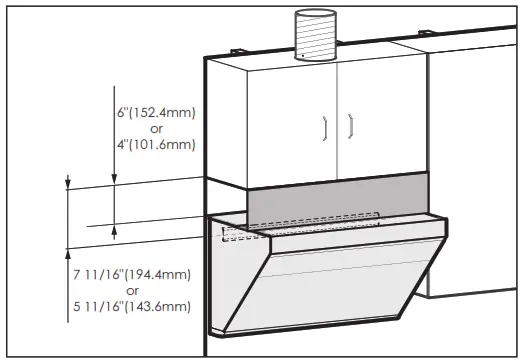

- Installation Instructions for the Decorative Plate with Upper Cabinet.
- Installation Instructions for the Decorative Cover Without Upper Cabinet
