Varimixer KODIAK20 Kodiak Commercial Mixers
Product Information
- Manufacturer: Varimixer A/S
- Model: KODI A K 20
- Part Number: 20022500
- DRN: 24020-1602 2022 06 24
- Electric Components Manual: Available
- Spare Parts Manual: Available
Product Usage Instructions:
When ordering spare parts, please provide the following information to Varimixer spare parts department:
- Type of machine (KODI A K 20)
- Number of the machine
- Part number of the spare part in question
- Method of conveyance
If any of the above information is missing, please contact Varimixer spare parts department before ordering.
DRIVELINE:
The driveline components of KODI A K 20 are listed below:
| Fig. no. | Part number | Description |
|---|---|---|
| 1 | RN20-87 | Ventilator |
| 2 | CR30-90 | Drive belt |
| 3 | STA3410 | Circlip |
| 4 | STA5750 | Hex cap screw |
| 5 | CR20-61.3 | Motor plate |
| 6 | CR20-128 | Pulley |
| 7 | CR20-129 | Pulley Feather Key |
| 8 | STA2037 | Circlip |
| 9 | STA3407 | Feather Key Motor Lock Nut |
| 10 | CR20-85 | Circlip |
| 11 | CR20-85.1 | Circlip |
| 12 | STA5834 | Tensile spring |
| 13 | STA3413 | Set screw |
LIFTING SYSTEM:
The lifting system components of KODI A K 20 are listed below:
| Fig. no. | Part number | Description |
|---|---|---|
| 1 | STA2515 | Bearing bushing |
| 2 | CR30-83.1M | Lifting bolt |
| 3 | STA3410 | Circlip |
| 4 | CR30-63M | Crankshaft |
| 5 | CR20-62M | Lifting handle |
| 6 | CR20-62.9 | Cover for lift arm |
| 7 | STA3408 | Circlip |
| 8 | CR20-23M | Bowl arm mounted Shaft |
| 9 | CR20-68.5 | Absorber plug |
| 10 | CR30-63.3 | Tensile spring |
| 11 | CR20-110 | Gasket |
| 12 | CR20-23.5 | Circlip Feather Key |
| 13 | STA3403 | Set screw |
| 15 | STA2019 | Radial Shaft Seal |
| 16 | STA5605 | Distance ring Eccentric disc Main shaft Radial Shaft Seal Socket head screw Bayonet shaft Eccentric main Bayonet bushing Socket head screw Distance ring Main bearing Needle bearing Pin |
PLANETARY HEAD:
The planetary head components of KODI A K 20 are listed below:
| Fig. no. | Part number | Description |
|---|---|---|
| 1 | STA6460 | Pin |
| 2 | STA3515 | Circlip |
| 3 | 6006 2RS | Ball bearing |
| 4 | 6206 2RS | Ball bearing |
| 5 | STA3518 | Circlip |
| 6 | HK1816 | Needle bearing |
| 7 | R20-235 | Support washer Inner ring Circlip |
| 8 | LR17 | Planetary wheel |
| 9 | STA3470 | Circlip |
| 10 | R20-32 | Planetary wheel small Feather Key Inner ring Circlip Radial Shaft Seal Cover Distance ring Eccentric disc Main shaft Radial Shaft Seal Socket head screw Bayonet shaft Eccentric main Bayonet bushing Socket head screw Distance ring Main bearing Needle bearing Pin |
| 11 | R20-31 | Planetary wheel small Feather Key Inner ring Circlip Radial Shaft Seal Cover Distance ring Eccentric disc Main shaft Radial Shaft Seal Socket head screw Bayonet shaft Eccentric main Bayonet bushing Socket head screw Distance ring Main bearing Needle bearing Pin |
| 12 | STA2008 | LR15 |
| 13 | STA3414 | Circlip |
| 14 | CR30-108R | Tensile spring Gasket Circlip Feather Key Set screw |
| 15 | RN20-272.1 | Radial Shaft Seal |
| 16 | CR30-34 | Circlip |
| 17 |
All rights reserved for changes in construction
ORDERING OF SPARE PARTS
Sale of spare parts for our mixers is attended by our spare part department. When ordering spare parts, the following information must be given:
- Type of machine
- Number of the machine
- Part number of the spare part in question.
- Method of conveyance
If any of the above information is miss-ing, please contact Varimixer spare parts department before ordering.
A few spare parts are not sold alone, in such cases reference is made at the item number to the assembly number to be used for ordering. The assembly numbers are shown on the relevant pages. Returning of spare parts is only allowed when agreed with Varimixer A/S

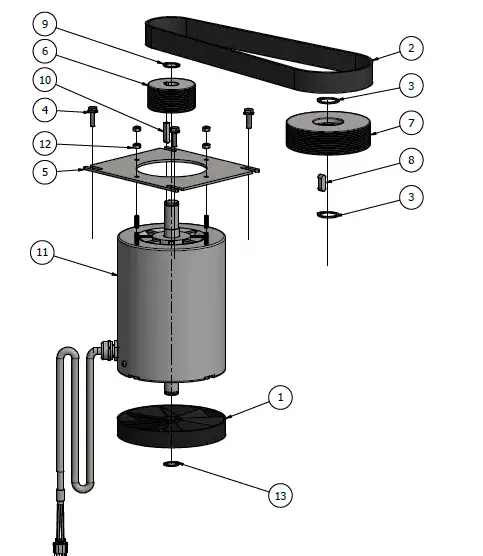

DRIVELINE
| Fig. no. | Part number | Description |
| 1 | RN20-87 | Ventilator |
| 2 | CR30-90 | Drive belt |
| 3 | STA3410 | Circlip |
| 4 | STA5750 | Hex cap screw |
| 5 | CR20-61.3 | Motor plate |
| 6 | CR20-128 | Pulley |
| 7 | CR20-129 | Pulley |
| 8 | STA2037 | Feather Key |
| 9 | STA3407 | Circlip |
| 10 | STA2004 | Feather Key |
| 11 | CR20-85 CR20-85.1 | Motor |
| 12 | STA5834 | Lock Nut |
| 13 | STA3413 | Circlip |

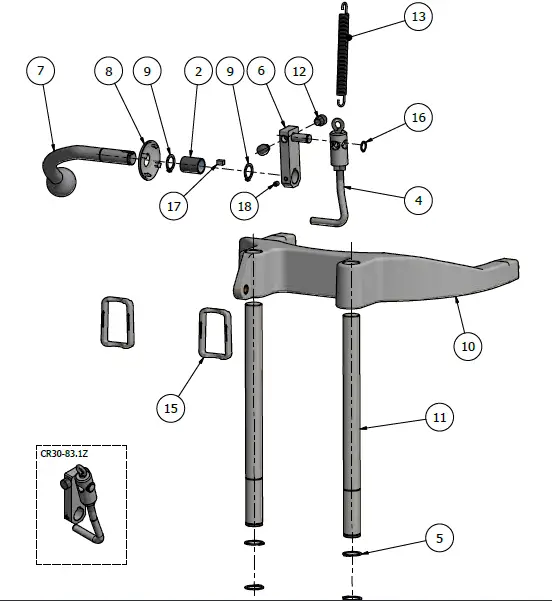

LIFTING SYSTEM
| Fig. no. | Part number | Description |
| 2 | STA2515 | Bearing bushing |
| 4 | CR30-83.1M | Lifting bolt |
| 5 | STA3410 | Circlip |
| 6 | CR30-63M | Crankshaft |
| 7 | CR20-62M | Lifting handle |
| 8 | CR20-62.9 | Cover for lift arm |
| 9 | STA3408 | Circlip |
| 10 | CR20-23M | Bowl arm mounted |
| 11 | CR20-68.5 | Shaft |
| 12 | CR30-63.3 | Absorber plug |
| 13 | CR20-110 | Tensile spring |
| 15 | CR20-23.5 | Gasket |
| 16 | STA3403 | Circlip |
| 17 | STA2019 | Feather Key |
| 18 | STA5605 | Set screw |
PLANETARY HEAD
| Fig. No. | Part number | Description |
| 1 | STA6460 | Pin |
| 2 | STA3515 | Circlip |
| 3 | 6006 2RS | Ball bearing |
| 4 | 6206 2RS | Ball bearing |
| 5 | STA3518 | Circlip |
| 6 | HK1816 | Needle bearing |
| 7 | R20-235 | Support washer |
| 8 | LR17 | Inner ring |
| 9 | STA3470 | Circlip |
| 10 | R20-32 | Planetary wheel |
| 11 | R20-31 | Planetary wheel small |
| 12 | STA2008 | Feather Key |
| 13 | LR15 | Inner ring |
| 14 | STA3414 | Circlip |
| 15 | CR30-108R | Radial Shaft Seal |
| 16 | RN20-272.1 | Cover |
| 17 | CR30-34 | Distance ring |
| 18 | CR30-36 | Eccentric disc |
| 19 | CR30-30.6 | Main shaft |
| 20 | RN20-108R | Radial Shaft Seal |
| 21 | STA5626 | Socket head screw |
| 22 | CR20-33.6 | Bayonet shaft |
| 23 | CR30-2.1 | Eccentric main |
| 24 | 42CR20-105 | Bayonet bushing |
| 25 | STA5729 | Socket head screw |
| 26 | CR30-37 | Distance ring |
| 27 | CR20-1 | Main bearing |
| 28 | HK2016 | Needle bearing |
| 29 | STA6283 | Pin |
| Part number | Description |

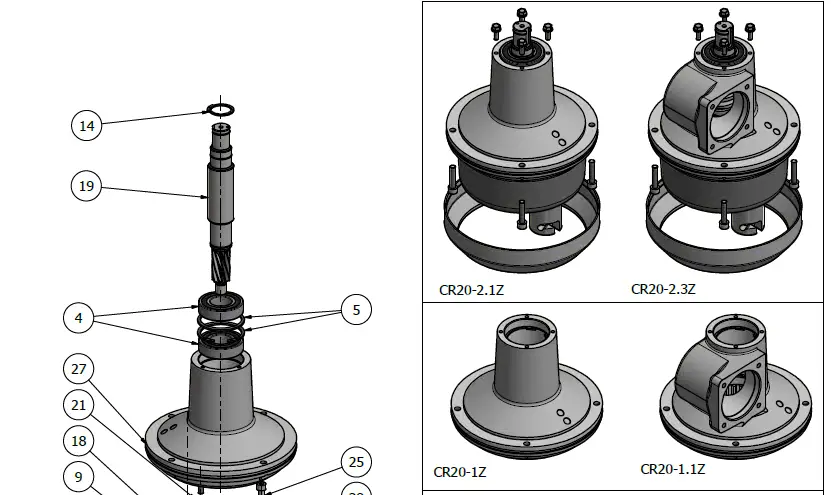

| CR20-2.1Z | Planetary head for scraper |
| CR20-2.3Z | Planetary head scraper+attachment drive |
| CR20-1Z | Main bearing |
| CR20-1.1Z | Main bearing, for attach- ment drive |
| CR20-2.11Z | Eccentric head assembly |
| CR30-2.1Z | Eccentric head |
| CR30-36Z | Eccentric disc |

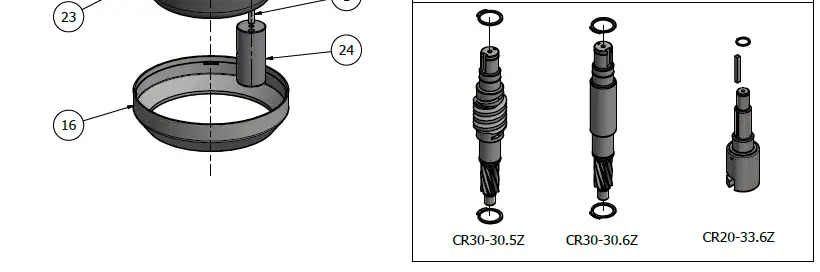

| 42CR20-105Z | Bayonet shaft for scraper |
| CR30-30.5Z | Main shaft for attachment drive |
| CR30-30.6Z | Main shaft |
| CR20-33.6Z | Bayonet shaft |
PLANETARY HEAD

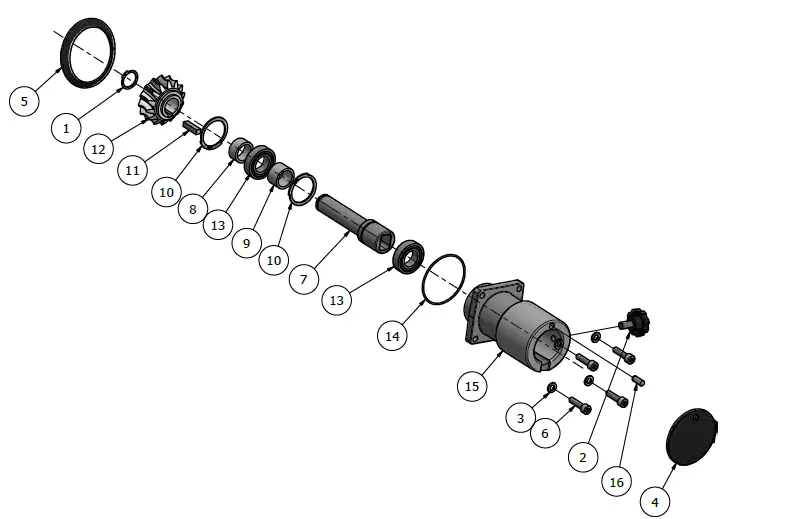

ATTACHMENT DRIVE
| Fig. No. | Part number | Description |
| 1 | STA3410 | Circlip |
| 2 | STA5561 | Hand screw |
| 3 | STA6038 | Lock washer |
| 4 | R15-215 | Blind cover |
| 5 | CR30-211 | Cover |
| 6 | STA5625 | Socket head screw |
| 7 | CR30-50.1R | Attachment drive shaft |
| 8 | R100-143 | Distance bushing |
| 9 | RN20-37 | Distance bushing |
| 10 | STA3512 | Circlip |
| 11 | STA2031 | Feather Key |
| 12 | RN20-9 | Worm wheel |
| 13 | 6005 2RS | Ball bearing |
| 14 | STA3127 | Seal |
| 15 | CR20-8.2M | Drive housing |
| 16 | STA6248 | Pin |
| Part number | Description |

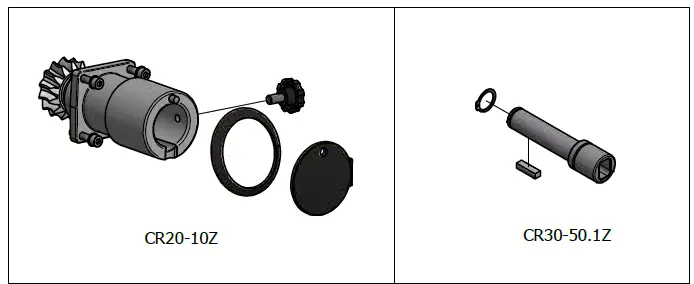

| CR20-10Z | Attachment drive |
| CR30-50.1Z | Attachment drive shaft |

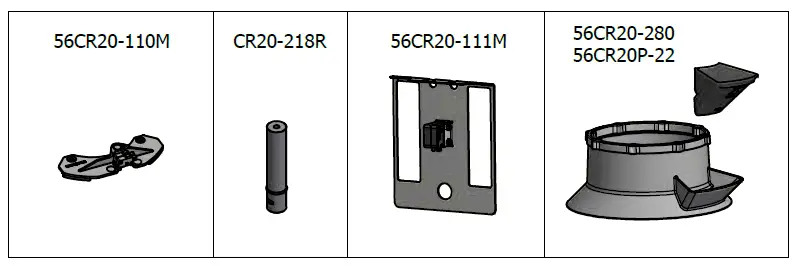

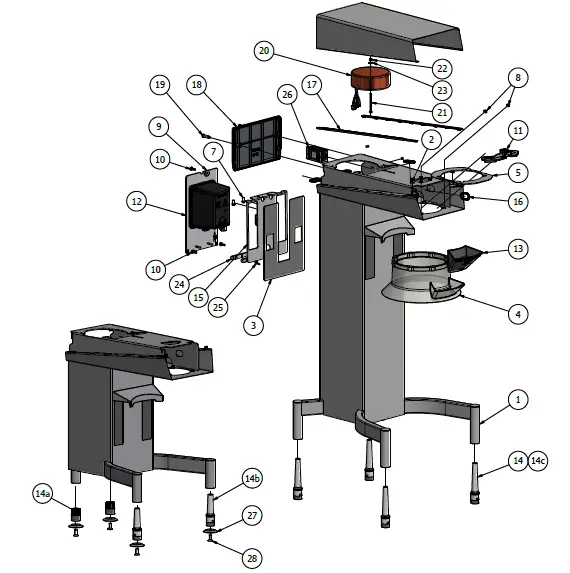

MACHINE COLUMN
| Fig. No. | Part number | Description |
| 1 | Machine frame | |
| 2 | STA5707 | Socket head screw |
| 3 | CR30-304 | Cover plate |
| 4 | 56CR20P-22 | Safety guard |
| 5 | 56CR20-109 | Switch plate |
| 6 | CR20-21.1R | Top cover |
| 7 | STA5750 | Hex flange bolt |
| 8 | STA5842 | Lock Nut |
| 9 | CR30-22.18 | Cam latch |
| 10 | STA5028 | Captive screw |
| 11 | 56CR20-110M | Switch bracket mounted |
| 12 | WR20-552.6M WR30-552.4M WR20-552.4M | Variable speed drive |
| 13 | 56CR20-280 | Filling tray |
| 14 | CR20-218 | Adjustable leg |
| 14a | CR20-218.1 | Rubber foot |
| 14b | CR20B-218 | Adjustable leg, table model |
| **14c | CR20-218R | Adjustable leg |
| 15 | 56CR20-111M | Switch bracket mounted |
| 16 | STA3175 | Grommet oval |
| 17 | CR20-551 | Gasket |
| 18 | CR20-291M | Back plate |
| 19 | STA9008 | Special screw |
| *20 | CR20-430.3 | Transformer |
| *21 | STA5373 | Hex cap screw |
| *22 | STA5837 | Lock Nut |
| *23 | STA6014 | Washer |
| 24 | CR30-602 | EMC shield bracket |
| 25 | STA5803 | Wing Nut |
| 26 | CR10-601.1 | EMC filter |
| **27 | CR20B-219R | Welding foot |
| **28 | STA5798 | Countersunk head screw |
- 400-480V Version
- Only Marine models

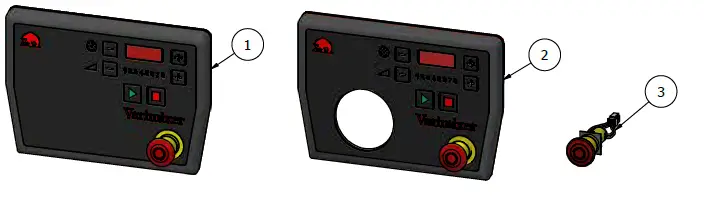

ELECTRIC COMPONENTS
| Fig. No. | Part number | Description |
| 1 | CR20-501.13M | Control Panel |
| 2 | CR20-501.14M | C.P. for attachment drive |
| 3 | CR10-174.35Z | Emergency stop |

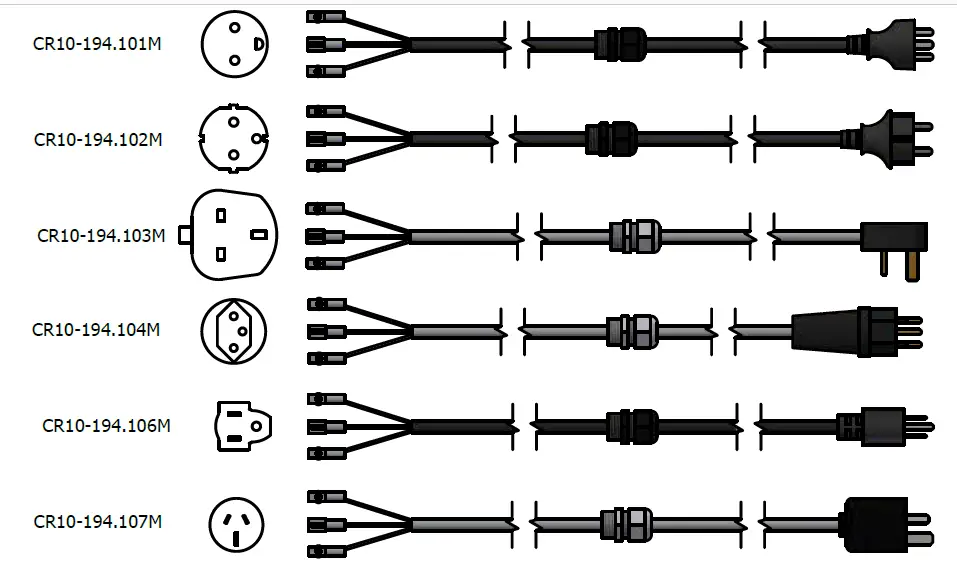

| Part number | Strømforsyningskabel | Power supply cable | Stromkabel |
| CR10-194.101M | DK 230V | ||
| CR10-194.102M | EU 230V | ||
| CR10-194.103M | UK 230V | ||
| CR10-194.104M | CH 230V | ||
| CR10-194.106M | US + CAN NEMA 5-15P, 120V | ||
| CR10-194.107M | AUS/NZL Type I 230V | ||

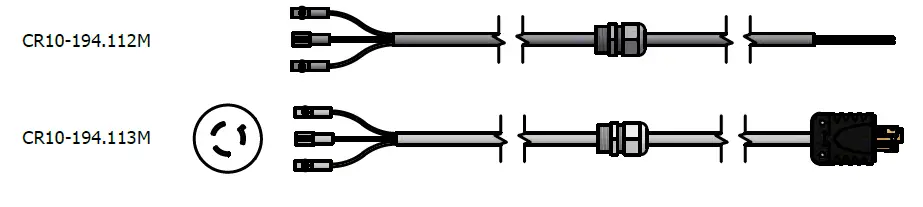

| CR10-194.112M | With out plug | ||
| CR10-194.113M | US + CAN NEMA L6-15P, 208V | ||
ELECTRIC COMPONENTS
| Part number | Description |

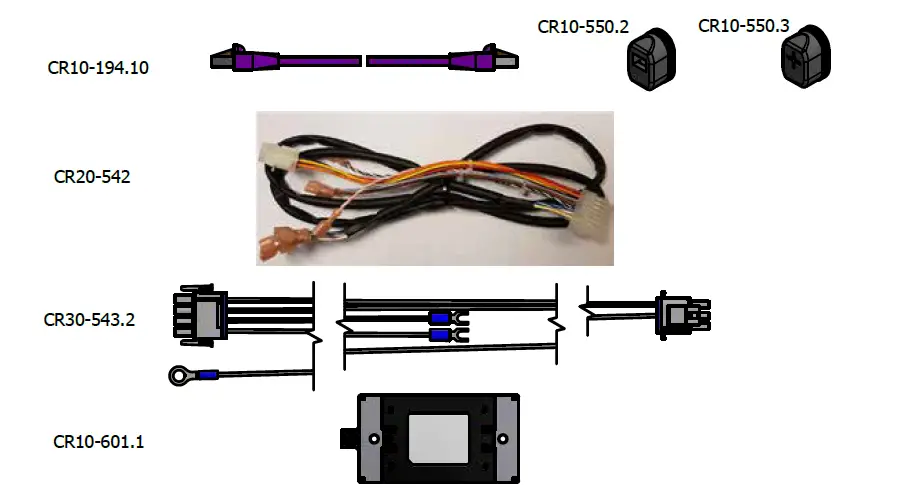

| CR10-194.10 | Communication cable |
| CR10-550.2 | Seal Communication cable |
| CR10-550.3 | Seal Communication cable |
| CR20-542 | Main Cable |
| CR30-543.2 | Connection cable |
| CR10-601.1 | EMC filter |

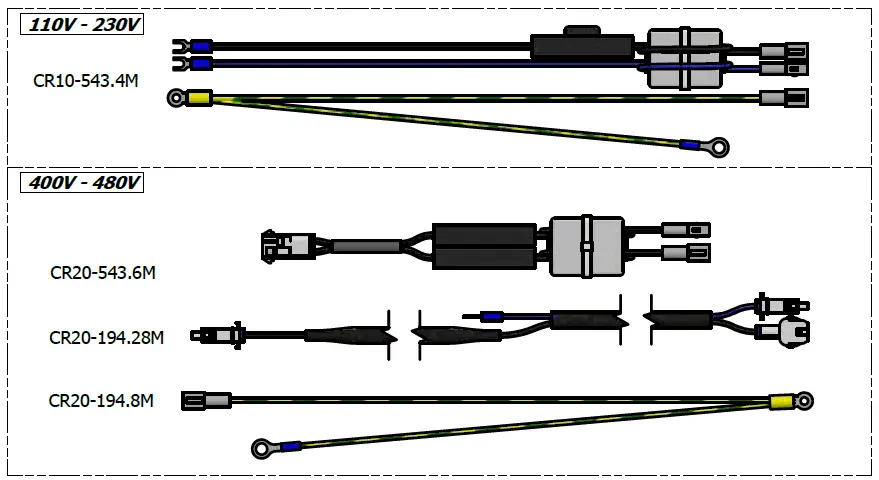

| CR10-543.4M | Supply cable, 1x10A |
| CR20-543.6M | Supply cable, 2×6,3A |
| CR20-194.28M | Supply cable, Transformer |
| CR20-194.8M | Ground cable |
| R20E-418.10 | Fuse 10A |
| R20E-418.16 | Fuse 6,3A |

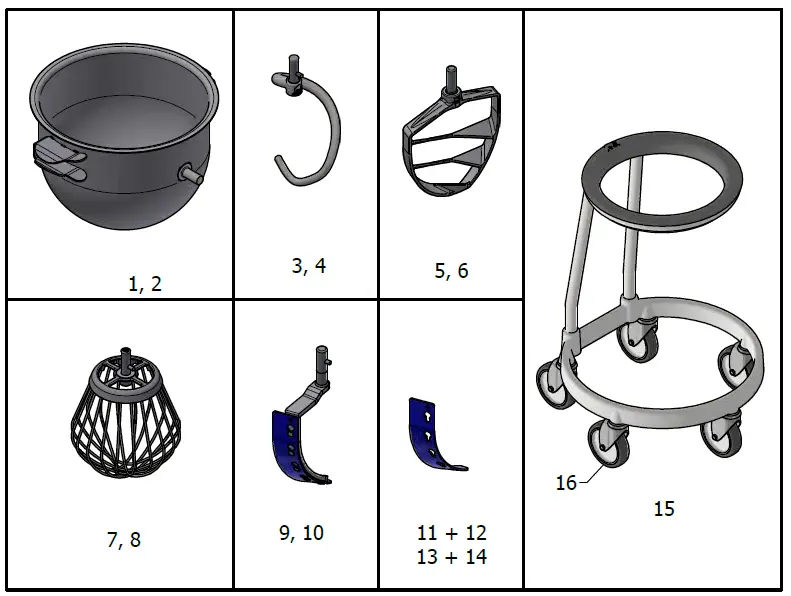

BOWLS AND MIXING TOOLS
| Fig. No. | Part number | Description |
| 1 | CR20-75M | Bowl |
| 2 | CR20-75AM | Bowl B |
| 3 | CR20-78M | Hook |
| 4 | CR20-78AM | Hook B |
| 5 | CR20-27.2M | Flat beater |
| 6 | CR20-27A2M | Flat beater B |
| 7 | CR20-28M | Whip |
| 8 | CR20-28AM | Whip B |
| 9 | 42CR20-202 | Scraper with standard blade |
| 10 | 42CR20-202 | Scarper B with standard blade |
| 11 | 42CR20-204 | Scraper blade standard |
| 12 | 42CR20-204T | Scraper blade PTFE |
| 13 | 42CR20-204A | Scraper blade B standard |
| 14 | 42CR20-204AT | Scraper blade B PTFE |
| 15 | 22CR20 | Bowl truck |
