Original manual

 WARNING

• This unit can be used by children aged 8 and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been instructed on how to use the unit in a safe way and they understand the hazards involved. Do not allow children to play with the unit. Only allow children to carry out cleaning and user maintenance under supervision.

Intended use

Only use the product described in this manual as follows:

• As spotlight
• While adhering to the technical specifications. (→ Technical data)

The following restrictions apply to the unit:

• Do not use for commercial or industrial purposes.

Safety information

Electrical connection

• Special regulations apply for electrical installation in outdoor spaces. Only a qualified electrician may perform the electrical installation.
  • The qualified electrician has the necessary professional training, knowledge and experience to perform electrical installation in outdoor spaces. The electrician can detect potential dangers and knows how to adhere to regional and national standards, regulations and directives.
  • For your own safety, please consult a qualified electrician.
• Only use the power pack included in the scope of delivery.
• Only plug the unit into a correctly installed outlet.
• Only connect the unit if the electrical data of the unit and the power supply match.
• Ensure that the unit is protected via a fault current protection device with a rated fault current of max. 30 mA installed in the mains. If necessary, contact a qualified electrician.
• Protect open plugs and sockets from moisture.

Safe operation

• Do not look directly into the light source.
• Do not use the unit, if electrical lines or the housing are damaged.
• A damaged connection cable cannot be replaced. Dispose of the unit.
• Do not carry or pull the unit by its power cable.
• Route lines in such a way that they are protected from damage and do not present a tripping hazard.
• Should problems occur, please contact the authorised customer service or OASE.

Product Description

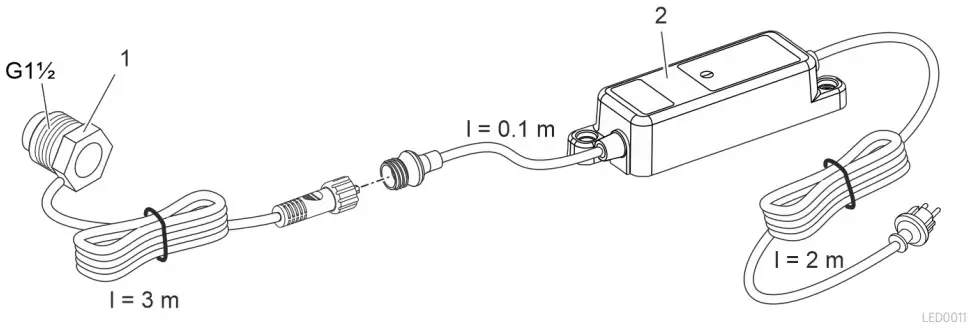

Overview

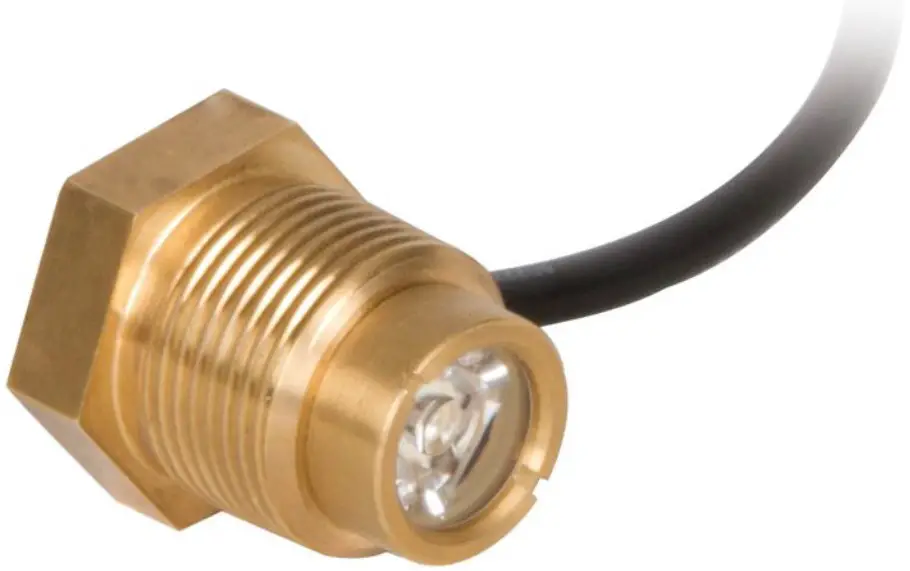

1. LED spotlight
2. Power pack (LED driver)

Symbols on the unit

Assembly and start-up

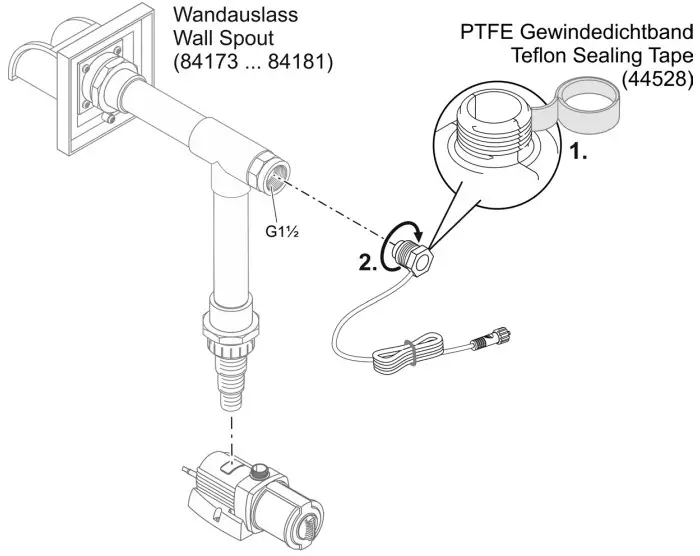

Assembly

Installation and connection

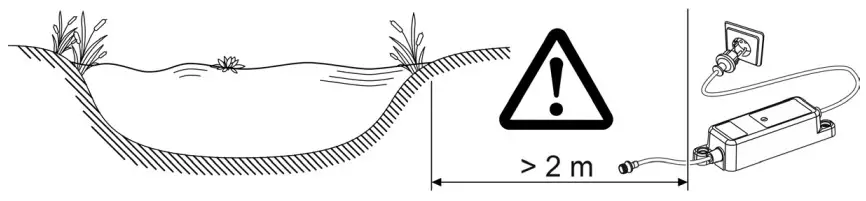

• Position the power pack at least 2 m from the edge of the pond.

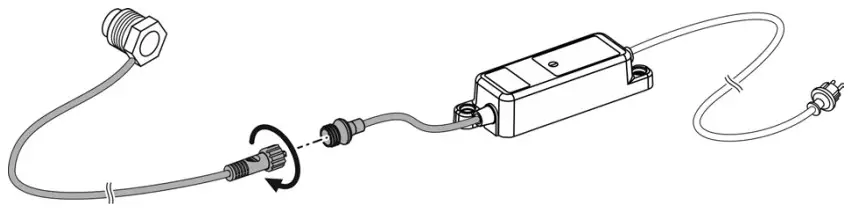

• Connect the connection cable of the spotlight to the socket on the power pack and hand tighten the union nut.


Switching ON/OFF

Switching on the unit: Insert the power plug of the power pack into the socket. The unit switches on immediately.
Switching off the unit: Pull the power plug of the power pack.

Maintenance and cleaning

NOTE
Do not use aggressive cleaning agents or chemical solutions. These agents can damage the housing, impair the function of the device and harm animals, plants and the environment.

• Clean the device only with clear water and a soft brush or sponge.

Technical data

Disposal

NOTE
Do not dispose of this unit with household waste.

• Dispose of the unit by using the return system provided for this purpose.
• Should you have questions, please contact your local disposal company. They will give you information on how to correctly dispose of the unit.
• Render the unit unusable by cutting the cables.
