Foamit Mu-10n-2 10 Gallon Fog Unit With 2 Nozzles User Manual

FOAMit MU-10N-2 10 Gallon Fog Unit with 2 Nozzles

WARNING

Read this manual completely and understand the machine before operating or servicing it.

• Read all instructions before installing or operating unit.
• Always wear appropriate personal protective equipment (PPE) when operating or servicing unit.
• Follow all chemical safety precautions and handling instructions provided by the chemical manufacturer and Safety Data Sheet (SDS).
• Do not exceed an incoming air pressure of 100 psi (7 bar).
• Do not exceed a fluid temperature of 100˚F (37˚C).
• Only use clean and dry air. Air must be filtered and free of moisture or pump life will be diminished. If needed, install an air dryer before unit.
• Do not use air lubricator before the unit

PROTECT THE ENVIRONMENT

Please dispose of packaging materials, old machine components, and hazardous fluids in an environmentally safe way according to local waste disposal regulations. Always remember to recycle.
Specifications and parts are subject to change without notice

Specifications

• Liquid Temperature ………………….. 40˚F to 100˚F (4.4˚C to 37˚C)
• Droplet size: ……………………………. 20 microns at 50 psi

1 liter of solution will cover approximately 1000 cubic feet (up to system max of 38,000 cubic feet).*
A full tank of solution will supply the unit for approximately 1.5 hours.*

NOTE: Area covered and run time may vary based on humidity, air flow, and product used.

Dimensions and Weight

• Length: ………………………………… 19 in (482 mm) approximately
• Width: …………………………………. 16 in (406 mm) approximately
• Height: ………………………………… 42 in (1066 mm) approximately
• Weight (empty): ……………………. 31 lbs (14 kg ) approximately

Requirements:

• Air pressure required: 50 psi (3.4 bar)
• Air volume required: 7 CFM at 50 psi (198.3 l/min at 3.4 bar) Chemical Requirements: Follow all instructions from chemical manufacturer and Safety Data Sheet (SDS).

Air Operated Double Diaphragm Pump Models Offered:

• P56: Polypropylene body with Santoprene diaphragm
• P56V: Polypropylene body with Viton diaphragm
• P56K: Polypropylene body with Kalrez diaphragm

Operation Instructions

Wearing all PPE and observing all safety precautions dictated by the SDS for your product:

1. Fill the tank with the desired amount of product.
2. Place the unit in the area to be misted.
3. Ensure the air supply valve (BVB14) is in the closed position, and connect a compressed air line to the air inlet fitting (AP25).
4. Open the air supply valve (BVB14) to activate the unit.
5. Evacuate the area.
6. After the unit has stopped misting, observe all appropriatesafety precautions before reentering area. Close the air supply valve (BVB14) and disconnect the compressed air line from the unit.

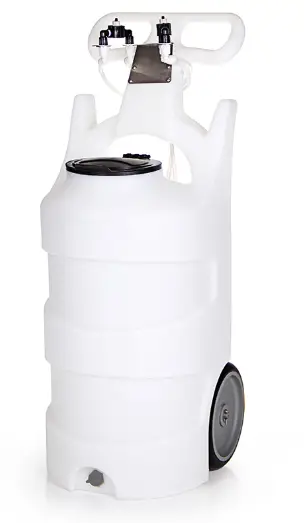

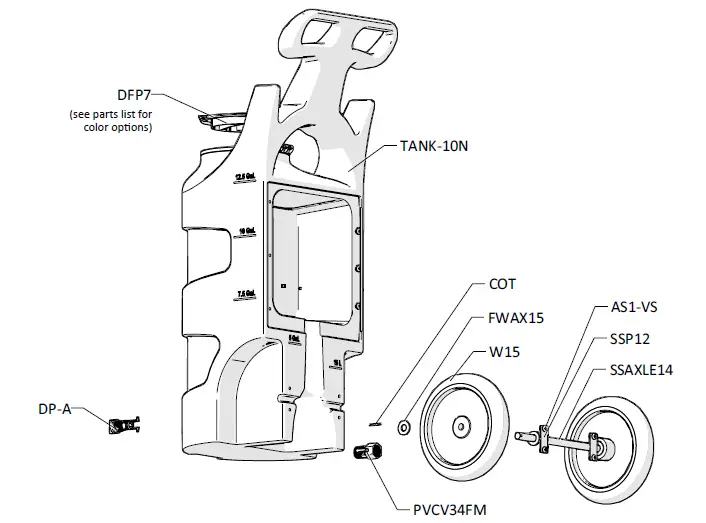

TANK ASSEMBLY

ITEM NUMBER: TANK-10N-A

OPTIONAL COMPONENTS

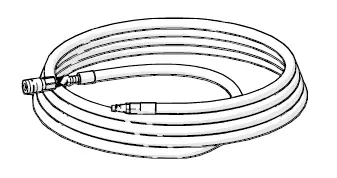

AIR HOSE ASSEMBLY

ITEM NUMBER: AH30

WATER SEPARATOR

ITEM NUMBER: WS-20CFM

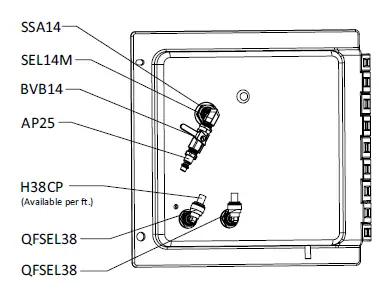

Plate – Inside View

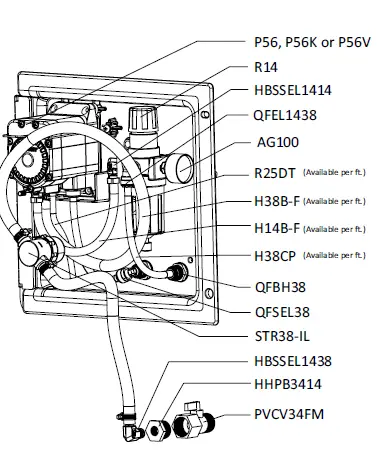

Plate – Back View

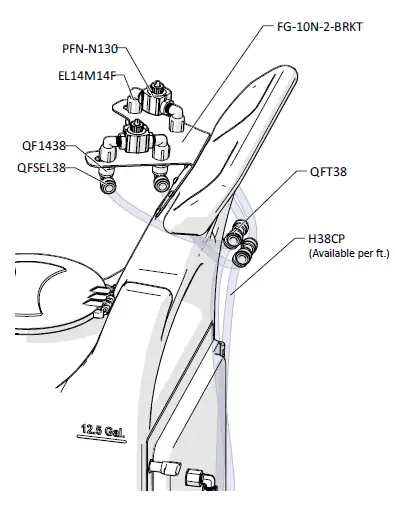

MIST NOZZLE ASSEMBLY

The TR120MF is a multifunction timer.

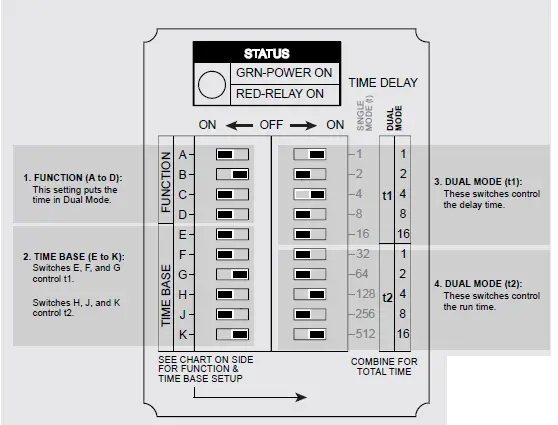

1. The four switches in the top left (Function) control the timer mode. For fogging/misting applications, switches A, C, and D should be ON, and switch B should be OFF. This puts the timer in Dual Mode.

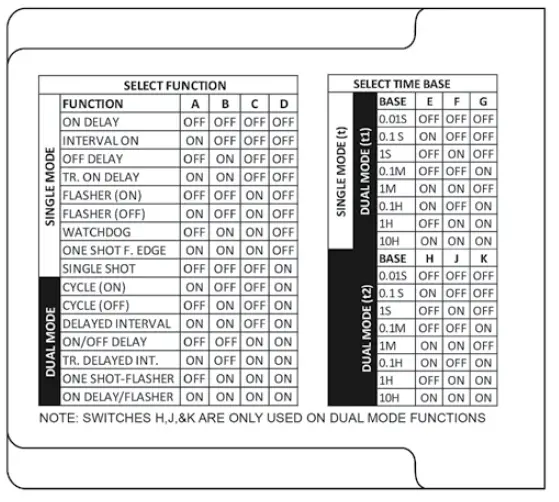

2. The six switches in the bottom left (Time Base) control the time interval. The timer is factory set to MINUTES. To change the Time Base to seconds or hours, refer to the chart below.
3. The five switches in the top right (Dual Mode t1) control the delay time.
4. The five switches in the the bottom right (Dual Mode t2) control the run time. The active time for each function is equal to the combined values of any switch(es) that are ON

NOTICE: the timer is factory set at 2 minute delay, 8 minute run time.

Timer Setting Example

In this example, the delay time has been set to 5 minutes, and the run time has been set to 20 minutes.

1. The FUNCTION is set to Dual Mode.
2. The TIME BASE is set to minutes.
3. The total DELAY time is 5 (1+4=5)
4. The total RUN

Item Number: TR120MF
Application: FOG/MIST UNITS
