Foamit Mu-10n-3 10 Gallon Air Operated Portable Mist Equipment User Manual

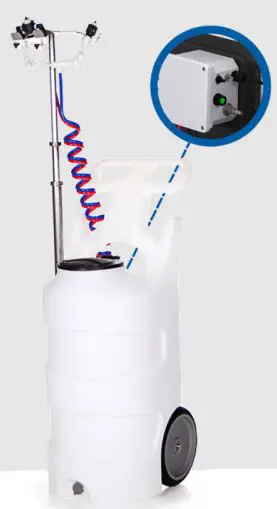

FOAMIT MU-10N-3 10 Gallon Air Operated Portable Mist Equipment

READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT

WARNING

Read this manual completely and understand the machine before operating or servicing it.

• Read all instructions before installing or operating unit.
• Always wear appropriate personal protective equipment (PPE) when operating or servicing unit.
• Follow all chemical safety precautions and handling instructions provided by the chemical manufacturer and Safety Data Sheet (SDS).
• Do not exceed an incoming air pressure of 100 psi (7 bar).
• Do not exceed a fluid temperature of 100˚F (37˚C).
• Only use clean and dry air. Air must be filtered and free of moisture or pump life will be diminished. If needed, install an air dryer before unit.
• Do not use air lubricator before the unit.

PROTECT THE ENVIRONMENT

Please dispose of packaging materials, old machine components, and hazardous fluids in an environmentally safe way according to local waste disposal regulations. Always remember to recycle.
Specifications and parts are subject to change without notice.

Specifications:

• Mist mast height range: ……………… 3.5 to 8.5 ft (1 m to 2.6 m) approximately
• Liquid Temperature ………………….. 40˚F to 100˚F (4.4˚C to 37˚C)
• Droplet size: …………………………… 20 microns at 50 psi

1 liter of solution will cover approximately 1000 cubic feet (up to system max of 38,000 cubic feet).* A full tank of solution will supply the unit for approximately 1 hour.*
NOTE: Area covered and run time may vary based on humidity, air flow, and product used

Dimensions and Weight

• Length: ………………………………… 21 in (534 mm) approximately
• Width: …………………………………. 20 in (508 mm) approximately
• Height: ………………………………… 47 in (1194 mm) approximately
• Weight (empty): ……………………. 42 lbs (19 kg ) approximately

Requirements:

• Air pressure required: 50 psi (3.4 bar)
• Air volume required: 9 CFM at 50 psi (254.9 l/min at 3.4 bar)
• Chemical Requirements: Follow all instructions from chemical manufacturer and Safety Data Sheet (SDS).

Air Operated Double Diaphragm Pump Models Offered:

• P56: Polypropylene body with Santoprene diaphragm
• P56V: Polypropylene body with Viton diaphragm
• P56K: Polypropylene body with Kalrez diaphragm

Assembly Instructions

1. Remove all components from packaging.
2. Attach the mist nozzle assembly to the top of the mist mast using the screw provided in the parts package. The mist nozzles (PFN-N130) should point upwards.
3. Push one end of the red tube into the fitting labeled “RED” on the unit’s back plate.
4. Push one end of the blue tube into the fitting labeled “BLUE” on the unit’s back plate.
5. Connect the other ends of the red and blue tubes to the mist nozzle assembly. Locate the two tee fittings (QFT38) with an open port and connect the solution line (red) to the liquid tee and the air line (blue) to the air tee. To determine which tee is air and which is liquid, trace the clear tubing from the tee to one of the mist nozzles (PFN-130) – on the body of the nozzle, the air line is labeled “AIR” and the liquid line is labeled “LIQ.” Note: Make sure to insert the tubing all the way into the fittings to ensure proper connection.

Operation Instructions

Wearing all PPE and observing all safety precautions dictated by the SDS for your chemical:

1. Fill the tank with the desired amount of solution.
2. Place the unit in the area to be misted.
3. Adjust the mist mast to the desired height. To change the height, loosen the collar screws, move the mast up or down as needed, then retighten the collar screws to secure the mast.
   Caution: To prevent injury from collapsing mast, always support the mast when adjusting height. Always make sure the collar screws are tight and secure before letting go of the mast.
4. Ensure the air supply valve (BVB14) is in the closed position, and connect a compressed air line to the air inlet fitting (AP25).
5. Open the air supply valve (BVB14) to activate the unit.
6. Evacuate the area.
7. After the unit has stopped misting, observe all appropriate safety precautions before reentering area. Close the air supply valve (BVB14) and disconnect the compressed air line from the unit.
8. Before moving the unit, always lower the mist mast completely and secure it in the lowest position.

READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT

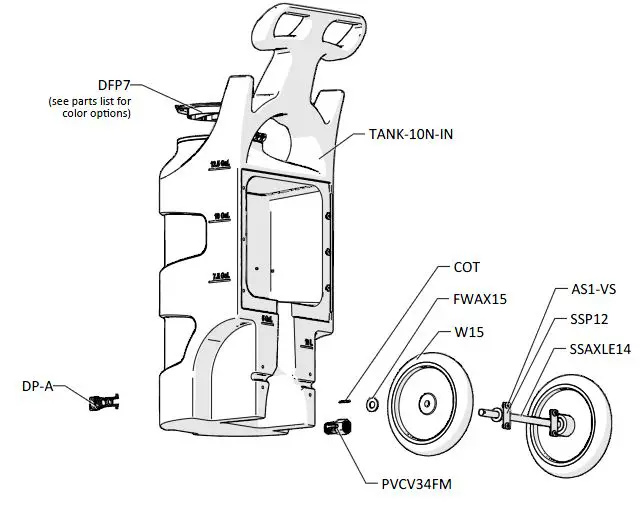

TANK ASSEMBLY

ITEM NUMBER: TANK-10N-A

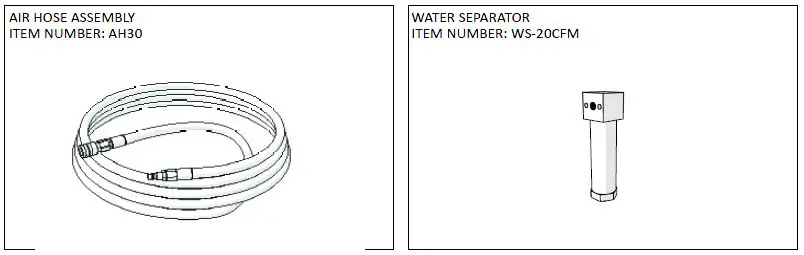

OPTIONAL COMPONENTS

READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT

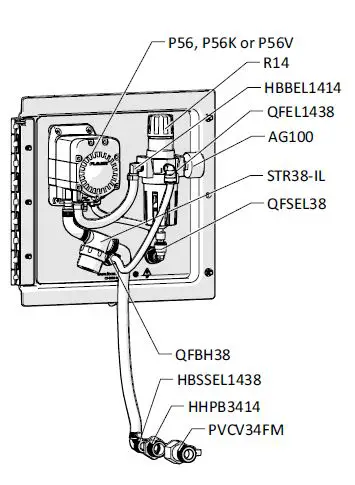

Plate – Inside View

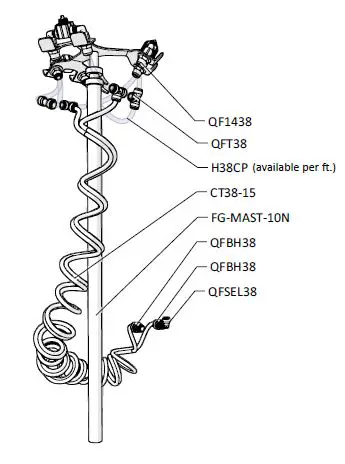

Mist Mast Assembly

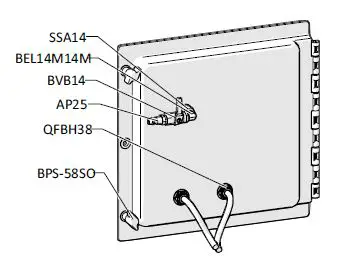

Plate – Back View

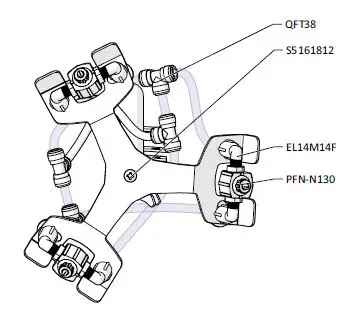

Mist Mast – Top View
