Foamit Sp-5nv 5 Gallon Air Operated Portable Spray Equipment User Manual

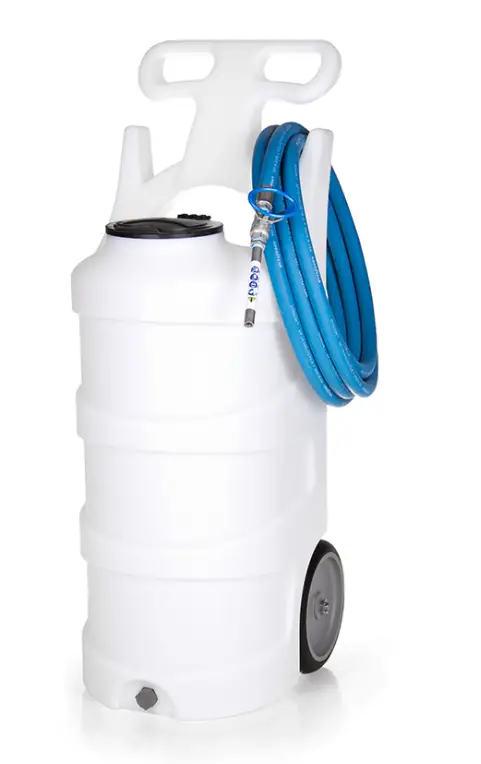

FOAMit SP-5NV 5 Gallon Air Operated Portable Spray Equipment

READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT

WARNING

Read this manual completely and understand the machine before operating or servicing it.

• Read all instructions before installing or operating the unit.
• Always wear appropriate personal protective equipment (PPE) when operating or servicing the unit.
• Always follow all chemical safety precautions and handling instructions provided by the chemical manufacturer and Safety Data Sheet (SDS).
• Never point the discharge trigger gun at yourself,another person, or any object you do not want covered in chemical.
• Always depressurize the unit after use (as described in the After Use Instructions), and store the unit depressurized.
• Do not exceed an incoming air pressure of 100 psi (7 bar).
• Do not exceed a fluid temperature of 100˚F (37˚C).
• Only use clean and dry air. Air must be filtered and free of moisture or pump life will be diminished. If needed, install an air dryer before the unit.
• Do not use an air lubricator before the unit.

Specifications

• Hose ………….. 30 feet reinforced hose, 3/8 inch inside diameter
• (9 meters reinforced hose, 9.5 mm inside diameter)
• Tank Capacity………………………………………….. 5 gallons (20 liters)
• Spray Output………………….. 2 gallons/minute (7.5 liters/minute)
• Spray Output Distance………………… 10 to 12 feet (3 to 4 meters)
• Liquid Temperature …………………… 40˚F to 100˚F (4.4˚C to 37˚C)

Dimensions

• Length ………………………………… 25 in (635 mm) approximately
• Width …………………………………. 14 in (356 mm) approximately
• Height ………………………………… 22 in (559 mm) approximately
• Weight, including discharge hose and wand:
  • (Empty) ………………………….. 31 lbs (14 kg) approximately

Requirements

• Compressed Air Source Requirements: Air regulator (R25) is factory set at 50 psi (3.4 bar).
• The operating range is 40 to 80 PSI (3 to 5 bar) with 2 CFM (56.6 l/min).
• Chemical Requirements: Follow all instructions from the chemical manufacturer and Safety Data Sheet (SDS).

Air Operated Double Diaphragm Pump Models Offered

• P56: Polypropylene body with Santoprene diaphragm
• P56V: Polypropylene body with Viton diaphragm
• P56K: Polypropylene body with Kalrez diaphragm

Acceptable Products

• Alkaline cleaners, Caustic cleaners, Sanitizers, and Acids
• D-Limonene may only be used with the Kalrez pump
• Chlorine may only be used with Viton or Kalrez pump
• DO NOT USE: All hydrocarbons

Operation Instructions

Wearing all PPE and observing all safety precautions dictated by the MSDS for your chemical:

1. Fill the tank with the solution to be sprayed.
2. Connect an appropriate compressed air line into the air inlet fitting (AP25).
3. Squeeze the discharge trigger gun (PSG12) to begin spraying.

After Use Instructions

1. Flush the unit with fresh water for 5 minutes.
2. Disconnect the air line from the air fitting (AP25) and relieve any pressure remaining in the system by squeezing the discharge trigger gun (PSG12).
3. Release the discharge trigger gun (PSG12) after all pressure has been relieved from the system.

Maintenance Instructions

To keep your portable unit operating properly, periodically perform the following maintenance procedures:

• Check the air pump (P56/P56K/P56V) for wear and leaks.
• Inspect hoses for leaks or excessive wear. Make sure all hose clamps are in good condition and properly secured.
• Replace filter (AFR25) in regulator (R25) as needed.
• Check the suction tube and screen for debris and clean as needed.
• Drain compressor tank on a regular basis to ensure proper operation of pump.

Troubleshooting Instructions

• Check to ensure that the discharge hose is uncoiled properly and that there are no kinks that could obstruct fluid flow.
• Check the air regulator bowl (ABR25) and air filter (AFR25) for debris such as water, oil, or dust particles. Clean by unthreading the air regulator bowl (ABR25) from the air regulator (R25).
• Check the strainer (STR38-IL) for debris or other blockages, and clean as needed. Replace strainer if damaged. A strainer must be used.
• If air passes through the pump (P56/P56K/P56V) without cycling, the pump needs to be replaced.
• Check for proper air pressure on the air gauge (AG100).
• The air regulator (R25) is factory set at 50 psi (3.4 bar).
• The operating range is 40 to 80 PSI (3 to 5 bar) with 2 CFM (56.6 l/min).

If the unit operates at a reduced pressure

• Check the air compressor supplying the unit. If the pressure is less than 40 psi, turn the unit off until the compressor can catch up.
• If the air supply is 50 psi (3.4 bar) or above, check the air gauge (AG100), which should read near 50 psi (3.4 bar). If the air gauge reads more or less than 50 psi (3.4 bar), adjust the pressure by turning the knob on the top of the air regulator (R25).

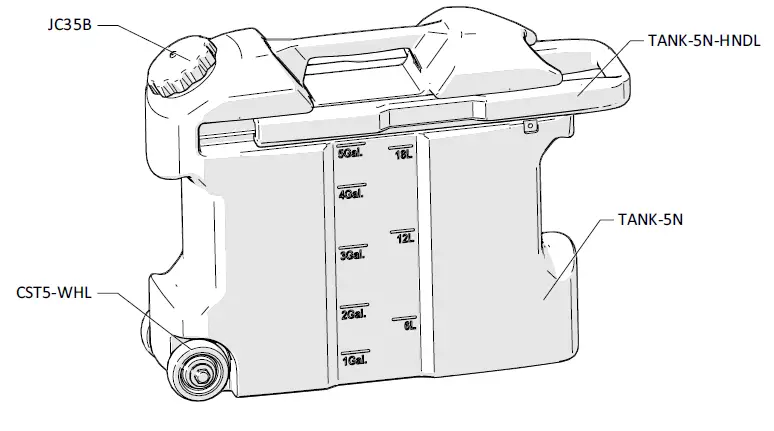

TANK ASSEMBLY

• ITEM NUMBER: TANK-5N-A

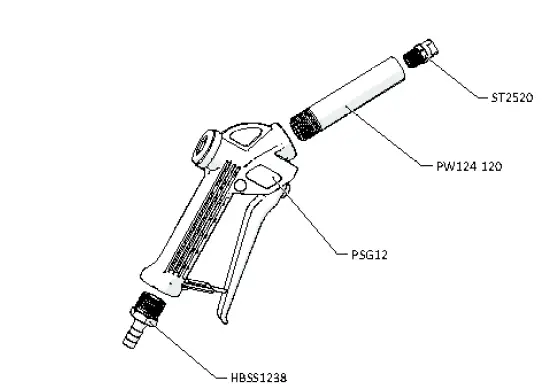

SPRAY GUN ASSEMBLY

• ITEM NUMBER: SGA14

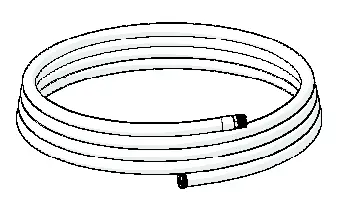

DISCHARGE HOSE ASSEMBLY

• ITEM NUMBER: H38-30

BACKPLATE

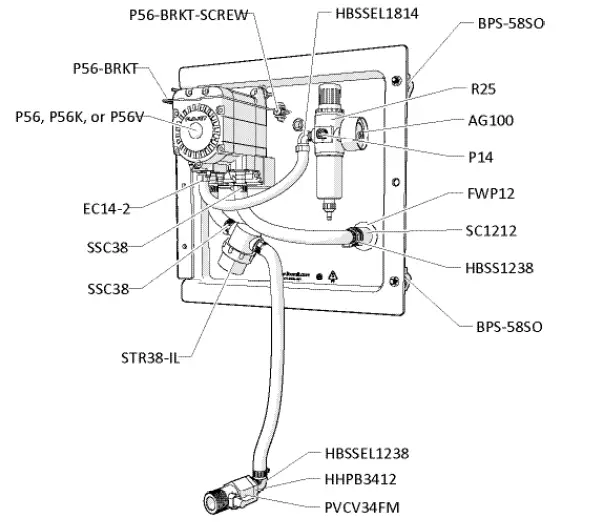

Inside View

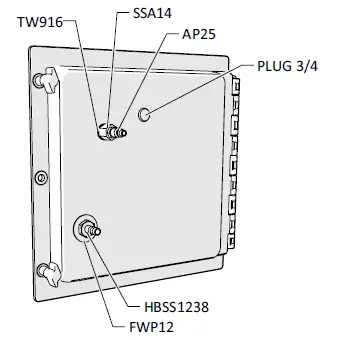

Outside View

OPTIONAL COMPONENTS

WATER SEPARATOR

• ITEM NUMBER: WS-20CFM

AIR HOSE ASSEMBLY

• ITEM NUMBER: AH30
