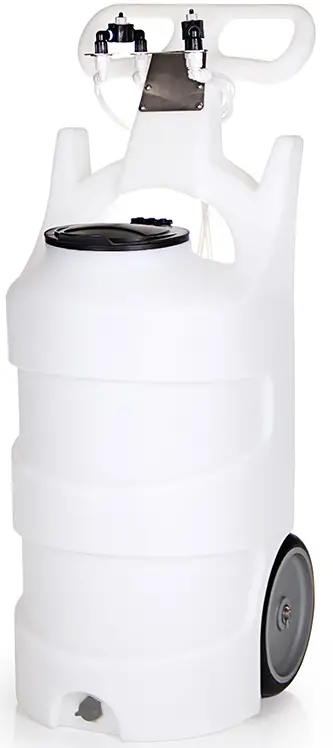

FOAMIT FG-10N-2 10 Gallon Air Operated Portable Fog Equipment
Portable Fog Units
WARNING
Read this manual completely and understand the machine before operating or servicing it.
- Read all instructions before installing or operating unit.
- Always wear appropriate personal protective equipment (PPE) when operating or servicing unit.
- Always follow all chemical safety precautions and handling instructions provided by the chemical manufacturer and Safety Data Sheet (SDS).
- If this unit is modified or serviced with parts not listed in this manual, the unit may not operate correctly.
- Always depessurize unit after use (as described in the After Use Instructions).
- Do not exceed an incoming air pressure of 100 psi (7 bar).
- Do not exceed a fluid temperature of 100˚F (37˚C).
- Always flush the unit with fresh water for 5 minutes when switching from an alkaline to an acid or an acid to an alkaline.
- Never use unit with hydrocarbons or flammable products.
- Only use clean and dry air. Air must be filtered and free of moisture or pump life will be diminished. If needed, install an air dryer before unit.
- Do not use an air lubricator before the unit.
- Never use unit if it is damaged or leaking.
PROTECT THE ENVIRONMENT
Please dispose of packaging materials, old machine components, and hazardous fluids in an environmentally safe way according to local waste disposal regulations.
Always remember to recycle.
Specifications and parts are subject to change without notice.
READ ALL INSTRUCTIONS BEFORE OPERATING EQUIPMENT
| OPTIONS | ||
| Pump Seal Material |
-2 | |
| FG-10N | Santoprene (standard) | |
| Viton (V) | ||
| Kalrez (K) | ||
| Add bold option codes to item number as shown. For standard options, no option code is needed. Examples: • FG-10N-2 (standard unit with Santoprene pump seals) • FG-10NV-2 (unit with Viton pump seals) | ||
REQUIREMENTS
| REQUIREMENTS | |
| Compressed air requirements | 50 psi (3.4 bar) with 7 cfm (198.3 l/min) |
| Liquid temperature range | 40-100˚F (4.4-37˚C) |
| Chemical compatibility | Chemical products used with this equipment must be formulated for this type of application and compatible with unit materials and pump seals. For more information on chemical compatibility, consult the manufacturer or SDS for your product or contact our customer service department. |
SPECIFICATIONS
| SPECIFICATIONS | |
| Power type | Compressed air |
| Chemical pickup type | Draws from pre-mixed solution |
| Number of products unit can draw from | One product |
| Suction line length/diameter | 3/8 in. (9.5 mm) inside diameter |
| Capacity | 12.5 gallons (47.32 liters) |
| Flow rate* | 3.7 gal/hour at each nozzle |
| Pump seals | Santoprene, Viton, or Kalrez |
| Droplet size | 15 microns at 50 psi |
| Coverage area** | 1 liter of solution will cover approximately 1000 cubic feet (up to system max of 47,320 cubic feet). |
| Run time from full tank** | Approx. 1.5 hours |
| Number of nozzles | 2 nozzles |
| Wheel type | Two 10 inch non-marking wheels |
Dilution rates and flow rates given are based on chemical with viscosity of water and factory air pressure settings.
Area covered and run time may vary based on humidity, air flow, and product used.
Operation Instructions
Always follow all chemical safety precautions and handling instructions provided by the chemical manufacturer and Safety Data Sheet (SDS).
- Follow all instructions from chemical manufacturer.
Fill the tank with water and the advised percentage of chemical concentrate. - Place the unit in the area to be fogged.
- Ensure the air supply valve (BVB14) is in the closed position, and connect a compressed air line to the air inlet fitting (AP25).
- Open the air supply valve (BVB14) to activate the unit.
- Evacuate the area.
- After the unit has stopped fogging, observe all appropriate safety precautions before reentering area. Close the air supply valve (BVB14) and disconnect the compressed air line from the unit.
After Use Instructions:
- Flush the unit with fresh water for 5 minutes.
- Disconnect the air line from the air fitting (AP25).
Maintenance Instructions:
To keep your portable unit operating properly, periodically perform the following maintenance procedures:
- Check the air pump (P56/P56K/P56V) for wear and leaks.
- Inspect hoses for leaks or excessive wear. Make sure all hose clamps are in good condition and properly secured.
- Check the suction tube and screen for debris and clean as needed.
- Drain compressor tank on a regular basis to ensure proper operation of pump.
Troubleshooting Instructions:
- If air passes through the pump (P56/P56K/P56V) without cAycling, the pump needs to be replaced.
- Check the chemical suction line and strainer for debris or damage. Clean or replace as needed. To prevent damage to the unit, the strainer (STR38-IL) must always be used.
- Check for proper air pressure on air gauge (AG100). Air regulator (R14) is factory set at 50 psi (3.4 bar).
- If the unit foams at a reduced pressure:
- Check the air compressor supplying the unit. If the pressure is less than 40 psi, turn the foam unit off until the compressor can catch up.
- If the air supply is 50 psi (3.4 bar) or above, check the AG100, which should read near 50 psi (3.4 bar). If the AG100 is more or less than 50 psi (3.4 bar), adjust the pressure by turning the knob on the top of the air regulator (R14).

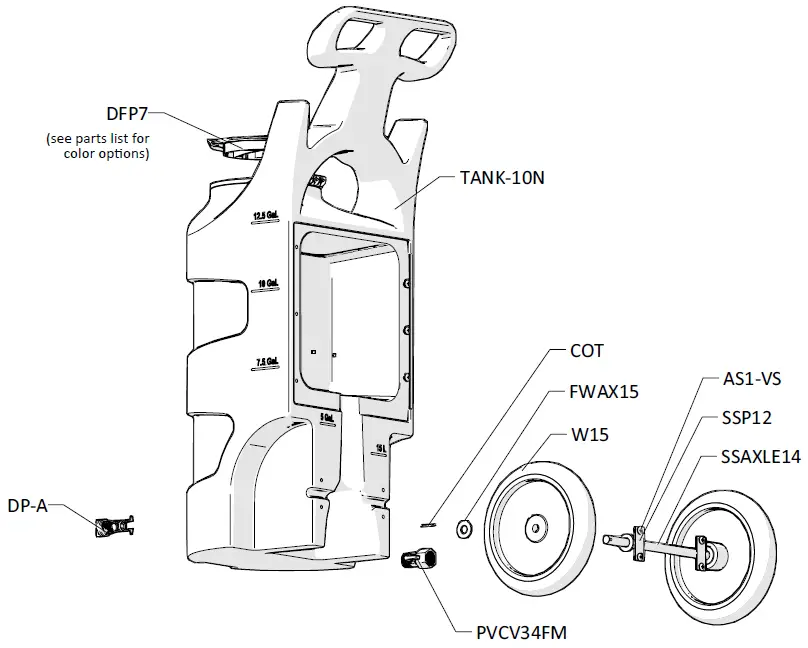

TANK ASSEMBLY
ITEM NUMBER: TANK-10N-A
OPTIONAL COMPONENTS

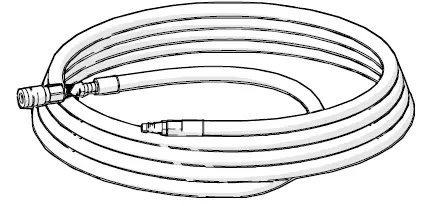

AIR HOSE ASSEMBLY ITEM NUMBER: AH30
WATER SEPARATOR
ITEM NUMBER: WS-20CFM

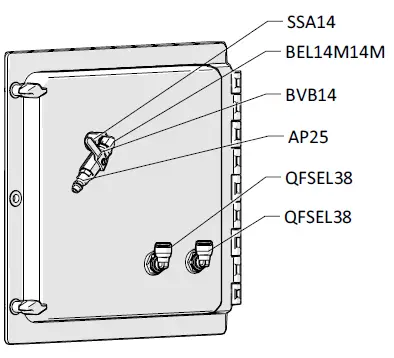

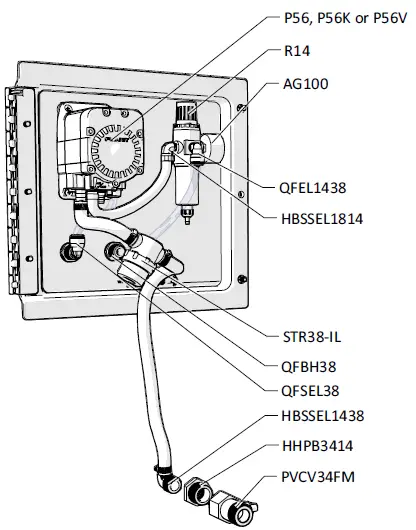

Plate – Inside View
Plate – Back View

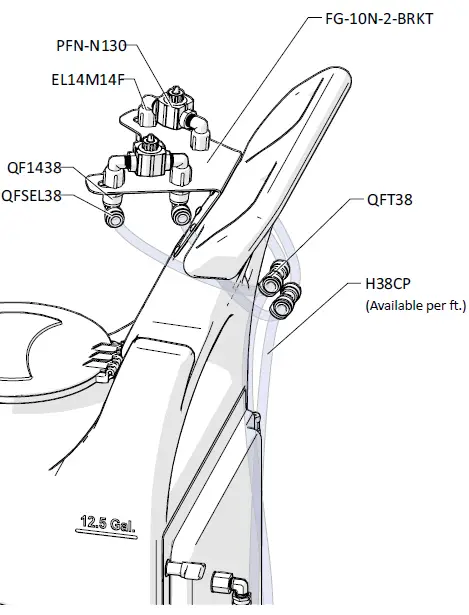

FOG NOZZLE ASSEMBLY
| ITEM NUMBER | DESCRIPTION |
| AG100 | 1.5 INCH DRY MODEL 20 DUAL SCALE GAUGE |
| AH30 | 30 FT. AIR HOSE WITH QUICK CONNECT FITTINGS |
| AP25 | PLUG 1/4 NPTM AIR FITTING – BRASS |
| AS1-VS | 1/4-20 X 1/2 PHIL TRUSS MACH SCREW 19-8 W/516 ORANGE VIBRASEAL PATCH |
| B103234 | 10-32 X 3/4 PHIL TRUSS MACH SCR 18-8 |
| B8X58 | 8-15 X 5/8 inch PHIL FLAT TY-A 316 S.S. |
| BEL14M14M | BRASS ELBOW 1/4in MPT X 1/4in MPT |
| BPS-58SO | Back Panel Screw – 5/8 inch with Stand Off |
| BPS-SSR | 1/4 INCH PUSHNUT BOLT RETAINER STAINLESS STEEL |
| BVB14 | AIR INLET VALVE – VA BRS 025-4F4F-BT, NICKEL |
| COT | 1/8 X 1 COTTER PIN 18-8 S/S |
| DFP7 | 7 INCH HINGED CAP ASSEMBLY – INCLUDES BLACK CAP, LID FLANGE AND HINGE PIN |
| DFP7-C | 7 INCH FILL CAP POLYPRO BLACK |
| DFP7-F | 7 INCH TANK LID FLANGE POLYPRO |
| DFP7-PIN | HINGE PIN FOR DFP7-C & DFP7-C |
| DFP7-C-BL | 7 INCH FILL CAP POLYPRO BLUE PANTONE |
| DFP7-C-GN | 7 INCH FILL CAP POLYPRO GREEN PANTONE |
| DFP7-C-RD | 7 INCH FILL CAP POLYPRO RED PANTONE |
| DFP7-C-YL | 7 INCH FILL CAP POLYPRO YELLOW PANTONE |
| DP-A | DRAIN PLUG ASSEMBLY FOR TANK-10N TANK-20N |
| DP | FRONT DRAIN PLUG FOR PORTABLE UNIT POLYPRO |
| DP-G | FKM SQUARE CUT DRAIN PLUG GASKET |
| EC14-2 | OETIKER CLAMP 13.8 |
| EL14M14F | 1/4 FEM PIPE X 1/4 M PIPE ELBOW |
| FG-10N-2-BRKT | BRACKET FOR FG-10N-2 |
| FMS1034 | 10 X 3/4in PHIL SHEET METAL SS SCREW |
| FWAX15 | FLAT AXLE WASHER |
| FWLG14 | .569 ID X 1.28 OD X .08 THICK FLAT WASHER SS 18-8 |
| H38B-F | 3/8 INCH BLUE HOSE-HYBRID TPE-Available per ft. |
| H38CP | 3/8IN OD POLYETHYLENE TUBING – NATURAL |
| HBBEL1414 | HOSE BARB 1/4 MPT X 1/4 BARB ELBOW |
| HBSSEL1438 | STAINLESS HOSE BARB ELBOW 1/4 INCH NPT X 3/8 HOSE BARB |
| HHBB1418 | HEX HEAD BUSHING 1/4 MPT X 1/8 FPT |
| HHPB3414 | HEX HEAD POLY REDUCER BUSHING 3/4 X 1/4 |
| P56 | 5700 PUMP WITH SANTOPRENE SEALS – INCLUDES HOSE BARBS, AIR FITTING, AND AIR PORT |
| P56K | 5700 PUMP WITH KALREZ SEALS – INCLUDES HOSE BARBS, AIR FITTING, AND AIR PORT |
| P56V | 5700 PUMP WITH VITON SEALS – INCLUDES HOSE BARBS, AIR FITTING, AND AIR PORT |
| 20756103B | Polypro G57 Air Port x HB Straight, w/ Viton o-ring |
| HB14P | 1/4in BRASS HB AIR FITTING /G57/P56 |
| HB5638 | HOSE BARB FOR P56 PUMP |
| HB5638K | HOSE BARB FOR P56K PUMP |
| HB5638V | HOSE BARB FOR P56V PUMP |
| PFN-N130 | PNEUMATIC FOG NOZZLE – POLYPROPYLENE AND KYNAR TIP – 3.7 GAL/HR PER NOZZLE |
| PLPF-B | BLANK PORTABLE FOAMER PLATE WITH HINGE W/O HOLES |
| PLPF-PIN | 302 STAINLESS PORTABLE PLATE HINGE PIN |
| PVCV34FM | PVC VALVE 3/4in FPT X 3/4in MPT |
| QF1438 | MALE CON. 3/8in TUBE X 1/4in MPT – POLYPROPYLENE |
| QF5638 | 3/8in QF PUMP FITTING / G57 |
| QFBH38 | BULKHEAD 3/8in TUBE POLYPROPYLENE |
| QFEL1438 | FIXED ELBOW 3/8in TUBE X 1/4in MPT – POLYPROPYLENE |
| QFSEL38 | PLUG-IN ELBOW 3/8in TUBE X 3/8in POLYPROPYLENE |
| QFT38 | UNION TEE 3/8in TUBE POLYPROPYLENE |
| R14 | 1/4 NPTF REGULATOR W/ FILTER-NO GAUGE |
| SSA14 | SS304 MALE/FEMALE ADAPTOR 1/4 NPT X 1/4 NPT |
| SSAXLE14 | 14 ½” long with the 5/8” diameter bar & 2 through holes with countersinks beveled ends |
| SSC38 | WORM GEAR CLAMP, S/S (.25-.63) |
| SSP12 | STAINLESS STEEL AXLE PLATE – 2.5 inch X 1 inch – 2 HOLE |
| STR38-IL | IN LINE STRAINER 3/8 BARB 20 MESH 304 STAINLESS EDPM GSKT |
| TANK-10N | 10 GALLON NATURAL TANK |
| TW916 | 1/2 INT TOOTH L/W 410SS |
| W15 | NONMARKING WHEEL FOR PORTABLE UNITS |
| WS-20CFM | TSUNAMI WATER SEPARATOR 20 CFM |
TIMER ADJUSTMENT INSTRUCTIONS
The TR120MF is a multifunction timer.

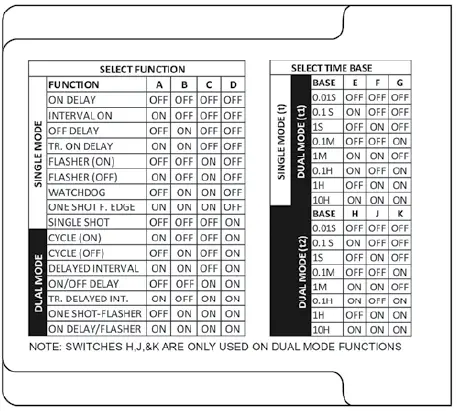

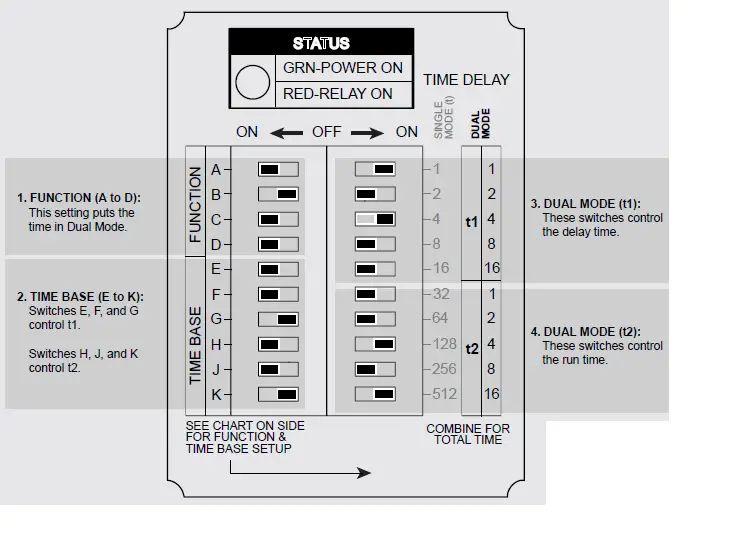

- The four switches in the top left (Function) control the timer mode. For fogging/misting applications, switches A, C, and D should be ON, and switch B should be OFF. This puts the timer in Dual Mode.
- The six switches in the bottom left (Time Base) control the time interval. The timer is factory set to MINUTES. To change the Time Base to seconds or hours, refer to the chart below.
- The five switches in the top right (Dual Mode t1) control the delay time.
- The five switches in the the bottom right (Dual Mode t2) control the run time. The active time for each function is equal to the combined values of any switch(es) that are ON.
NOTICE: the timer is factory set at 2 minute delay, 8 minute run time.
Timer Setting Example
In this example, the delay time has been set to 5 minutes, and the run time has been set to 20 minutes.
Item Number: TR120MF | Application: FOG/MIST UNITS
