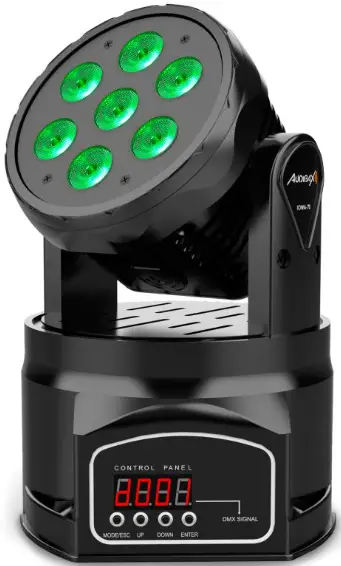

AUDIBAX Iowa 70 UV Moving Head Disco Wash 7 Led 8W User Manual
Please read the manual before using the product
10 Channel Mode
| Channel | Function | |
| 1 | 0-255 | Level |
| 2 | 0-255 | Vertical |
| 3 | 0-7 8-134 135-239 240-255 | Dimming And Strobe No Effect Dimming Strobe From Slow To Fast Consecrated |
| 4 | 0-255 | Red Dimming |
| 5 | 0-255 | Green Dimming |
| 6 | 0-255 | Blue Dimming |
| 7 | 0-255 | White Dimming |
| 8 | 0-255 | Orange Dimming |
| 9 | 0-255 | Yellow Dimming |
| 10 | 0-255 | Motor Speed |
15 Channel Mode
| Channel | Function | |
| 1 | 0-255 | Level |
| 2 | 0-255 | Horizontal fine-tuning |
| 3 | 0-255 | Vertical |
| 4 | 0-255 | Vertical Fine-Tuning |
| 5 | 0-255 | Speed |
| 6 | 0-7 8-134 135-239 240-255 | No Effect Dimming Strobe From Slow To Fast Consecrated |
| 7 | 0-255 | Red Dimming RED |
| 8 | 0-255 | Green Dimming GREEN |
| 9 | 0-255 | Blue Dimming BLUE |
| 10 | 0-255 | White Dimming |
| 11 | 0-255 | Orange Dimming |
| 12 | 0-255 | Yellow Dimming |
| 13 | 0-7 8-21 22-34 35-49 50-63 64-77 78-91 92-105 106-119 120-134 135-147 148-161 162-175 176-189 190-203 204-217 218-231 232-255 | Selection Of Color Color Combination 1 Color Combination 2 Color Combination 3 Color Combination 4 Combination 5 Color Combination 6 Combination 7 Color Combination 8 Color Combination 9 Color Combination 10 Color Combination 11 Color Combination 12 Combination 13 Color Combination 14 Color Combination 15 Color Combination 16 Combination 17 Color Jump |
| 14 | 0-255 | Color Speed |
| 15 |
0-7 8-22 23-37 38-53 54-67 68-82 83-97 98-112 113-127 128-142 143-157 158-172 173-187 188-202 203-217 218-232 233-255 | Self-propelled MOVEMENT(AUTO & SOUND EFFECT) Blank Auto 1 Auto 2 Auto 3 Auto 4 Auto 5 Auto 6 Auto 7 Auto 8 Sound 1 Sound 2 Sound 3 Sound 4 Sound 5 Sound 6 Sound 7 Sound 8 |
