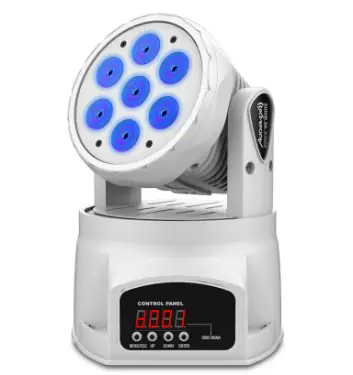

AUDIBAX IOWA 70 WHITE Moving Head Wash Disk
Technical Parameters
- Extremely small,fast and powerful LED Moving beam.
- DMX Channels:9CH/ 14CH
- Pan/Tilt:6300 /2400, speed adjustable
- Smooth electronic dimming:0-100%
- Electronic strobe with pulse and random effects High efficiency,
- low power consumption
- Super compact, low weight
Channel mode
| Channel | Function | |
| 1 | 0-255 | Level |
| 2 | 0-255 | Vertical |
| Dimming and stroboscopic | ||
| 0-12 | No effect | |
| 3 | 13-134 | Dimming |
| 135-239 | Strobe from low to fast | |
| 240-255 | medallion | |
| 4 | 0-255 | Red dimming |
| 5 | 0-255 | Green dimming |
| 6 | 0-255 | Blue dimmming |
| 7 | 0-255 | White dimming |
| 8 | 0-255 | Motor speed |
| 9 | 150-200 | Reset |
14 Channel mode
| Channel | Function | |
| 1 | 0-255 | Pan |
| 2 | 0-255 | Pan fine |
| 3 | 0-255 | Tilt |
| 4 | 0-255 | Tilt fine |
| 5 | 0-255 | Speed |
| 0-12 | No effect | |
| 6 | 13-134 135-239 | Dimming Strobe from low to fast |
| 240-255 | Medallion | |
| 7 | 0-255 | Red dimming RED |
| 8 | 0-255 | Green dimming GREEN |
| 9 | 0-255 | Blue dimming BLUE |
| 10 | 0-255 | White dimming WHITE |
| 0-7 | Color selection | |
| 11 | 8-231 232-255 | Color combination 1 Color jump |
| 12 | 0-255 | Color speed |
| 13 | 0-127 | Auto |
| 128-255 | Sound | |
| 14 | 150-200 | Reset |
