Rodler RD647 Desk Plus Black

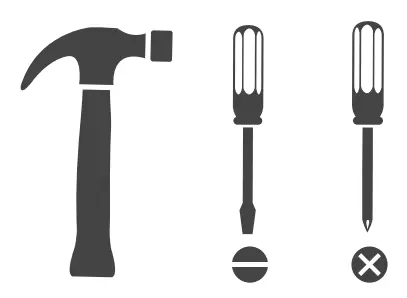

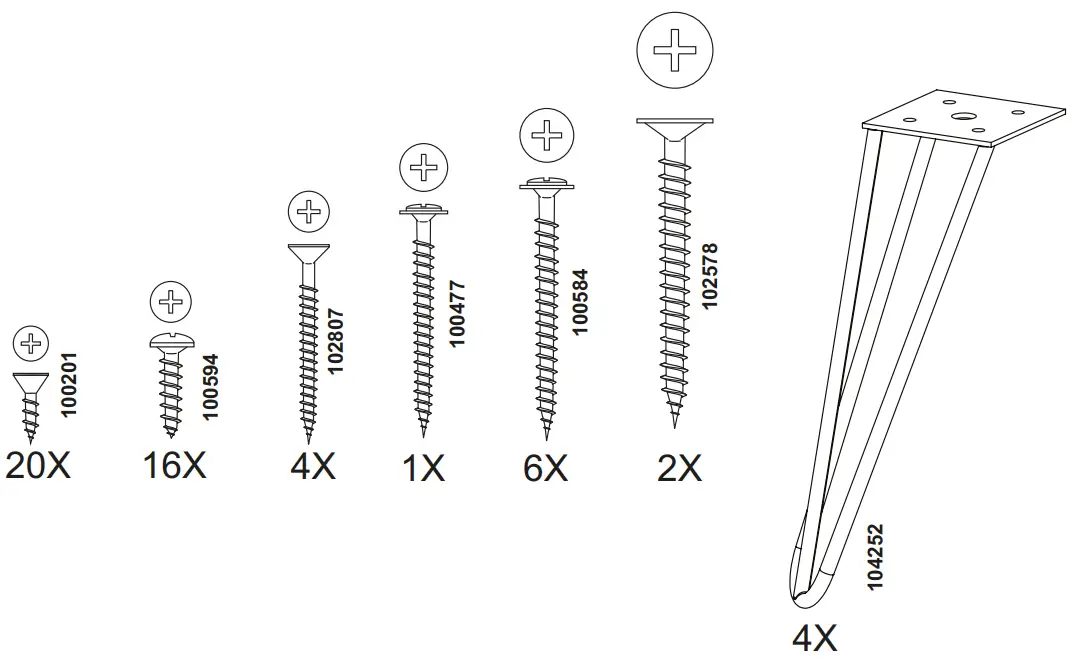

Tools
- TOOLS NOT SUPPLIED BUT NECSSEARY FOR THE ASSEMBLY

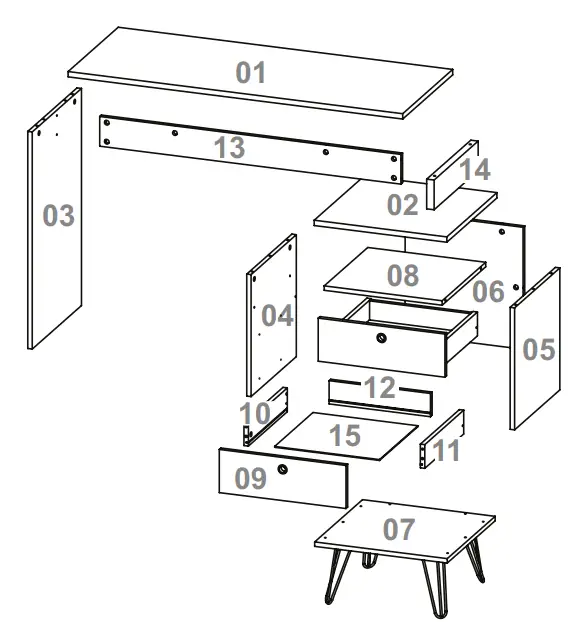

EXPLODED VIEW
| NUMBER | DIMENSSION SIZE | QUANTITY |
| 01 | 1135x450x18mm | 01 |
| 02 | 450x450x18mm | 01 |
| 03 | 730x442x15mm | 01 |
| 04 | 410x406x15mm | 01 |
| 05 | 41Ox406x15mm | 01 |
| 06 | 41Ox400x15mm | 01 |
| 07 | 450x430x15mm | 01 |
| 08 | 400x391x15mm | 01 |
| 09 | 430x145x15mm | 02 |
| 10 | 350x80x15mm | 02 |
| 11 | 350x80x15mm | 02 |
| 12 | 344x78x15mm | 02 |
| 13 | 1025x100x15mm | 01 |
| 14 | 396x100x18mm | 01 |

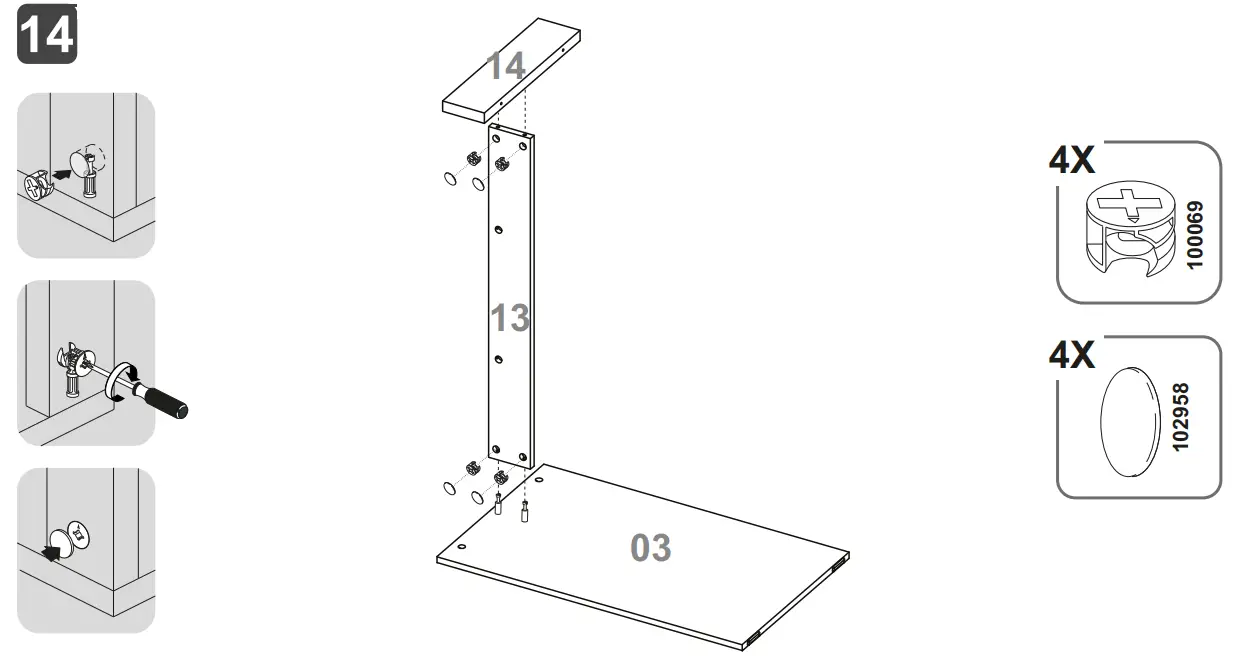

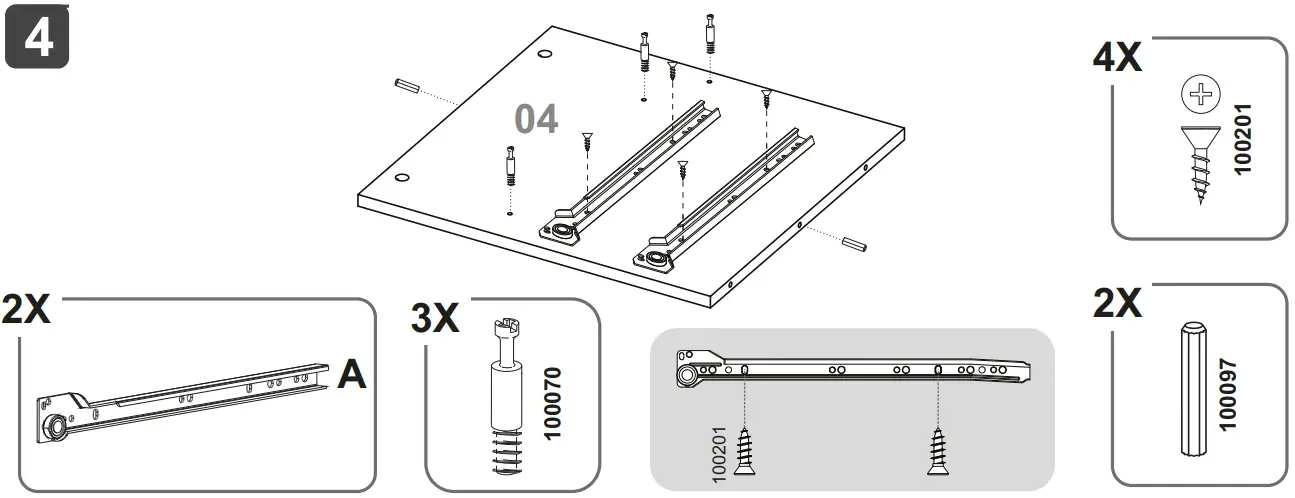

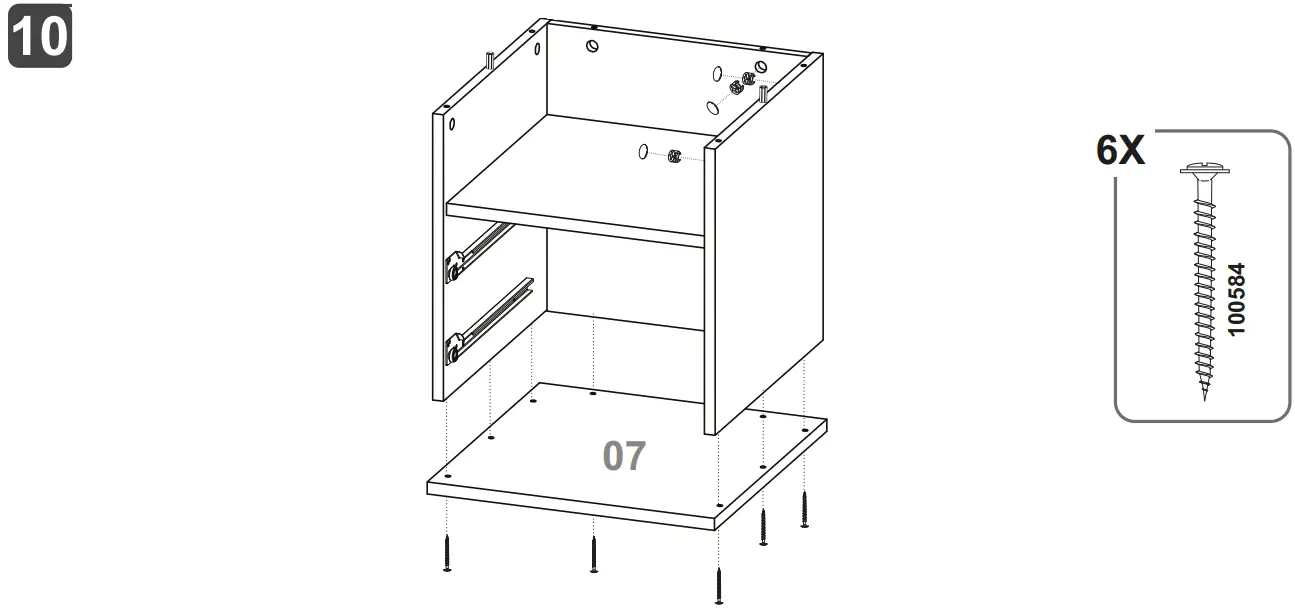

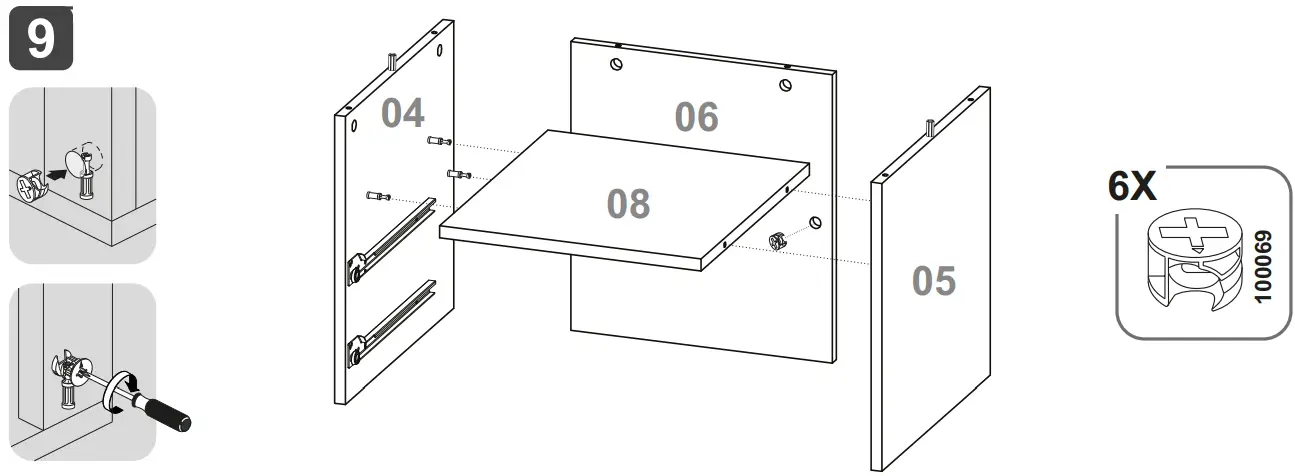

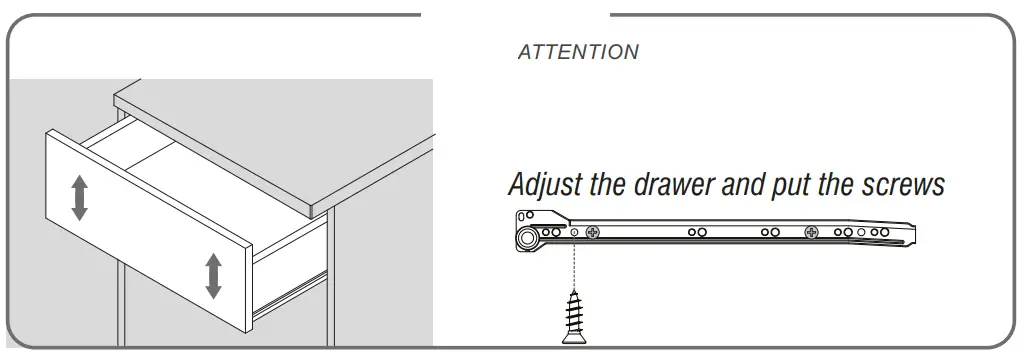

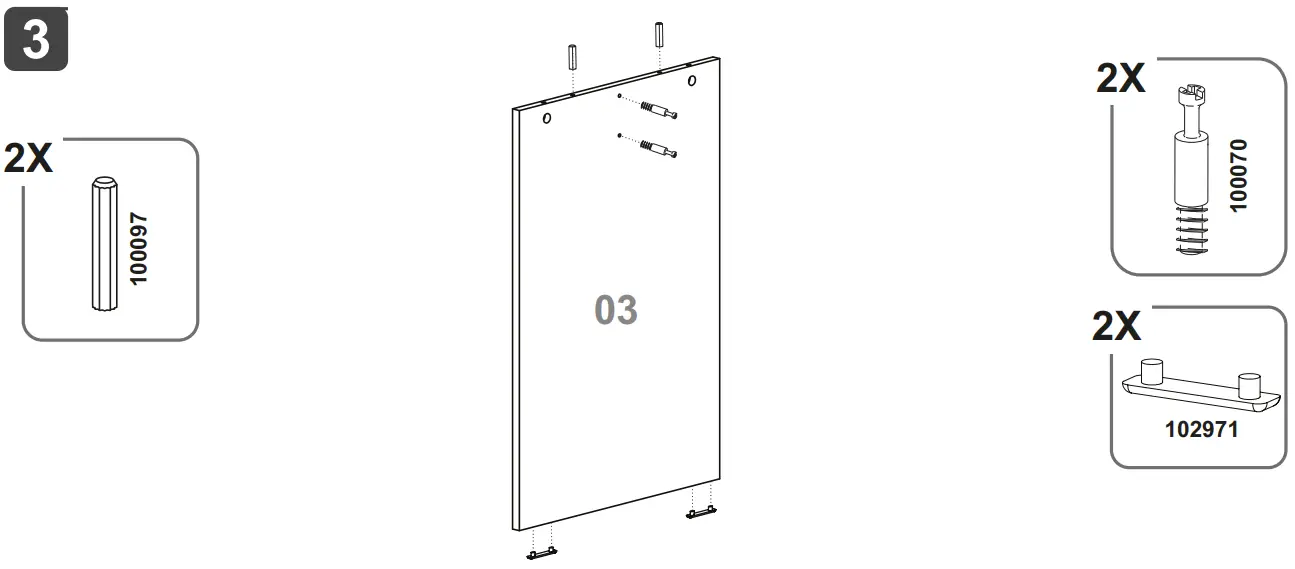

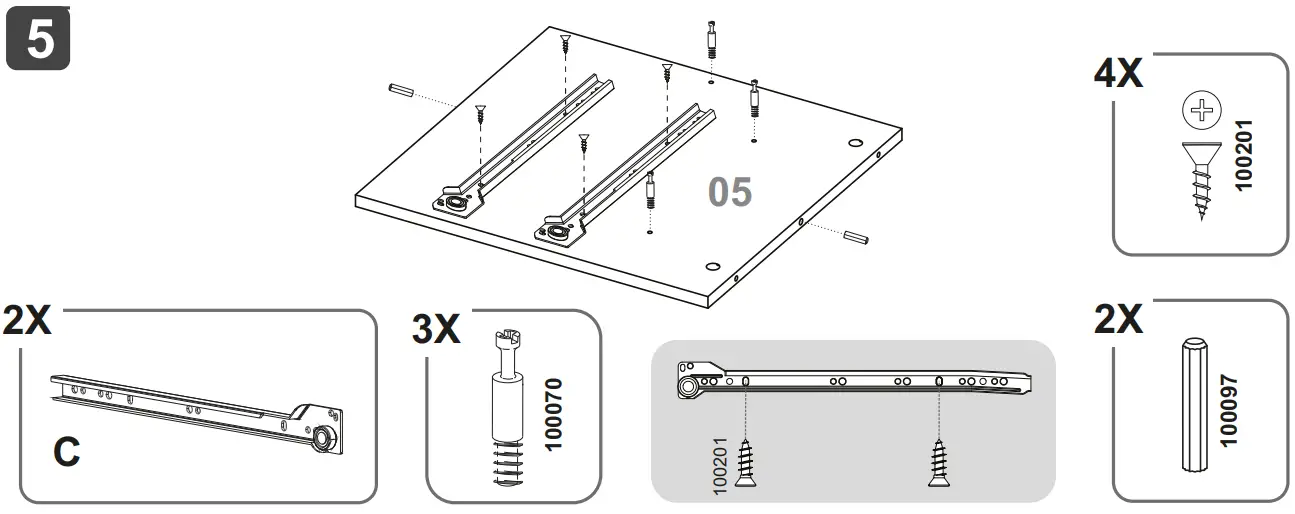

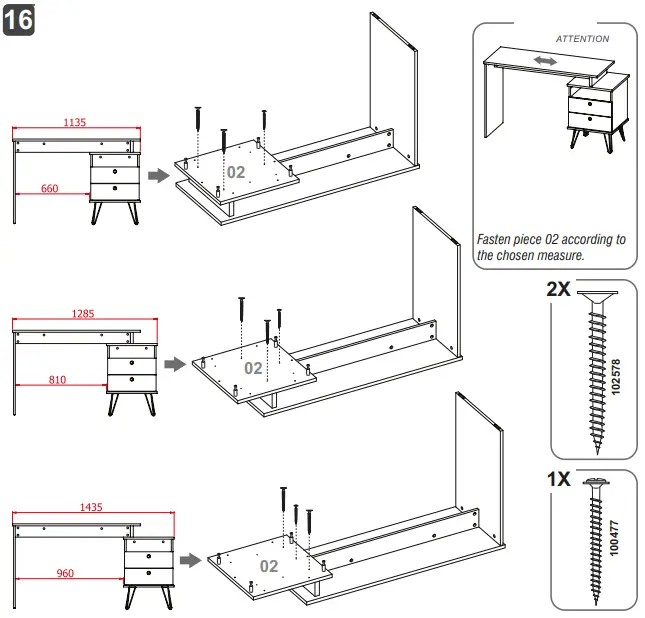

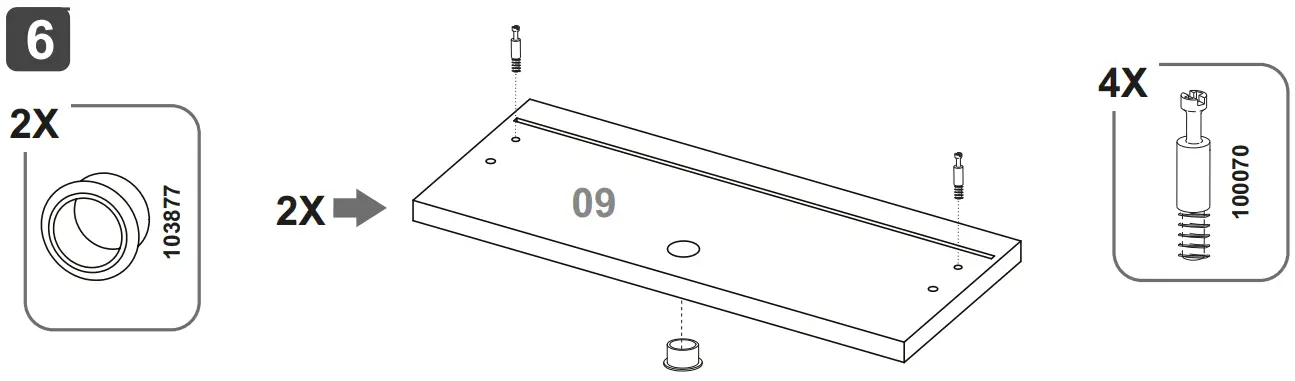

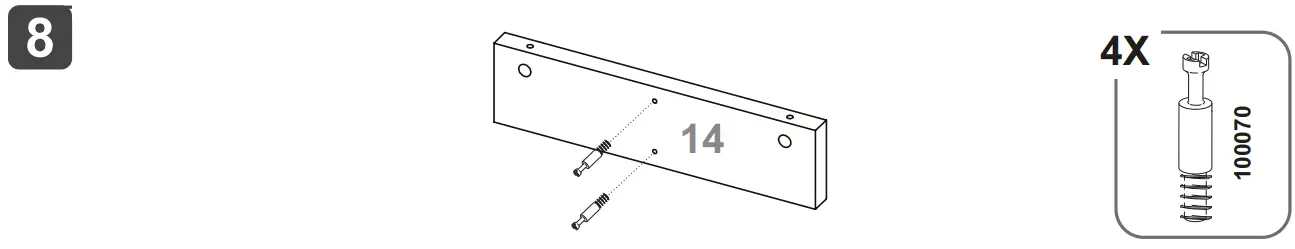

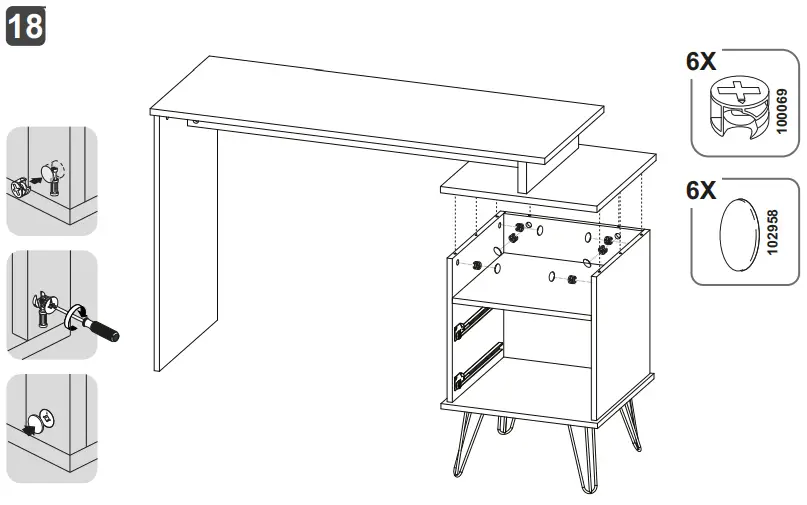

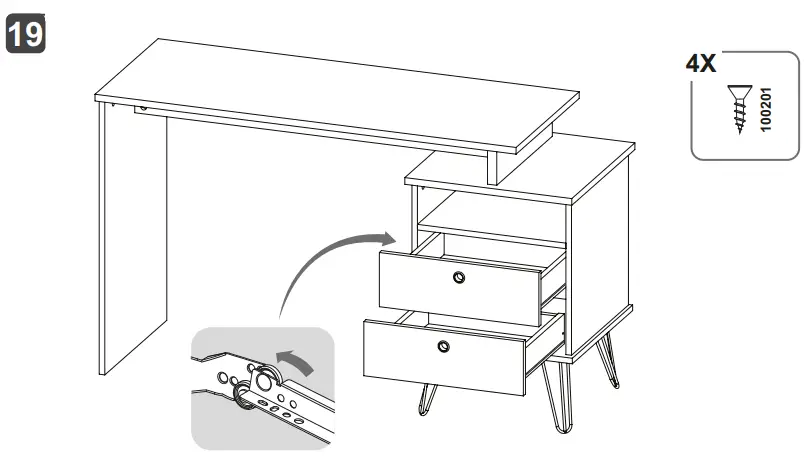

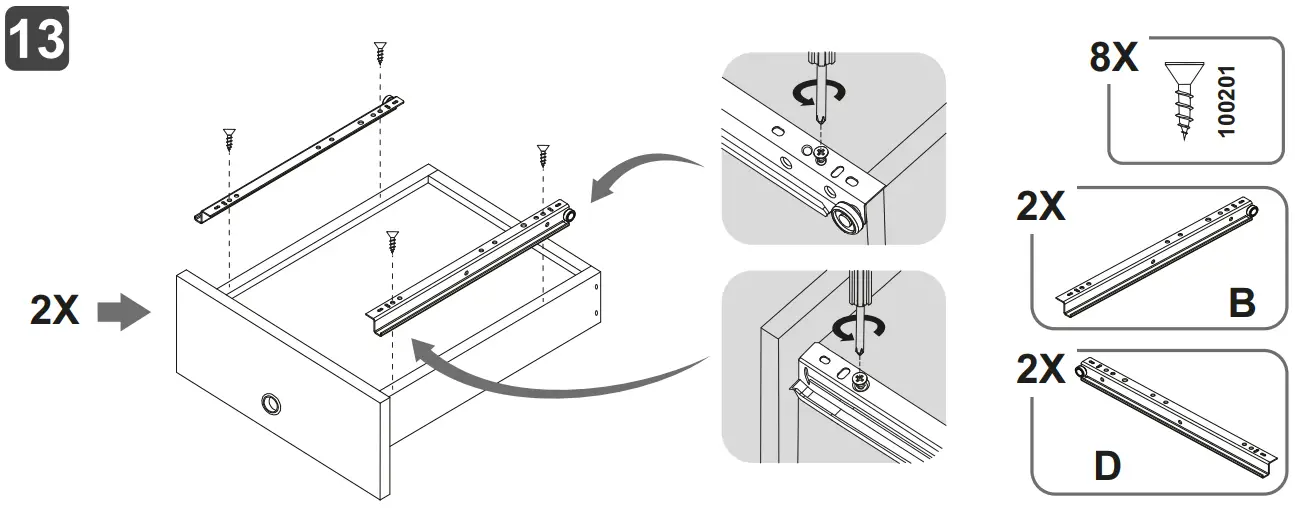

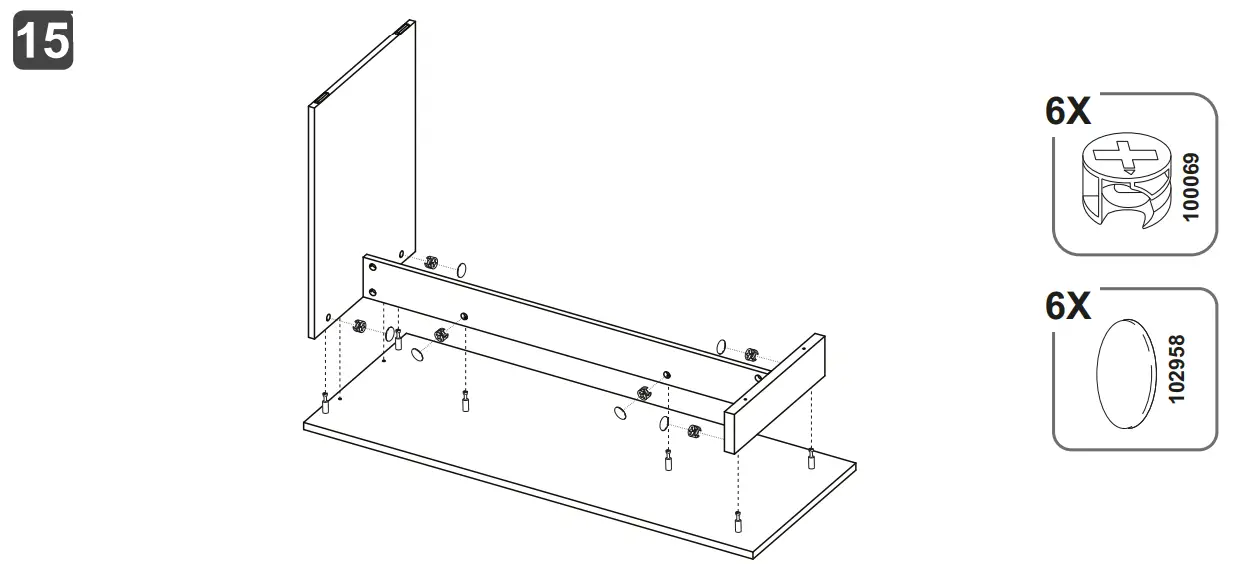

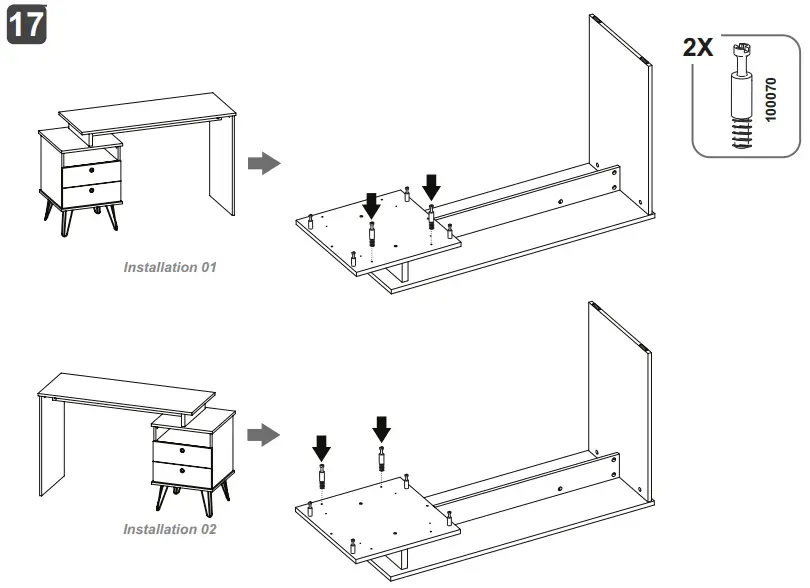

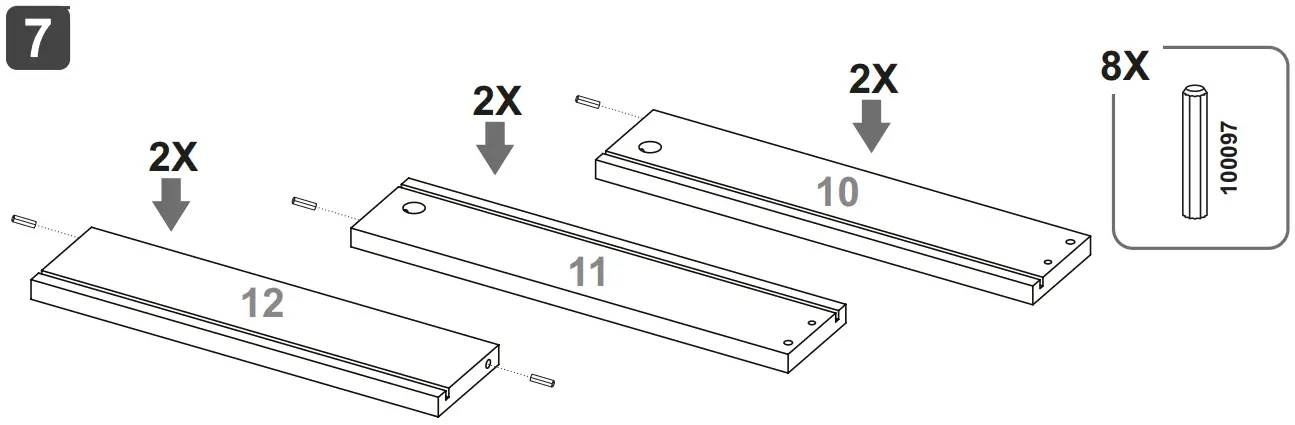

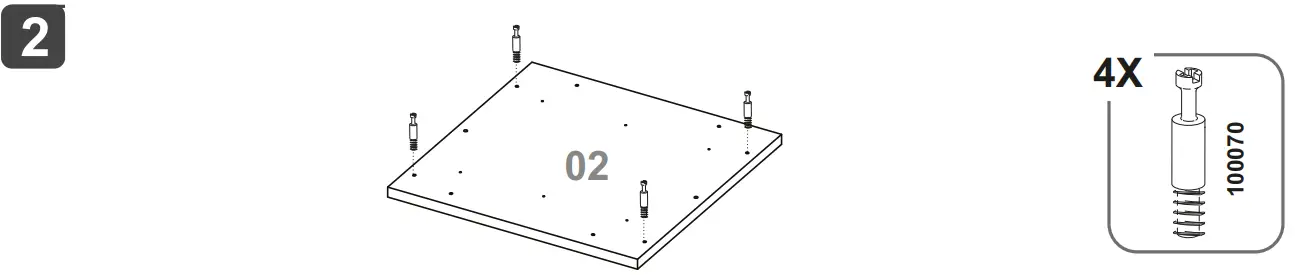

ASSEMBLY INSTRUCTION
CUSTOMER SUPPORT
