MANUAL DO PRODUTO
RD612
Match II Desk Versa
1.0 Version
User’s Guide
Conservation and Cleaning
Do not expose the product to sunlight, high temperatures and humidity. Do not drag objects across the surface of the unit (TV, DVD, stereo, decorative objects …) keep it in a cool dry place. For cleaning, use a dry and soft cloth. Do not use abrasive materials or alcohol.

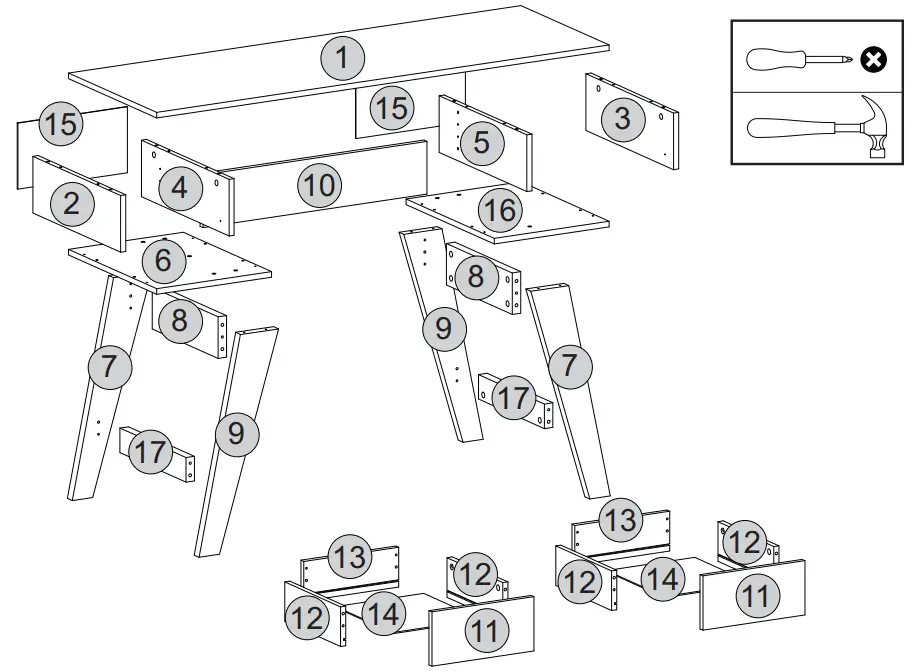

| Description | Qtd |
| 1-Top | 1 |
| 2-Left side | 1 |
| 3-Right side | 1 |
| 4-Left division | 1 |
| 5-Right division | 1 |
| 6-Left base | 1 |
| 7-Left foot | 2 |
| 8-Foot crosspiece | 2 |
| 9-Right foot | 2 |
| 10-Back crosspiece | 1 |
| 11-Drawer front | 2 |
| 12-Drawer side | 4 |
| 13-Drawer back | 2 |
| 14-Drawer buttom | 2 |
| 15-Back | 2 |
| 16-Right base | 1 |
| 17-Bottom crosspiece | 2 |

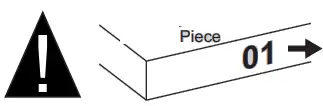

 | -The number on the edge of the piece matches the manual. -Use a White eraser, Alcohol Gel or Furniture Polish to remove the numbers. |
Hardware List
| A |  | Dowel ∅6x30mm | 36 |
| B |  | Hole Cover ∅18mm | 28 |
| C |  | Minifix ∅7x30mm | 28 |
| D |  | Minifix Cam ∅15x12mm | 28 |
| E |  | Fixed Foot ∅5x10mm | 04 |
| F |  | Handle | 02 |
| G |  | Screw ∅3,5x40mm CP | 08 |
| H |  | Screw ∅3,5x12mm CC – Metal | 16 |
| I |  | Nail 8×8 | 20 |

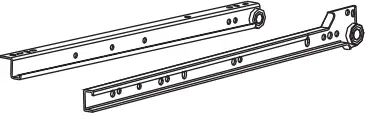

| J |  | Slider 300mm – Metal | 02 |

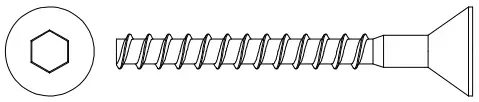

| K |  | Screw ∅5,0x40mm – Metal | 10 |
| L |  | Allen Key 4mm – Metal | 01 |

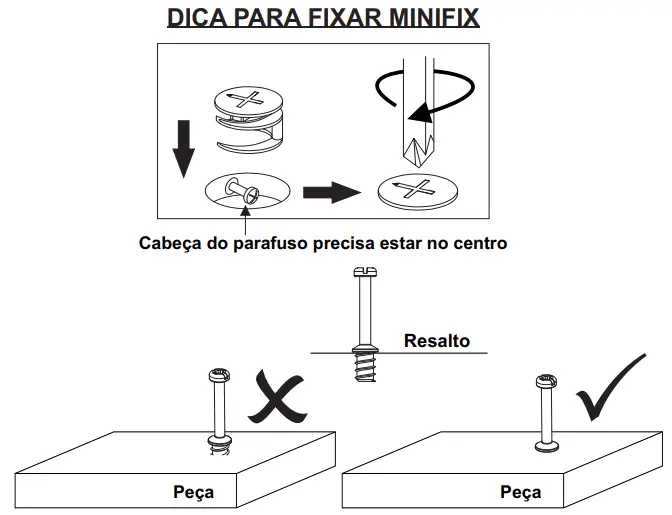

TIP TO PIN MINIFIX
