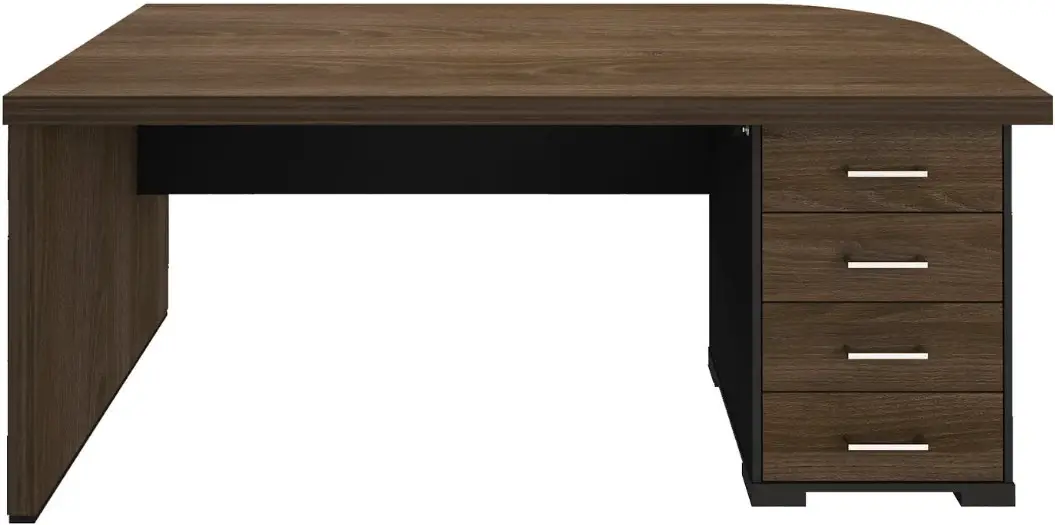

Rodler RD614 Executive Desk Top Café Instruction Manual

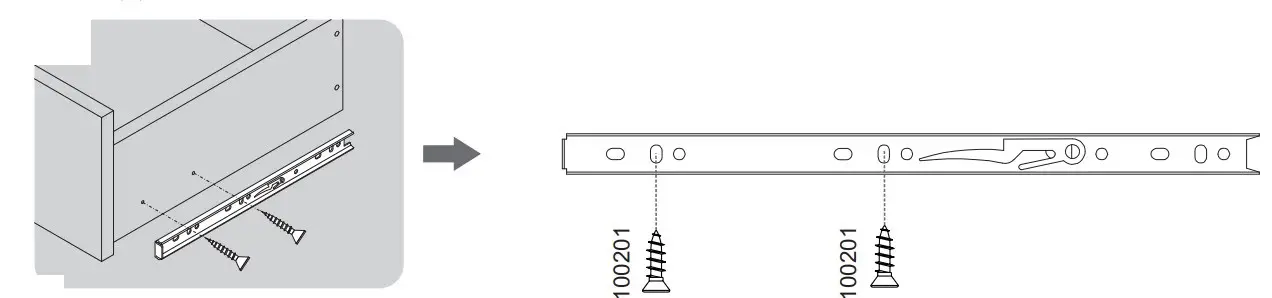

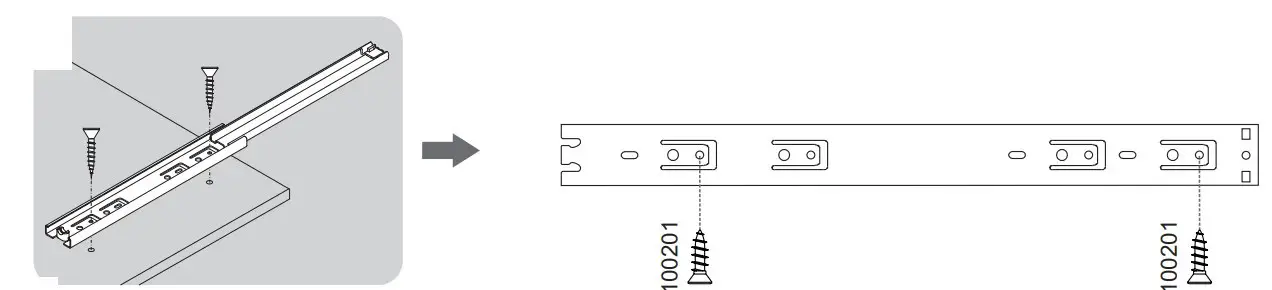

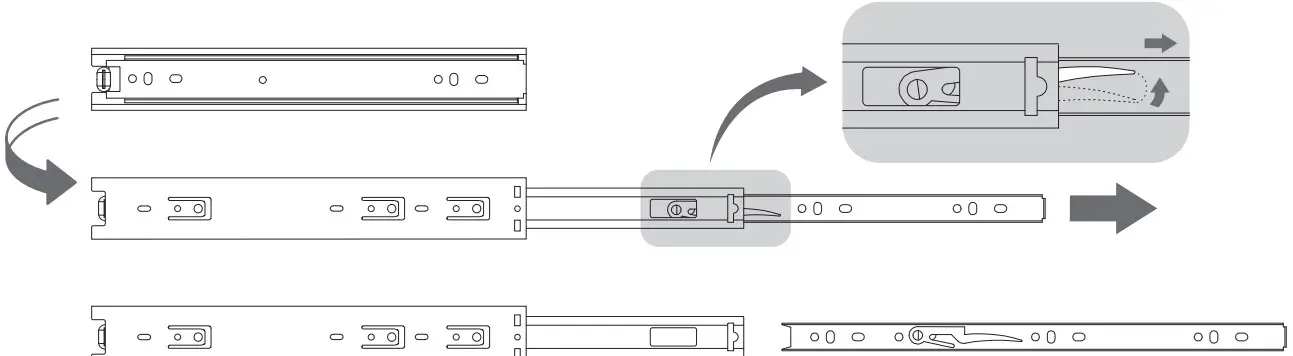

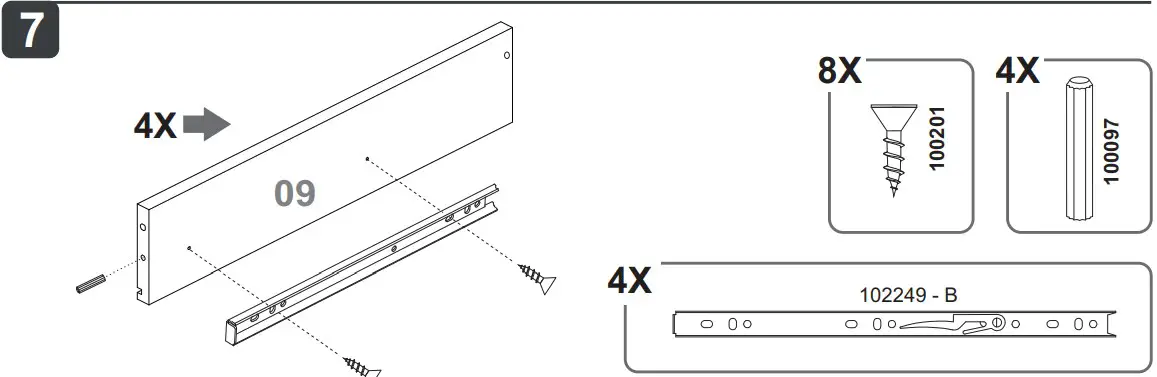

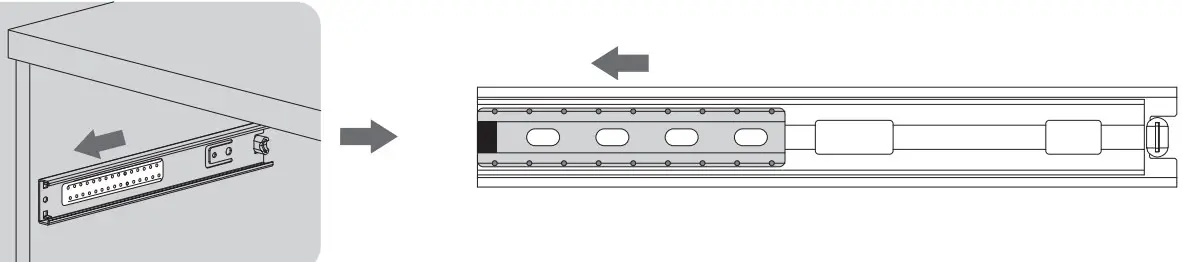

INSTALLATION OF THE TELESCOPOC SLIDERS

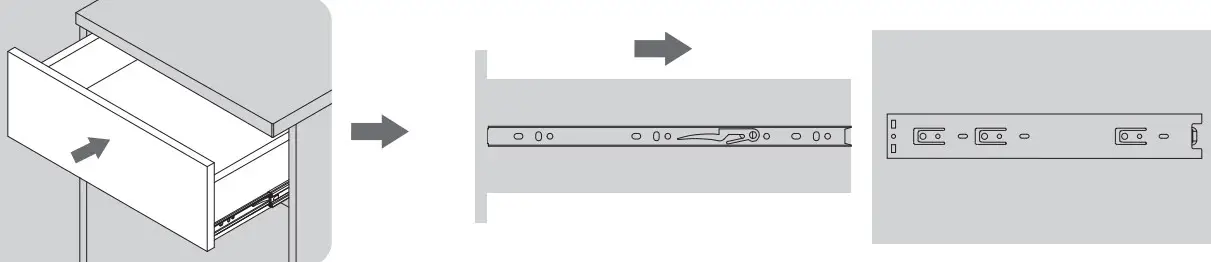

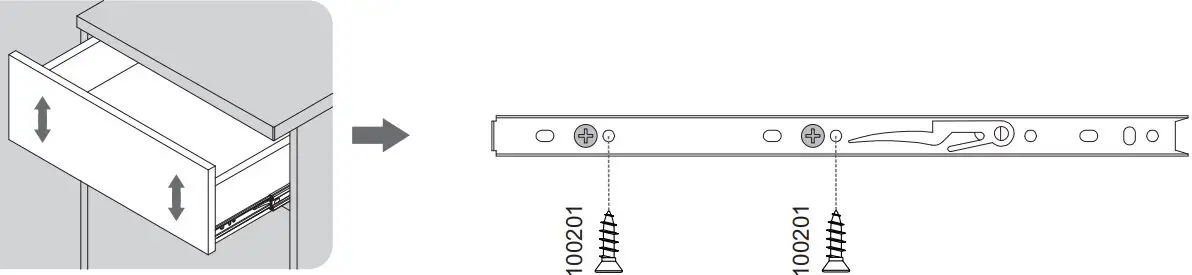

ADJUST THE DRAWER AND PUT THE SCREW

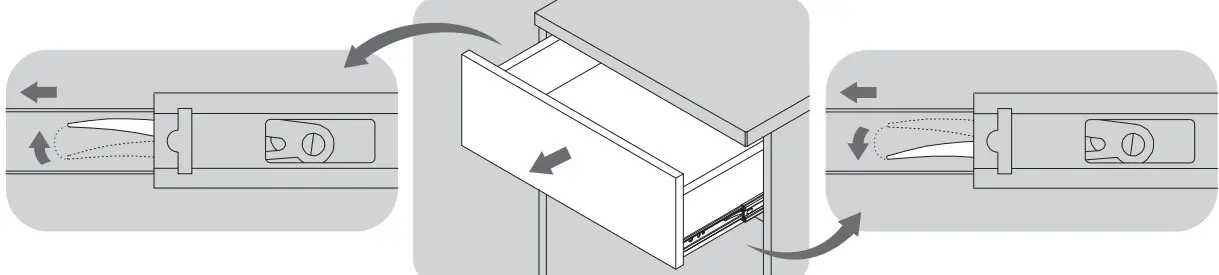

HOW TO TAKE OFF THE DRAWER

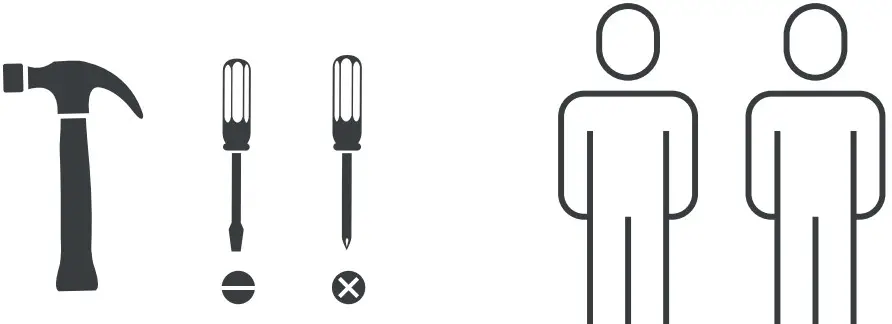

TOOLS NOT SUPPLIED BUT NECESSARY FOR THE ASSEMBLY

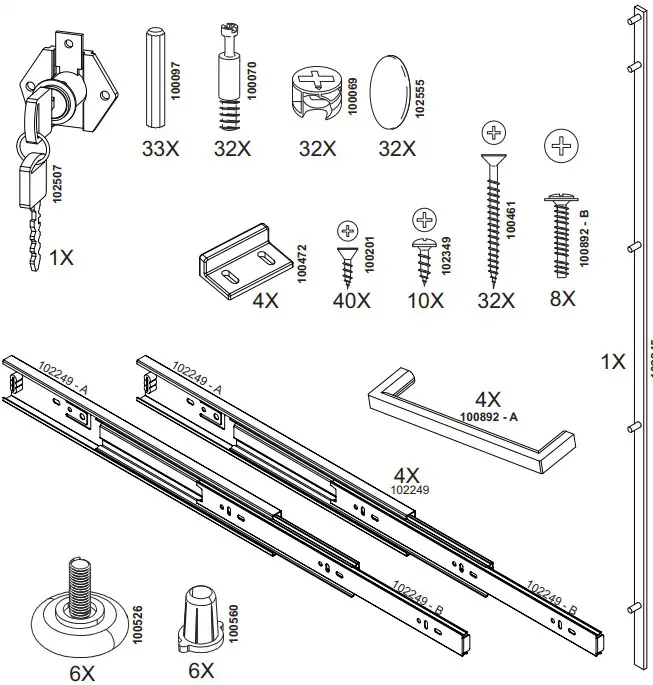

PACKAGE CONTENTS

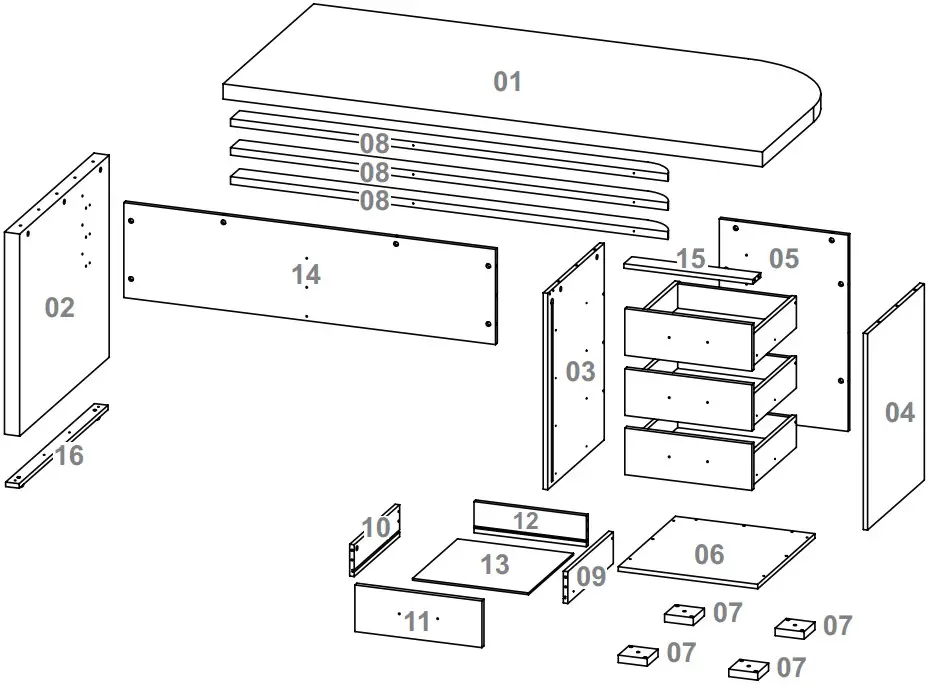

PARTS
| Number | size | Quantity |
| 01 | 1800[800[50mm | 01 |
| 02 | 669[790[50mm | 01 |
| 03 | 650[500[15mm | 01 |
| 04 | 650[500[15mm | 01 |
| 05 | 650[430[15mm | 01 |
| 06 | 505[465[15mm | 01 |
| 07 | 96[96[25mm | 04 |
| 08 | 1460[80[25mm | 03 |
| 09 | 400[105[15mm | 04 |
| 10 | 400[105[15mm | 04 |
| 11 | 424[154[18mm | 04 |
| 12 | 375[103[15mm | 04 |
| 13 | 396[387[6mm | 04 |
| 14 | 1240[315[15mm | 01 |
| 15 | 430[70[15mm | 01 |
| 16 | 785[45[15mm | 01 |

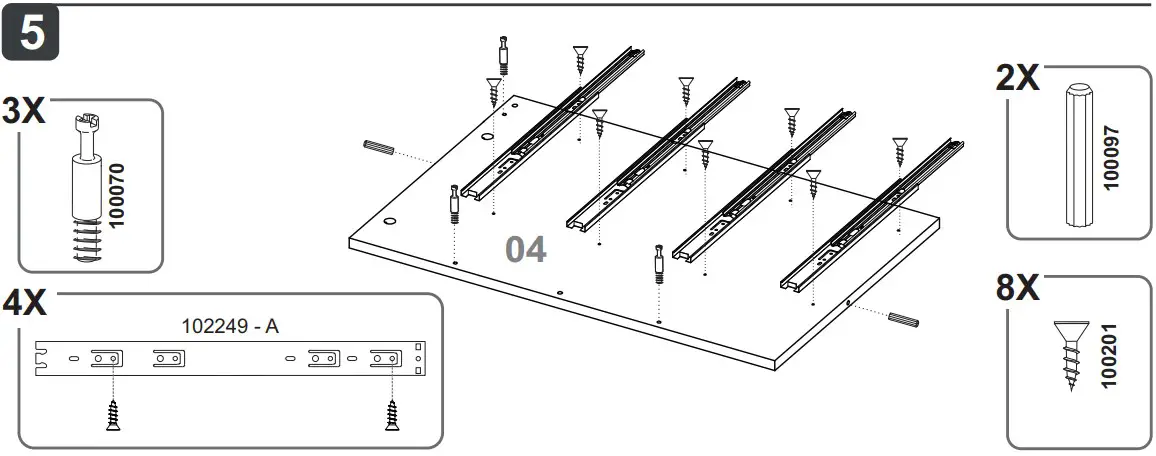

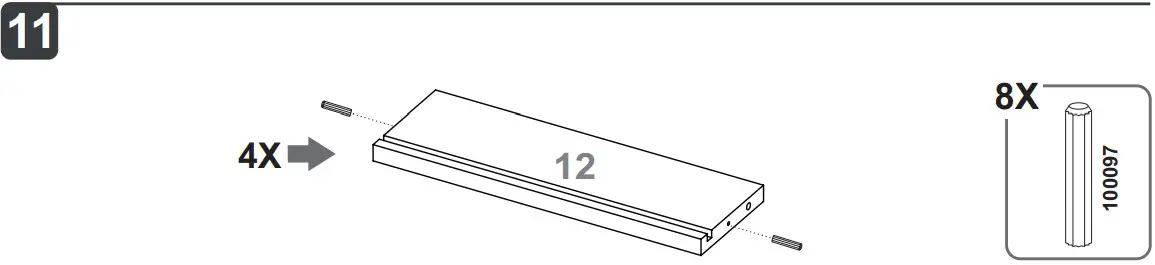

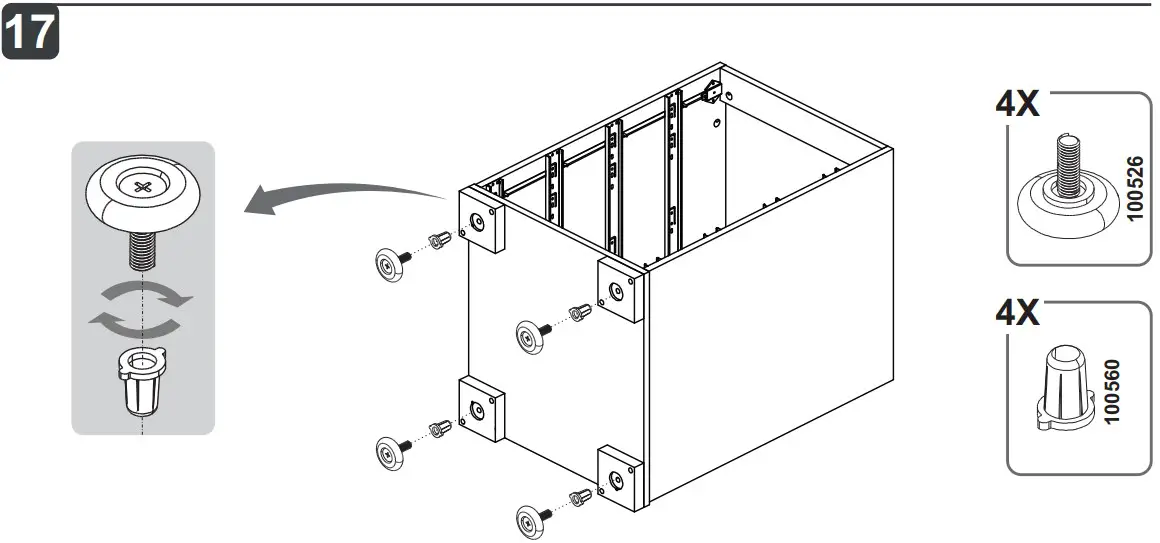

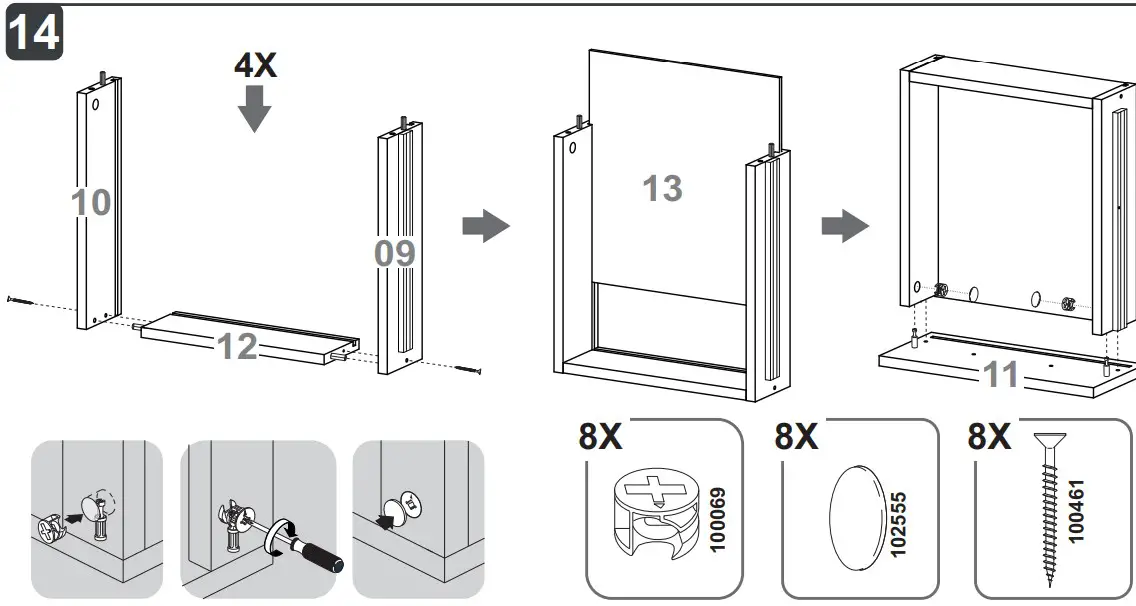

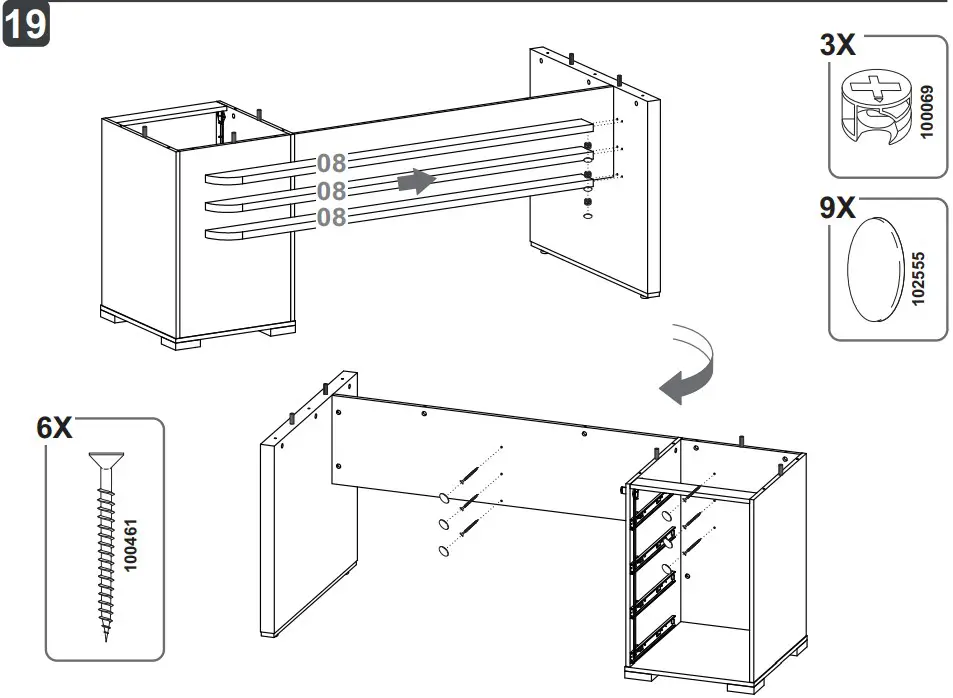

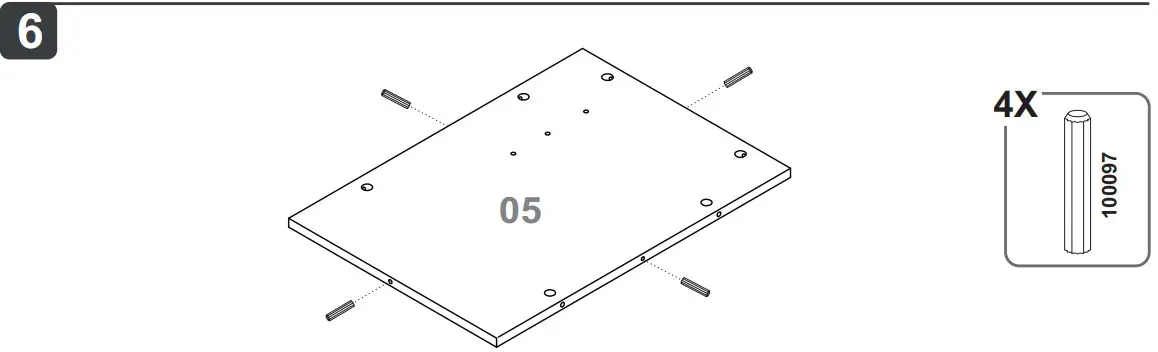

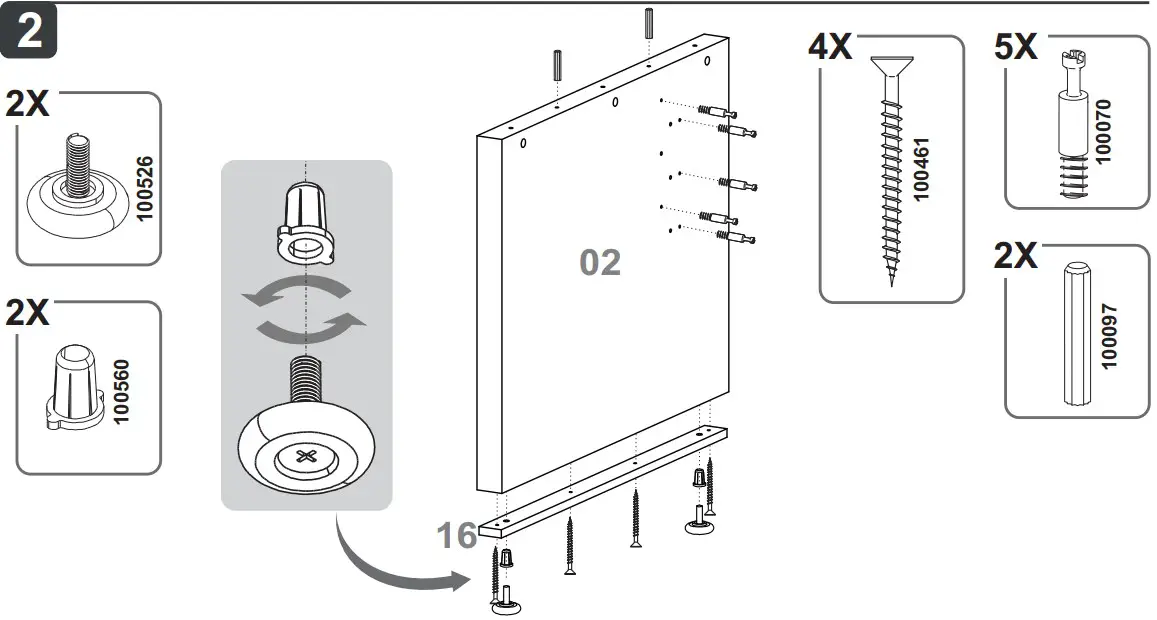

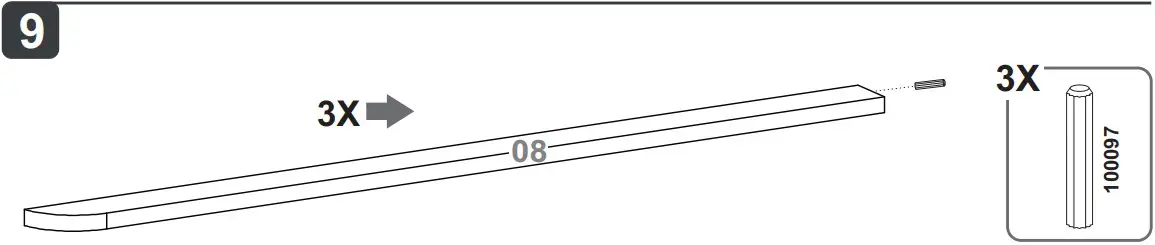

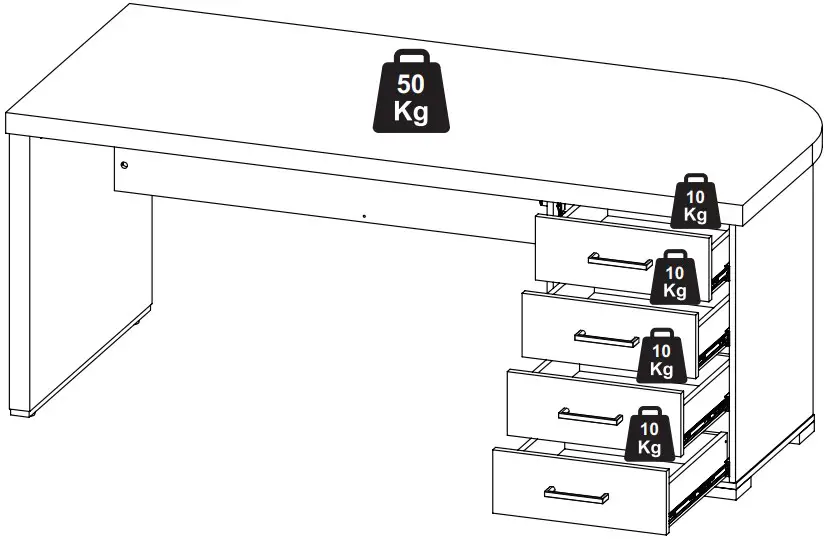

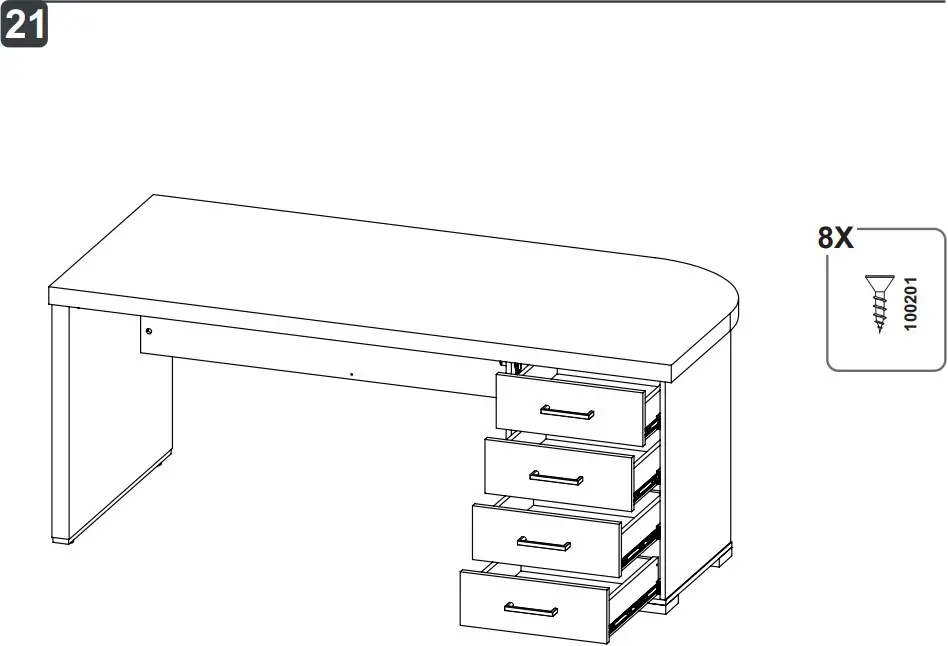

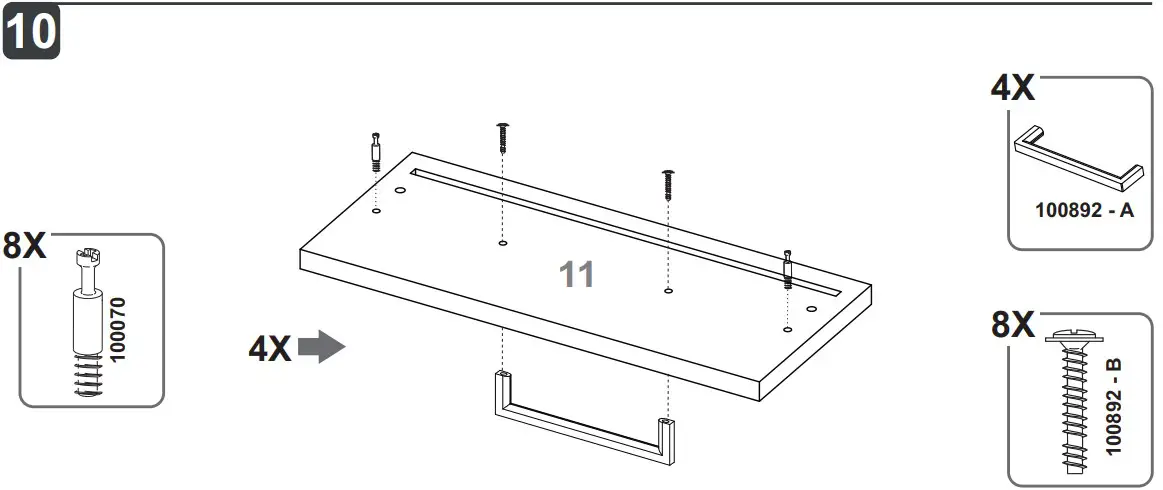

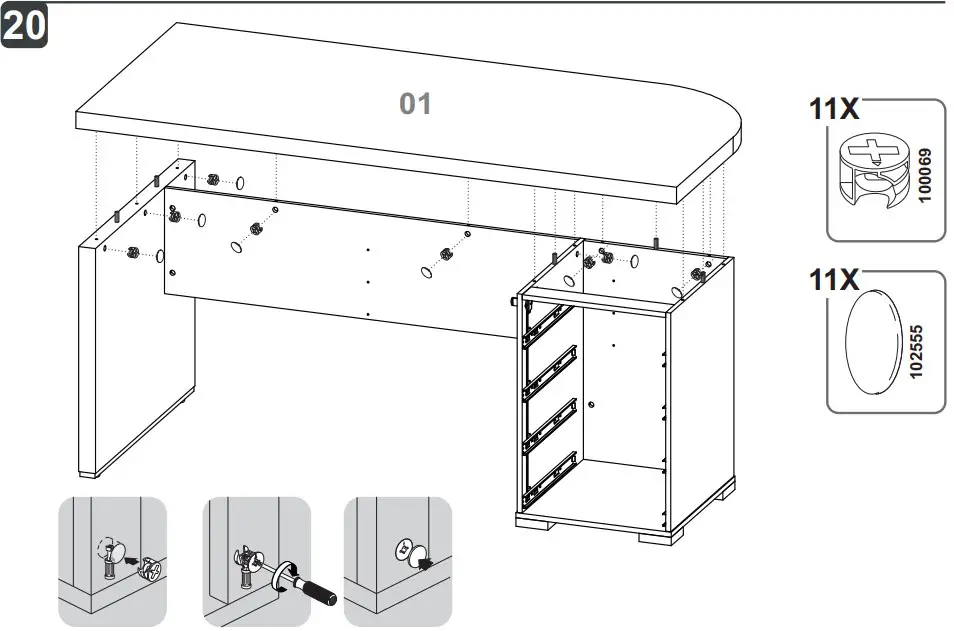

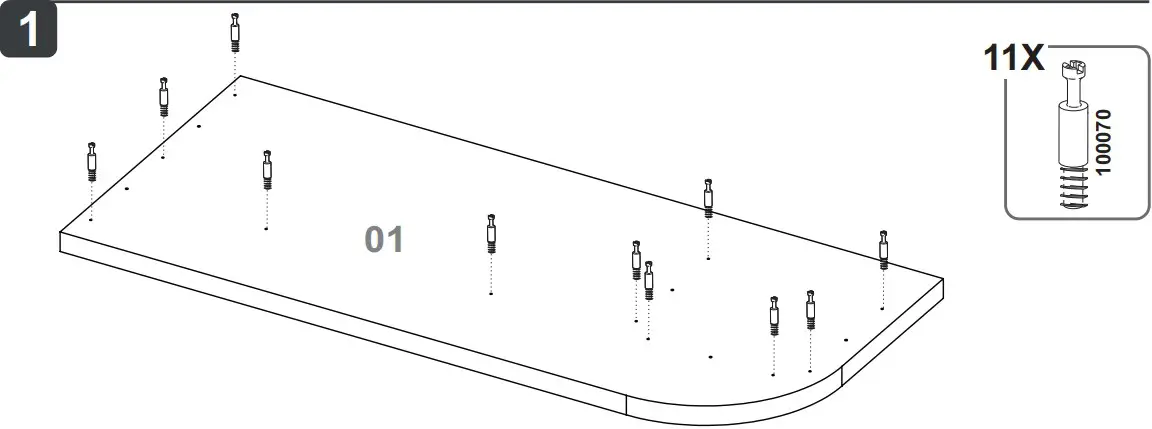

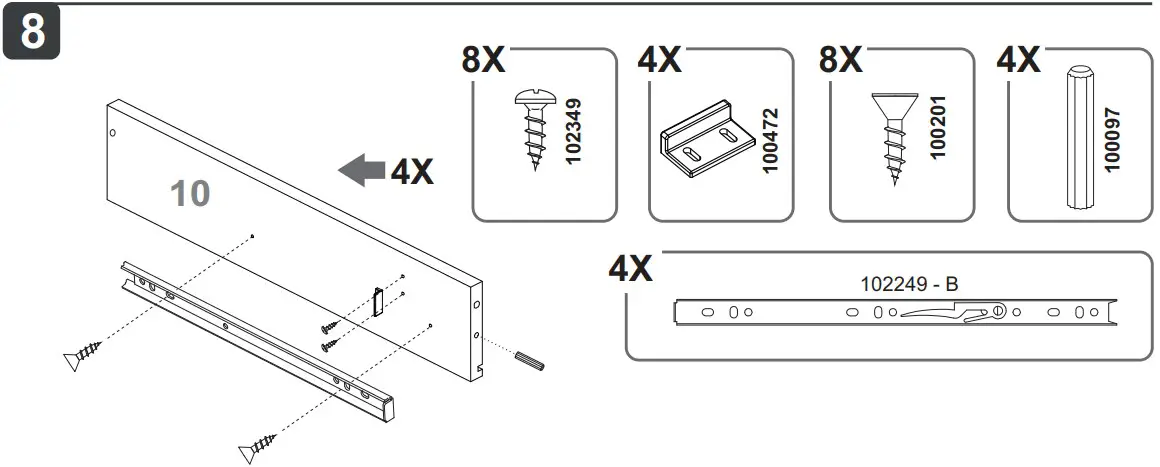

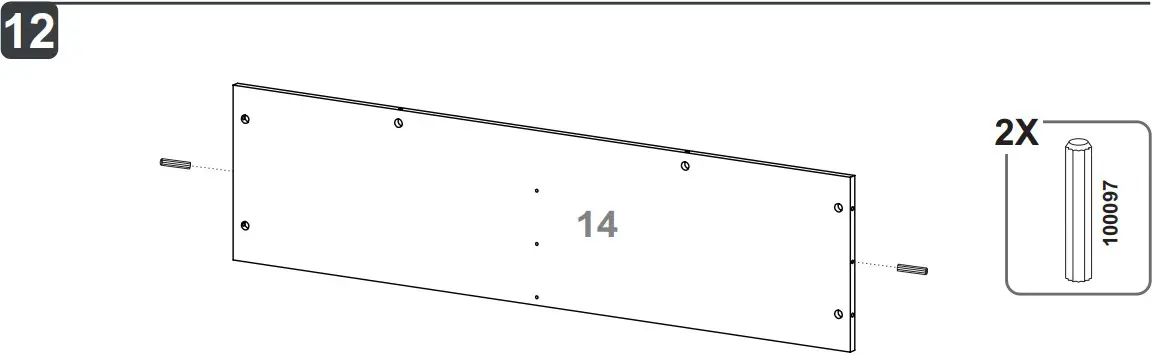

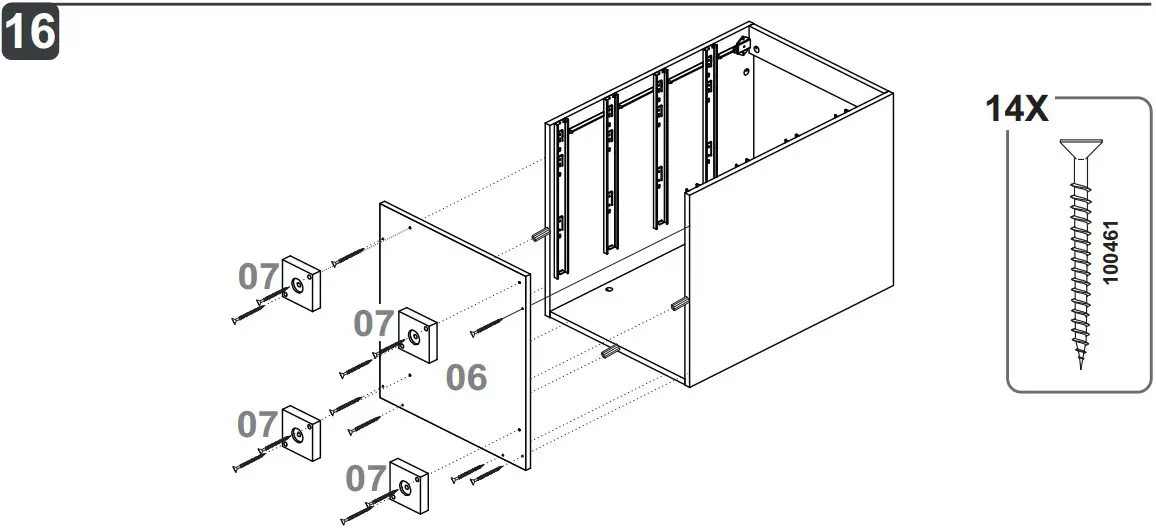

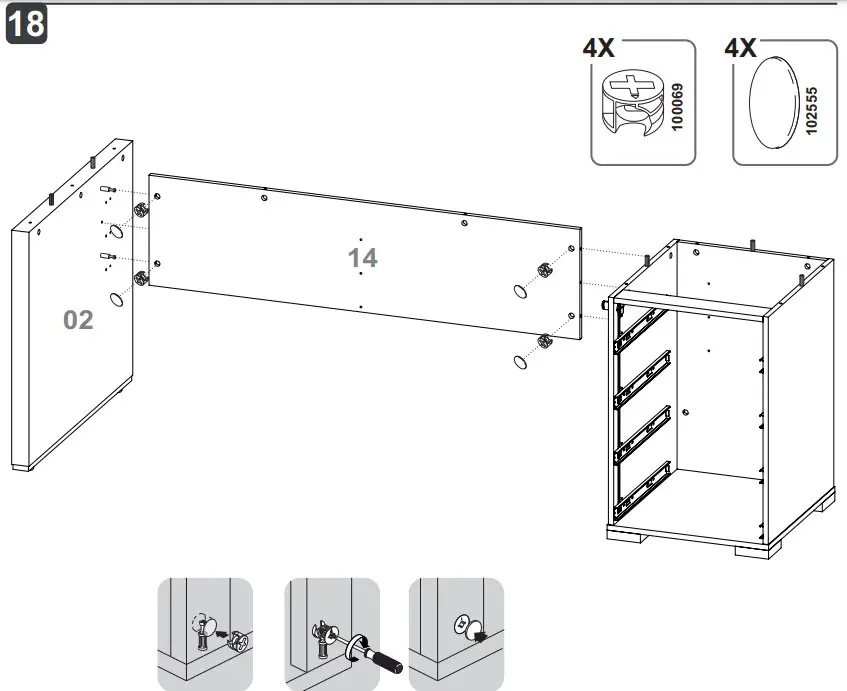

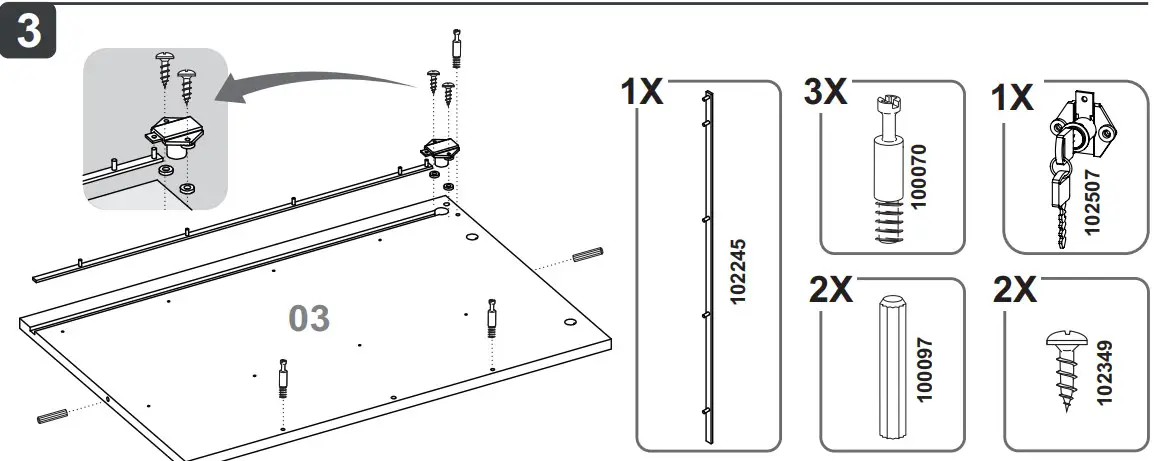

INSTALLATION
AFTER ATTACHING THE DRAWER, ADJUST THE RAIL ACCORDING TO STEP F OF THE TELESCOPIC SLIDERS INSTALLATION.
