SC SPI RGB-RGBW LED RF Controller
Instruction Manual

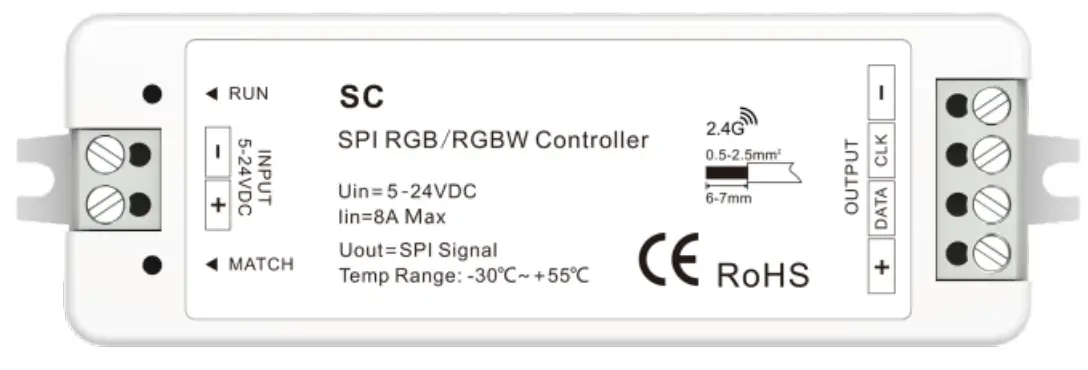

SPI RGB/RGBW LED RF Controller
Model No.: SC
Compatible with 34 kinds IC/Max 1024 pixels/Wireless remote control
Features
- Mini-style multi-pixel RGB RF LED controller with SPI output, match with RF 2.4G RGB/RGBW remote control.
- Compatible with 34 kinds of digital IC RGB or RGBW LED strip, IC type, and R/G/B order can be set.
Compatible ICs: TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, WS2811,WS2812, TM1829, TLS3001, TLS3002, GW6205, MBI6120, TM1814B, SK6812, UCS8904B, LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, P9813, SK9822, TM1914A,GS8206,GS8208. - 32 kinds of dynamic modes, including horse-race, chase, flow, trail, or gradual change style.
Technical Parameters
Input and Output
| Input voltage | 5-24VDC |
| Power consumption | 1W |
| Input signal | RF 2.4GHz |
| Output signal | SPI(TTL) |
| Dynamic mode | 32 |
| Control dots | Max 1024 pixels |
Safety and EMC
| EMC standard (EMC) | EN55032:2015, EN61000-3-2:2014, EN61000-3-2:2013, EN55024:2010/A1:2015 |
| Safety standard(LVD) | EN 61347-1:2015 EN 61347-2-11:2015 |
| Certification | CE,EMC,LVD |
Environment
| Operation temperature | Ta: -30OC ~ +55OC |
| Case temperature (Max.) | T c: +65OC |
| IP rating | IP20 |
Warranty and Protection
| Warranty | 5 years |
| Protection | Reverse Polarity |
Weight
| Gross weight | 0.038kg |
| Net weight | 0.049kg |

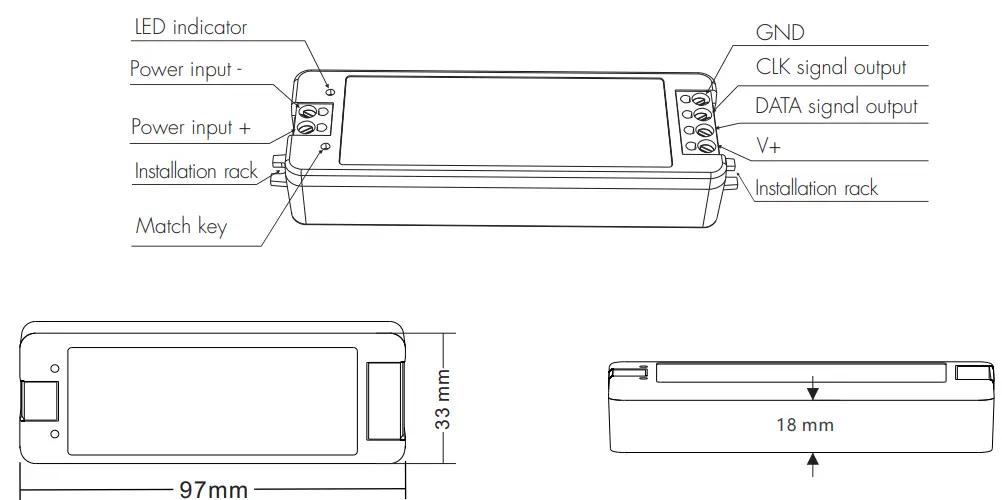

Mechanical Structures and Installations
Wiring Diagram

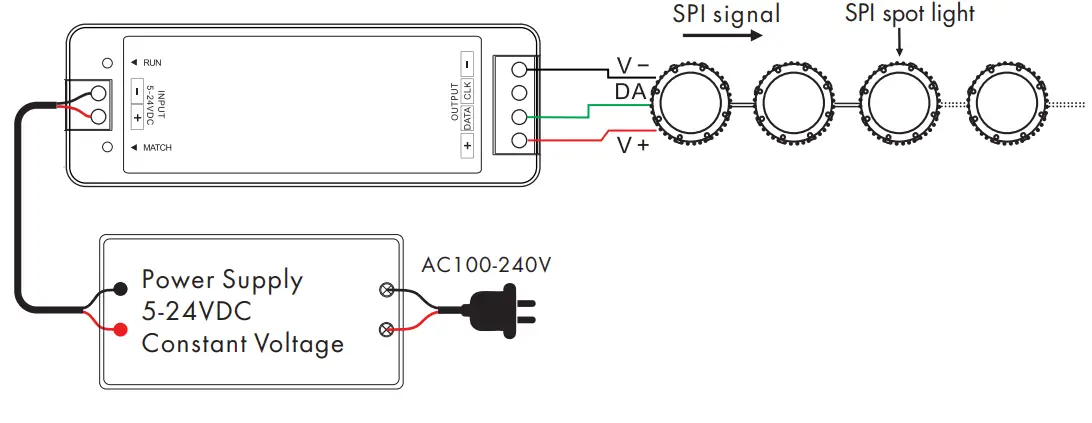

- SC connects with SPI spot light TM1803

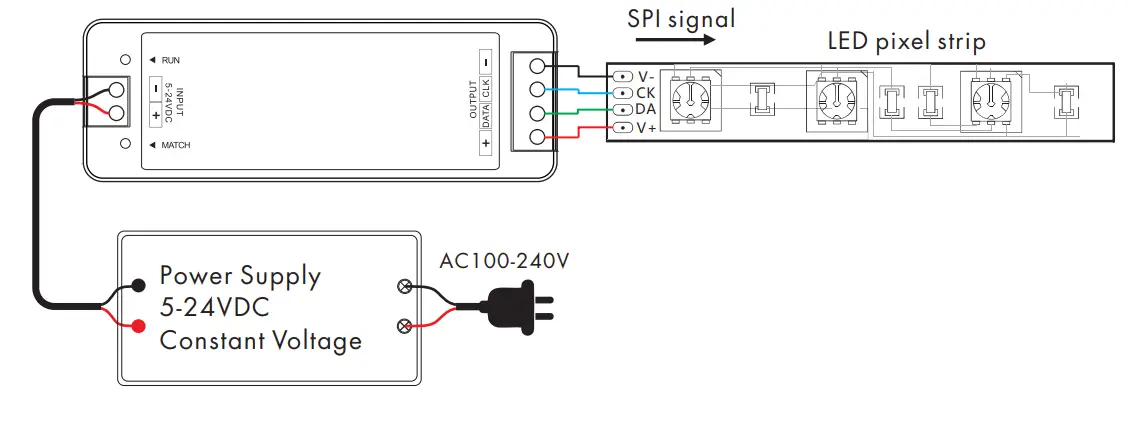

- SC connects with SPI pixel strip LPD6803

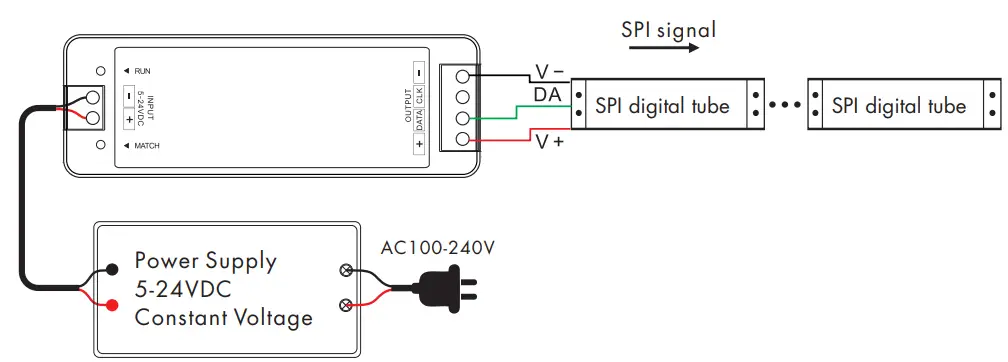

- SC connects with SPI Digital light tube TM1809
Note:
● If the SPI LED pixel strip is single-wire control, the DATA and CLK output is the same, we can connect up to 2 LED strips.
Match Remote Control
Match:
Short press the match key, and immediately press the on/off key of the remote.
Delete:
Press and hold the match key for 5s to delete all matches, The light blinks 5 times means all matched remotes were deleted.
Dynamic mode list
| No. | Name | No. | Name | No. | Name |
| P01 | Red horse race white ground | P12 | Blue White chase | P23 | Purple float |
| P02 | Green horse race white ground | P13 | Green Cyan chase | P24 | RGBW float |
| P03 | Blue horse race white ground | P14 | RGB chase | P25 | Red Yellow float |
| PO4 | Yellow horse race blue ground | P15 | 7 color chase | P26 | Green Cyan float |
| P05 | Cyan horse race blue ground | P16 | Blue meteor | P27 | Blue Purple float |
| P06 | Purple horse race blue ground | P17 | Purple meteor | P28 | Blue White float |
| P07 | 7 color multi horse race | P18 | White meteor | P29 | 6 color float |
| P08 | 7 color horse race close + open | P19 | 7 color meteor | P30 | 6 color smooth sectionally |
| P09 | 7 color multi horse race close + open | P20 | Red float | P31 | 7 color jump sectionally |
| P10 | 7 color scan close + open | P21 | Green float | P32 | 7 color strobe sectionally |
| P11 | 7 color multi-scan close + open | P22 | Blue float |
Compatible IC type
| No. | IC type | Output signal |
| 1 | TM1803 | DATA |
| 2 | TM1809,TM1804,TM1812,UCS1903,UCS1909,UCS1912, UCS2903,UCS2909,UCS2912,WS281 1,WS2812 | DATA |
| 3 | TM1829 | DATA |
| 4 | TLS3001,TLS3002 | DATA |
| 5 | GW6205 | DATA |
| 6 | MBI6120 | DATA |
| 7 | TM1814B(RGBW) | DATA |
| 8 | SK6812(RGBW) | DATA |
| 9 | UCS8904B(RGBW) | DATA |
| 10 | LPD6803, LPD1101, D705, UCS6909, UCS691 2 | DATA,CLK |
| 11 | LPD8803,LPD8806 | DATA,CLK |
| 12 | WS2801, WS2803 | DATA, CLK |
| 13 | P9813 | DATA,CLK |
| 14 | SK9822 | DATA,CLK |
| 15 | TM1914A | DATA |
| 16 | GS8206,GS8208 | DATA |
Use R9 remote set SPI digital LED strip
Set LED strip length [Pixel number(8~1024)].
* + 3 number + * for example:
*032*, set pixel number to 32.
*600*, set pixel number to 600.
*1024*, set pixel number to 1024.
Set LED strip chip type.
* + 2 number + *
*11*TM1803
*12*TM1809,TM1804,TM1812,UCS1903,UCS1909,UCS1912,UCS2903,UCS2909,UCS2912, WS2811,WS2812
*13*TM1829
*14*TLS3001,TLS3002
*15*GW6205
*16*MBI6120
*17*TM1814B(RGBW)
*18*SK6812(RGBW)
*19*UCS8904B(BW)
*21*LPD6803,LPD1101,D705,UCS6909,UCS6912
*22*LPD8803,LPD8806
*23*WS2801, WS2803
*24*P9813
*25*SK9822
*31*TM1914A
*32*GS8206,GS8208
Set LED strip RGB order.
* + 1 number + *
*1*RGB, *2*RBG, *3*GRB, *4*GBR, *5*BRG, *6*BGR.
