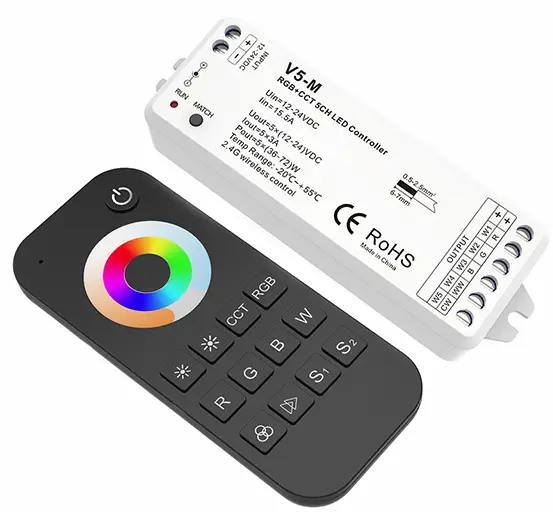

Skydance V5-m 5 Channel Rgb+cct Led Rf Controller User Guide

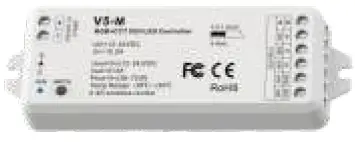

SKYDANCE V5-M 5 Channel RGB+CCT LED RF Controller

Channel RGB+CCT LED RF Controller

Model No.: V5-M 5 Channels/DC power socket input/Step-less dimming/Wireless remote control/Auto-transmitting/Synchronize

Features

• DC power socket input and 5 channel constant voltage output.
• Match with RF 2.4G single zone or multiple zone RGB+CCT remote control.
• One RF controller accept up to 10 remote control.
• 4096 levels 0-100% dimming smoothly without any flash.
• Built in 10 dynamic mode, include jump or gradual change style.
• Auto-transmitting function: Controller automatically transmit signal to another controller with 30m control distance.
• Synchronize on multiple number of controllers.
• Light on/off fade time 3s selectable.

Technical Parameters

Mechanical Structures and Installations

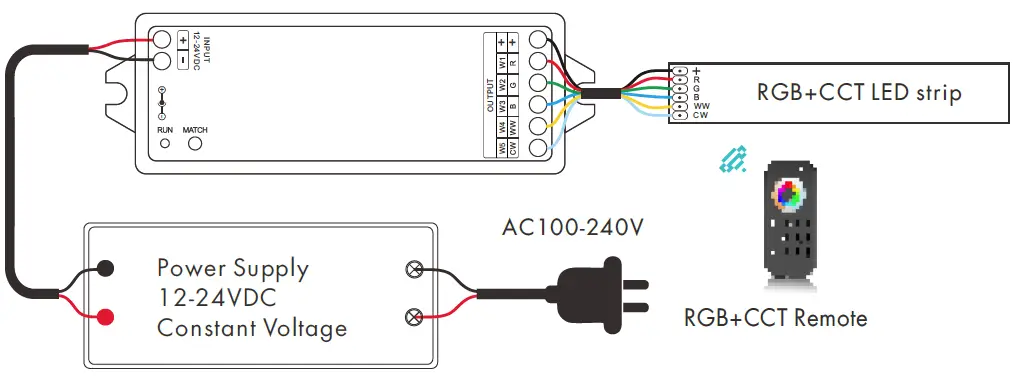

Wiring Diagram

• Connect constant voltage power supply
• Connect power adapter

Note: Long press match key tor 10s, RGB and CCT light can not be on at the same time. Long press match key tor 15s, RGB and CCT light can be on at the same time. above operation will also restore the factory seting.

Match Remote Control (two match ways)

End user can choose the suitable match/delete ways. Two options are offered for selection:

Use the controller’s Match key

Match:
Short press match key, immediately press on/off key (single zone remote) or zone key (multiple zone remote) on the remote. The LED indicator fast flash a few times means match is successful.

Delete:
Press and hold match key for 5s to delete all match, The LED indicator fast flash a few times means all matched remotes were deleted.

Application notes

1. All the receivers in the same zone.

Use Power Restart

Match:
Switch off the power of the receiver, then switch on power. Repeat again. Immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 3 times on the remote. The light blinks 3 times means match is successful.

Delete:
.Switch off the power of the receiver, then switch on power. Repeat again. Immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 5 times on the remote. The light blinks 5 times means all matched remotes were deleted.

RF remote

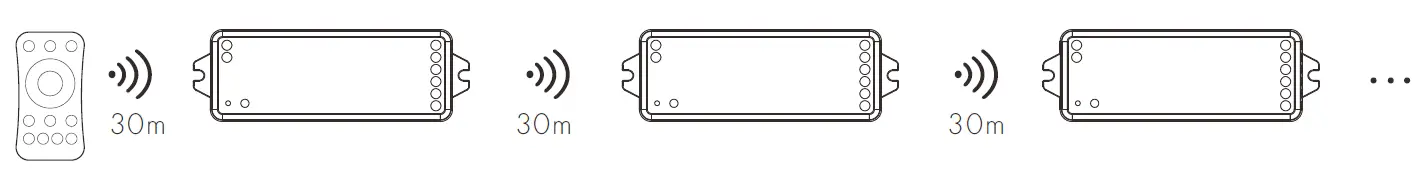

Auto-transmitting: One receiver can transmit the signals from the remote to another receiver within 30m, as long as there is a receiver within 30m, the remote control distance can be extended.
Auto-synchronization: Multiple receivers within 30m distance can work synchronously when they are controlled by the same remote, under same dynamic mode and with same speed. Receiver placement may offer up to 30m communication distance. Metals and other metal materials will reduce the range. Strong signal sources such as WiFi routers and microwave ovens will affect the range. We recommend for indoor applications that receiver placements should be no further apart than15m.

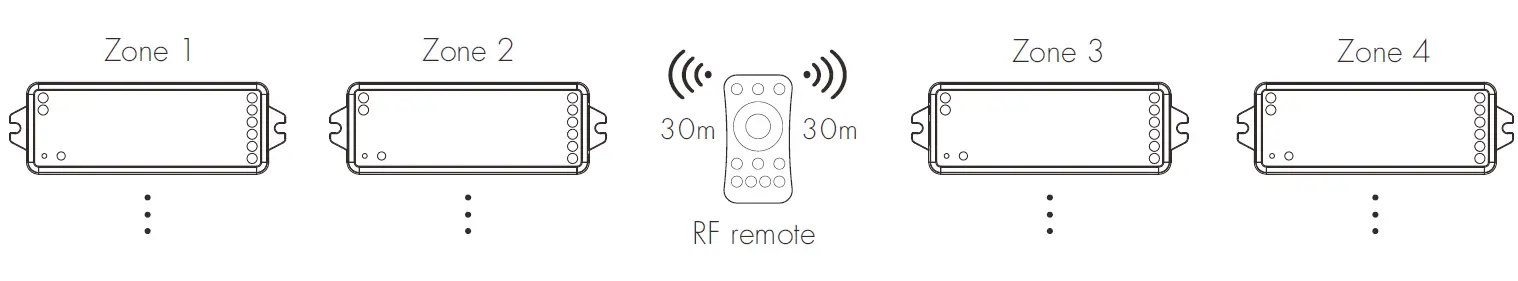

Each receiver(one or more) in a different zone, like zone 1, 2, 3 or 4.Light on/off fade time

Long press match key 5s, then short press match key 3 times, the light on/off time will be set to 3s, the indicator light blink 3 times. Long press match key 10s, restore factory default parameter, the light on/off time also restore to 0.5s.

Dynamic mode list

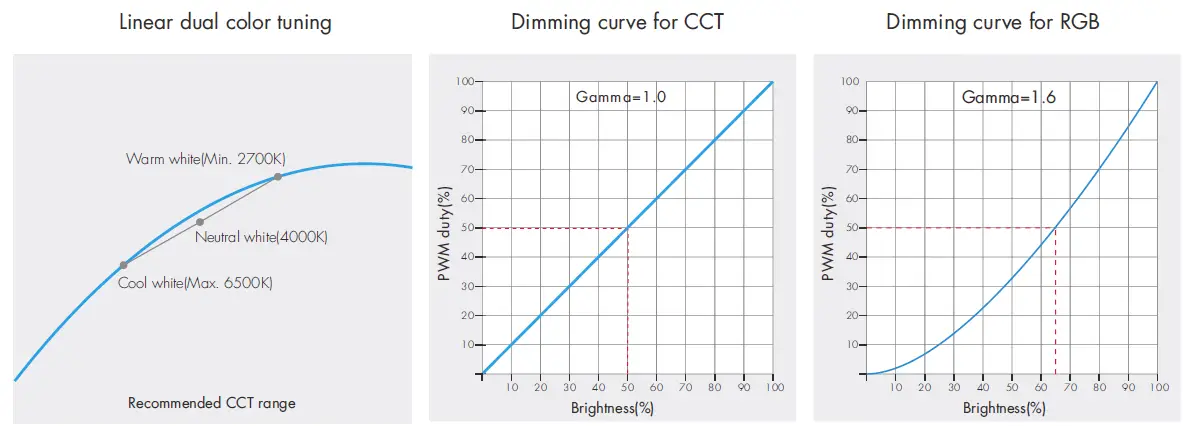

Dual color control

• CH4=Warm white LED
• CH5=Cool white LED
• Each channel can supply up to 72W(@24V) and white balance can be controlled as such:

Malfunctions analysis & troubleshooting
