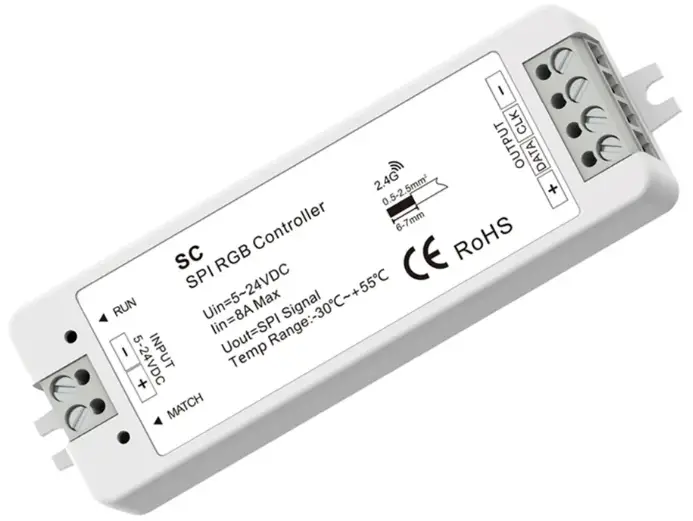

LEDYi Lighting SC SPI RGB/RGBW LED RF Controller Instruction Manual

Features

• Mini-style multi-pixel RGB RF LED controller with SPI output, match with RF 2.4G RGB/RGBW remote control.
• Compatible with 42 kinds digital IC RGB or RGBW LED strip, IC type and R/G/B order can be set.
  Compatible ICs: TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, SK6813, UCS2903, UCS2909, UCS2912, WS2811, WS2812, WS2813, WS2815, TM1829, TLS3001, TLS3002, GW6205, MBI6120, TM1814B(RGBW), SK6812(RGBW) WS2813(RGBW), WS2814(RGBW), UCS8904B(RGBW), LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, P9813, SK9822, TM1914A, GS8206, GS8208, UCS2904, SM16804, SM16825.
• 32 kinds dynamic mode, include horse-race, chase, flow, trail or gradual change style.

Technical Parameters

Input and Output

Safety and EMC

Environment

Warranty and Protection

Weight

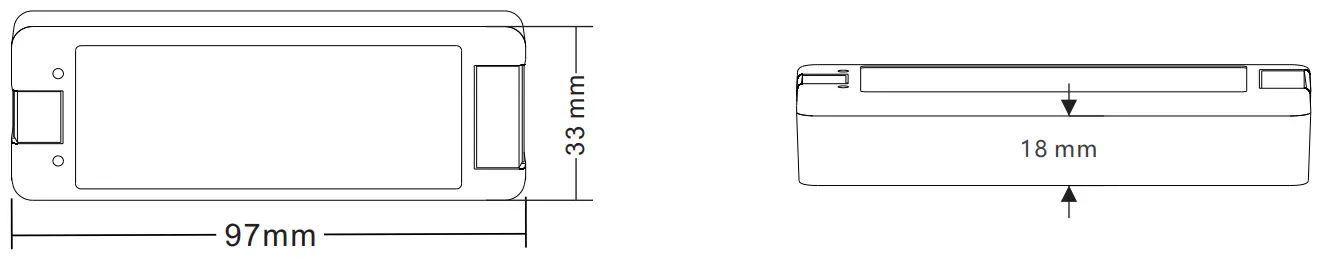

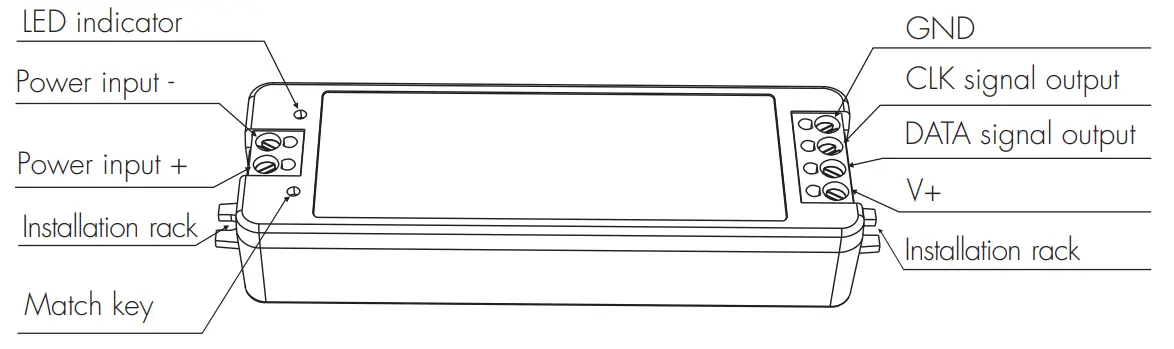

Mechanical Structures and Installations

Wiring Diagram

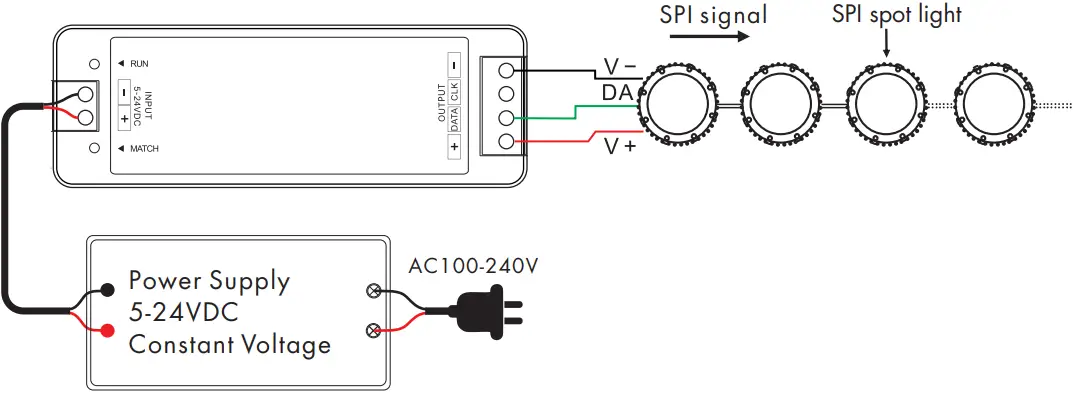

• SC connect with SPI spot light (TM1803)

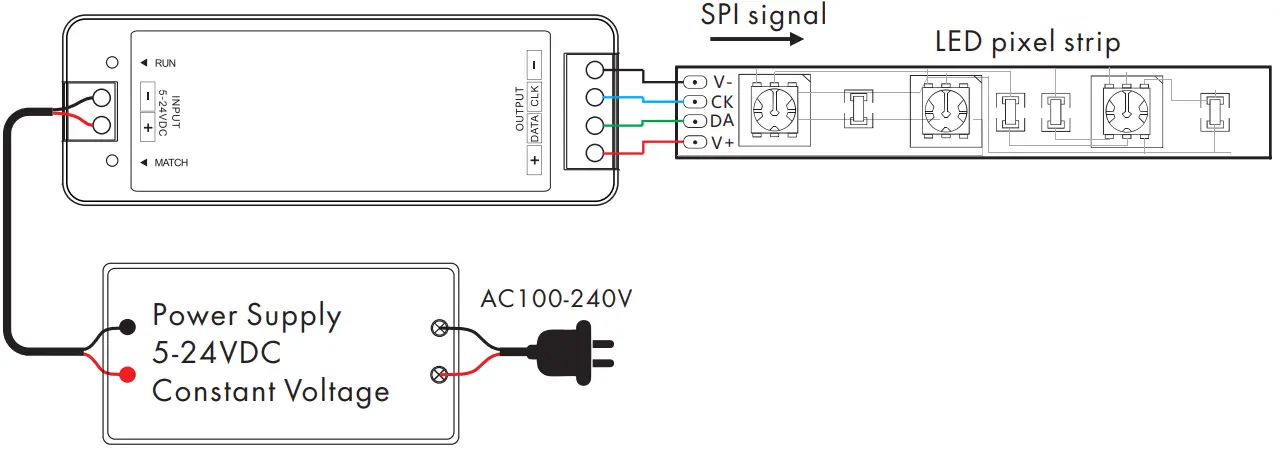

• SC connect with SPI pixel strip (LPD6803)

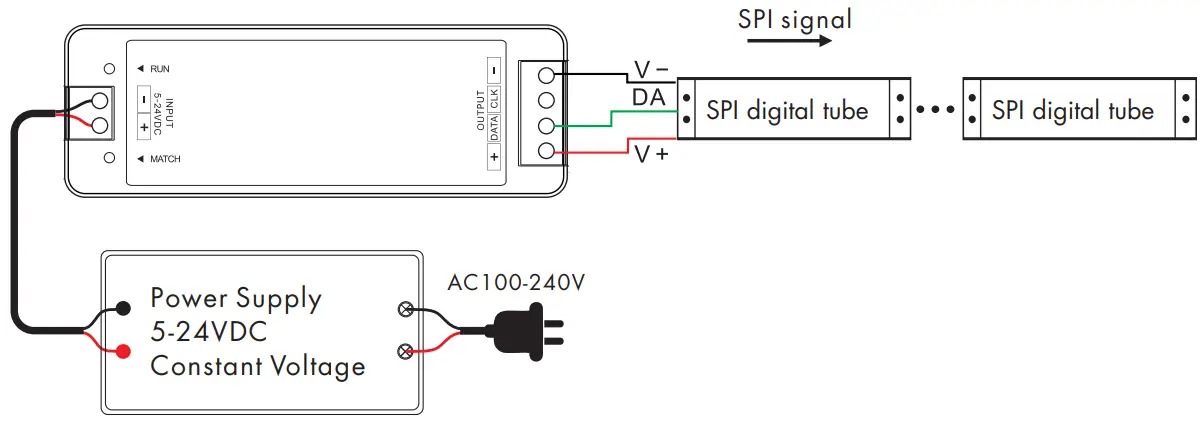

• SC connect with SPI Digital light tube (TM1809)


Note:

• If the SPI LED pixel strip is single-wire control, the DATA and CLK output is same, we can connect up to 2 LED strips.

Use R9 remote set SPI digital LED strip

• Set LED strip length [Pixel number(8~1024)]. * + 3 number + * for example:
  *032*, set pixel number to 32.
  *600*, set pixel number to 600.
  *1024*, set pixel number to 1024.
• Set LED strip chip type. * + 2 number + *
  *11*：TM1803
  *12* TM1809,TM1804,TM1812,UCS1903,UCS1909,UCS1912,SK6813,UCS2903,UCS2909,UCS2912, WS2811,WS2812,WS2813,WS2815
  *13*：TM1829
  *14*：TLS3001,TLS3002
  *15*：GW6205
  *16*：MBI6120
  *17*：TM1814B(RGBW)
  *18*：SK6812(RGBW),WS2813(RGBW),WS2814(RGBW)
  *19*：UCS8904B(RGBW)
  *21*：LPD6803,LPD1101,D705,UCS6909,UCS6912
  *22*：LPD8803,LPD8806
  *23*：WS2801,WS2803
  *24*：P9813
  *25*：SK9822
  *31*：TM1914A
  *32*：GS8206,GS8208
  *33*：UCS2904
  *34*：SM16804
  *35*：SM16825
• Set LED strip RGB order. * + 1 number + *
  *1*：RGB, *2*：RBG, *3*：GRB, *4*：GBR, *5*：BRG, *6*：BGR.

Compatible IC type

Match Remote Control
Match:
Short press match key, immediately press on/off key of the remote.
Delete:
Press and hold match key for 5s to delete all match, The light blinks 5 times means all matched remotes were deleted.

Dynamic mode list
