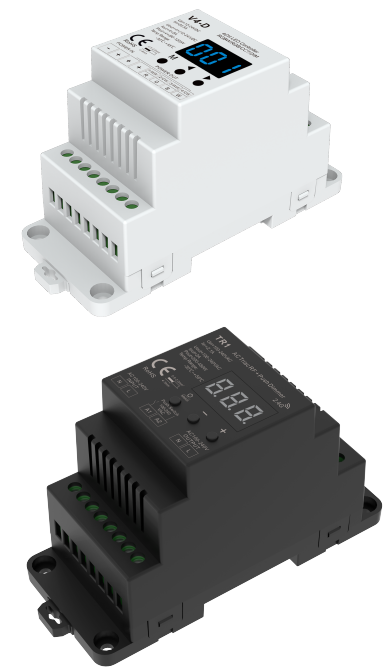

Ledyi Lighting V4-d Led Rf Controller User Manual

RGBW/RGB/CCT/Dimming 4 Channel LED RF Controller
Model No.: V4-D
User Manual Ver 1.1.0

4 Channels/Four PWM frequency/Linear or logarithmic dimming/Numeric display/Din Rail/Multiple protection

Features

• Digital numeric display and easy key operation.
• Can set as 1 channel dimmer, 4 channel dimmer, dual color, RGB or RGBW controller.
• Match with RF 2.4G single zone or multiple zone single color,
  dual color and RGB/RGBW remote control.
• One RF controller accept up to 10 remote control.
• 4096 levels 0-100% dimming smoothly without any flash.
• When using with RGB/RGBW light , built in 10 dynamic mode, include jump or gradual change style.
• PWM frequency 1000/2000/4000/8000Hz selectable.
• Logarithmic or linear dimming curve selectable.
• Light on/off fade time 0 – 20s selectable.
• Auto-transmitting function: Controller automatically transmit signal
  to another controller with 30m control distance.
• Synchronize on multiple number of controllers.
• Over heat / Over load /Short circuit protection recover automatically.
• Available in white or black.

Technical Parameters

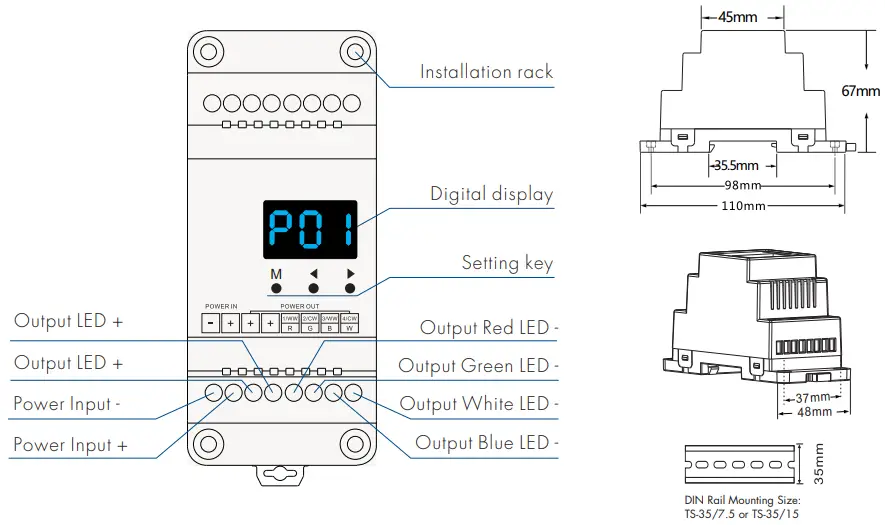

Mechanical Structures and Installations

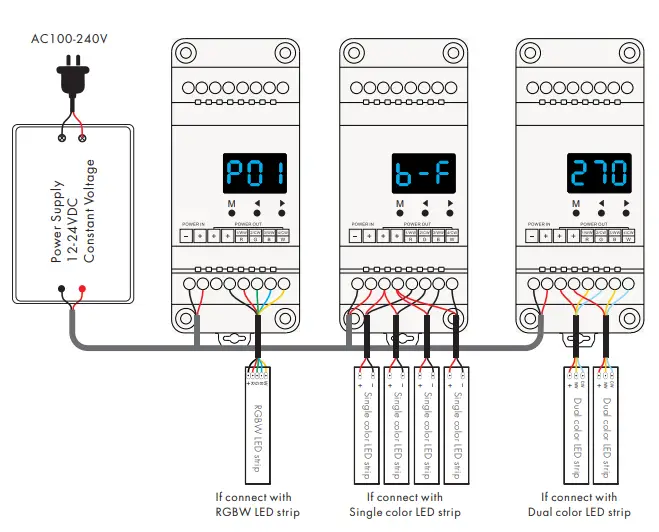

Wiring Diagram

Operation

Light type and other parameter setting

• Long press M and ◀ key for 2s, prepare for setup system parameter: light type, output PWM frequence, output brightness curve, light on/off fade time, automatic blank screen. short press M key to switch
• Light type: short press ◀ or ▶ key to switch “Ch1”), dual color temperature(“Ch2”) , RGB(“Ch3”), RGBW(“Ch4”) and 4 channel dimmer(“CH4”).
• Output PWM frequence: short press ◀ or ▶ key to switch 1000Hz(“F10”), 2000Hz(“F20”), 4000Hz(“F40”) or 8000Hz(“F80”).
  Higher PWM frequency, will cause lower output current, higher power noise, but more suitable for camera(No flickers for video).
• Output brightness curve: short press ◀ or ▶ key to switch linear curve(“C-L”) or logarithmic curve(“C-E”).
• Light on/off fade time: short press – or + key to switch 0.5s(“d00”), 2s(“d02”), 3s(“d03”), 5s(“d05”), 10s(“d10”) or 20s(“d20”) fade on/off time.
• Automatic blank screen: short press ◀ or ▶ key to switch enable (“bon”) or disable(“boF”) automatic blank screen.
• Long press M key for 2s or timeout 10s, quit system parameter setting.

1 Channel Dimmer

• Four channel output connect four single color LED strip, realize synchronous dimming.
• Short press M key to switch coarse dimming and
• Coarse dimming: short press ◀ or ▶ key to adjust 10 levels brightness(b-1, b-9, b-F).
• Fine dimming: short press ◀ or ▶ key to adjust 256 levels brightness(b01~bFF).

Dual color temperature controller

• Four channel output connect two groups dual color LED strip(WW and CW).
• Short press M key to switch color temperature or brightness adjustment.
• Press ◀ or ▶ key to setup value of each item.
• Color temperature: 2700-6500K, display “270~650”, short press 11 levels, long press 256 levels.
• Brightness: 1-10 level brightness(b-1,b-9,b-F).

RGB/RGBW Controller

• Fur ch°nnel °utput c°nnect RGB/RGBW LED strip.
• Short press M key, switch static adjustable mode(P-H) and 10 change mode(P01—P10).
• When run static adjustable mode, can adjust three/four channel brightness respectively. Short press M key switch three/four channel dimming (100-1FF, 200-2FF, 300-3FF, 400-4FF), press ◀ or ► key adjust each channel brightness.

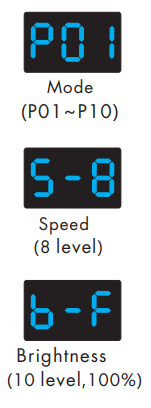

• When run 10 change mode, can adjust each mode speed and brightness, W brightness(Only RGBW). Short press M key to switch speed and brightness item. Mode speed: 1-10 level speed(S-1, S-9, S-F). Mode brightness: 1-10 level brightness(b-1, b-9, b-F). W channel brightness: 0-255 level brightness(400-4FF).

RGB/RGBW dynamic mode list

4 Channel Dimmer

• Four channel output connect four single color LED strip, realize individual dimming.
• Short press M key, switch static adjustable mode(P-H) and four dynamic mode(P-1~P-4).
• When run static adjustable mode, can adjust four channel brightness respectively.
  Short press M key switch four channel dimming(100~1FF, 200~2FF, 300~3FF, 400~4FF), press ◀ or ▶ key adjust each channel brightness.
• When run four dynamic mode, can adjust each mode speed and brightness.
  Short press M key to switch speed and brightness item.
  Mode speed: 1-10 level speed(S-1, S-9, S-F).
  Mode brightness: 1-10 level brightness(b-1, b-9, b-F).

4 channel dimmer dynamic mode list

Turn on/off light

• Long press M key 2s, turn off light, display “OFF”.
• When in OFF state, short press M key, turn on light.

Match RF Remote

• Match: Long press M and ▶ key for 2s, display “RLS”, within 5s, press on/off key or zone key of the remote, display “RLO”, match is successful,
• Delete: Long press M and ▶ key for 5s, until display “RLE”, delete all matched remote.
• Match operation will not change controller`s light type automatically, you must set light type via key operation, make sure the light type of the remote and controller is same.

Restore factory default parameter

• Long press ◀ and ▶ key for 2s, restore factory default parameter, display”RES”.
• Factory default parameter: without matched remote, RGBW type, 1000Hz PWM frequence output, logarithmic brightness curve, 0.5s light on/off fade time, RGB mode number is 1, disable automatic blank screen.

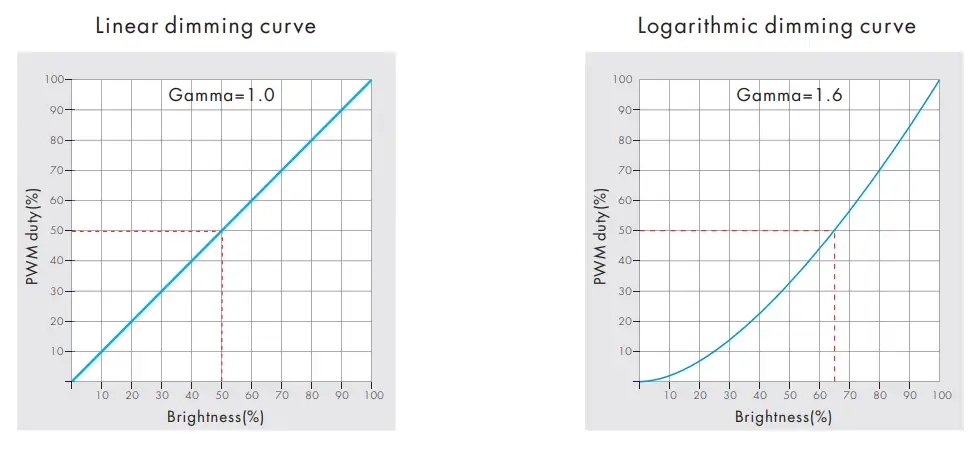

Dimming curve setting
