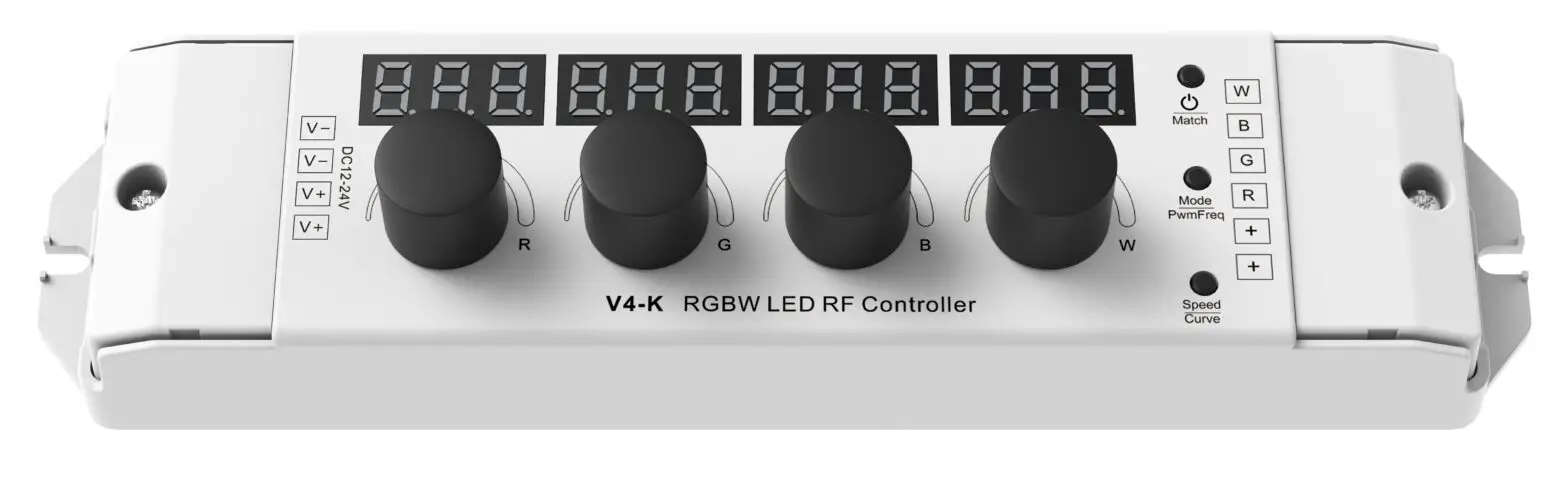

4 Knob RGBW LED RF Controller
Model No.: V4-K
V4-K 4 Knob RGBW LED RF Controller
User Manual
4 Channel RGBW/Wireless remote control/Four PWM frequency/Linear or logarithmic dimming/Numeric display
Ver 1.0.2
Features
- RGBW constant voltage LED RF controller, can also be used as a RGBW RF remote.
- 4 knob dimming, digital numeric display and easy key operation.
- Match with RF 2.4G single zone or multiple zone RGBW remote control optional.
- 256 levels 0-100% dimming smoothly without any flash.
- Built in 10 dynamic mode, include jump or gradual change style.
- PWM frequency 1000/2000/4000/8000Hz selectable.
- Logarithmic or linear dimming curve selectable.
Technical Parameters
Input and Output
| Input voltage | 12-24VDC |
| Input current | 16.5A |
| Output voltage | 4 x (12-24)VDC |
| Output current | 4CH,4A/CH |
| Output power | 4 x (48-96)W |
| Output type | Constant voltage |
Environment
| Operation temperature | Ta: -30 ºC ~ +55 ºC |
| Case temperature (Max.) | Tc: +85 ºC |
| IP rating | IP20 |
Warranty and Protection
| Warranty | 5 years |
| Protection | Reverse polarity |
Dimming data
| Input signal | Knob + Key + RF 2.4GHz |
| Input signal | 30m(Barrier-free space) |
| Control distance | 256 levels |
| Dimming gray scale | 0 -100% |
| Dimming curve | Logarithmic or linear |
| PWM Frequency | 1000/2000/4000/8000Hz |
Safety and EMC
| EMC standard (EMC) | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 |
| Safety standard(LVD) | EN 62368-1:2020+A11:2020 |
| Radio Equipment(RED) | ETSI EN 300 328 V2.2.2 |
| Certification | CE,EMC,LVD,RED |
Mechanical Structures and Installations
Wiring Diagram

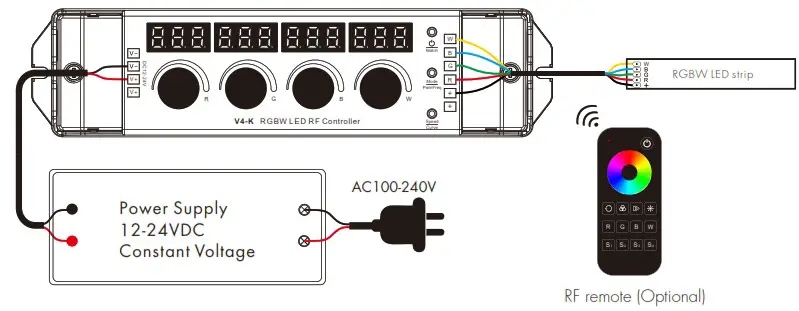

- Work as RGBW LED controller

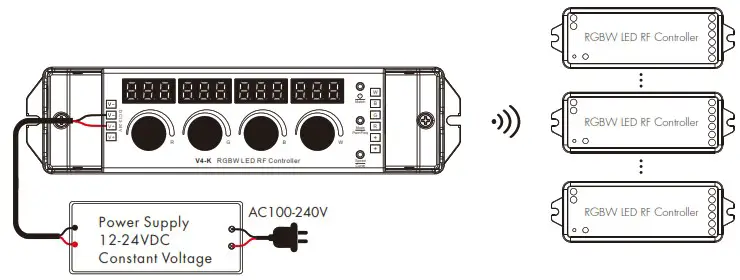

- Work as RGBW RF remote
Operation

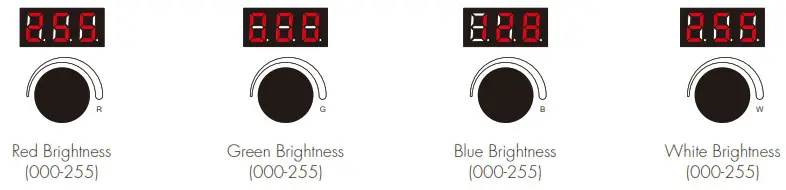

4 knob dimming
3 key setting
 | Short press: Turn on or turn off the light. When light is off, display “OFF”. Long press 5s: Enter RF remote matching state, display “RLS”, within 5s, press on/off key or zone key of the RGBW RF remote, display “RLO”, match is successful, Long press 10s: Until display “RLE”, delete all matched RF remote. Long press 15s: Restore factory default parameter, display”RES”. |
 | Short press: Switch between 10 dynamic change mode (P01~P10). Long press 5s: Prepare for setup output PWM frequence, then short press mode key to switch between 1000Hz(“F10”), 2000Hz(“F20”), 4000Hz(“F40”) or 8000Hz(“F80”). Higher PWM frequency, will cause lower output current, higher power noise, but more suitable for camera(No flickers for video). Long press Mode key for 2s or timeout 10s, quit output PWM frequence setting. |
 | Short press: Set mode speed, switch between 1-10 level speed (S-1, S-9, S-F). Long press 5s: Prepare for setup output brightness curve, then short press speed key to switch between linear curve(“C-L”) or logarithmic curve(“C-E”). Long press Speed key for 2s or timeout 10s, quit output brightness curve setting. |
RGBW dynamic mode list
| No. | Name | No. | Name |
| P01 | RGB jump | P06 | RGB fade in and out |
| P02 | RGB smooth | P07 | Red fade in and out |
| P03 | 6 color jump | P08 | Green fade in and out |
| P04 | 6 color smooth | P09 | Blue fade in and out |
| P05 | Yellow cyan purple smooth | P10 | White fade in and out |
4 Knob Controller Work as RGBW RF remote
This 4 knob controller work as RGBW RF remote can match with one or multiple RGBW LED RF controller.
End user can choose the suitable match/delete ways. Two options are offered for selection:
Use the controller’s Match key
Match:
Short press match key of receiver, immediately press on/off key on the knob controller.
The LED indicator fast flash a few times means match is successful.
Delete:
Press and hold match key of the receiver for 5s to delete all match,
The LED indicator fast flash a few times means all matched RF remotes were deleted.
Use Power Restart
Match:
Switch off the power of the receiver, then switch on power, repeat again.
Immediately short press on/off key 3 times on the knob controller.
The light blinks 3 times means match is successful.
Delete:
Switch off the power of the receiver, then switch on power, repeat again.
Immediately short press on/off key 5 times on the knob controller.
The light blinks 5 times means all matched remotes were deleted.

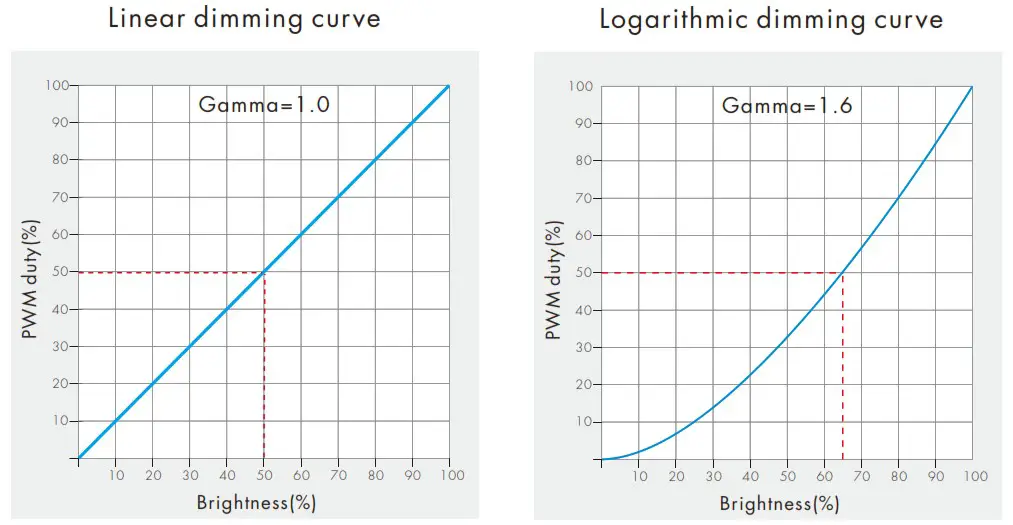

Dimming curve setting
