Ultrathin Touch Slide RF Remote Controller
Model No.: R11,R12,R13
Touch color slide/1-3 color/Wireless remote 30m distance/CR2032 battery/Magnet stuck fix
Features
- Apply to a single color, dual color or RGB LED controller.
- Ultra-sensitive color adjustment touch slide.
- Each remote can match one or more receivers.
- CR2032 battery-powered.
- Operate with LED indicator light.
- Magnet on the back which can be easily stuck on back holder or any metal surfaces.
Technical Parameters
| Input and Output | |
| Output signal | RF 2.4GHz |
| Working voltage | 3VDC CR2032 |
| Working current | ＜5mA |
| Standby current | ＜10μA |
| Standby time | 1 year |
| Remote distance | 30m(Barrier-free space) |
| Environment | |
| Operation temperature | Ta: -30 O C ~ +55 O C |
| IP rating | IP20 |
| Safety and EMC | |
| EMC standard (EMC) | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 |
| Safety standard(LVD) | EN 62368-1:2020+A11:2020 |
| Radio Equipment(RED) | ETSI EN 300 328 V2.2.2 |
| Certification | CE,EMC,LVD,RED |
| Warranty | |
| Warranty | 5 years |
| Weight | |
| Gross weight | 24g |
| Net weight | 64g |

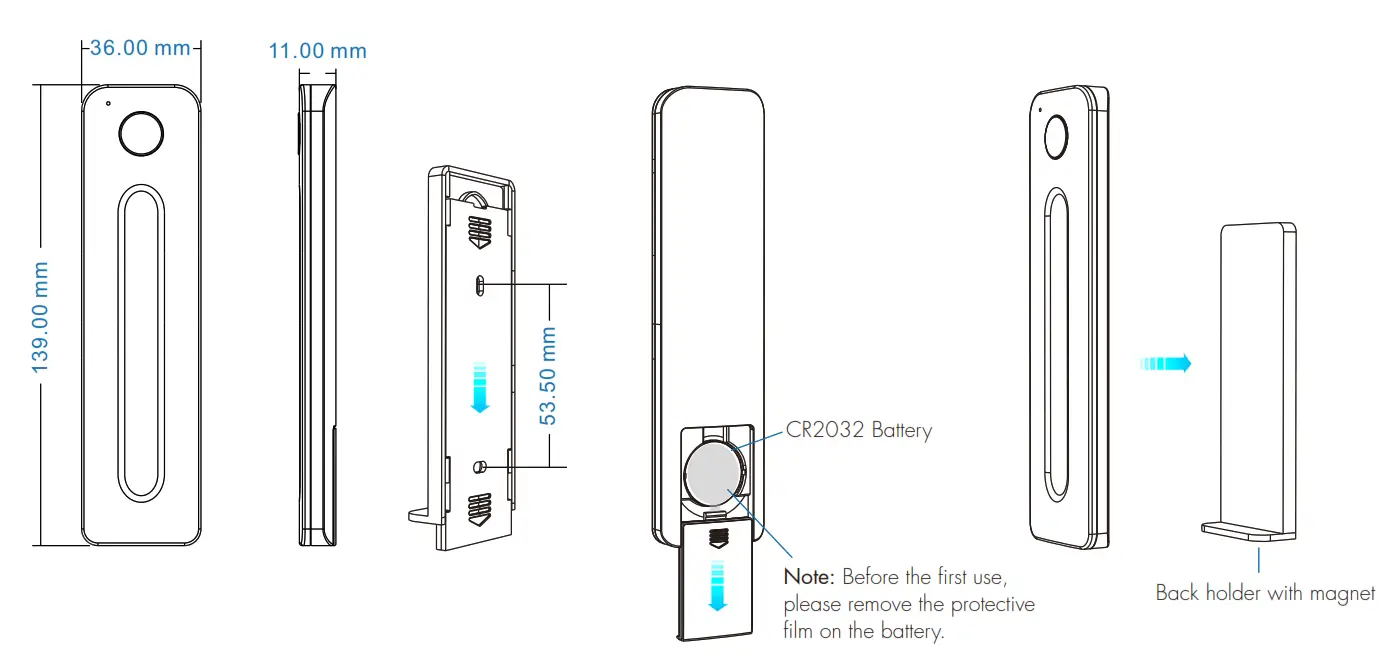

Mechanical Structures and Installations
To fix the remote, three options are offered for selection:
Option 1: stuck the remote on any metal surfaces directly.
Option 2: fix the remote’ back holder on the wall with two screws.
Option 3: adhere the remote’ back holder to the wall with a paster.
Match Remote Control (two match ways)
The end users can choose suitable match/delete ways. Two options are offered for selection:
Use the controller’s Match key
Match: Short press the match key, and immediately press on/off key on the remote.
The LED indicator fast flash a few times means the match is successful.
Delete: Press and hold the match key for 5s to delete all match, The LED indicator fast flash a few times means all matched remotes were deleted.
Use Power Restart
Match: Switch off the power, then switch on the power, repeat again. An immediately short press on/off key 3 times on the remote. The light blinks 3 times means the match is successful.
Delete: Switch off the power, then switch on the power, repeat again. An immediately short press on/off key 5 times on the remote. The light blinks 5 times means all matched remotes were deleted.

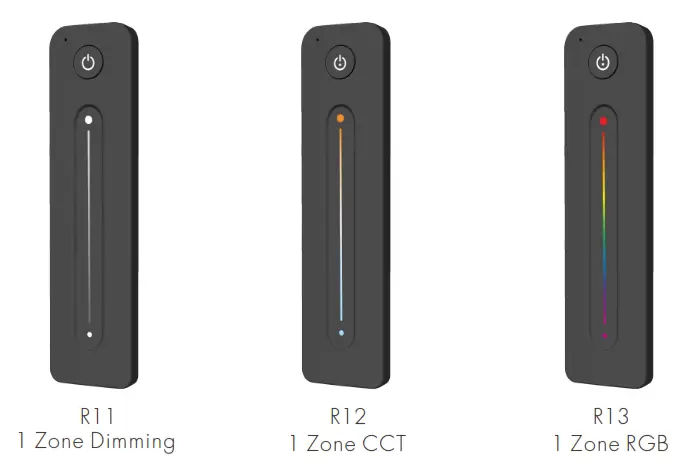

Key function

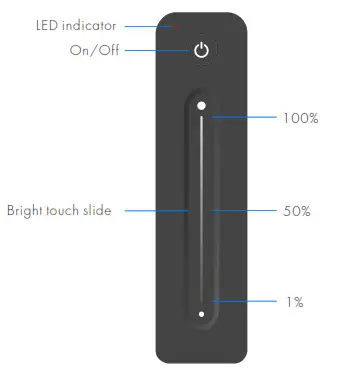

- R11 1 zone dimming remote

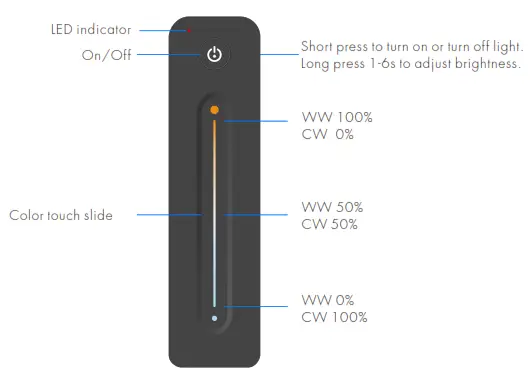

- R12 1 zone CCT remote

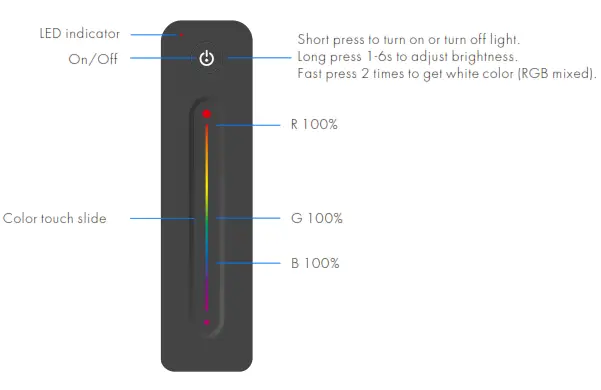

- R13 1 zone RGB remote
Safety information
- Read all instructions carefully before you begin this installation.
- When installing the battery, pay attention to the battery’s positive and negative polarity.
After a long time without the remote control, remove the battery.
When remote distance becomes smaller and insensitive, replace the battery. - If no response from the receiver, please re-match the remote.
- Gently handle the remote, beware of falling.
- For indoor and dry location use only.
