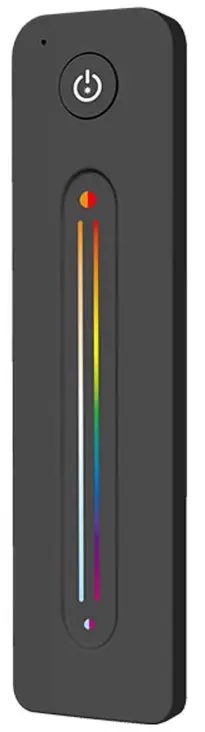

SKYDANCE R Series Ultrathin Touch Slide RF Remote Controller
Features
- Apply to single color, dual color ,RGB, RGB+W or RGB+CCT LED controller.
- Ultra sensitive color adjustment touch slide.
- Each remote can match one or more receiver.
- CR2032 battery powered.
- Operate with LED indicator light.
- Magnet on the back which can be easily stuck on back holder or any metal surfaces.
- White & Black available
Technical Parameters
Input and Output | |
Output signal | RF(2.4GHz) |
| Working voltage | 3VDC(CR2032) |
Working current | <5mA |
| Standby current | <10μA |
Standby time | 1 year |
| Remote distance | 30m(Barrier-free space) |
Safety and EMC | |
EMC standard (EMC) | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 |
| Safety standard(LVD) | EN 62368-1:2020+A11:2020 |
Radio Equipment(RED) | ETSI EN 300 328 V2.2.2 |
| Certifcation | CE,EMC,LVD,RED |
Package | |
| Size | L156 x W48 x H22mm |
| Gross weight | 0.075kg |
Environment | |
| Operation temperature | Ta: -30 OC ~ +55 OC |
Warranty | |
| Warranty | 5 years |

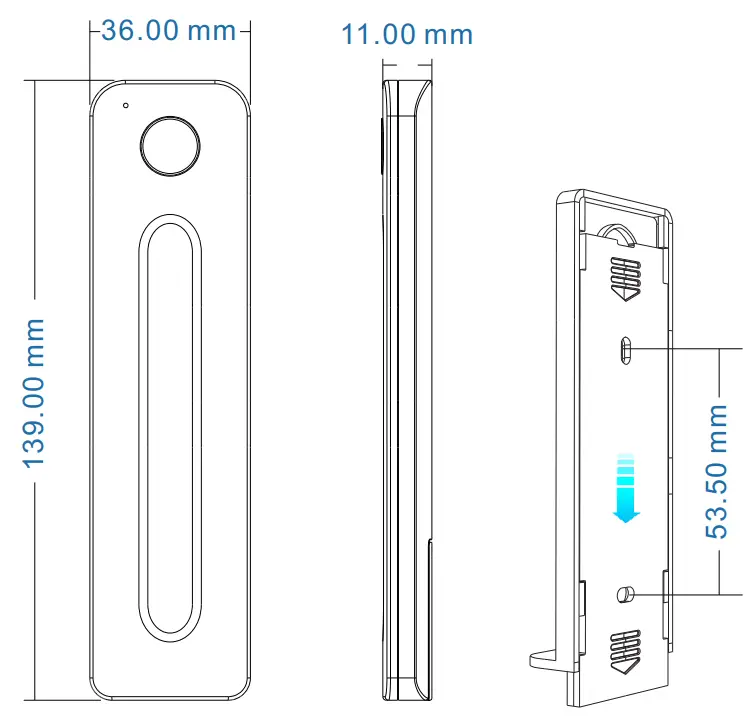

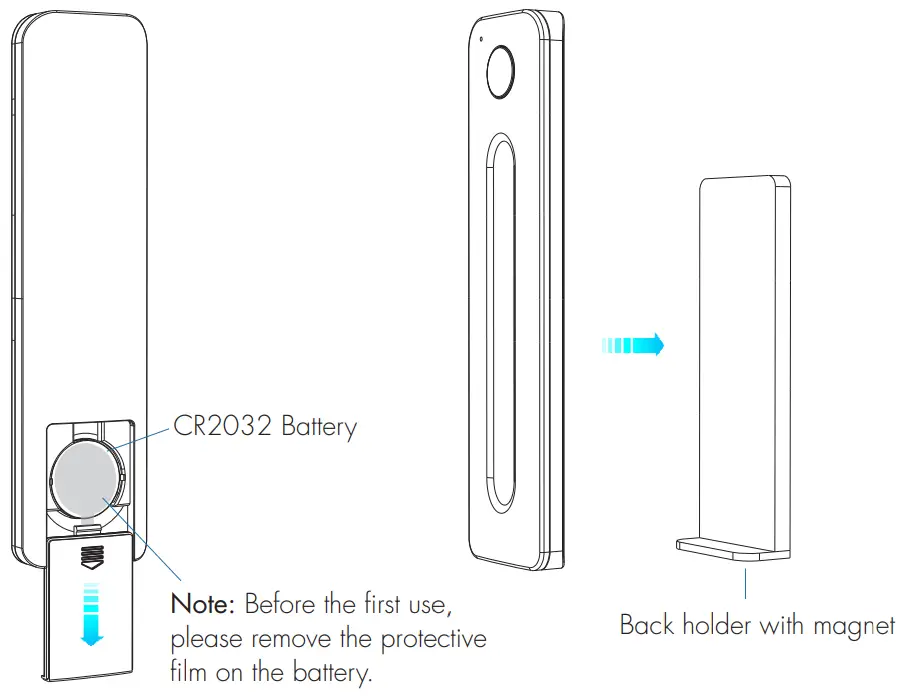

Mechanical Structures and Installations
To fix the remote, three options are offered for selection:
Option 1: stuck the remote on any metal surfaces directly.
Option 2: fix the remote’ back holder on the wall with two screws.
Option 3: adhere the remote’ back holder to the wall with paster.
Match Remote Control (two match ways)
End user can choose the suitable match/delete ways. Two options are offered for selection:
Use the controller’s Match key
Match:
Short press match key, immediately press on/off key on the remote.
The LED indicator fast flash a few times means match is successful.
Delete:
Press and hold match key for 5s to delete all match,
The LED indicator fast flash a few times means all matched remotes were deleted.
Use Power Restart
Match:
Switch off the power, then switch on power, repeat again.
Immediately short press on/off key 3 times on the remote.
The light blinks 3 times means match is successful.
Delete:
Switch off the power, then switch on power, repeat again.
Immediately short press on/off key 5 times on the remote.
The light blinks 5 times means all matched remotes were deleted.

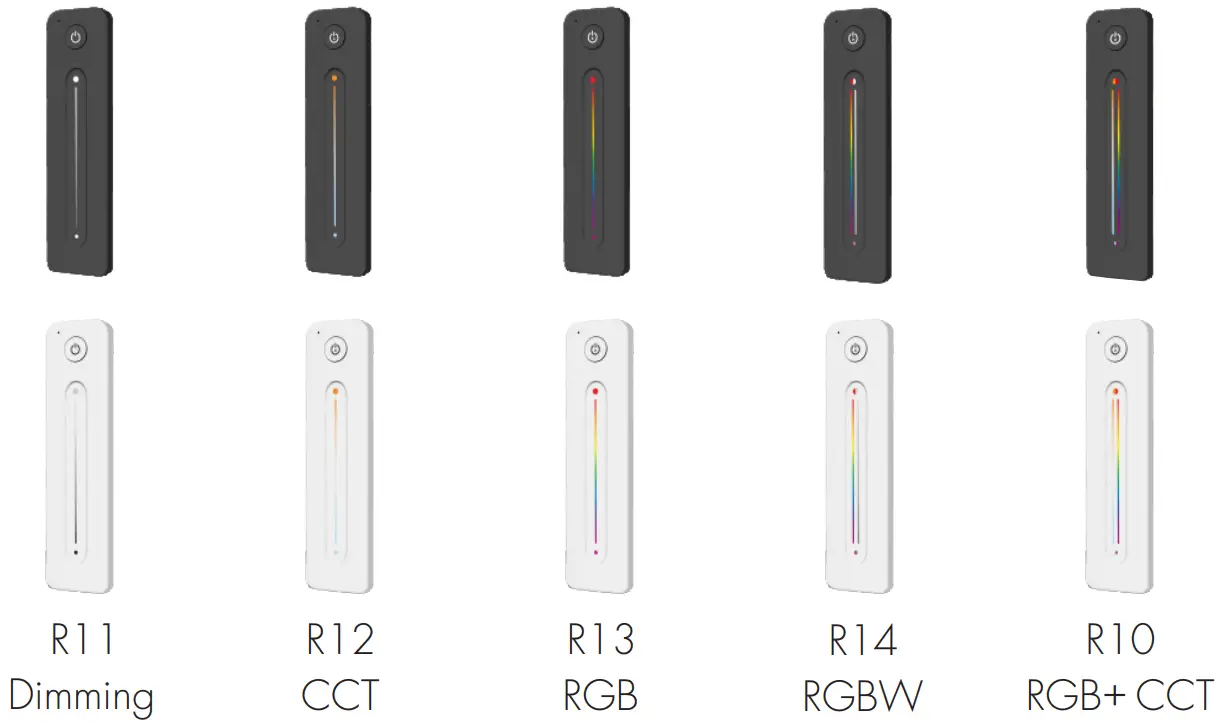

Key function

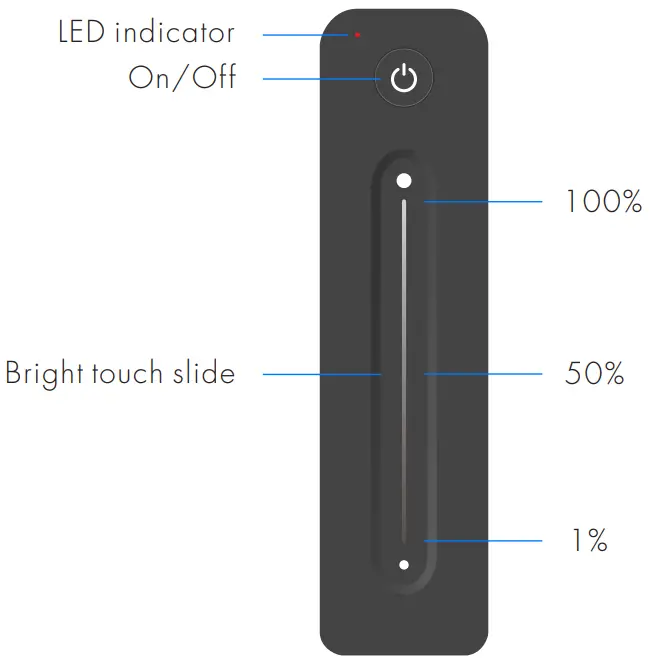

- R11 1 zone dimming remote

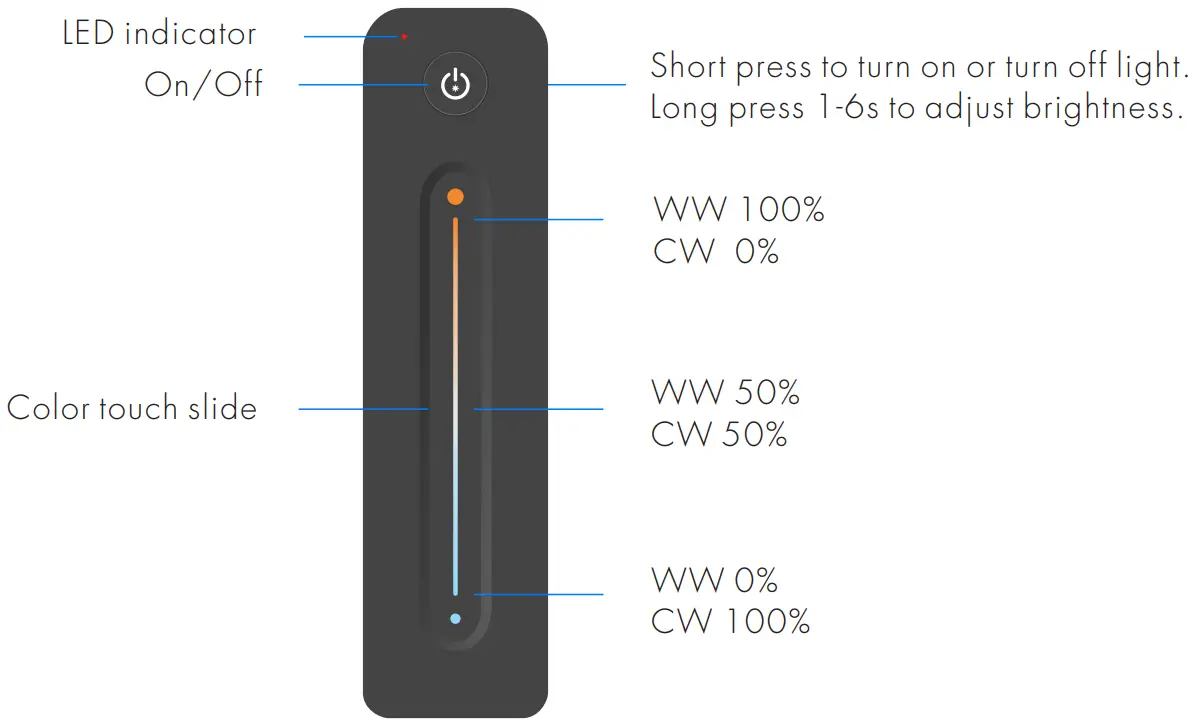

- R12 1 zone CCT remote

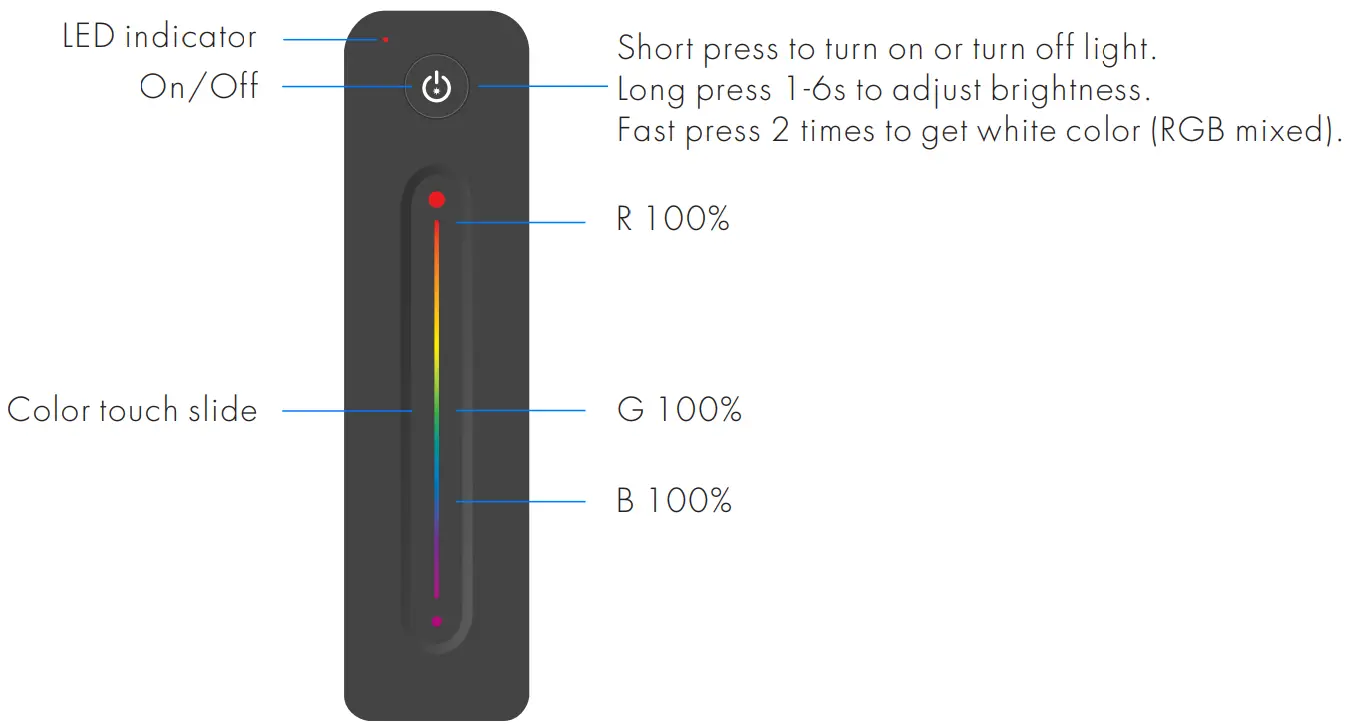

- R13 1 zone RGB remote

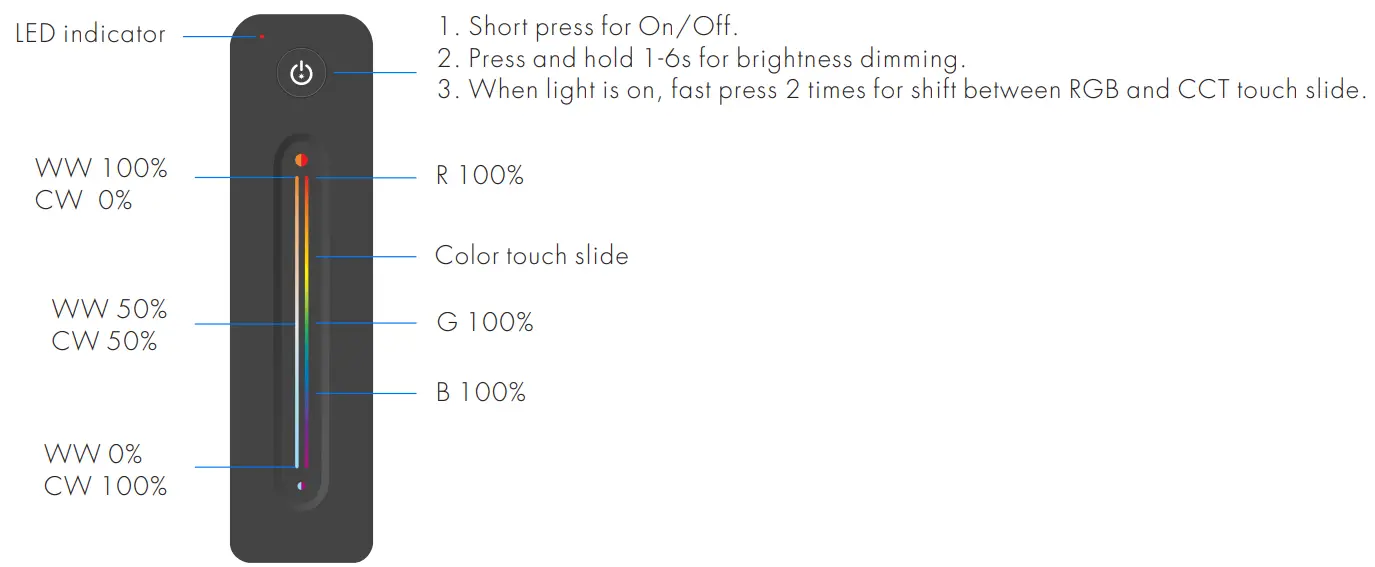

- R10 1 zone RGB+CCT

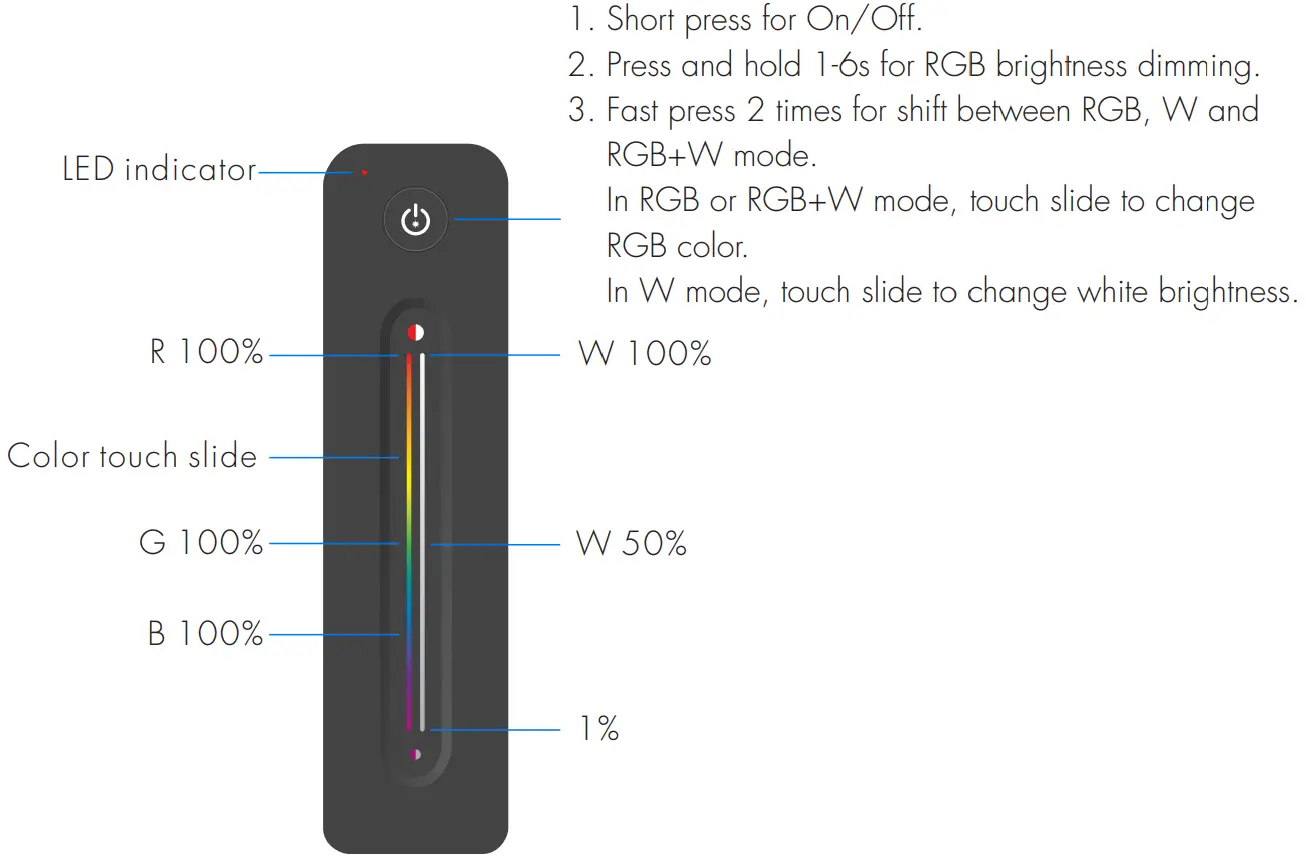

- R14 1 zone RGBW remote
Safety information
- Read all instructions carefully before you begin this installation.
- When installing battery, pay attention to the battery positive and negative polarity.
A long time without the remote control, remove the battery.
When remote distance becomes smaller and insensitive, replace the battery. - If no response from the receiver, please re-match the remote.
- Gently handle remote, beware of falling.
- For indoor and dry location use only
