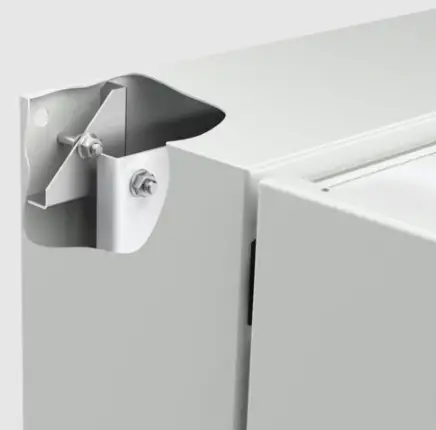

CCPM4 Panel Conversion Kit
Product Information: Panel Conversion Kit
| Component | Description |
|---|---|
| Panel Conversion Kit | A conversion kit designed for installing panels in an enclosure. |
| Enclosure Stud | A stud used for attaching the panel conversion kit to the enclosure. |
| Enclosure | The main enclosure where the panel conversion kit is installed. |
| Adapter M8 Flanged Nut | An adapter nut with a flange, used for securing the panel to the enclosure stud. |
| Flat Washer | A washer placed over the stud on the adapter for added stability. |
Product Usage Instructions
- Ensure you have the Panel Conversion Kit, Enclosure Stud, Enclosure, Adapter M8 Flanged Nut, and Flat Washer.
- Place the flat washer over the stud on the adapter.
- Install the panel onto the enclosure stud.
- ( Note: The panel needs to be ordered separately as it is not included in the kit.)
Panel Conversion Kit

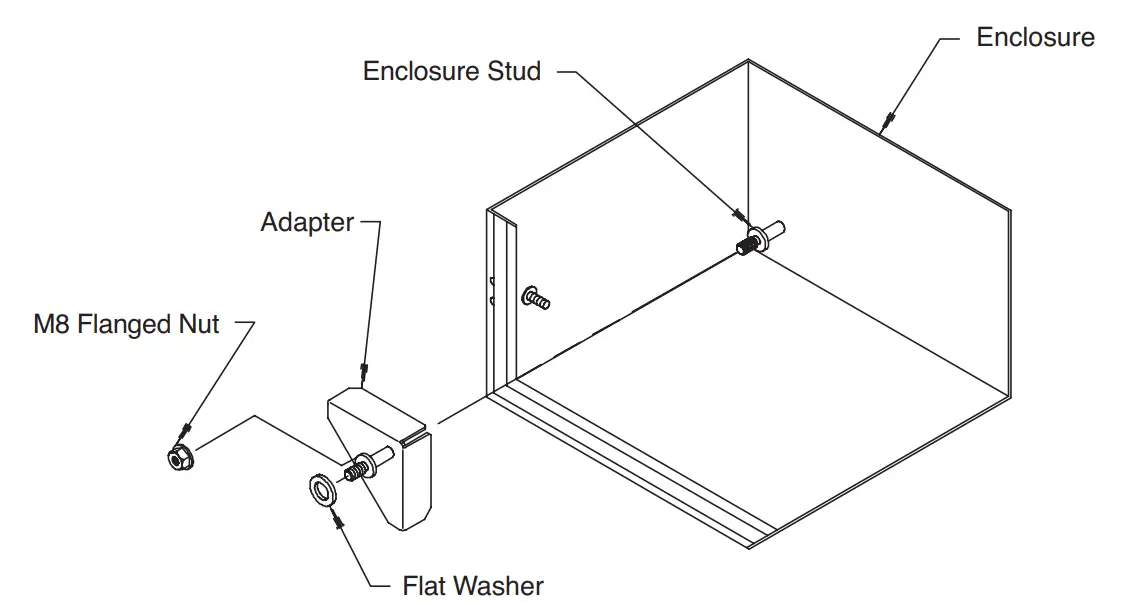

- Install adapter into corner of enclosure by placing adapter over enclosure stud as shown. Install M8 flanged nut and torque to 99 inlbs (11 Nm).
- Place flat washer over stud on adapter.
- Install panel. (order separately)
