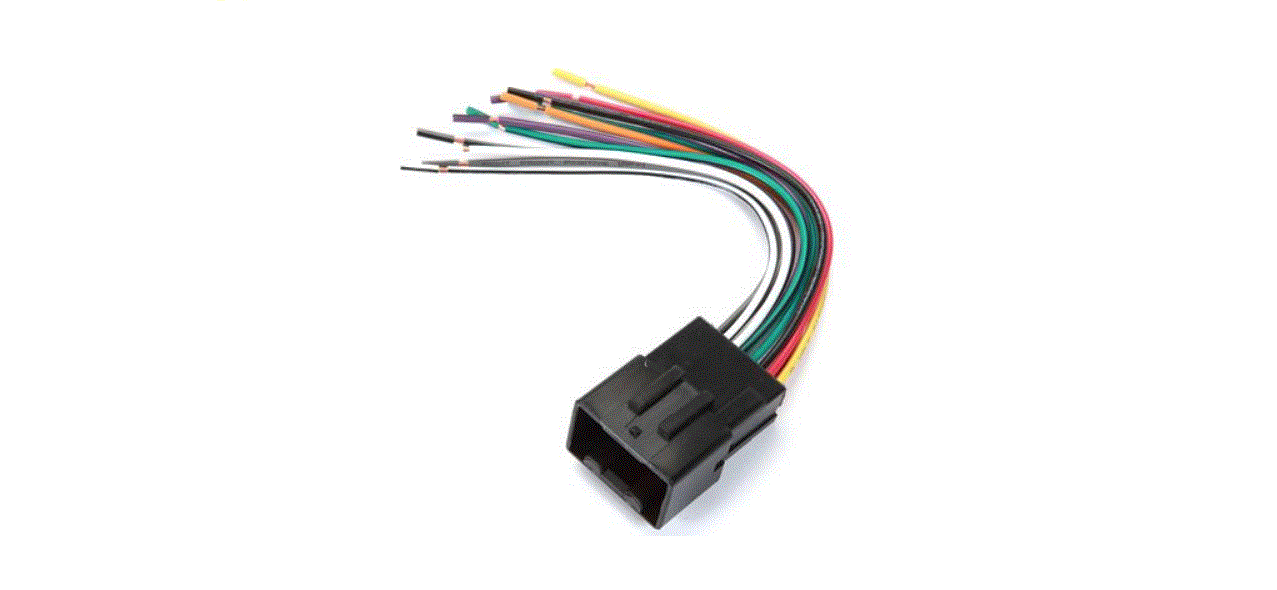

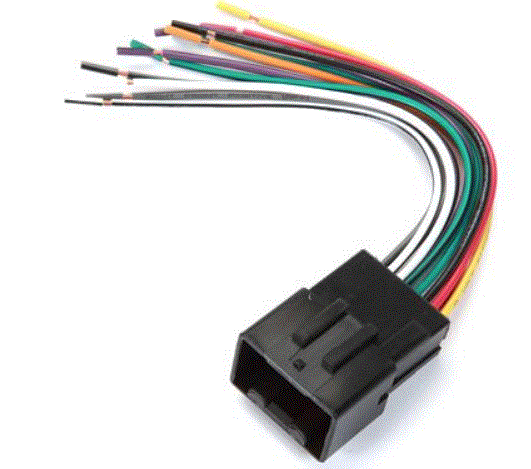

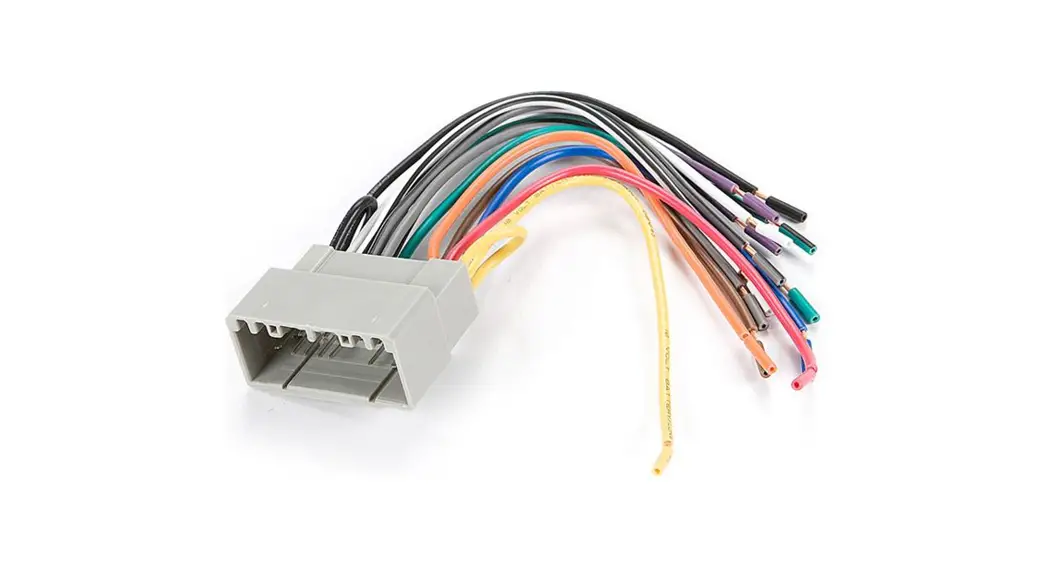

CRUTCHFIELD 70-1771 Receiver Wiring Adaptor
Receiver Wiring Adaptor
IMPORTANT
Before starting, compare items on your invoice with items received. Thoroughly check packing materials. If an item is missing, please call Crutchfield at 1-888-955-6000

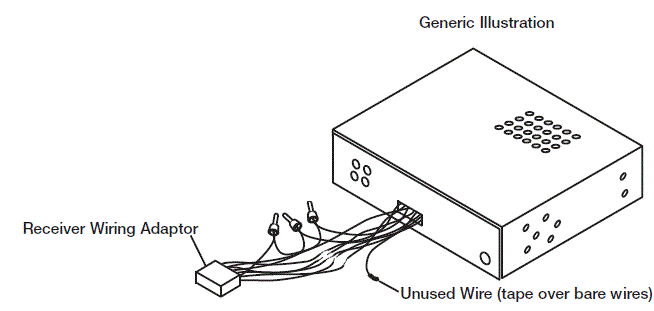

STEP 1 – MATCH & CONNECT WIRES
- Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.
- Your receiver illumination wire could be Orange or Orange/White. As with other wires, match this wire to the illumination wire in this harness by function, not by color. If your receiver does not have an illumination wire, tape off the illumination wire.
- Individually tape off any unused wires.
- Make final wiring connections following instructions on the next page.

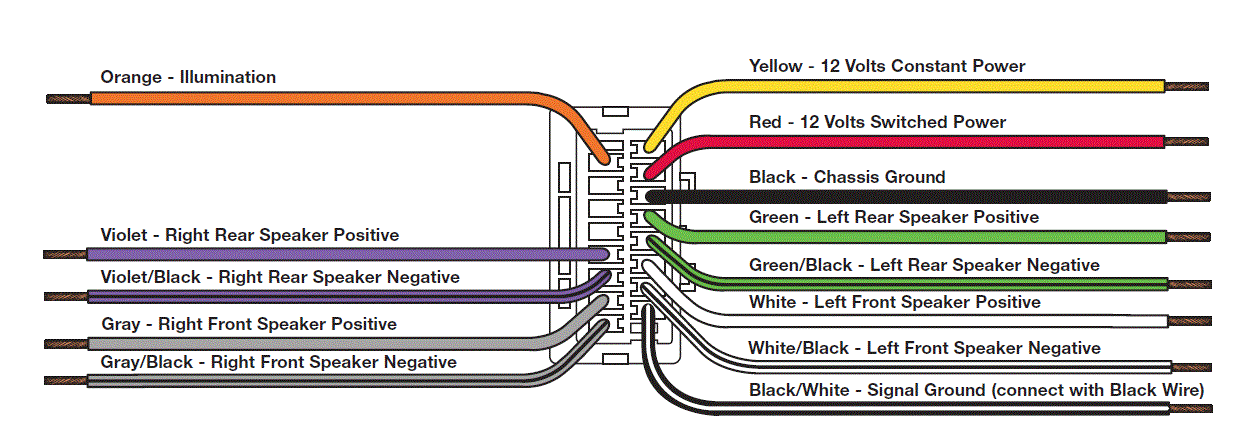

Receiver Wiring Adaptor Connections

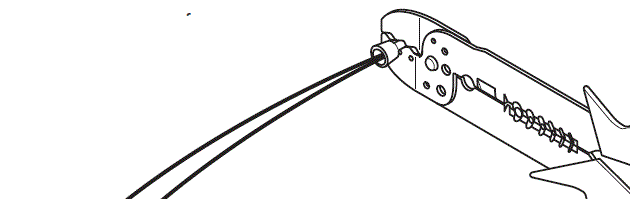

STEP 2- CRIMP CONNECTIONS
Tools & Parts Required

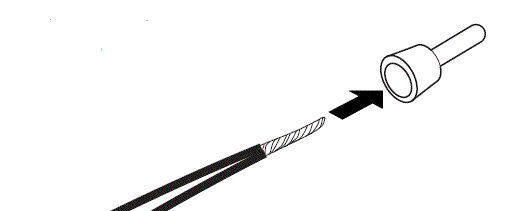

- Strip wires back 1/2”.
- Twist wires together and insert in crimp cap.
- Squeeze middle of cap for tight connection.
- Complete crimp connections for all necessary wires.
- Be sure to wrap any wires from the Wiring Adaptor that are not necessary (wires with no match from the new receiver) with electrical tape
APPLICATION
When ready to install the receiver, plug the Wiring Adaptor from the new receiver or receiver assembly into the factory radio harness(es) in the vehicle dash.
