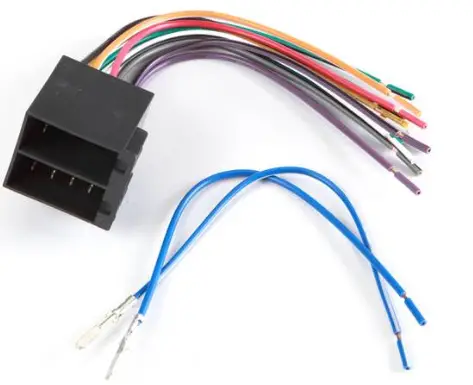

CRUTCHFIELD Metra 70-1784 Receiver Wiring Adaptor
MATCH & CONNECT WIRES
IMPORTANT: Before starting, compare items on your invoice with items received. Thoroughly check packing materials. If an item is missing, please call Crutchfield at 1-888-955-6000.

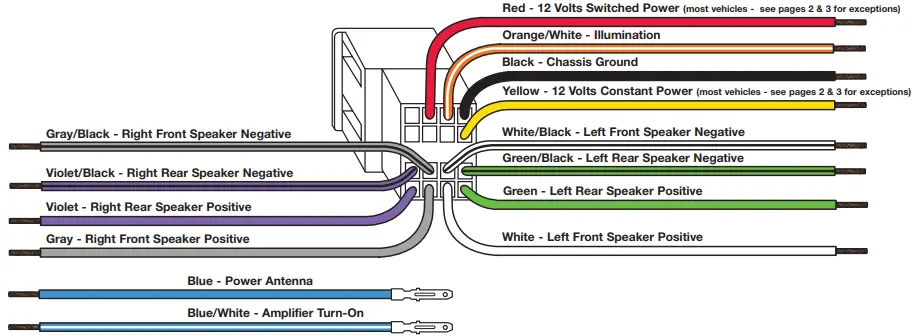

A. Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with receiver). The wire colors of your new receiver may, or may not match the colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.
B. See pages 2 and 3 for application variations for Red and Yellow wires for specific vehicles.
C. See page 4 for application pin locations for the Blue and Blue/White wires for specific vehicles.
D. Individually tape off any unused wires.
NOTE: If your vehicle isn’t listed on pages 2 & 3, use the functions listed here. The function of the Red and Yellow wires is reversed in some vehicle applications. In others, the Yellow wire is not used. See the charts on pages 2 & 3 to verify your vehicle application.
NOTE: See page 4 for pin locations and connections to be made with the Blue and Blue/White wires. If your vehicle is not listed on page 4, these wires will not be used.
| RED & YELLOW WIRES | |||

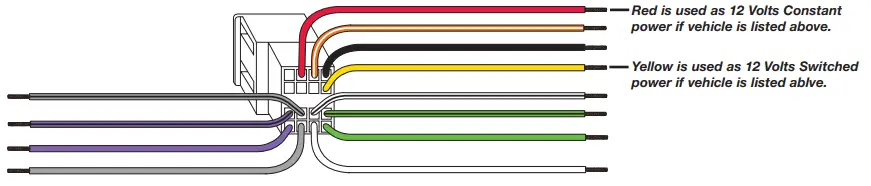

| The Red and Yellow wires must be reversed when this wiring adaptor is used in the vehicles listed below: Yellow connects to 12V switched power. Red connects to 12V constant power. Return to page 1 for all other connections. | |||
| ’96-’97 | Audi A6 | ’94-’00 | Mercedes C Class |
| ’04-’07 | Chrysler Crossfire | ’99-’03 | Mercedes CLK Class |
| ’03-’09 | Dodge Sprinter | ’94-’98 | Mercedes E Class |
| ’03-’04 | Ford Focus | ’98-’05 | Mercedes ML Class |
| ’01-’06 | Freightliner Sprinter | ’94-’98 | Mercedes SL Class |
| ’17-’18 | Freightliner Sprinter (w/o factory radio ) | ’17-’18 | Mercedes Sprinter (w/o factory radio) |
| ’99-’04 | Land Rover Discovery | ’99-’02 | Porsche 911 |
| ’02-’03 | Land Rover Freelander | ’03-’04 | Porsche 911 (w/o Bose) |
| ’95-’02 | Land Rover Range Rover | ’97-’04 | Porsche Boxster |
| ’05-’06 | Lotus Elise | ’10-’15 | Smart ForTwo |
IMPORTANT: If your vehicle is not listed above, see the list on the next page for vehicles that do not use the Yellow wire.
| RED & YELLOW WIRES | |||

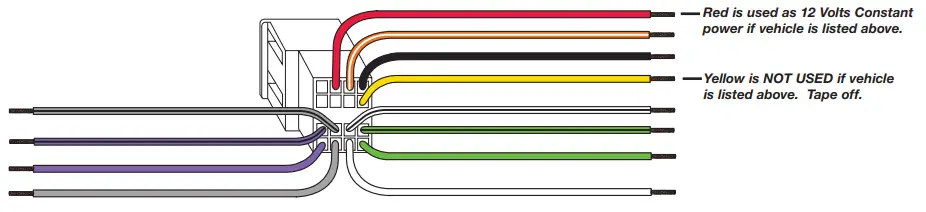

| The Red wire in this wiring adaptor is used as 12V constant power in the vehicles listed below. You will need to connect your receiver’s 12V switched power wire to a switched power source in your vehicle. The Yellow wire will not be used and should be taped off. Return to page 1 for all other connections. | |||
| ’99-03 | Mercedes E Class | ’05-’08 | Porsche Boxster |
| ’05-’09 | Porsche 911 | ’03-’06 | Porsche Cayenne |
| ’03-’04 | Porsche 911 (w/ Bose) | ’06-’08 | Porsche Cayman |
| BLUE & BLUE/WHITE WIRES | ||||||
| If your vehicle is not in this list, these wires will not be used. If your vehicle is in this list, use the Blue and Blue/White wires as listed below. Connect the Blue/White wire to the receiver’s amp remote wire. Connect the Blue wire to the receiver’s power antenna wire or the receiver’s amp remote wire if it doesn’t have a power antenna wire. Refer to the illustration on the right for wire placement. | ||||||
| ’04-’07 | Chrysler Crossfire | Blue – Pin 5 | ’05-’09 | Porsche 911 | Blue – Pin 5 Blue/White – Pin 2 | |
| ’03-’09 | Dodge Sprinter | Blue – Pin 5 | ||||
| ’99-’04 | Porsche 911 | Blue – Pin 5 | ||||
| ’01-’13 | Freightliner Sprinter | Blue – Pin 5 | ||||
| ’05-’08 | Porsche Boxster | Blue – Pin 5 Blue/White – Pin 2 | ||||
| ’10-’18 | Mercedes Sprinter | Blue – Pin 5 | ||||
| ’02-’06 | Lamborghini Murcielago | Blue – Pin 5 | ’97-’02 | Porsche Boxster | Blue – Pin 5 | |
| ’94-’00 | Mercedes C Class | Blue – Pin 5 | ’03-’06 | Porsche Cayenne | Blue – Pin 5 | |
| ’99-’03 | Mercedes CLK Class | Blue/White – Pin 5 | ’06-’08 | Porsche Cayman | Blue – Pin 5 Blue/White Pin 2 | |
| ’94-’95 | Mercedes E Class | Blue/White – Pin 5 | ||||
| ’99-’03 | Saab 9-3 | Blue – Pin 5 | ||||
| ’96-’03 | Mercedes E Class | Blue – Pin 5 | ||||
| ’99-’02 | Saab 9-5 (w/ amp) | Blue/White – Pin 5 | ||||
| ’01-’05 | Mercedes ML Class | Blue – Pin 5 | ||||
| ’99-’02 | Saab 9-5 (w/o amp) | Blue – Pin 5 | ||||
| ’98-’00 | Mercedes ML Class (w/o Bose) | Blue – Pin 2 | ||||
| ’10-’15 | Smart ForTwo (w/ subwoofer) | Blue/White – Pin 5 | ||||
| ’99 | Mercedes ML Class (w/ Bose) | Blue – Pin 2 Blue/White – Pin 5 | ||||
| ’98-’99 | Volkswagen Golf III (w/ roof antenna) | Blue – Pin 5 | ||||
| ’98-’99 Volkswagen Jetta Blue/White – Pin 5 | ||||||
| ’94-’98 | Mercedes SL Class | Blue/White – Pin 5 | ||||
| ’04-’06 | Pontiac GTO | Blue – Pin 5 | ||||
CRIMP CONNECTIONS
Tools & Parts Required

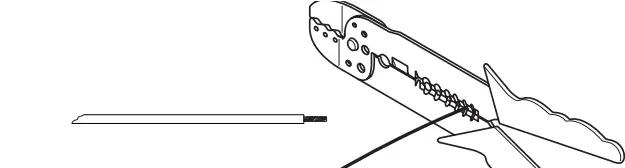

A. Strip wires back 1/2”.

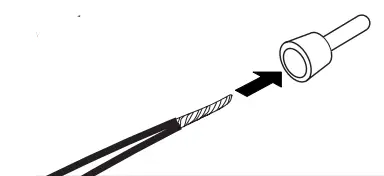

B. Twist wires together and insert in crimp cap.

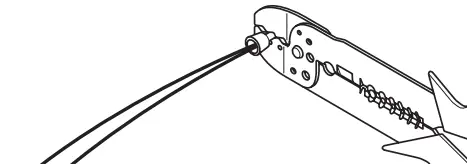

C. Squeeze middle of cap for tight connection.

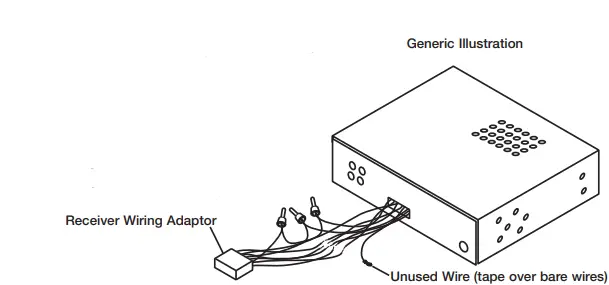

D. Complete crimp connections for all necessary wires.
E. Be sure to wrap any wires from the Wiring Adaptor that are not necessary (wires with no match from the new receiver) with electrical tape.
APPLICATION

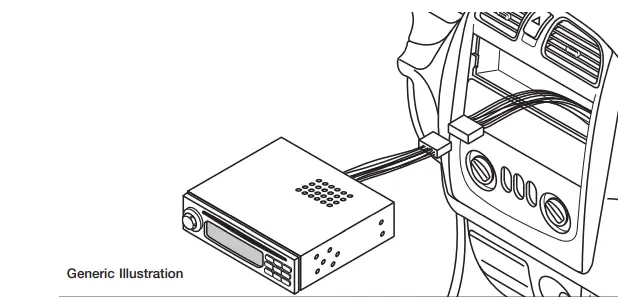

When ready to install the receiver, plug the Wiring Adaptor from the new receiver or receiver assembly into the factory radio harness(es) in the vehicle dash.
