120 70-5518 Receiver Wiring Adaptor
Instruction Manual
Receiver Wiring Adaptor
IMPORTANT
Before starting, compare items on your invoice with items received. Thoroughly check packing materials.
If an item is missing, please call:
Crutchfield Technical Support at 1-800-955-9094 at 1-888-955-6000
120 70-5518
Revision 07/26/12
STEP 1 — CONNECT WIRES
- Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with the receiver). The wire colors of your new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.
- If your receiver does not have a Dimmer or Illumination wire, tape off the Orange wire.
- Connect the Black wire to the Ground wire of the new receiver.
- Individually tape off any unused wires.
- Make final wiring connections following instructions on the next page.
STEP 2 — INSTALL
Plug housings into factory harnesses in vehicles.

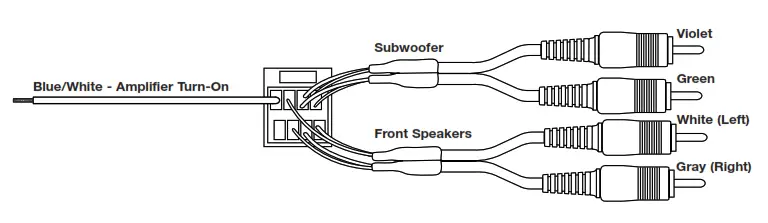

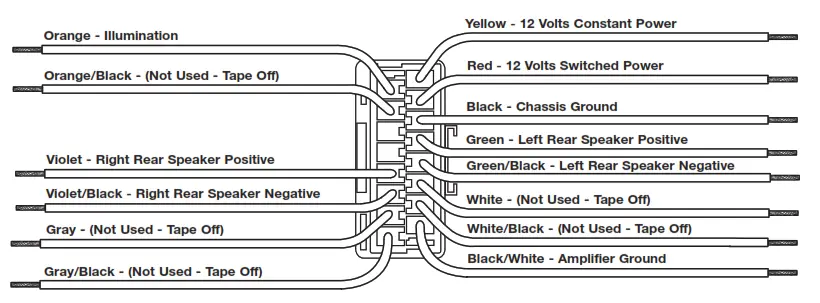

Receiver Wiring Adaptor Connections
STEP 2 — CRIMP CONNECTIONS

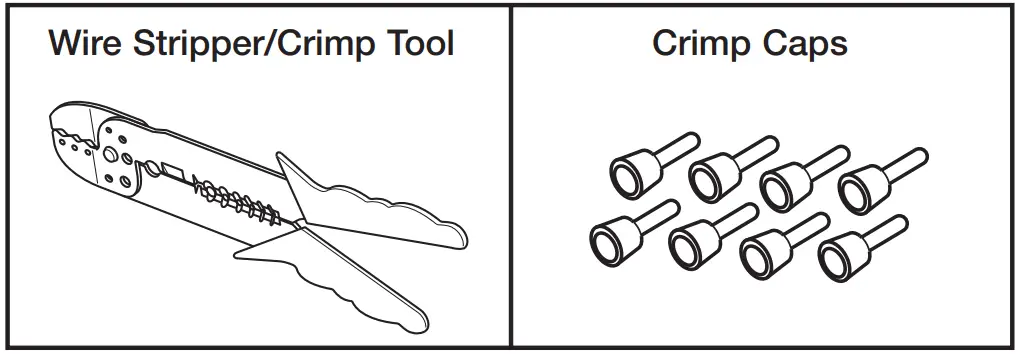

Tools & Parts Required

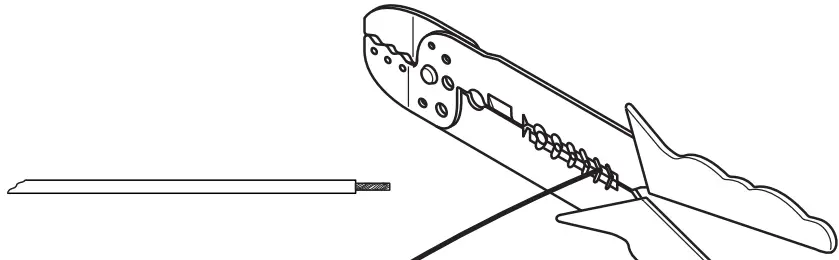

A. Strip wires back 1/2″.

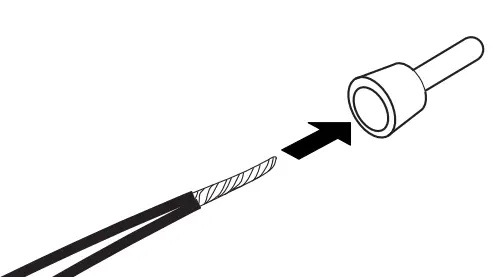

B. Twist wires together and inserts in crimp cap.

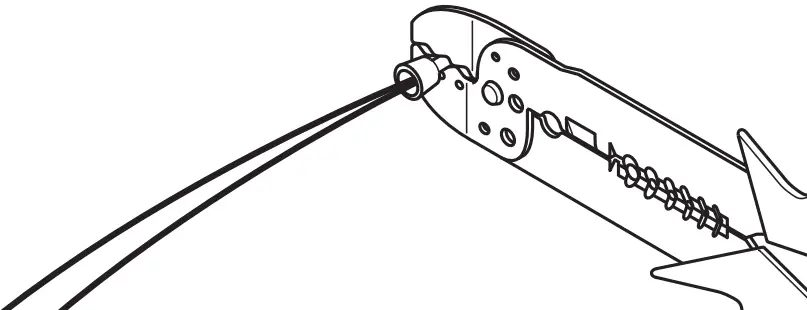

C. Squeeze middle of cap for tight connection.
D. Complete crimp connections for all necessary wires.

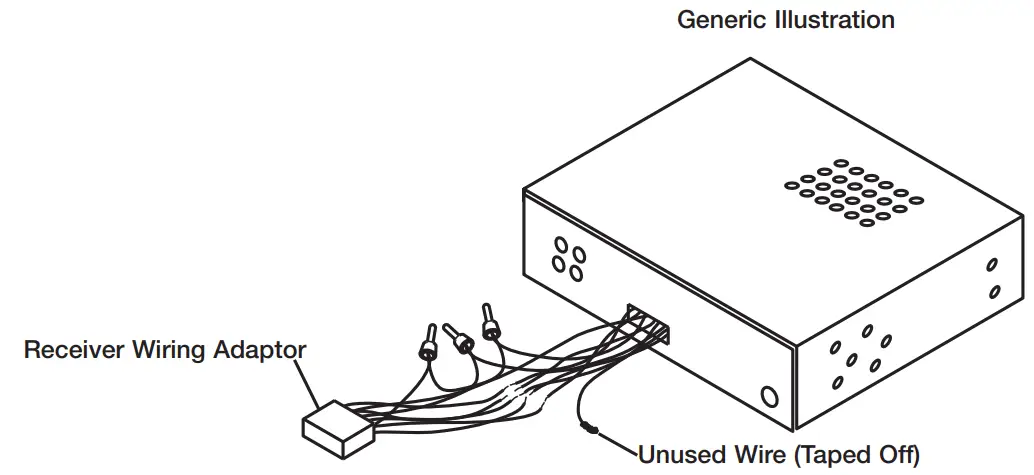

E. Be sure to wrap any wires from the Wiring Adaptor that are not necessary (wires with no match from the new receiver) with electrical tape.
STEP 3 — APPLICATION

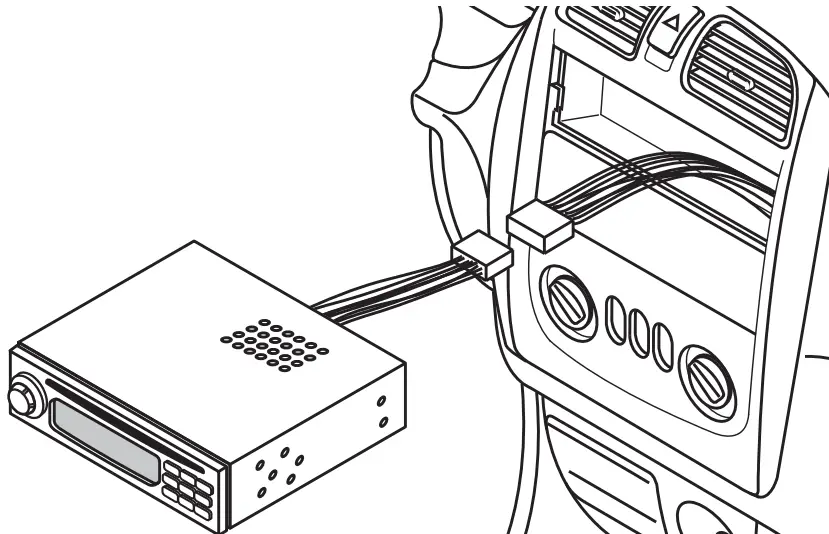

When ready to install the receiver, plug the Wiring Adaptor from the new receiver or receiver assembly into the factory radio harness(es) in the vehicle dash.
Copyright 2012 Crutchfield Corporation
