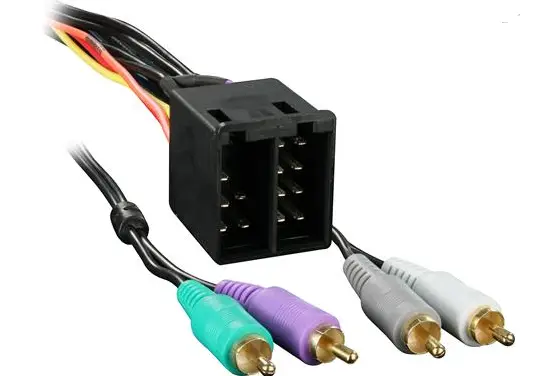

CRUTCHFIELD Metra 70-1786 Receiver Wiring Harness
IMPORTANT
Before starting, compare items on your invoice with items received. Thoroughly check packing materials. If an item is missing, please call Crutchfield at 1-888-955-6000.
MATCH & CONNECT WIRES

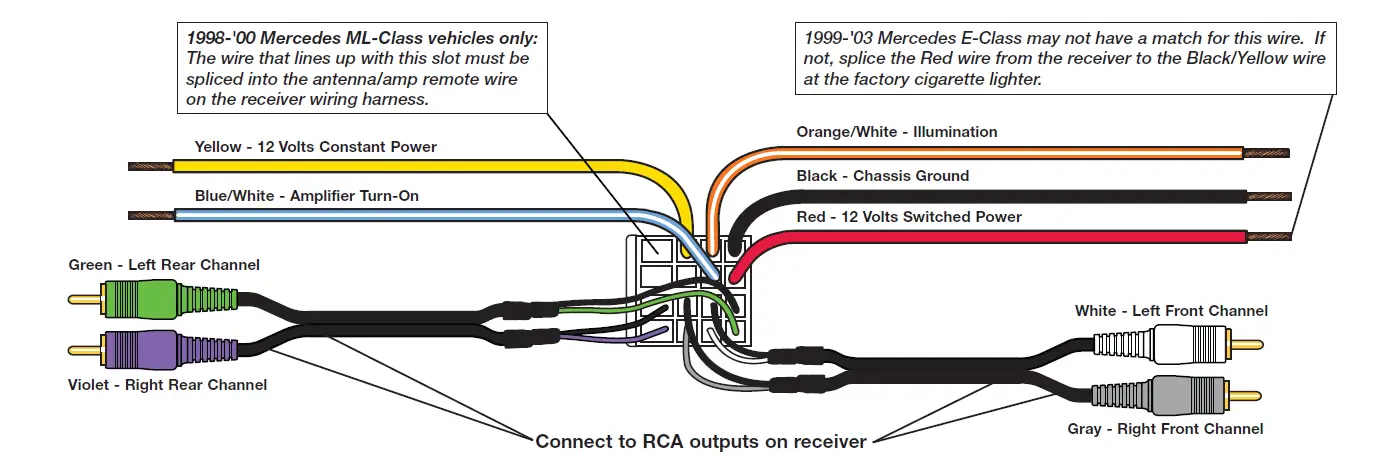

- Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with the receiver). The wire colors of your new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.
- Individually tape off any unused wires.
- Make final wiring connections following instructions on the next page.

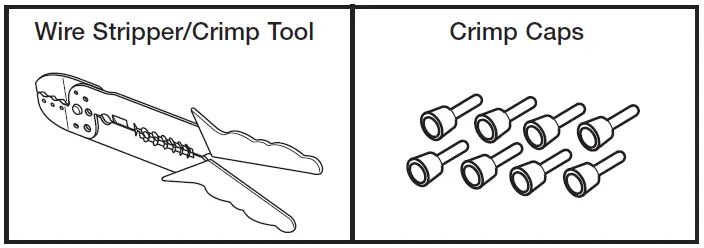

Tools & Parts Required
CRIMP CONNECTIONS

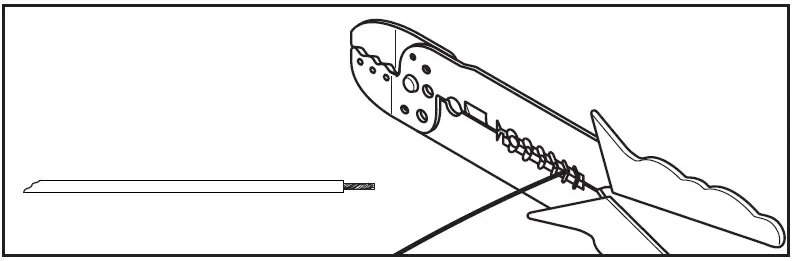

- Strip wires back 1/2”.

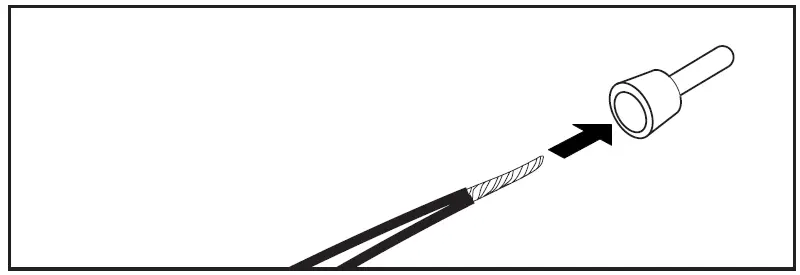

- Twist wires together and insert in crimp cap.

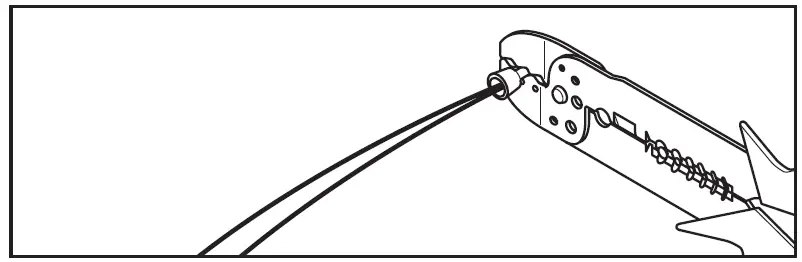

- Squeeze middle of cap for tight connection
- Complete crimp connections for all necessary wires.

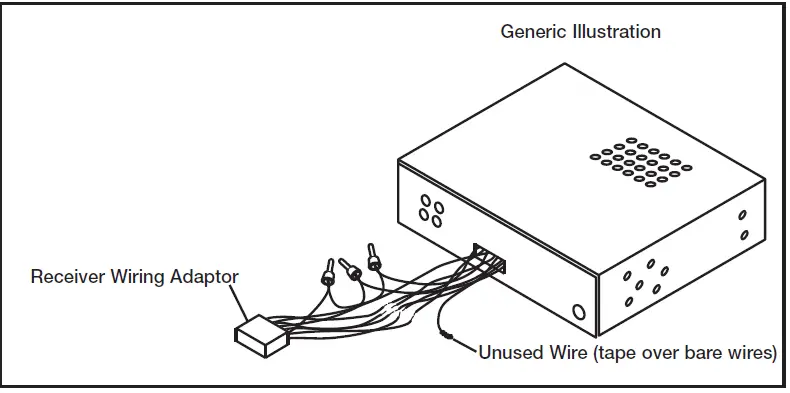

- Be sure to wrap any wires from the Wiring Adaptor that are not necessary (wires with no match from the new receiver) with electrical tape.
APPLICATION

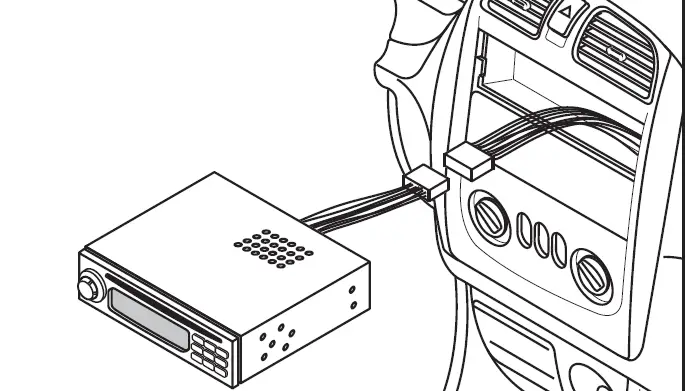

When ready to install the receiver, plug the wiring Adaptor from the new receiver, or receiver assembly into the factory radio harness(es) in the vehicle dash
