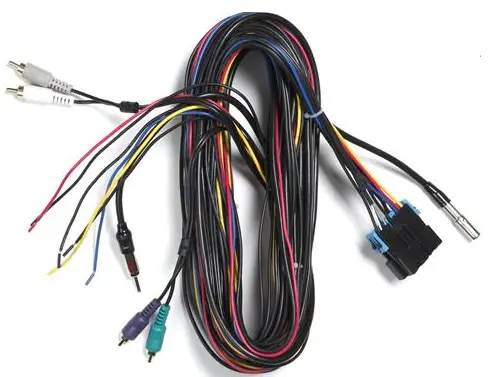

CRUTCHFIELD 70-1857 Bypass Harness
STEP 1 — CONNECT WIRES

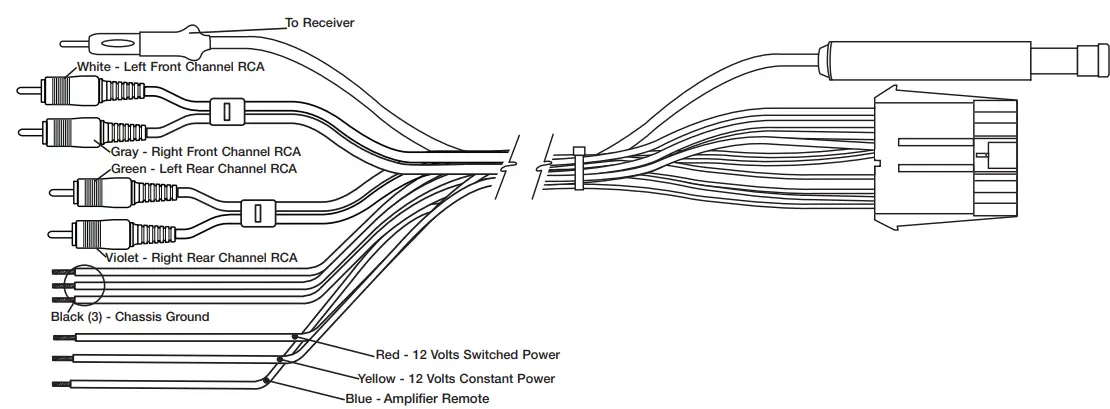

- Match wires below to the matching function of each wire on your receiver (refer to instructions supplied with the receiver). The wire colors of your new receiver may, or may not, match the wire colors of the adaptor. Match adaptor and receiver wires by function, disregarding color.
- Connect Black wires to the Ground wire of the new receiver.
- Individually tape off any unused wires.
- Make final wiring connections following instructions on the next page.
STEP 2 — INSTALL
Plug connectors into matching inputs.

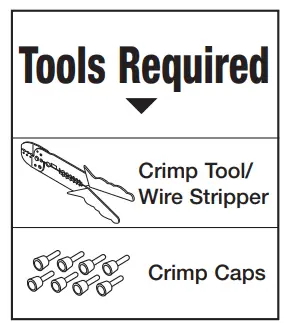

CRIMP METHOD
- Strip wires back 1/2”.

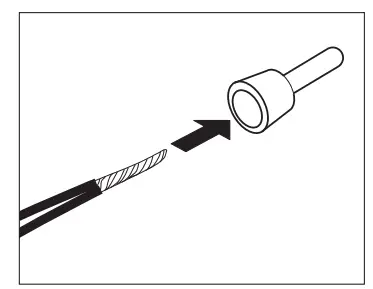

- Twist wires together and insert in the crimp cap.

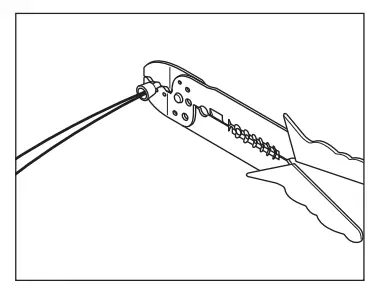

- Squeeze the middle of the cap for tight connection.

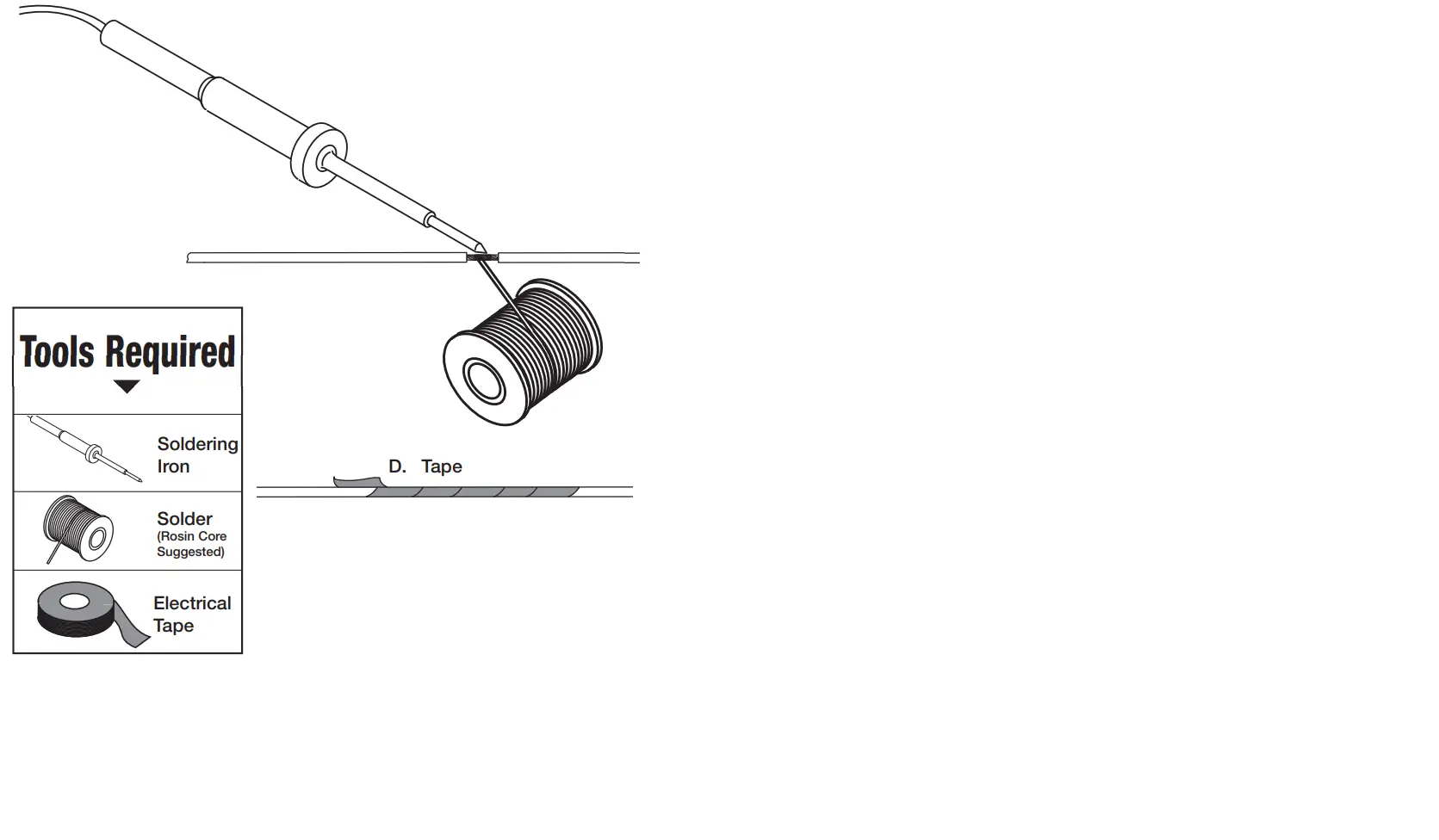

SOLDER METHOD
- Strip wires back 1/2”.
- Twist wires together
- Solder:
- Heat wire.
- Touch solder to wire, not to iron.
IMPORTANT
Before starting, compare items on your invoice with items received. Thoroughly check packing materials. If an item is missing, please call:
Crutchfield at 1-888-955-6000
