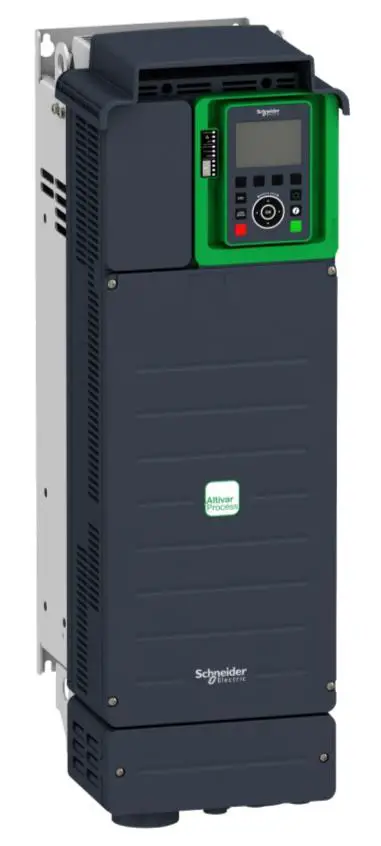

Schneider Electric ATV630 Variable Speed Drive
Introduction and Scope
| Legal Information | This product family is in the scope of European Union directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). This product may only be dismantled/disassembled and disposed of by appropriately trained persons and in compliance with all applicable regulations. | |
| Purpose | This document is intended for use by professional end of life recyclers or waste treatment facilities. It provides the basic information for proper end-of-life treatment of product components and materials. | |
| In case of special transportation: transportation method | No special transportation. | |
| Recyclability potential | 79% | Based on “ECO’DEEE recyclability and recoverability calculation method” (version V1, 20 Sep. 2008 presented to the French Agency for Environment and Energy Management: ADEME). |
Safety Information
The information provided in this document assumes that the product is completely de- energized and uninstalled (refer to the instructions provided in the appropriate product manuals).
Dismantling/disassembling the product may entail hazards caused by, for example, sharp edges, chemical aggression or ejected parts.
WARNING
HAZARD DUE TO INSUFFICIENT PROTECTION
- Implement all safety measures required by the applicable regulations and by the processes used to dismantle/disassemble and dispose of the product.
- Use all necessary personal protective equipment such as gloves and goggles.
Failure to follow these instructions can result in death or serious injury.
End of Life Instructions

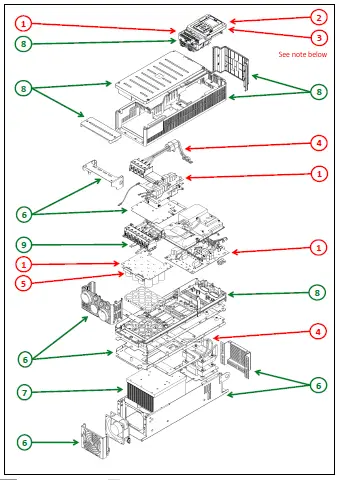

| Recommendation | Number on drawing | Component / Material | Weight (in g) | Comment |
| To be depolluted | 1 | Electronic Board (Power and Communication) > 10cm² | 2377 | |
| To be depolluted | 2 | LCD and all those back-lighted with gas discharge lamps | 25 | |
| To be depolluted | 3 | Other battery | 2,9 | Lithium content: 0,07 g |
| To be depolluted | 4 | Cable (high current) | 1951 | |
| To be depolluted | 5 | Electrolyte capacitors which size: height > 25 mm, diameter > 25 mm or proportionately similar volume | 1090 | |
| To be dismantled | 6 | Steel | 8530 | Lower Housing, Bar, Plate, Support |
| To be dismantled | 7 | Aluminum | 5586 | Heatsink, Bar |
| To be dismantled | 8 | PC, ABS-PC, PA, PA6, HDPE, SAN with or without additives and other polymer | 2405 | Upper Housing, Control Housing, Control Chassis, Cover, Chassis |
| To be dismantled | 9 | Copper | 227 | Bar |
| Other | 7306,1 |
Product description
| Manufacturer identification | Schneider Electric Industries SAS |
| Brand name | Schneider Electric |
| Product reference | ATV630D45N4 |
| Product function | The main function of the Altivar Process product range is the speed control and variation of a synchronous, asynchronous or reluctance electric motor for fluid management and industrial applications. |
| Description of the range | This range consists of products Altivar 630, Altivar 930 and Altivar 955 with ratings from 15 to 22 kW for operation on 200V/240V and ratings from 30 to 45 kW for operation on 400V/480V and of products Altivar 340 with ratings from 30 to 37 kW in heavy duty and 37 to 45 kW in normal duty cycle for operation on 400V/480V, 3-phase supplies IP21/UL type 1. For the Altivar 340 products, the normal duty mode constitutes the referential mode. |
| Total representative product mass | 29,5 kg |
| Representative product dimensions | 673mm x 226mm x 271mm |
| Accessories | No accessories needed. |
| Date of information release | 11/2021 |
