Schneider Electric Atv630d22n4 Variable Speed Drive Instructions

Schneider Electric Atv630d22n4 Variable Speed Drive Instructions

Schneider-LOGO

Schneider Electric ATV630D22N4 Variable Speed Drive

Schneider-Electric-ATV630D22N4-Variable-Speed-Drive-PRODUCT

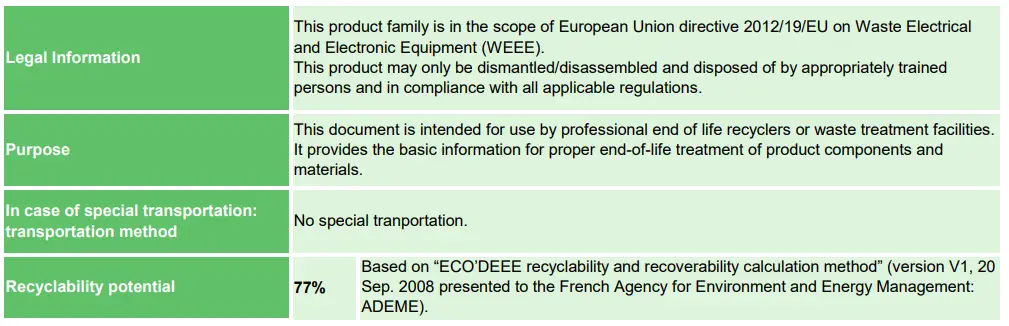

Introduction and Scope

Schneider-Electric-ATV630D22N4-Variable-Speed-Drive-1

Safety Information

The information provided in this document assumes that the product is completely de-energized and uninstalled (refer to the instructions provided in the appropriate product manuals). Dismantling/disassembling the product may entail hazards caused by. for example, sharp edges, chemical aggression or ejected parts.

WARNING
HAZARD DUE TO INSUFFICIENT PROTECTION

  • Implement all safety measures required by the applicable regulations and by the processes used to dismantle/disassemble and dispose of the product.
  • Use all necessary personal protective equipment such as gloves and goggles
  • Failure to follow these instructions can result in death or serious injury.

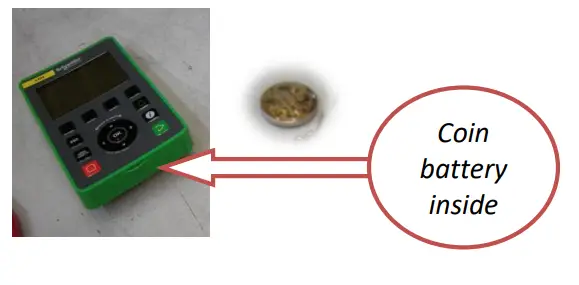

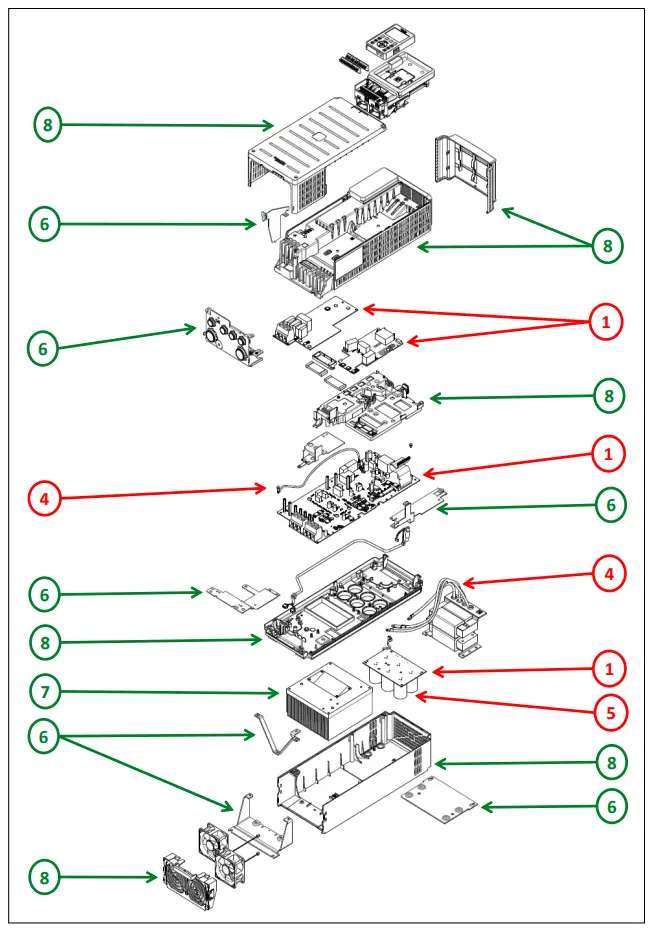

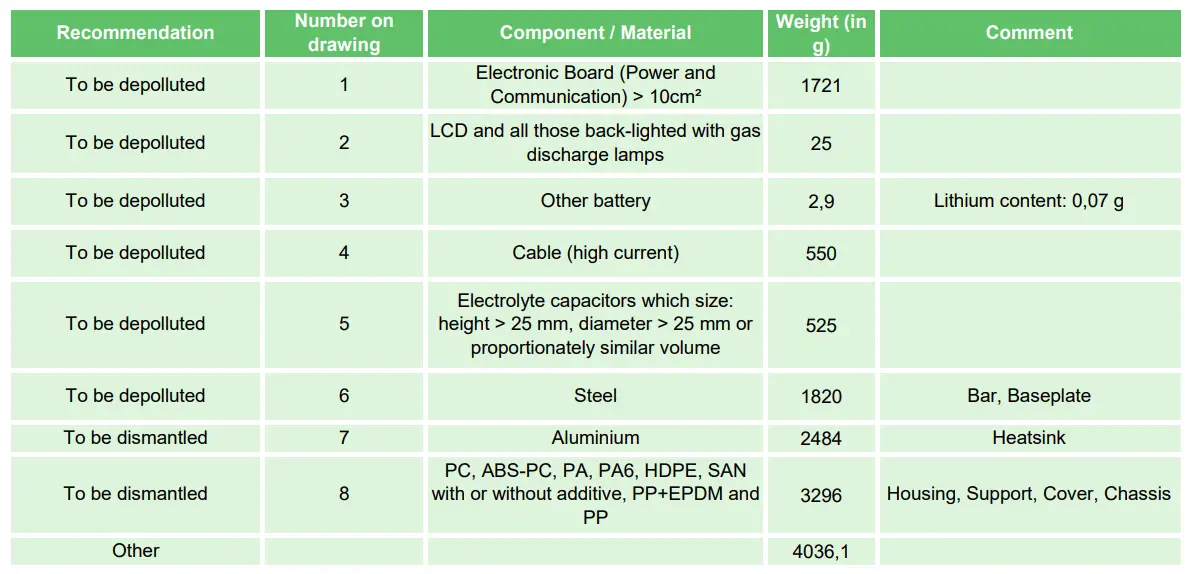

End of Life Instructions

Schneider-Electric-ATV630D22N4-Variable-Speed-Drive-2Schneider-Electric-ATV630D22N4-Variable-Speed-Drive-3Schneider-Electric-ATV630D22N4-Variable-Speed-Drive-4Schneider-Electric-ATV630D22N4-Variable-Speed-Drive-5

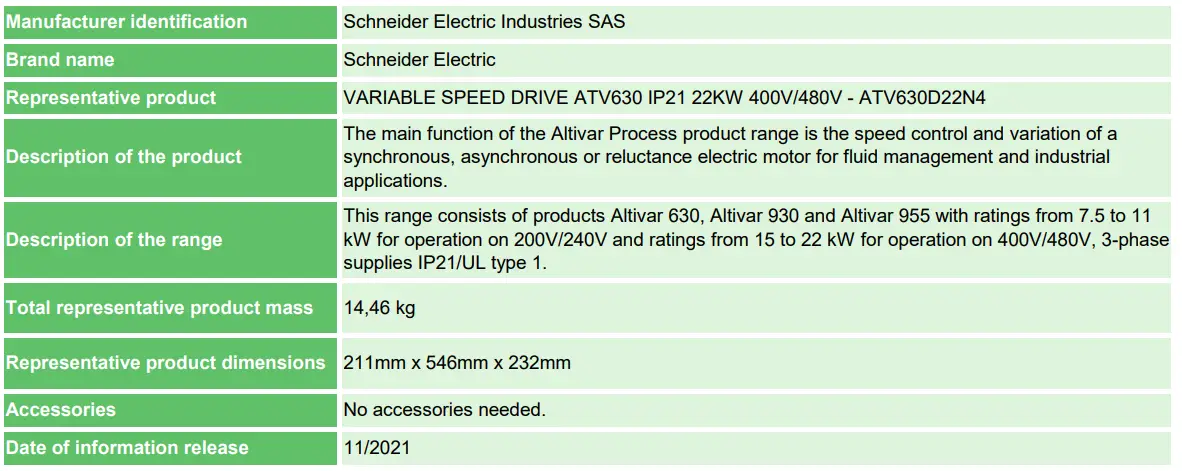

Product Description

Schneider-Electric-ATV630D22N4-Variable-Speed-Drive-6

References

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
