Schneider Electric ATV900 Variable Speed Drive Instruction Manual
Introduction and Scope
Legal Information
This product family is in the scope of European Union directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE).
This product may only be dismantled/disassembled and disposed of by appropriately trained persons and in compliance with all applicable regulations.
Purpose
This document is intended for use by professional end of life recyclers or waste treatment facilities. It provides the basic information for proper end-of-life treatment of product components and materials.
In case of special transportation:
transportation method
No special transportation.
Respectability potential
73%
Based on “ECO’DEEE recyclability and recoverability calculation method” (version V1,
20 Sep. 2008 presented to the French Agency for Environment and Energy
Management: ADEME).
Safety Information
The information provided in this document assumes that the product is completely de-energized and uninstalled (refer to the instructions provided in the appropriate product manuals).
Dismantling / disassembling the product may entail hazards caused by, for example sharp edges. chemical aggression or ejected parts.
WARNING
HAZARD DUE TO INSUFFICIENT PROTECTION
- Implement all safety measures required by the applicable regulations and by the processes used to dismantle disassemble and dispose of the product.
- Use all necessary personal protective equipment such as gloves and goggles.
Failure to follow these instructions can result in death or serious injury.
End of Life Instructions

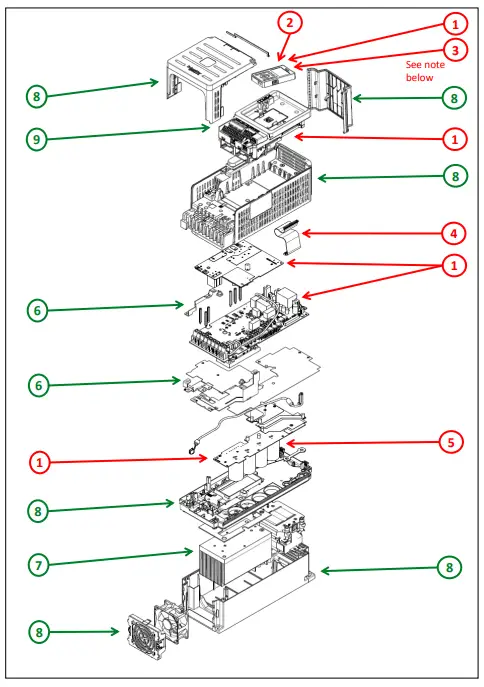

| Recommendation | Number on drawing | Component / Material | Weight (in g) | Comment |
| To be depolluted | 1 | Electronic Board (Power and Communication) > 10cm² | 1222 | |
| To be depolluted | 2 | LCD and all those back-lighted with gas discharge lamps | 25 | |

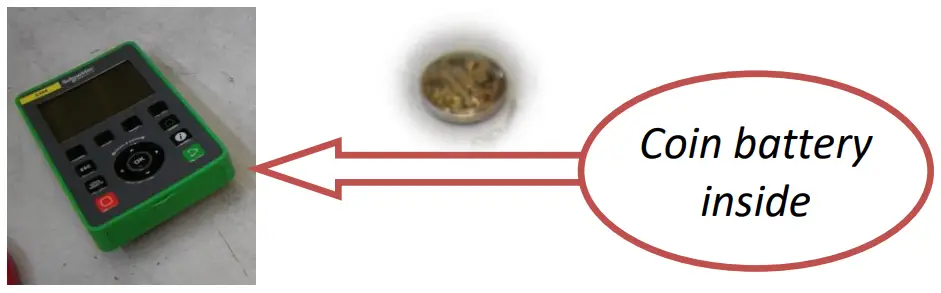

| To be depolluted | 3 | Other battery | 2,9 | Lithium content: 0,07 g |
| To be depolluted | 4 | Cable (high current) | 356 | |
| To be depolluted | 5 | Electrolyte capacitors which size: height > 25 mm, diameter > 25 mm or proportionately similar volume | 350 | |
| To be dismantled | 6 | Steel | 375 | Bar, Plate |
| To be dismantled | 7 | Aluminium | 1212 | Heatsink, Bar |
| To be dismantled | 8 | PC, ABS-PC, PA, PA6, HDPE, SAN with or without additive, PP+EPDM and PP | 2046 | Housing, Cover, Chassis, Support |
| To be dismantled | 9 | Copper | 8 | Bar |
| Other | 3003,1 |
Product description
| Manufacturer identification | Schneider Electric Industries SAS |
| Brand name | Schneider Electric |

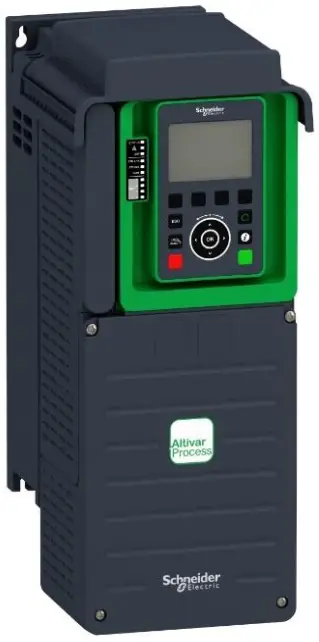

| Representative product | VARIABLE SPEED DRIVE ATV630 IP21 7,5KW 400/480V – ATV630U75N4 |
| Description of the product | The main function of the Altivar Process product range is the speed control and variation of a synchronous, asynchronous or reluctance electric motor for fluid management and industrial applications. |
| Description of the range | This range consists of products Altivar 630, Altivar 930 and Altivar 955 with ratings from 5,5 kW for operation on 200V/240V and ratings from 7,5 to 11 kW for operation on 400V/480V, 3-phase supplies IP21/UL type 1. |
| Total representative product mass | 8600 g |
| Representative product dimensions | 409 mm x 171 mm x 233 mm |
| Accessories | No accessories needed. |
| Date of information release | 11/2021 |
Support
Schneider Electric Industries SAS
Country Customer Care Center
http://www.schneider-electric.com/contact
35 rue Joseph Monier
CS 30323
FR 92500 Rueil Malmaison
Schneider Electric Industries SAS
409 mm x 171 mm x 233 mm
RCS Nanterre 954 503 439
Capital social 896 313 776 €
www.schneider-electric.com
ENVEOLI1508010_V
