Product End of Life
Instructions
VARIABLE SPEED DRIVE ATV650 IP55 22KW 400V/480V
DISCONNECT SWITCH
Altivar Process ATV600/900
Introduction and Scope
Introduction and Scope| Legal Information | This product family is in the scope of European Union directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). This product may only be dismantled/disassembled and disposed of by appropriately trained persons and in compliance with all applicable regulations. | |
| Purpose | ||
| This document is intended for use by professional end-of-life recyclers or waste treatment facilities. It provides the basic information for proper end-of-life treatment of product components and materials. | ||
| In case of special transportation: Transportation method | No special transportation. | |
| Recyclability potential | ||
| 80% | Based on the “ECO’DEEE recyclability and recoverability calculation method” (version V1, 20 Sep. 2008 presented to the French Agency for Environment and Energy Management: ADEME). | |
Safety Information
The information provided in this document assumes that the product is completely de-E’ rielaiLed and uninstalled (refer to the instructions provided in the appropriate product manuals
Dismantling disassembling the product may entail hazards caused by, for example, sharp edges, chemical aggression or ejected parts.
WARNING
HAZARD DUE TO INSUFFICIENT PROTECTION
- Implement all safety measures required by the applicable regulations and by the processes used to dismantle/disassemble and dispose of the product.
- Use all necessary personal protective equipment such as gloves and goggles.
Failure to follow these instructions can result in death or serious injury.
End of Life Instructions
End of Life Instructions |  |

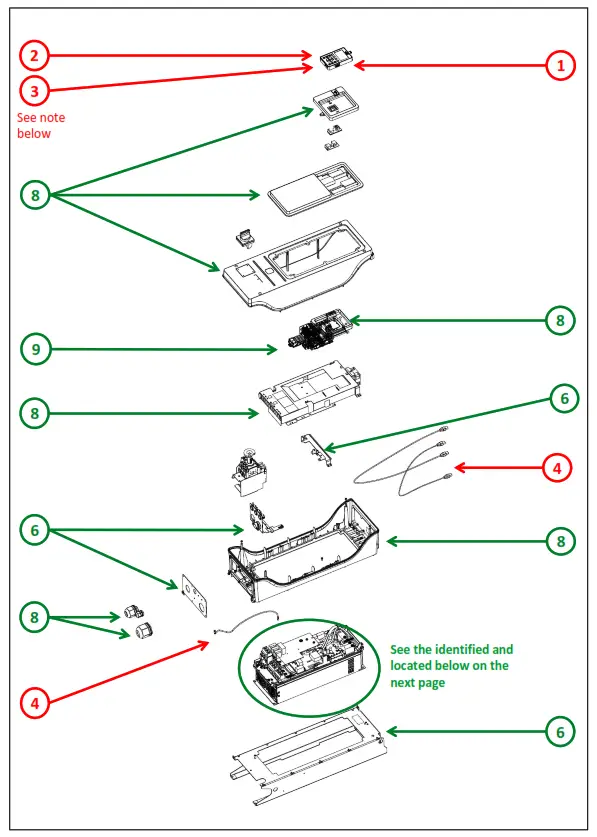

| Recommendation | Number on drawing | Component / Material | Weight (in g) | Comment |
| To be depolluted | 1 | Electronic Board (Power and Communication) > 10cm² | 1792 | |
| To be depolluted | 2 | LCD and all those back-lighted with gas discharge lamps | 25 | |

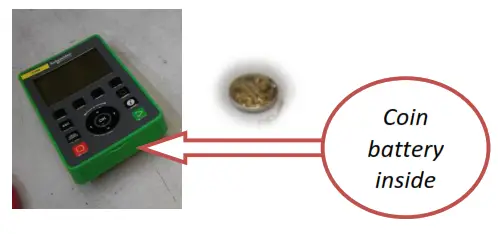

| To be depolluted | 3 | Other battery | 2,9 | Lithium content: 0,07 g |
| To be depolluted | 4 | Cable (high current) | 611 | |
| To be depolluted | 5 | Electrolyte capacitors which size: height > 25 mm, diameter > 25 mm or proportionately similar volume | 525 | |
| To be dismantled | 6 | Steel | 6586 | Bar, Baseplate |
| To be dismantled | 7 | Aluminum | 2484 | Heatsink |
| To be dismantled | 8 | PC, ABS-PC, PA, PA6, HDPE, SAN with or without additive, PP+EPDM, and PP | 4865 | Housing, Support, Cover, Chassis |
| To be dismantled | 9 | Copper | 8 | Bar |
| Other | 4601,1 |
Product Description
| Manufacturer identification | Schneider Electric Industries SAS |
| Brand name | Schneider Electric |

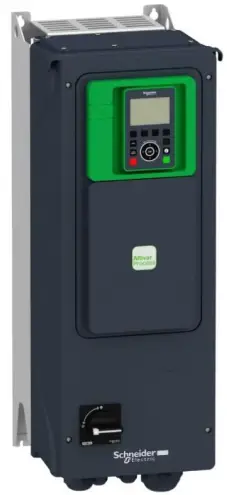

| Representative product | VARIABLE SPEED DRIVE ATV650 IP55 22KW 400V/480V DISCONNECT SWITCH – ATV650D22N4E |
| Description of the product | The main function of the Altivar Process product range is the speed control and variation of a synchronous, asynchronous or reluctance electric motor for fluid management and industrial applications. |
| Description of the range | This range consists of products Altivar 650 and Altivar 950 with ratings from 15 to 22 kW for operation on 400V/480V, 3-phase supplies IP55/UL type 1. |
| The total representative product mass | 21,5 kg |
| Representative product dimensions | 678mm x 264mm x 330mm |
| Accessories | No accessories are needed. |
| Date of information release | 11/2021 |
Schneider Electric Industries SAS
Country Customer Care Center http://www.se.com/contact
35, rue Joseph Monier
CS 30323
FR- 92500 Rueil Malmaison Cedex
RCS Nanterre 954 503 439
Capital social 896 313 776 €
www.se.com
ENVEOLI1406001_V3
Published by Schneider Electric
© 2021 – Schneider Electric – All rights reserved
11/2021
