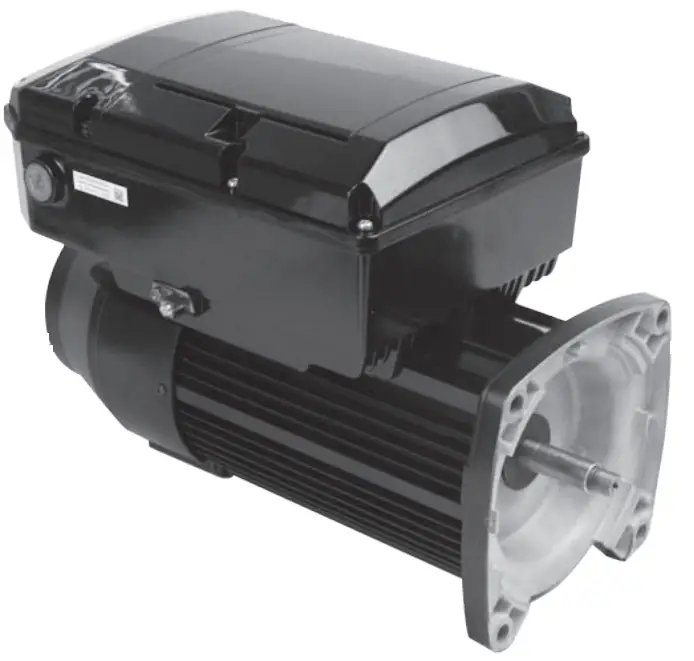

NEPTUNE 186007 Variable Speed Motor and Control
FEATURES:
- Fully Integrated Variable Speed Motor & Control
- Brushless Permanent Magnet (BPM) Motor
- Proposed DOE Law & CEC Title 20 Compliant
- Dual Voltage 1.25THP & 1.65THP Models
- TEFC — IPX5 Enclosure
- Shaft Threads — (Square Flange) 1/2-20 UNC-2A or (C-Flange) 7/16-20 UNF-2A
- 50°C Ambient
- Triple Bearing Protection
- 1081 Design
- Continuous Duty
- Class B Insulated
- Sealed Ball Bearings
- 80%+ Motor & Control Efficiency @ Full Speed
- 300 Series Stainless Steel Shaft
- Speed Range: 600-3450 RPM
- Low Temperature Monitor
- Finned Aluminum Enclosure
- Fully Functional User Interface
- Modbus & Low Voltage Connection to Pool Control Systems
- Up to Seven Daily Schedules Can Be Programmed
- Adjustable Priming Time & Speed
- Menu Keypad Lockout
- Designed For Quiet Operation
- Simple “Drop In” installation with No Complex Wiring
- Factory Programmed Schedule Settings to Meet the Proposed DOE Law & the CEC Title 20 Rule
- Ability to communicate with pool control systems
- Discount Symbol: DS-FPS
| THP | RPM | Voltage | Freq | SF Amps | System Efficiency | Power Factor Corrected | Catalog Number | Motor Frame | Length Less Shaft | Wgt. | List |
| 1.25 | 600-3450 | 115/230 | 50/60 | 13.2/7.7 | 80% | No | NPTQ125* | 48Y | 13.34 | 19 | $870 |
1.65 | 600-3450 | 115/230 | 50/60 | 13.6/6.8 | 81% | Yes | NPTQ165* | 48Y | 10.66 | 28 | $933 |
| 2.25 | 600-3450 | 230 | 50/60 | 9.5 | 81% | Yes | NPTQ225* | 48Y | 10.66 | 30 | $987 |
2.7 | 600-3450 | 230 | 50/60 | 11.1 | 81% | Yes | NPTQ270* | 48Y | 10.66 | 30 | $1,099 |
| THP | RPM | Voltage | Freq | SF Amps | System Efficiency | Power Factor Corrected | Catalog Number | Motor Frame | Length Less Shaft | Wgt. | List |
| 1.25 | 600-3450 | 115/230 | 50/60 | 13.2/7.7 | 80% | No | NPTT125* | 48Y | 12.09 | 19 | $870 |
1.65 | 600-3450 | 115/230 | 50/60 | 13.6/6.8 | 81% | Yes | NPTT165* | 48Y | 10.01 | 28 | $933 |
2.25 | 600-3450 | 230 | 50/60 | 9.5 | 81% | Yes | NPTT225* | 48Y | 10.01 | 30 | $987 |
| 2.7 | 600-3450 | 230 | 50/60 | 11.1 | 81% | Yes | NPTT270* | 48Y | 10.01 | 31 | $1,099 |

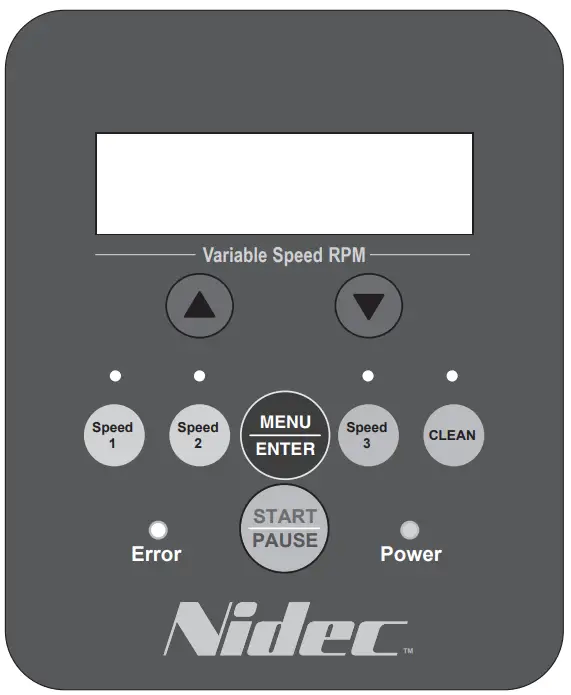

Simple & Intuitive Neptune™ User Interface
- Up to Seven On/Off Time & Speed schedules available.
Preprogrammed with Three energy savings mode schedules. - One touch speed settings closely tie to the 2021 DOE Rule speed settings: Speed 1 = 1350 RPM, Speed 2 = 1725 RM & Speed 3 = 2760 RPM
- One touch Clean button which runs the motor at 3450 RPM for 30 minutes
- Up and Down arrows allow for navigation through menu options and allow for one touch +/- 10 RPM speed changes for fine tuning flow rates
- LCD screen alternately displays Time of Day and Current Speed then the Current Operation Mode and the time remaining in this Mode
Customer Support
* California Energy Commission (CEC) Appliance Regulations (Title 20) compliant
** Contact dealer for full conditions of operation
Catalog numbers are for competitive comparison purposes only.
Extreme-E® represents our most efficient
running, highest performing lines of motors.
