Curaqua 431305 Kitchen Mixer Tap Instruction Manual

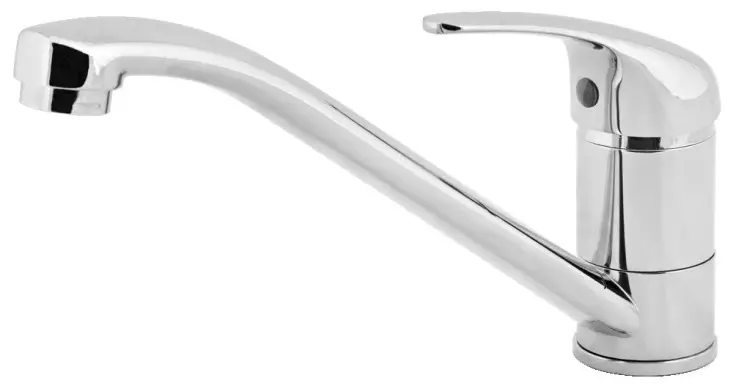

CURAQUA 431305 Kitchen Mixer Tap

Read the User Instructions carefully before use.
Save these instructions for future reference.

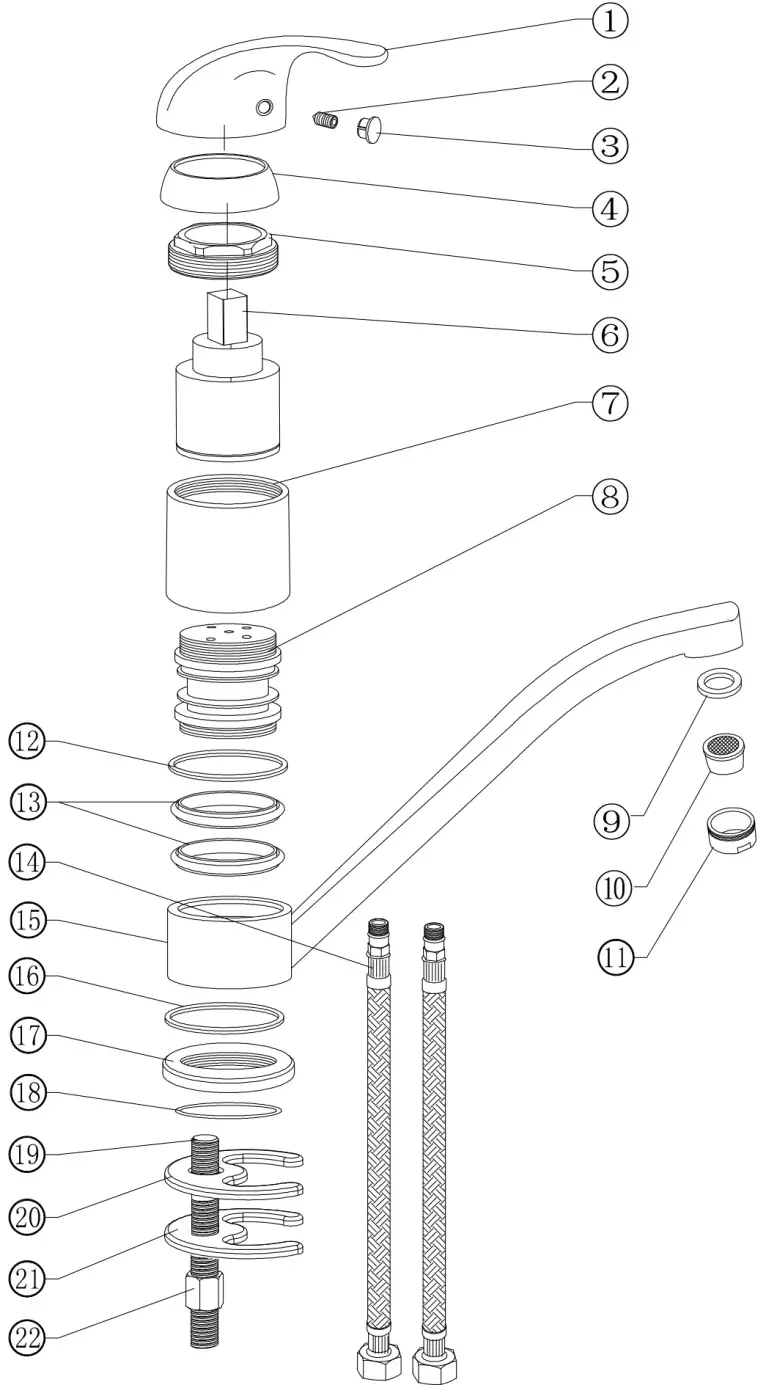

DESCRIPTION

1. Handle
2. Screw
3. Red/blue indicate
4. Beauty cover
5. Pressing cover
6. Cartridge
7. Brass cartridge
8. Body
9. Gasket
10. Filter
11. Aerator
12. Gasket
13. O-ring
14. S.S flexible hose
15. Spout
16. Gasked
17. Base
18. Gasked
19. Screw rod
20. Gasked
21. Horseshoe metal
22. Screw nut

INSTALATION

1. Install o-ring and screw rod on to body.

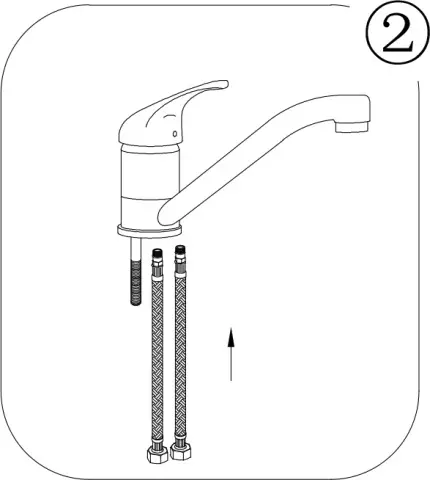

2. Install flexible hose on to body.

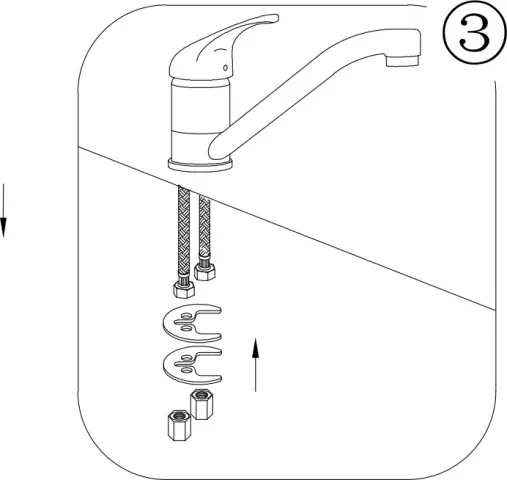

3. Install the body on the hole of plate and install the gasket and horse metal on to screw rod. Install the nut.

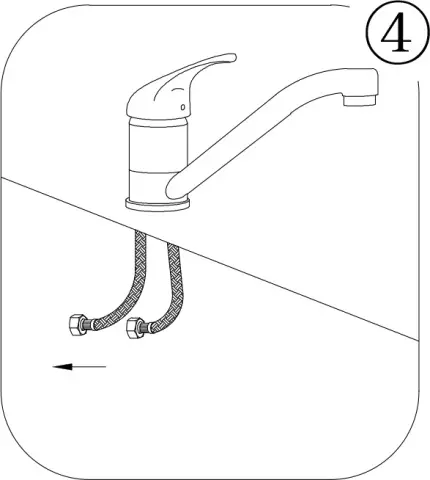

4. Contact the flexible hose to the Angle valve.
