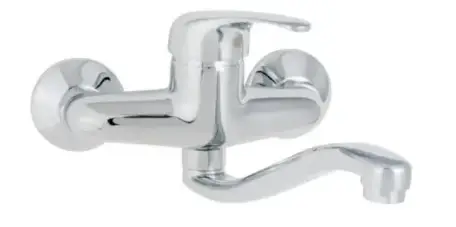

DElinia 3276000592228 Natu Kitchen Sink Mixer Tap Wall Type Chrome Instruction Manual

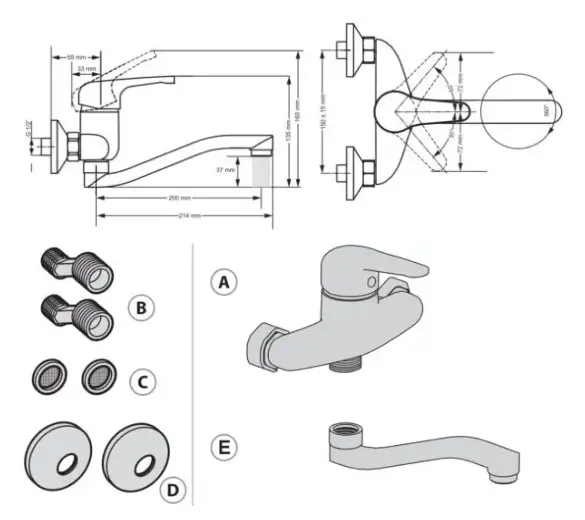

Package Contents

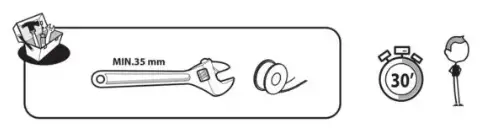

Tools Required

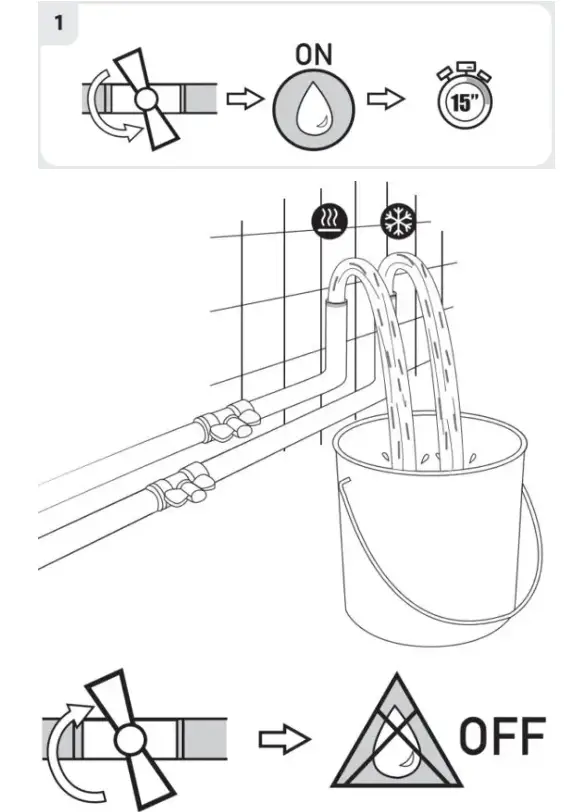

Preparation

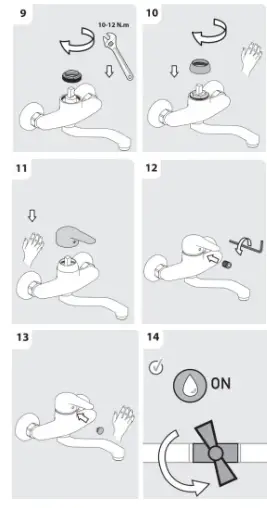

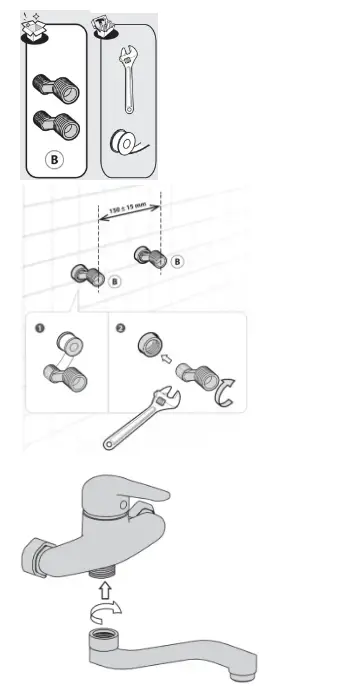

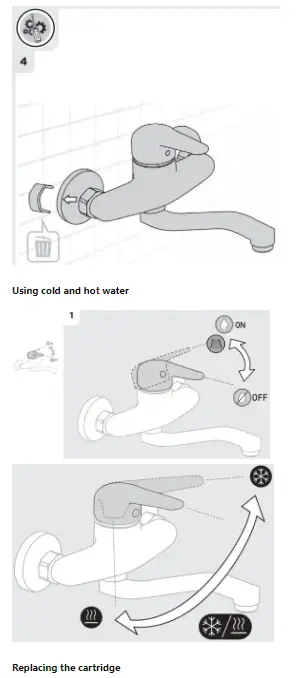

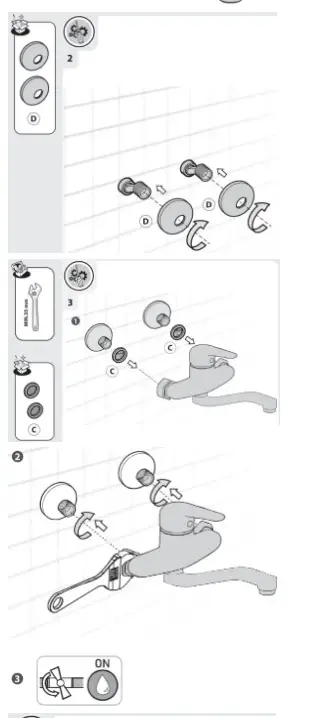

Assembly

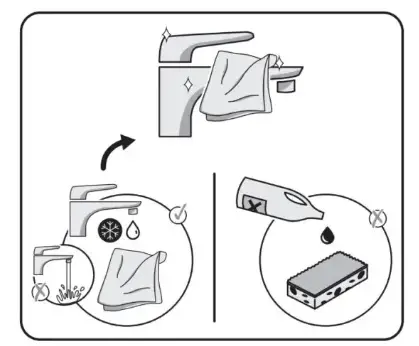

- Clean Water
- Solvent-free
| NO | DESCRIPTION | CODE NO | QTY | REMARK |
| 1 | Handle | 25 | 1 | |
| 2 | Beautify Cover | 603087 CR | 1 | |
| 3 | Pressing Nut | 604118 BC | 1 | |
| 4 | Cartridge | SN-40 S/D THEDRA | 1 | |
| 5 | Mixer Body | 60255-01 | 1 | |
| 6 | Spout | 60255-002 | 1 | |
| 7 | Aerator | 40.2103.000 | 1 | |
| 8 | Aerator Shell | 301001 CR | 1 | |
| 9 | Fixing pack | T-23 | 2 |
Support
Declaration of sanitary conformity.
10-years guarantee.
ADEO Service- 135 Rue Sadi Carnot- CS 00001
59790 RONCHIN-France
