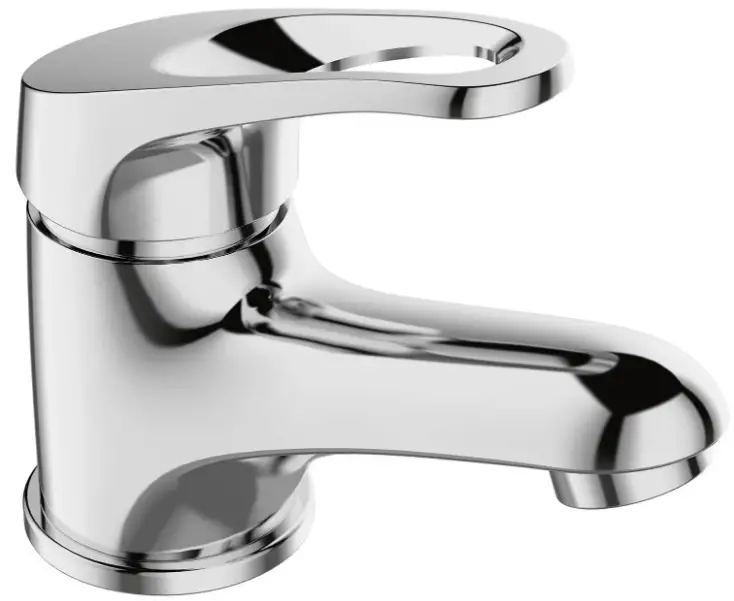

BRISTAN IRS BAS C (D1) Iris Chrome Basin Mixer Tap
Specifications
Dynamic Water Pressure

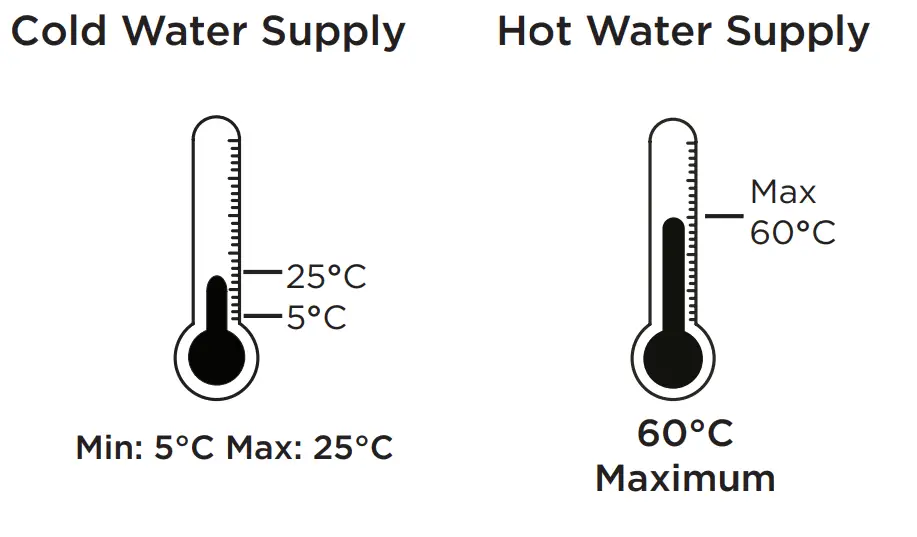

Inlet Water Temperature

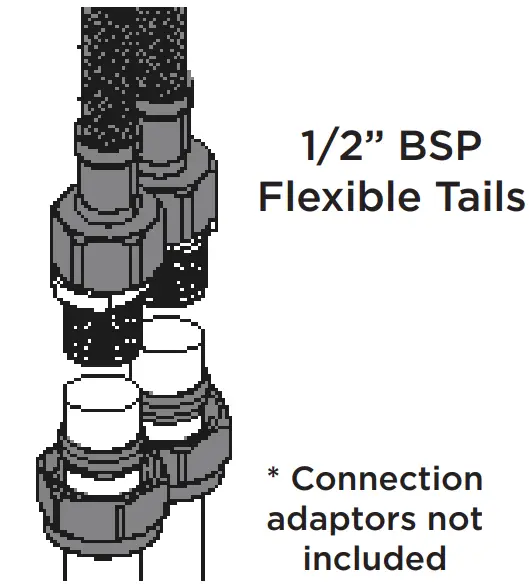

Inlet Connections

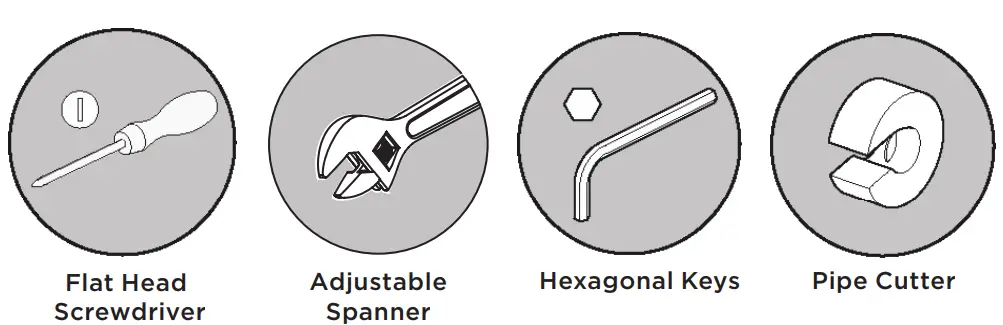

Tools You’ll Need
Prior to Installation
- All products manufactured and supplied by Bristan are safe provided they are installed, used correctly and receive regular maintenance in accordance with these instructions.
- This product has been tested to the Water Regulations Advisory Scheme (WRAS) and satisfies the requirements of the Water Supply (Water Fittings)
- Regulations 1999 and current bylaws. For full Installation Requirements & Notes (IRN) please visit wras.co.uk/directory.
- We recommend isolation valves to be fitted to the inlet water supplies to ensure ease of future maintenance.
- Before installing these taps the water supply must be thoroughly flushed in order to remove any swarf, solder etc.
- This product must not be modified in any way as this will invalidate the guarantee.

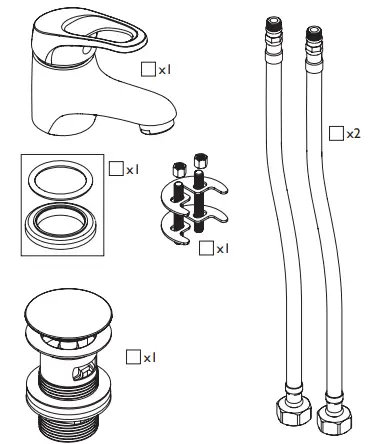

Pack Contents

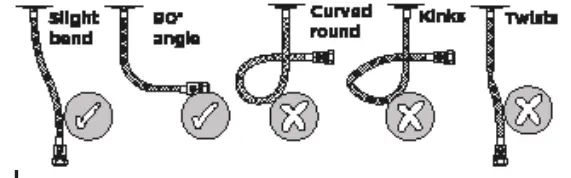

Flexible Tail Positions
Spare Parts
To replace any spare parts for your tap, why not scan the QR Code or visit www.bristan.com and search for your product

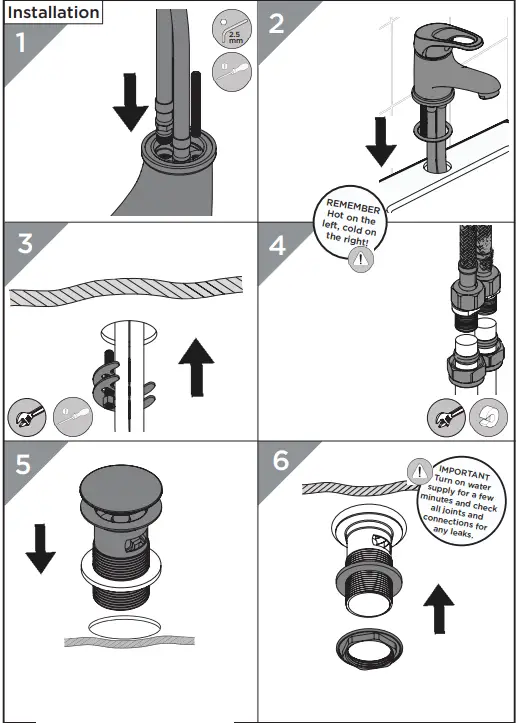

Installation
- Screw the flexible tails and fixing kit rods to the tap base by hand only. DO NOT OVER TIGHTEN.
- Feed the tap body through the basin hole, ensuring the plinth washer is in place.
- Secure the tap body using the fixing kit.
- Connect the flexible tails to the hot and cold water supplies. We would recommend that you install flat-faced isolation valves to the water supplies for safety and maintenance purposes
- Feed the waste body through the basin, ensuring the rubber washer is in place.
- Secure in place using the washer and backnut.

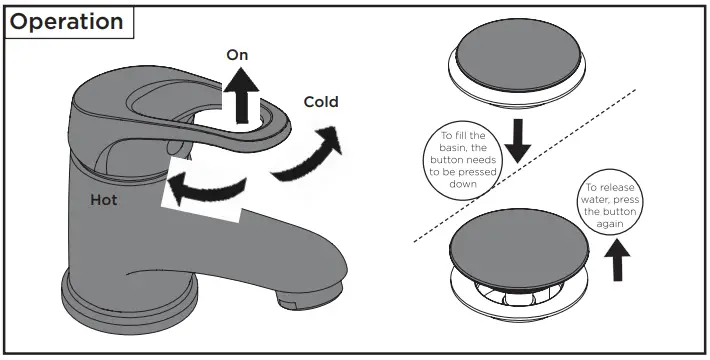

Operation

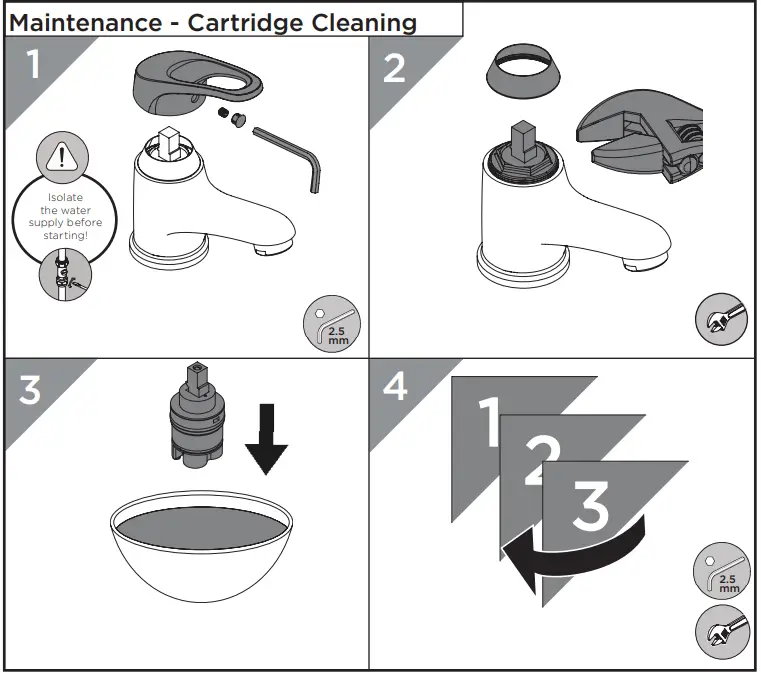

Maintenance – Cartridge Cleaning
- Prise off the cap and undo the grub screw to remove the handle.
- Unscrew the shroud. Undo the cartridge retaining nut to remove the cartridge.
- Check any seals and O-Rings for damage; replace the cartridge if necessary. Place the cartridge in a suitable solution and soak until fully de-scaled.
- Reverse the steps to replace the cartridge and handle.
General Cleaning
- Bristan products are made from premium materials, with hand polishing and electroplated finishes.
- Your taps or shower should be regularly cleaned with warm water, a mild pH-neutral liquid soap, and polished with a soft cloth. Any residues from soap, toothpaste, shampoos, and shower gels can cause blemishes if not rinsed off straight after use.
- Household bleaches and cleaners contain harsh chemicals and may damage the surface finish. Avoid using abrasive cloths, scouring pads, scrub sponges, steel wool, or anything similar.
- Some surfaces such as nickel and pewter may be affected by the dye found in some cloths, so it is also important to avoid hanging cloths on spouts.

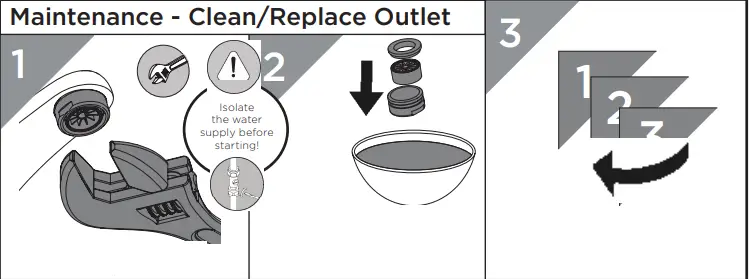

Maintenance – Clean/Replace Outlet
- Remove the outlet using a suitable spanner.
- Check any seals for damage; replace them if necessary. Place the outlet in a suitable solution and soak until fully de-scaled.
- Reverse the steps to replace the outlet.

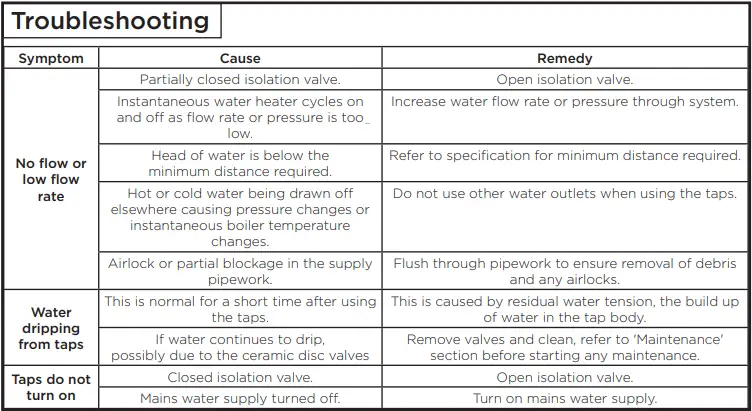

Troubleshooting
At Bristan, we want to make things as easy as possible for our customers. That’s why we offer solid guarantees on all our products, effective from the date of purchase, to give you peace of mind. To start your free guarantee simply scan the QR code and register your product. Alternatively, visit www.bristan.com/register to register your product via a computer. For full guarantee terms and conditions visit www.bristan.com/guarantees.
