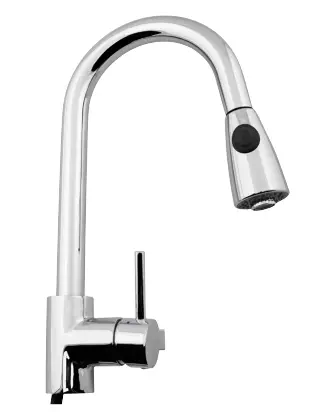

JULA 003844 Kitchen Mixer Tap

KITCHEN MIXER TAP

OPERATING INSTRUCTIONS

Important! Read the user instructions carefully before use. Save them for future reference. (Translation of the original instructions).

INSTALLATION

NOTE:
Make sure to turn the water off first.

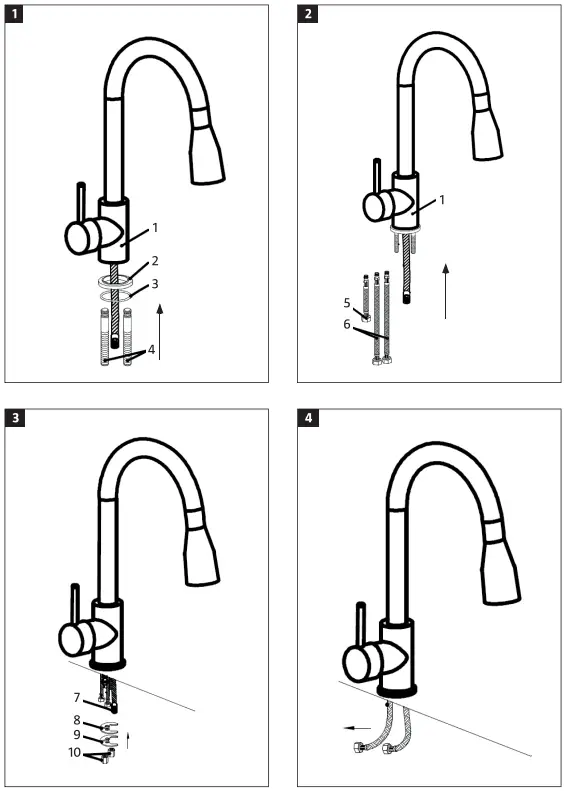

1. Fit the O-ring (3) to the foot, and fit the foot (2) and bolts on the body. FIG. 1
2. Fit the flexible hoses for hot and cold water, plus the pull-out hose on the body. FIG. 2
3. Draw the hoses and bolts through the top, fit the washer (8), horseshoe (9), and nuts (10).FIG. 3
4. Connect the hoses to the water pipes and tighten them. FIG. 4

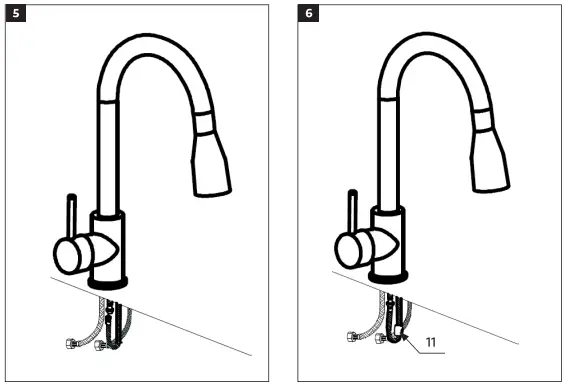

5. Connect the last flexible hose with the pull-out hose and tighten. FIG.5
6. Fit the weight (1) on the pull-out hose and open tor the water. FIG. 6
