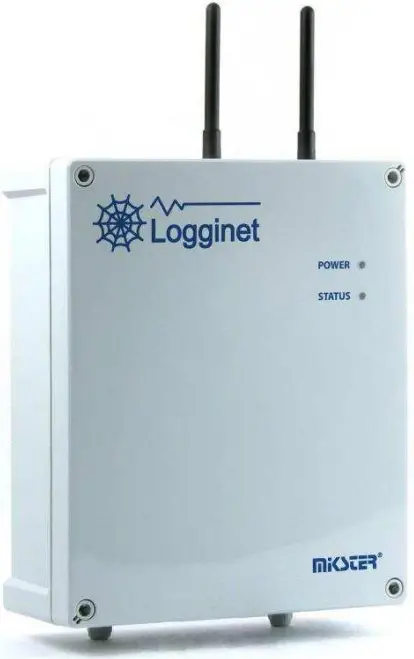

MIKSTER Logginet UNI Transmitting and Recording Center Owner’s Manual
Description:
The Logginet UNI/ZB recording centre enables the registration of data from the Logginet-WS, Logginet Standard and Logginet Clip system sensors. Additionally, it cooperates with the Loggicar-R vehicle recorders. The collected data are transmitted via LAN or RS485 connection to the Loggisoft programme.

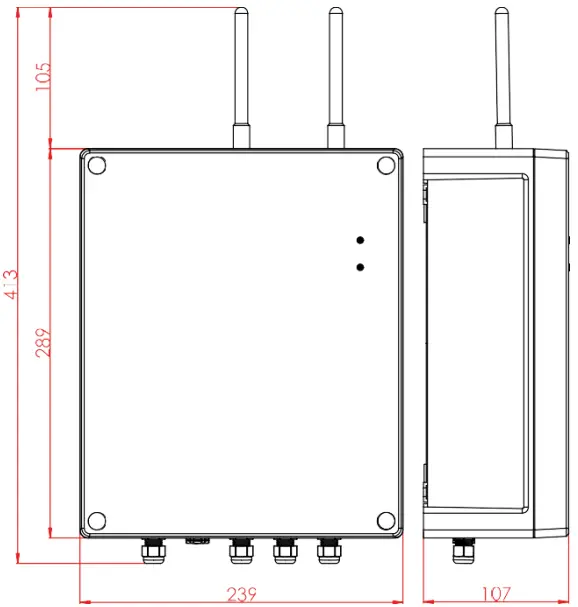

External dimensions:
| Technical data | |
| Communication ports | – RJ45 LAN |
| – RS232 | |
| – RS485 x2 | |
| – OneWire | |
| Voltage output | 12V (sygnalizator akustyczny) |
| Logging memory | 16mln records |
| Power | 230V AC |
| Approximate operating time on battery powerbattery operation time | 20 hours |
| Operating conditions | -10°C .. 60°CHumidity: 0..75% |
| Storage conditions | Temperature: -20oC..60 oC Humidity: 0..75% |
| Electromagnetic compatibility (EMC) | Resistance as per standard PN-EN61000-6-2 |
| Data communication | Operating frequency: 868.4 MHz for both radio channels. |
| GSM modem | For sending alarms in the form of SMS messages. |
| Installation data | |
| External dimensions | Housing:239x289x107mm (W/HD) with antenna 239x413x107mm (W/H/D) |
| Weight | 2.2kg |
| Fixing | 4 handles included |
