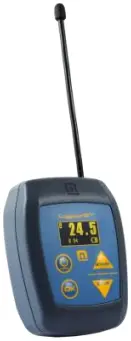

Loggicar BT Transport recorder
DESCRIPTION:
Recorder has 4 measurement channels to which you can connect sensors to measure temperature or temperature and humidity and 4 digital channels to connect the sensors control door closing / opening. The device communicates with the sensors wirelessly via radio, providing full supervision over the cold room of the vehicle. Memory of the recorder (nonvolatile) memory allows you to store about 32000 measurements. When the memory is full the oldest samples are deleted and the new ones are added (overwritten). The content of the recorder’s memory (for archiving purposes) can be transferred to a computer using the Loggisoft LC program (option) or with the LoggicarBT application on a smartphone using the Bluetooh module for communication. The integrated graphical display (OLED) enables local visualisation of the measurements and facilitates the operation of the device.

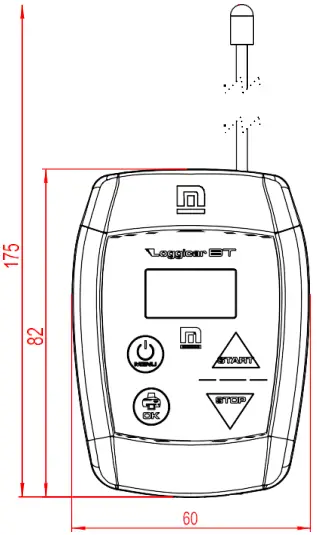

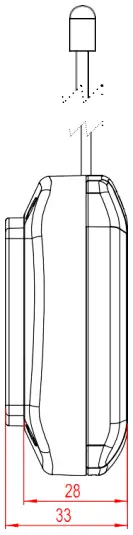

External dimensions:
Technical data | |
| Overall dimensions | 82x60x28mm 82x60x33mm with handle |
| Weight | 0,2 kg |
| Degree of protection | IP 21 |
| Operating conditions for housing | Temperature -30°C .. +70°C Humidity : 0..75% |
| Power | 5V USB – from power adapter from 12-24V car adapter |
| Power consumption | Max. 0,9W 170mA/5V |
| Recorder’s memory | 98000 samples |
| Recording frequency | 1-180 min. |
| Number of measurement channels | 4 pcs. |
| Number of digital channels | 4 pcs. |
