Miboxer Fut086 Lora 433mhz Rf Remote User Manual

Mi • Ligh
Subordinate New Brand
LoRa 433MHz RF Remote
Model No.: FUT086

Product Features

This product is a 433MHz frequency wireless remote control. We use LoRa SPSP
Modem technology. It can control specified 433MHz series smart lights with color changing, color temperature, saturation, and brightness adjustable.

Technical Parameters

Model No.: FUT086
Voltage: 3V(AAA * 2PCS)
Transmitting Power: 10dBm
Standby Power Consumption: 16uA
RF: 433MHz
Modulation Method: LoRa Spread Spectrum
Control Distance: 50m(Lamps 0.5m underwater)

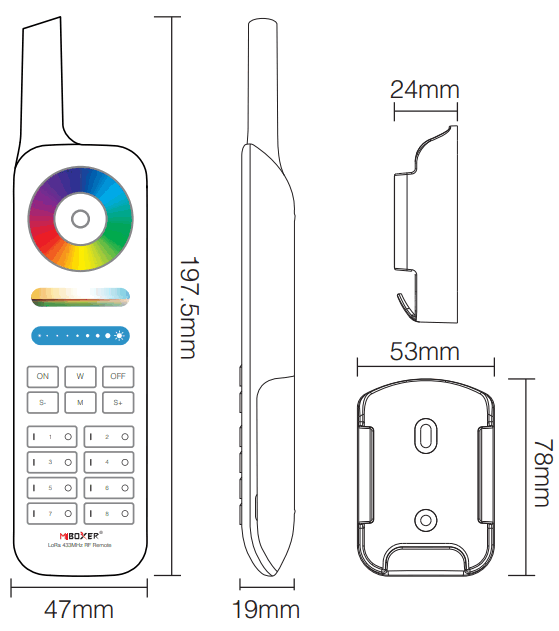

Size: 197.5mm*47mm*19mm

Products Key Diagram

	Touch the color ring to change colors.
	Under white light mode, adjust color temperature; Under color light mode, change color saturation.
	Slide the brightness slider to adjust the brightness.
	Press the button to get white light.
	Touch the ON button, turn on the linked device.
	Touch the OFF button, turn off the linked device.
	Dynamic mode switching button.
	Short press: Lower the dynamic mode speed. Long press under the static mode, the lamp will blink one time into 60S Delay OFF mode.
	Short press: Accelerate the dynamic mode speed. Long press under the static mode, the lamp will blink one time into 10min Delay OFF mode.

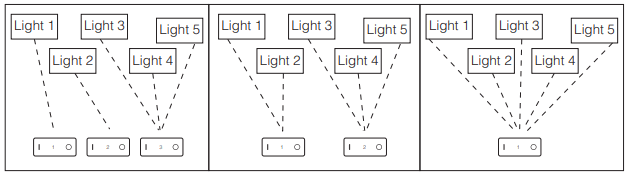

Grouping of several lights

You can add an endless number of lights to a zone on the 8 channels remote by linking the lights to different zones. This way you are completely flexible in creating different group combinations. Below you can see some grouping examples.

Remark:

1. The user can re-program freely as needed. One remote can control countless lamps or controllers, but one lamp or controller can only be controlled by four remotes (Max).
2. Please check the battery installation and controller ( totally discharge the power ), when you program after switching off and switching on.

Linking&Unlinking

Remark: The light can be working after linking with the remote controller.

Linking Instructions

1. Switch off the light, after 10 seconds switch on again	2. When the light is on, short press any zone of ” ” 3 times within 3 seconds	3. The light blinks 3 times slowly means the linking is done successfully.

If the light does not blink slowly, the linking failed, Pls switch off the light again, and follow the above steps again.

Unlinking Instructions

1. Switch off the light, after 10 seconds switch on again	2. When the light is on, short press any zone of ” ”  5 times within 3 seconds Unlinking must be the same zone with the Linking	3. The light blinking 10 times quickly, means the unblinking successfully.

If the light does not blink quickly, the unlink failed, pls switch off the light again, and follow the above steps to unlink again.

Attention

1. In the use of the remote, if the indicated lamp blinking quickly, pls change the battery in time. Pls, don’t use poor-quality batteries to avoid the leaking of battery liquid to damage the remote controller.
2. This 433MHz remote control system is a precise electronic product; don’t use it in humid, high temperature, dust, and high voltage environment; Saving it at indoor, dry, and no static electricity environment.
3. Pls don’t use the remote controller on the wide-range metal or strong electromagnetic wave area, otherwise, it will badly affect the controlling distance.

Made in China
