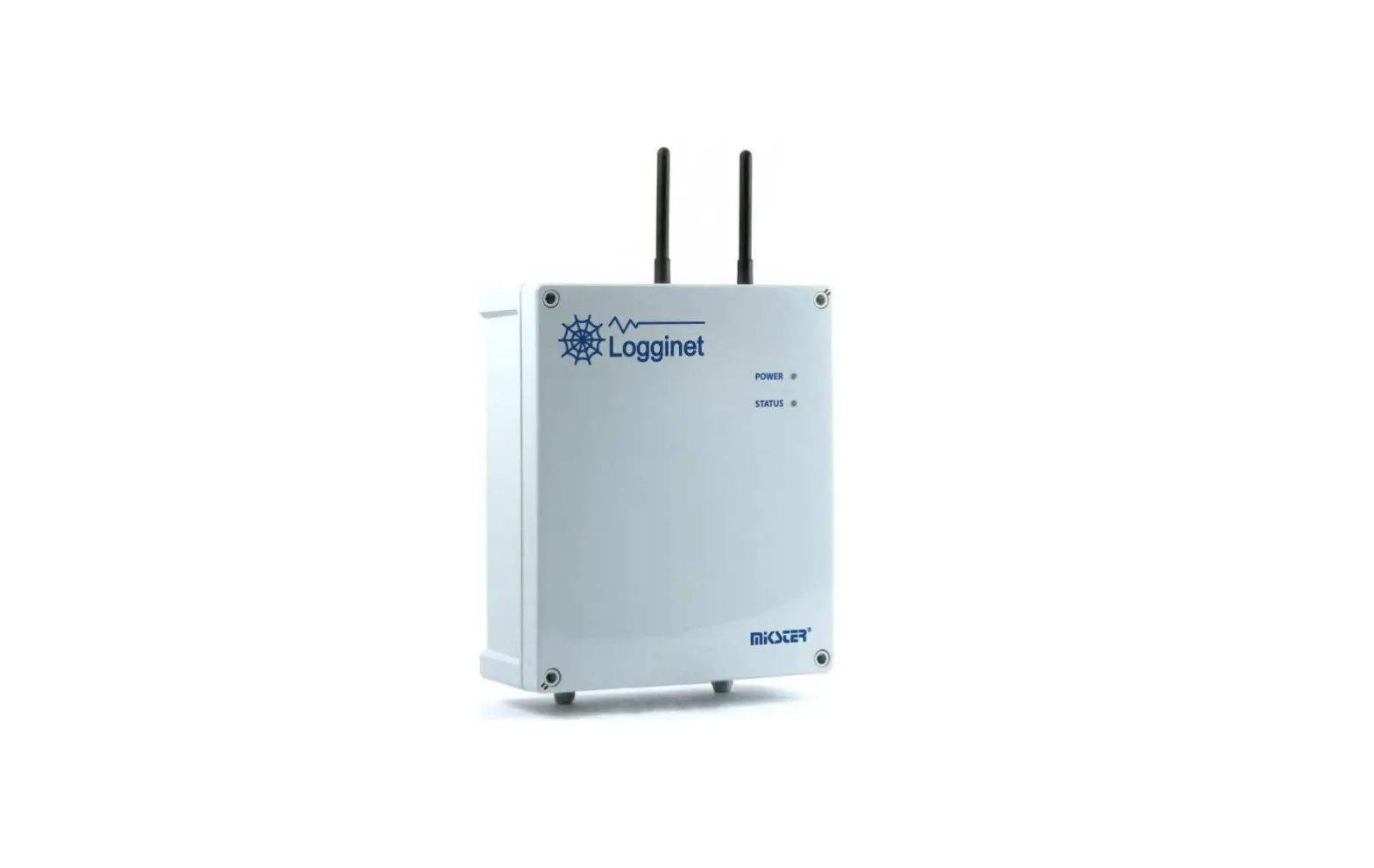

Logginet UNI/ZB Registration Unit

The Logginet UNI/ZB recording center is designed to register data from the Logginet-WS, Logginet Standard, and Logginet Clip system sensors. It also works with the Loggicar-R vehicle registers. The collected data can be transmitted via LAN or RS458 connection to the Loggisoft program.

Technical Data

• Communication Ports:
  • RJ45 LAN
  • RS232 – RS485 x2 – OneWire
• Voltage Output: 12V (saunders)
• Logging Memory: 16 million records
• Power: 230V AC
• Approximate Operating Time on 20 Hours Battery
  Power: Battery operation time
• Operating Conditions:
  • Temperature: -20°C to 60°C
  • Humidity: 0% to 75%
• Electromagnetic Compatibility (EMC):
  Resistance as per standard PN-EN61000-6-2
• Data Communication:
  • Operating frequency: 868.4 MHz for both radio channels.

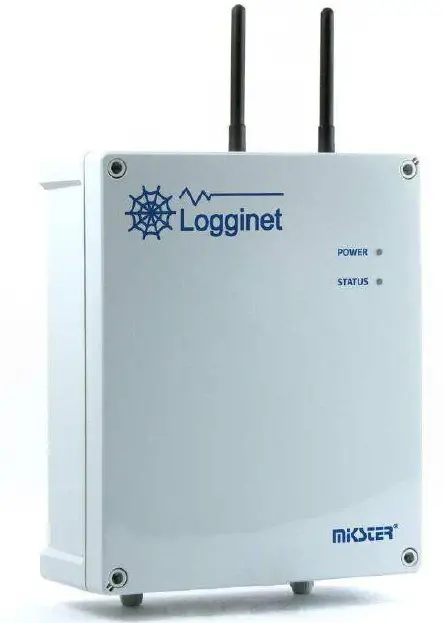

• External Dimensions:

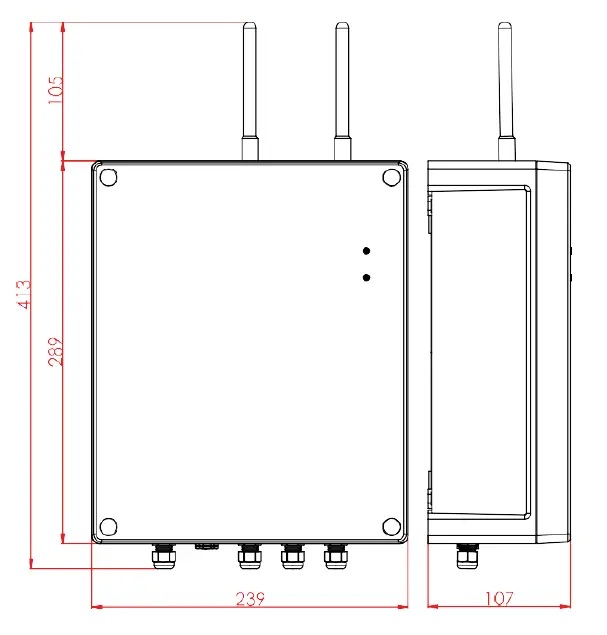

  • Housing: 239x289x107mm (W/HD) with antenna 239x413x107mm
    (W/H/D)
  • Weight Fixing Degree of Protection, Enclosure: 2.2kg 4 handles
    included IP65, ABS

Installation Data

For installation, please refer to the manufacturer’s manual.

Product Usage Instructions

1. Connect the Logginet UNI/ZB Registration Unit to the sensors.
2. Connect the Logginet UNI/ZB Registration Unit to the LAN or RS458 connection.
3. Plug in the power source (230V AC).
4. The collected data can be transmitted via LAN or RS458 connection to the Loggisoft program.
5. For further instructions on using the Loggisoft program, please refer to its manual.
