ZKTeco LM-2805 Access Control Kit
Product description
ZKTeco LM-2805 Access Control Kit
Product description

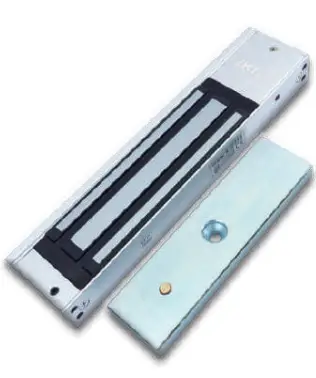

- Can withstand 200kg-220kg pulling force;
- A variety of installation methods, according to different installation scenarios, U, L, Z, ZL mounting brackets are available;
- Can be installed in iron doors, wooden doors and glass doors;
- With signal feedback function;
Parameters
| Input voltage | DC12V |
| Working current | 480m A±5 % |
| Tensile force range | 200kg±5 % |
| Weight | 1.77kg |
| Lock body size | 250x 47 x 25.5mm |
| Iron plate size | 180x 38x 11mm |
| Interface Description | V + – positive powe r supply; V – – negative power supply; Feedback signal output: NO/COM/NC |

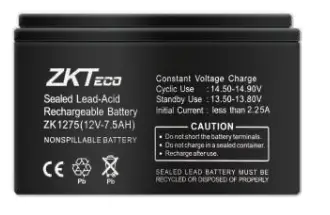

Backup power
Parameters
| Operating Voltage | 12V – 7.5AN |
| Cyclic Use | 14.50 – 14.90V |
| Standby Use | 13.50 – 13.80V |
| Initial Current | Less than 2.25A |
TLEB102 Exit button
Product description
The TLEB102 is a new infrared sensor door switch with a compact size.Exquisite appearance,economical application etc., widely used in access control security.
Parameters
| Switching voltage | DC 9 ~ 16V |
| Rated current | 2A |
| Operating temperature | -20°C ~ +50°C |
| storage temperature | -20°C ~ +65°C |
| Working humidity | 10%-90% |
| shell material | SUS304 stainless steel material |
| Infrared sensing distance | 2-10CM |
| Size | Length 115* width 70* height 38mm |
Wiring definition
| Wiring color | Description |
| Red | 12V |
| Black | GND |
| Yellow | N0 |
| White | COM |
| Green | NC |

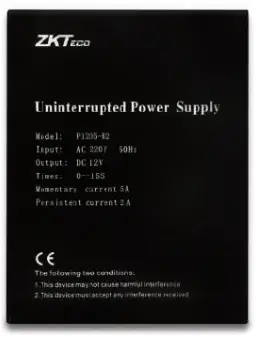

Power supply
Product description
- The output ripple is small and the high frequency interference is small;
- The product structure is simple and convenient for maintenance;
- Pure copper transformer coil, stable operation;
- With overload protection function;
- Can be connected to the backup battery;
Parameters
| Input | AC 220V 50Hz |
| Output | DC 12V |
| Timer | 0 — 15S |
| Momentary current | 5A |
| persistent current | 2A |

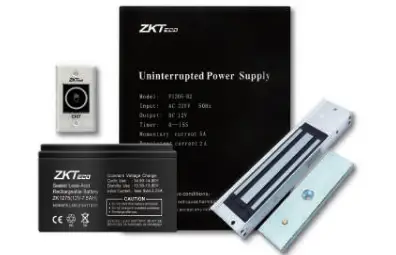

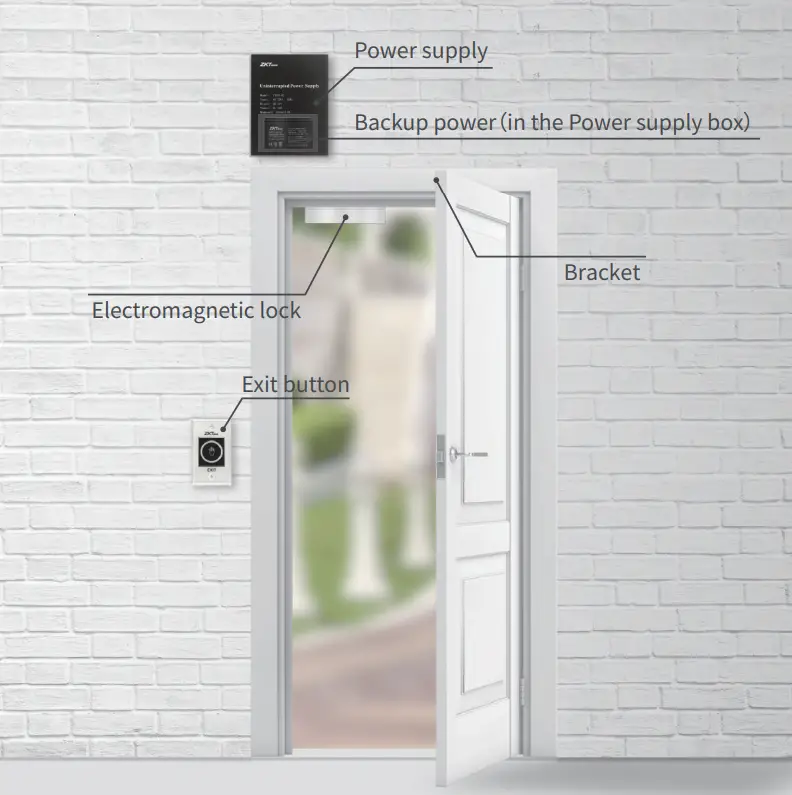

Packing list
| Product | Quantity |
| Exit switch | X1 |
| Electromagnetic lock | X1 |
| Uninterrupted power supply | X1 |
| Backup power | X1 |
| Bracket | X2 |

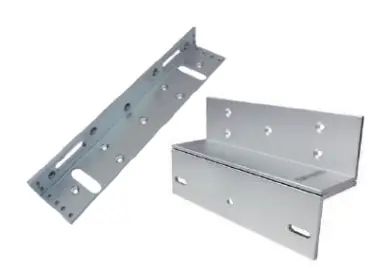

Lock Bracket
Product description
Two brackets (L-shaped and Z shaped) can be used for lock installation.It can be installed in iron doors, wooden doors.
Parameters
| Finished for Shell | Anodized Aluminum |
| Opening Mode | 90-degree door |
| L-shaped Bracket Size | 50*50*30 mm |
| Z-shaped Bracket Size | 180*50*50 mm |
